8
7
6
5
4
3
2
NOTES
1
1. MATERIAL:
BODY: PBT, UL94V-0
COVER: PBT, UL94V-0
STRAIN RELIEF: 304 STAINLESS
STEEL
CONTACTS: COPPER ALLOY.
2. PLATING:
50-150 " NICKEL UNDERPLATE
30 = 30 " MIN. GOLD ON WIPING
AREA
00 = FLASH GOLD ON WIPING AREA.
3. RIBBON CABLE COMPATIBILITY:
GENERAL:
0.025" PITCH PVC, PO, TPE,
OR FEP CABLE 30 AWG, SOLID
OR 7 STRAND.
RECOMMENDED:
3M 3754, 3749, HF447 SERIES
CABLE.
4. MATING COMPATIBILITY:
3M .050" X .050" SERIES 452
HEADER WITH LATCH/EJECT
OPTION.
5. REGULATORY INFORMATION:
ROHS COMPLIANT. SEE THE
REGULATORY INFORMATION
APPENDIX (RIA) IN THE
"ROHS COMPLIANCE" SECTION
OF WWW.3MCONNECTORS.COM
FOR COMPLIANCE INFORMATION
(RIA E1 & C1 APPLY)
6. IN THE EVENT OF CONFLICT
BETWEEN THIS DATA AND THAT
CONTAINED IN THE PRODUCT
SPECIFICATION, THE PRODUCT
SPECIFICATION TAKES PRECEDENT.
7. REFERENCE RELATED DOCUMENTS:
PRODUCT SPECIFICATION:
3M DOC. ID# 78-5102-0091-4.
8. TOOLING AND INSTALLATION
INSTRUCTIONS:
3M DOC. ID# 78-9101-5361-4
9. OTHER PIN COUNTS AVAILABLE
UPON REQUEST. CONTACT 3M.
10 PACKAGING:
SOCKET: TRAY
COVER: BAG
REVISION
DRAWING NUMBER
3M
TM

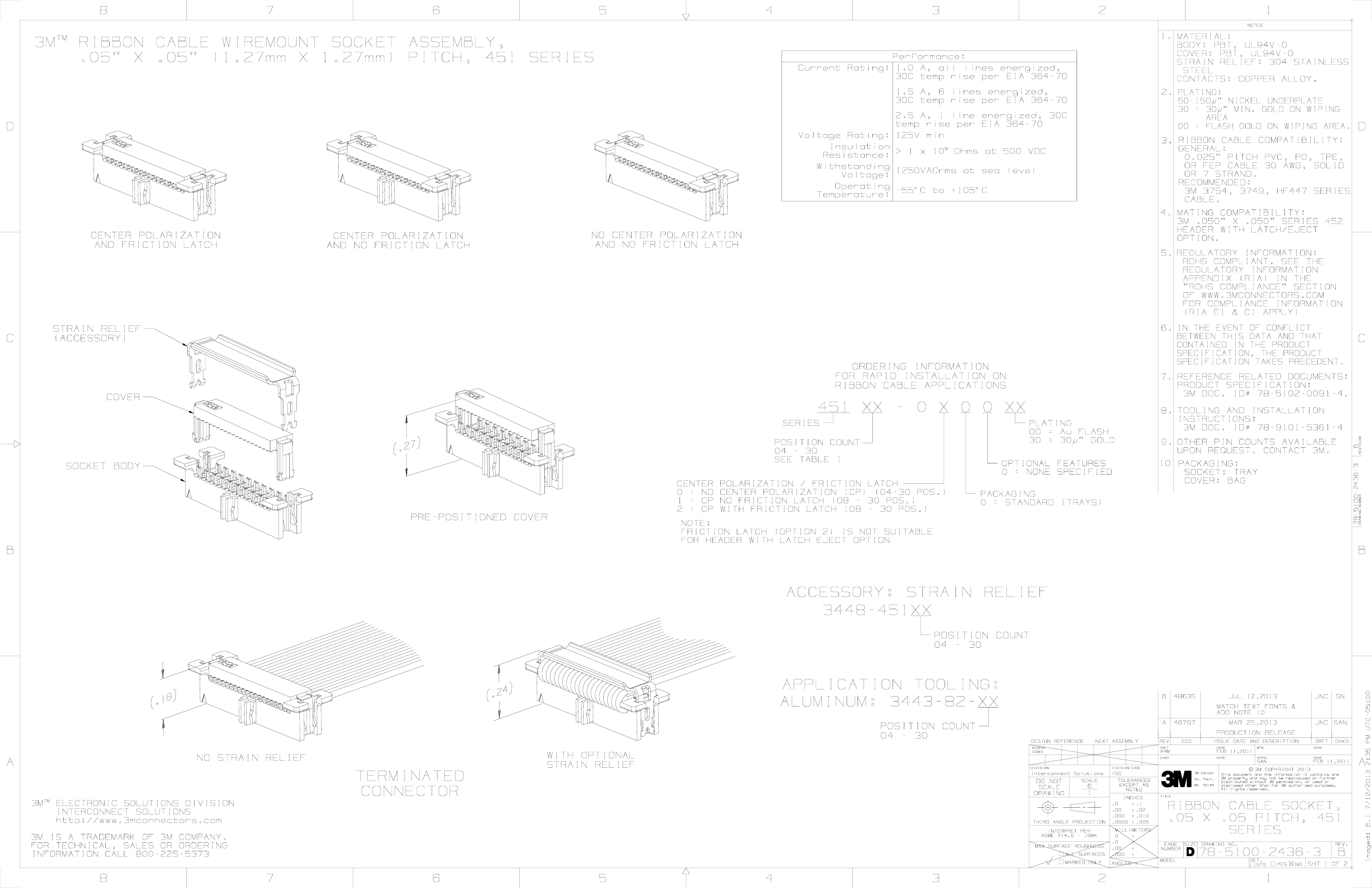

RIBBON CABLE WIREMOUNT SOCKET ASSEMBLY,
.05" X .05" (1.27mm X 1.27mm) PITCH, 451 SERIES
Performance:
Current Rating: 1.0 A, all lines energized,
30C temp rise per EIA 364-70
1.5 A, 6 lines energized,
30C temp rise per EIA 364-70
D
2.5 A, 1 line energized, 30C
temp rise per EIA 364-70
Voltage Rating: 125V min
Insulation
> 1 x 10
9
Ohms at 500 VDC
Resistance:
Withstanding
1250VACrms at sea level
Voltage:
Operating
-55 C to +105 C
Temperature:
D
CENTER POLARIZATION
AND FRICTION LATCH
CENTER POLARIZATION
AND NO FRICTION LATCH
NO CENTER POLARIZATION
AND NO FRICTION LATCH
C
STRAIN RELIEF
(ACCESSORY)
ORDERING INFORMATION
FOR RAPID INSTALLATION ON
RIBBON CABLE APPLICATIONS
COVER
C
451 XX - 0 X 0 0 XX
SERIES
POSITION COUNT
04 - 30
SEE TABLE 1
CENTER
0 = NO
1 = CP
2 = CP
POLARIZATION / FRICTION LATCH
CENTER POLARIZATION (CP) (04-30 POS.)
NO FRICTION LATCH (08 - 30 POS.)
WITH FRICTION LATCH (08 - 30 POS.)
PLATING
00 = Au FLASH
30 = 30 " GOLD
OPTIONAL FEATURES
0 = NONE SPECIFIED
PACKAGING
0 = STANDARD (TRAYS)
PRE-POSITIONED COVER
NOTE:
FRICTION LATCH (OPTION 2) IS NOT SUITABLE
FOR HEADER WITH LATCH EJECT OPTION
B
ACCESSORY: STRAIN RELIEF
3448-451XX
POSITION COUNT
04 - 30
B
48635
JUL 12,2013
MATCH TEXT FONTS &
ADD NOTE 10
JNC
SN
POSITION COUNT
04 - 30
A
DESIGN REFERENCE
ACCESS
CODES
46797
ECO
MAR 25,2013
PRODUCTION RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC SAN
DRFT
DATE
NEXT ASSEMBLY
REV
DRFT
CHKD
A
NO STRAIN RELIEF
WITH OPTIONAL
STRAIN RELIEF
ARM
CHKD
FEB 11,2011
DATE
APPVL
DATE
SAN
DIVISION
DIVISION CODE
FEB 11,2011
A
TERMINATED
CONNECTOR
3M
TM
C
3M Center
St. Paul,
MN
55144
3M COPYRIGHT 2013
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.1
.00
.02
.000
.010
.0000
.005
MILLIMETERS
0
.0
.00
.000
ANGLES
TITLE
DO NOT
SCALE
DRAWING
SCALE
6
1
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
ELECTRONIC SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3mconnectors.com
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
RIBBON CABLE SOCKET,
.05 X .05 PITCH, 451
SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
78-5100-2436-3
DET.
LISTS
YES
NO
B
SHT 1 OF 2
8
7
6
5
4
3
2
1
Imaged: B.1 7/12/2013 2:35 PM UTC-05:00
APPLICATION TOOLING:
ALUMINUM: 3443-82-XX
78-5100-2436-3
SOCKET BODY
B
B
8
7
6
5
4
3
2
1
3M
TM

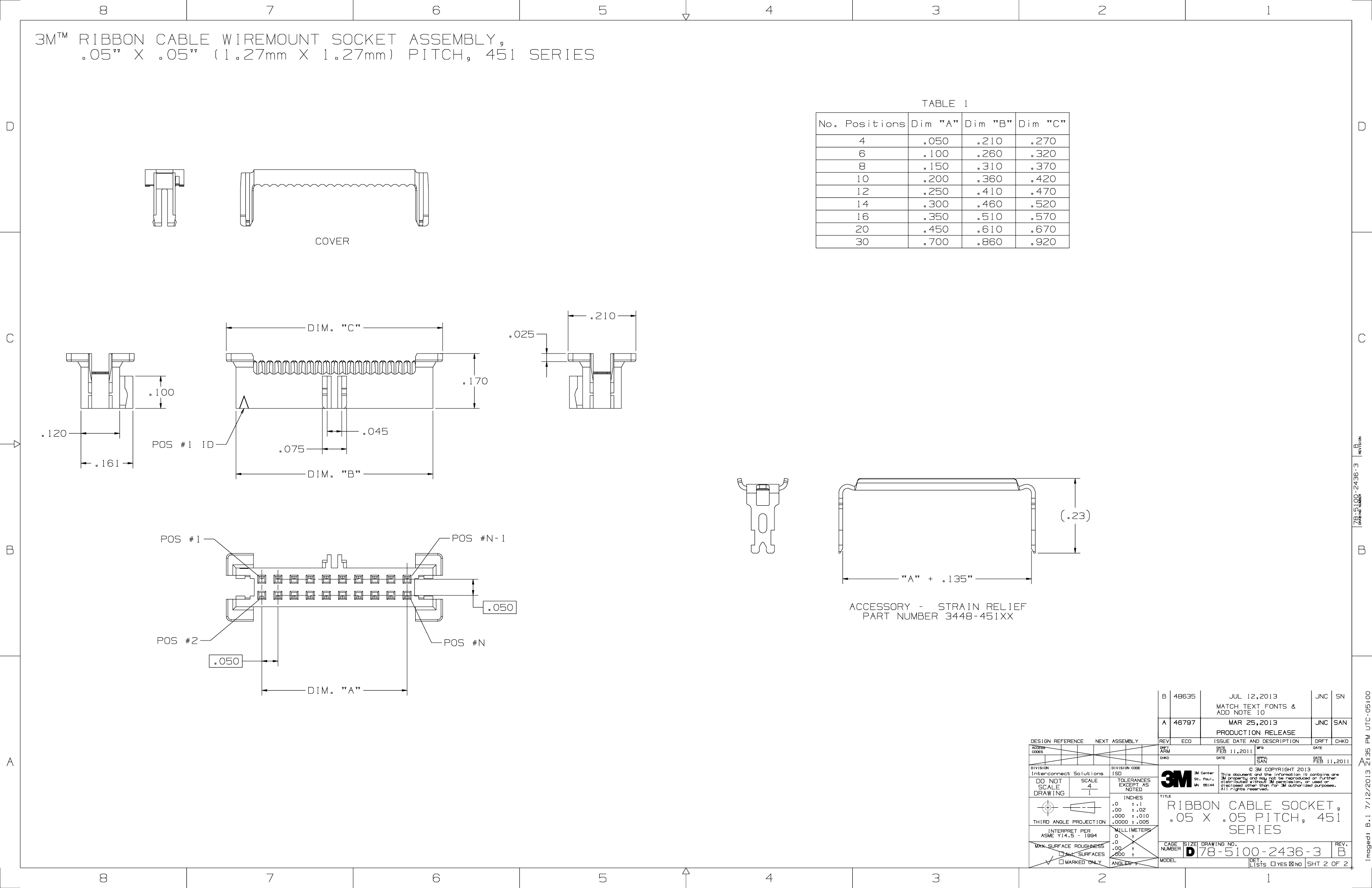

RIBBON CABLE WIREMOUNT SOCKET ASSEMBLY,
.05" X .05" (1.27mm X 1.27mm) PITCH, 451 SERIES
TABLE 1
D
No. Positions Dim "A" Dim "B" Dim "C"
4
6
8
10
12
14
16
20
30
.050
.100
.150
.200
.250
.300
.350
.450
.700
.210
.260
.310
.360
.410
.460
.510
.610
.860
.270
.320
.370
.420
.470
.520
.570
.670
.920
D
COVER
.210
DIM. "C"
C
.025
C
.170
.100
POS #1 ID
.161
.075
DIM. "B"
78-5100-2436-3
B
48635
JUL 12,2013
MATCH TEXT FONTS &
ADD NOTE 10
A
46797
ECO
.23
POS #1
POS #N-1
B
"A" + .135"
B
.050
ACCESSORY - STRAIN RELIEF
PART NUMBER 3448-451XX
POS #2
.050
DIM. "A"
POS #N
DRAWING NUMBER
REVISION
.120
.045
B
JNC
SN
MAR 25,2013
PRODUCTION RELEASE
DESIGN REFERENCE
ACCESS
CODES
JNC SAN
DRFT
DATE
NEXT ASSEMBLY
REV
DRFT
ISSUE DATE AND DESCRIPTION
DATE
MFG
CHKD
ARM
CHKD
FEB 11,2011
DATE
APPVL
DATE
A
SAN
DIVISION
DIVISION CODE
FEB 11,2011
A
C
3M Center
St. Paul,
MN
55144
3M COPYRIGHT 2013
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.1
.00
.02
.000
.010
.0000
.005
MILLIMETERS
0
.0
.00
.000
ANGLES
TITLE
DO NOT
SCALE
DRAWING
SCALE
4
1
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
RIBBON CABLE SOCKET,
.05 X .05 PITCH, 451
SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
78-5100-2436-3
DET.
LISTS
YES
NO
B
SHT 2 OF 2
8
7
6
5
4
3
2
1
Imaged: B.1 7/12/2013 2:35 PM UTC-05:00
