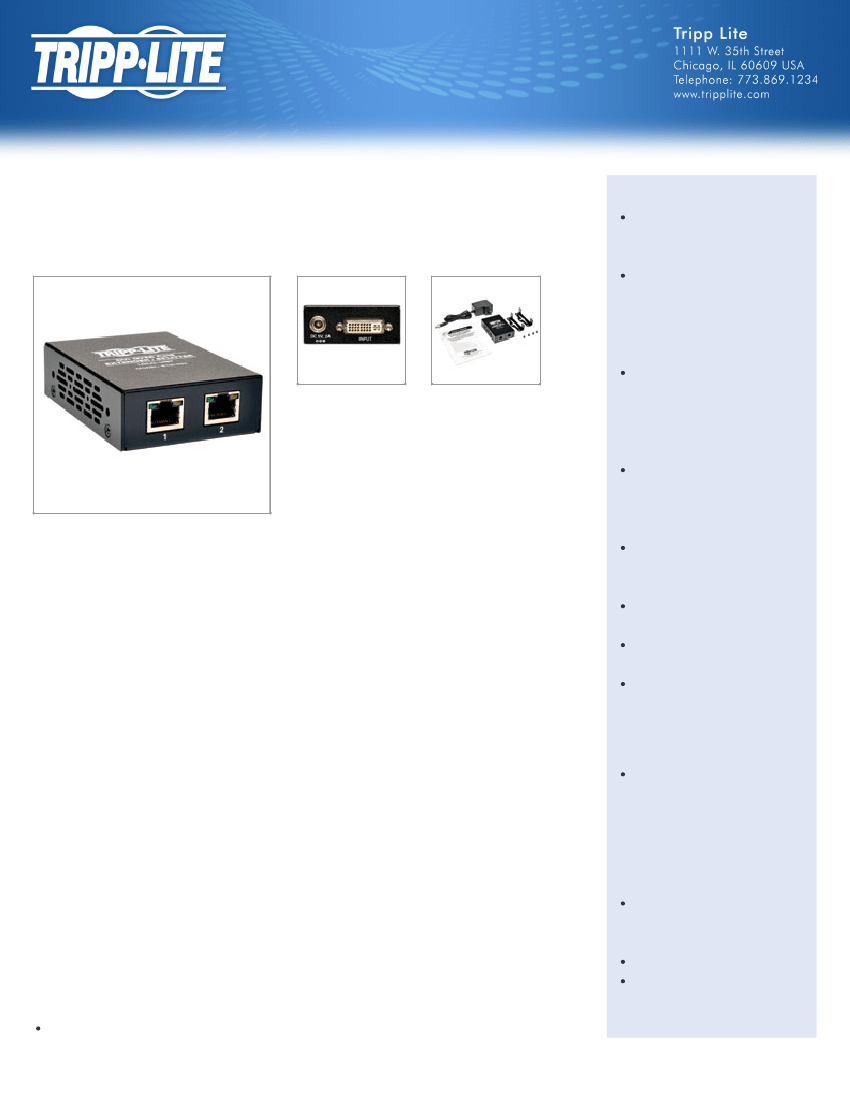

2-Port DVI over Cat5/Cat6 Extender Splitter, Video
Transmitter, 1920x1080 at 60Hz, Up to 200-ft., TAA
MODEL NUMBER:
B140-002
Highlights
Supports DVI-D Single-Link video
resolutions up to 1920 x 1080 @
60Hz
For longer distances
- Use a
B140-1A0
active receiver unit to
extend a 1920 x 1080 @ 60Hz
signal up to 150 ft., or a 1024 x
768 @ 60Hz signal up to 200 ft.
For shorter distances
- Use a
B140-1P0
passive receiver unit
to extend a 1920 x 1080 @ 60Hz
signal up to 50 ft., or a 1024 x
768 @ 60Hz signal up to 100 ft.
Use 24AWG, Solid Wire Cat5e/6
cable, such as Tripp Lite's
N202-Series, to achieve
maximum distance and resolution
Description
The B140-002 transmits a DVI-D Single-Link signal to two monitors up to 200 ft. away using a single Cat5e/6
patch cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable (Tripp Lite's
N202-Series). The B140-002 is compatible with all operating systems, and is plug and play, with no software or
drivers required. It also comes with mounting hardware that allows it to be wallmounted, rackmounted, or
pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Can further expand the range
and number of monitors by
adding
B140-110
repeaters
Compatible with all operating
systems
Plug and play, no software or
drivers required
Installation is simple. Connect the B140-002 transmitter to a DVI source using a Tripp Lite P561-Series DVI
cable (not included). Connect a Tripp Lite B140-series receiver (not included) to each display using a Tripp Lite
P561-Series DVI cable (not included). Finally, each remote receiver is connected to an RJ45 port on the
B140-002 using a single Cat5e/6 cable.
Compliant with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases
System Requirements
For international use, the
B110-INT power supply can be
purchased separately; it features
For longer extension distances, use a
B140-1A0
active receiver unit to extend a 1920 x 1080 @ 60Hz signal up
to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft..
For shorter extension distances, use a
B140-1P0
passive receiver unit to extend a 1920 x 1080 @ 60Hz signal
up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft..
plugs for the UK, Europe, and
Australia
Package Includes
Further expand the range and number of monitors by using a
B140-110
repeater unit. Add up to four remote
units (three repeaters and one active receiver) to each channel of the B140-002, for a total of 4 displays per
channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended
up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended
up to 175 ft.
B140-002 DVI Over Cat5
Extender/Splitter, 2-Port Local
Transmitter Unit
Mounting hardware
External Power Supply with
NEMA 1-15P Plug (Input:
100-240V, 50/60Hz, 0.5A;
Output: 5V, 2A, 5 ft.)
1/3
Features
Transmit a DVI-D Single-Link signal to two monitors up to 200 ft. away using a single Cat5e/6 patch cable
Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
For longer distances
- Use a
B140-1A0
active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to
150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
Output: 5V, 2A, 5 ft.)
Owner's Manual
For shorter distances
- Use a
B140-1P0
passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to
100 ft.
Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
Further expand the range and number of monitors by using a
B140-110
repeater unit
Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002, for a total of 4 displays per channel. (An active
receiver should be the last unit in a channel)
A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be
extended up to 175 ft.
HDCP compatible
Compatible with all operating systems
Plug and play; no software or drivers required
Mounting hardware included
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
PHYSICAL
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Included Mounting Accessories
Color
1 x 2.5 x 3.6
2.54 x 6.35 x 9.14
Yes
Black
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 720P Range (ft)
200
200
150
150
150
200
200
200
150
150
2/3
