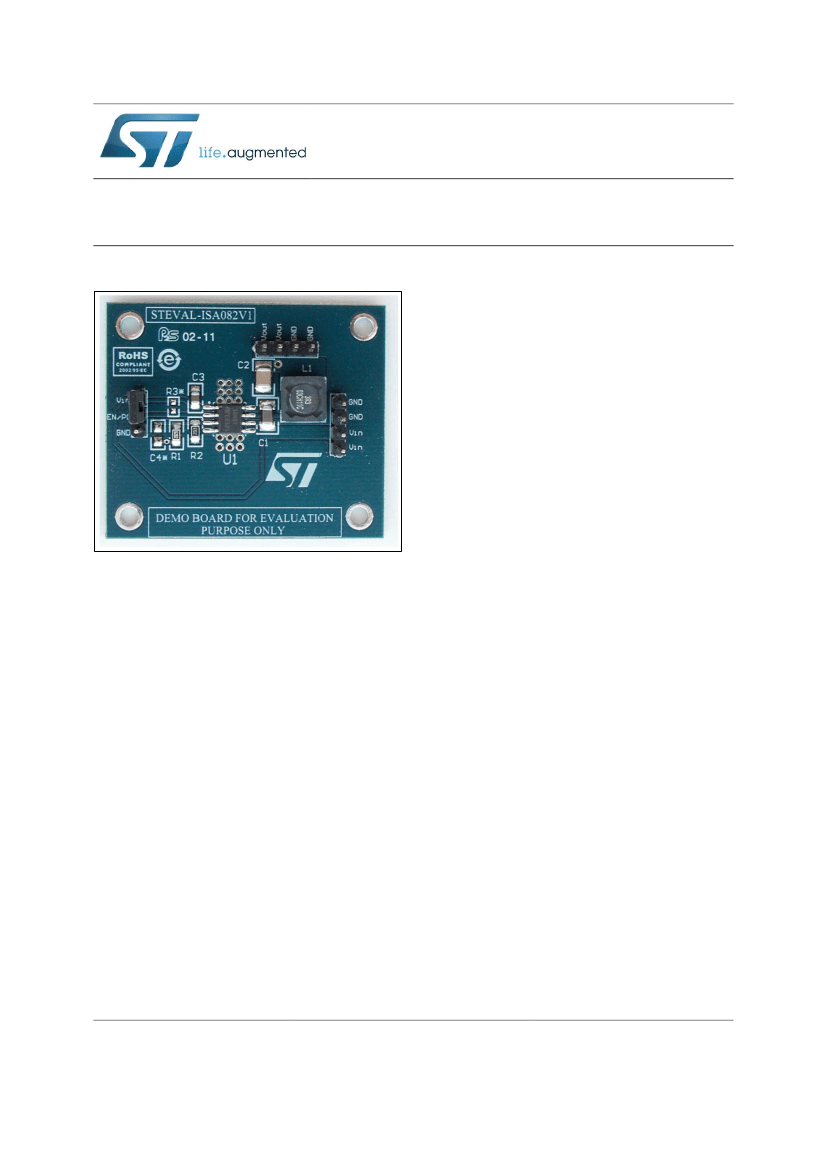

STEVAL-ISA082V1
3 A peak 800 kHz fixed-frequency PWM synchronous step-down
evaluation board with enable on/off based on the ST1S40IPHR
Data brief
Description
The STEVAL-ISA082V1, based on the
ST1S40IPHR, is an internally compensated 800
kHz fixed-frequency PWM synchronous
stepdown converter evaluation board.
The ST1S40 operates from 4.0 V to 18.0 V input,
while it regulates an output voltage as low as 0.8
V and up to VIN (100% duty cycle).
The ST1S40 integrates a 95 mΩ high-side switch
and a 69 mΩ synchronous rectifier allowing very
high efficiency with very low output voltage.
The peak current mode control with internal
compensation delivers a very compact solution
with a minimum component count.
Features
Input voltage Vin = 4 V to 18 V
Output voltage Vout = 3.3 V
Maximum output current: 3 A
Switching frequency: 800 kHz
Short-circuit protected
RoHS compliant
The ST1S40 is protected through cycle-by-cycle
current limiting in case of overload and is also
protected by a current foldback function with
frequency reduction in case of short-circuit.
The device is available with an enable on/off
function.
October 2015
DocID022276 Rev 2
1/4
www.st.com
For further information contact your local STMicroelectronics sales
office
