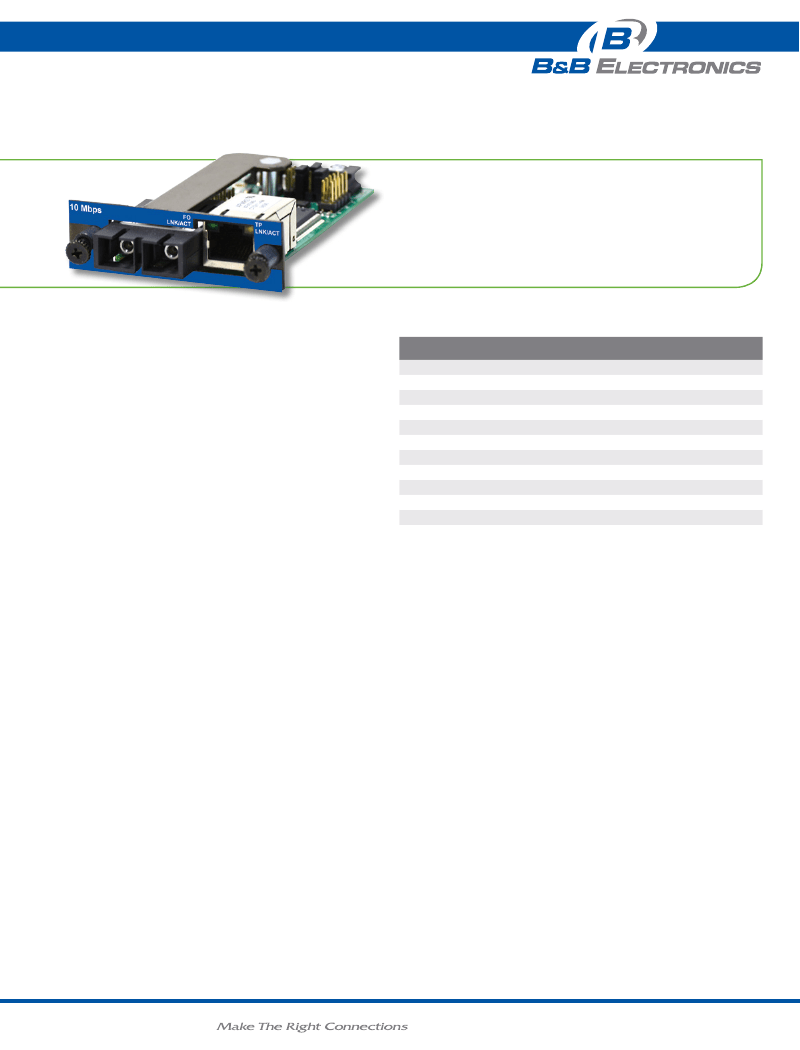

10 mbps media converter module
McPIM TP/FO
product FEaturEs
• Modular, hot-swappable architecture reduces operational costs
associated with product installations, upgrades and maintenance
• One 10 Mbps twisted pair port with and RJ45 connector
• One 10 Mbps fiber port with ST and SC connectors
• Plug-and-play operation
Your network is growing and many new access points, workstations,
etc. are required. However, legacy equipment, along with your
existing wiring infrastructure, must work with any new equipment
you implement in your network. When copper-to-fiber, copper-to-
coax or fiber-to-fiber conversions are required, along with advanced
troubleshooting features, our MediaConverter Series is the perfect
solution.
MediaConverter Series enables you to easily and cost-effectively
connect one type of media to other dissimilar media or networking
products. This series increases the functionality and extends
the productive life of both your legacy cabling infrastructure and
networking equipment when adding fiber to your network.
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
McPiM tP/Fo
855-12840 MM850-ST
1
2 km
855-12841 MM850-SC
1
2 km
855-12842 MM1300-ST
1
2 km
855-12843 MM1300-SC
1
2 km
855-12844 SM1310/PLUS-ST 1
40 km
855-12845 SM1310/PLUS-SC 1
40 km
855-12846 SM1310/LONG-ST 1
40 km
855-12847 SM1310/LONG-SC 1
40 km
855-12848 SM1550/LONG-ST 1
80 km
855-12849 SM1550/LONG-SC 1
80 km
ethernet ethernet
Ports
ConneCtor
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
www
.
bb
-
elec
.
com
|
McPIM TP/FO_3713ds
10 mbps media converter module
McPIM TP/FO
SpecificationS
Technical
Install in any MediaConverter chassis
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Include diagnostic LEDs
Include hot-swappable architecture
10Base-T twisted pair
10Base-FL fiber
Includes MDI/MDIX switch
Features LinkLoss and FiberAlert
connecTors
RJ45, ST and SC
Supports Half- and Full-Duplex operation
Mechanical
Dimensions
Shipping Weight
environMental
Operating Temperature
Storage Temperature:
Operating Humidity
regulatory approvals
FCC Class B
UL/cUL, CSA, CE
0.75”H x 2.50”W x 4”D
(2.20 x 6.41 x 10.25 cm)
0.7 lbs. (0.3 kg)
+32° to +122° F (0° to +50° C)
-13° to +158°F (-25° to +70° C)
5% to 95% (non-condensing)
1.67

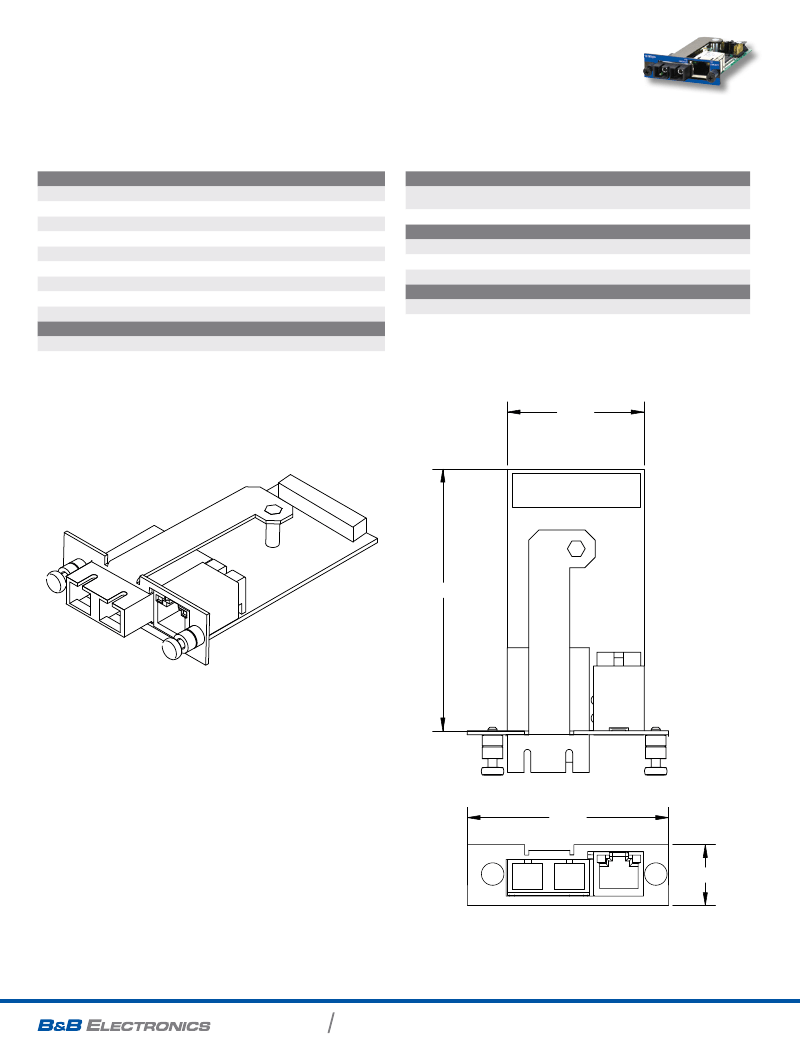

mEchanIcal dIagram
(dimensions in inches)
3.19
2.45
.74
