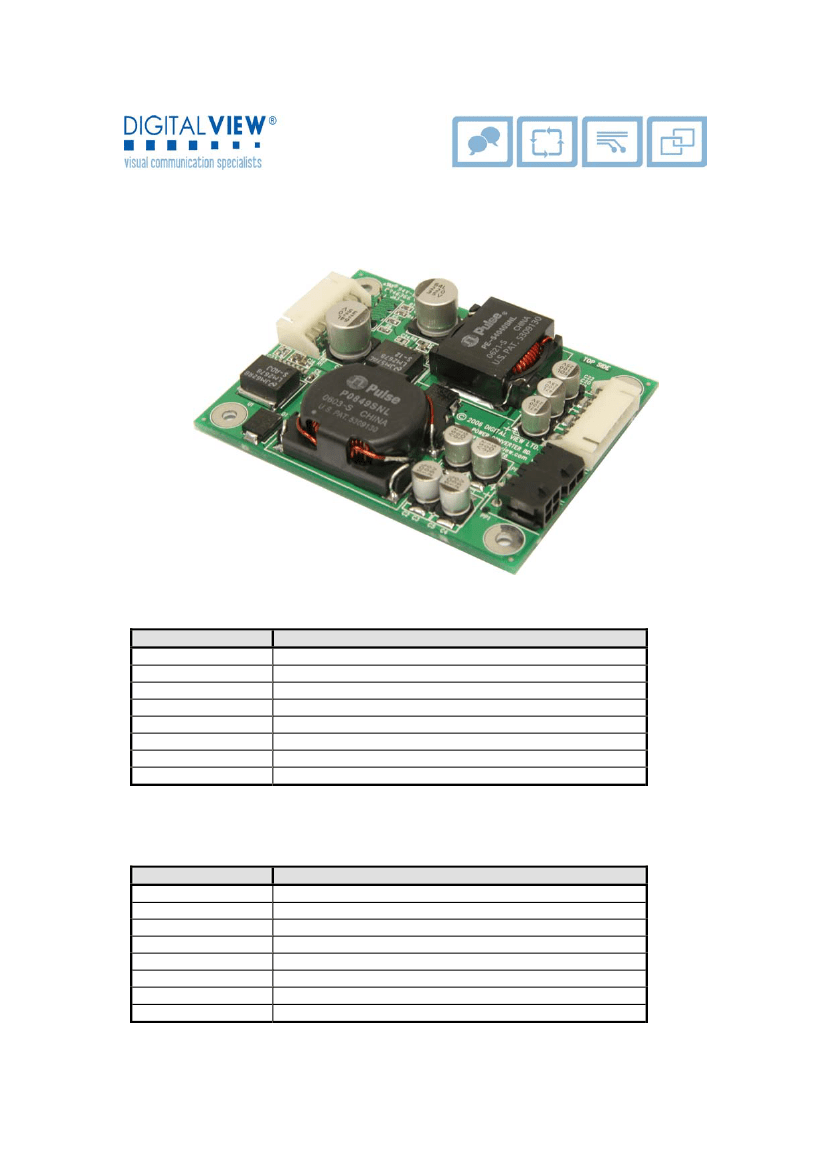

Power Converter board P/N 416013900-3
The power converter board P/N 416013900-3 designs for providing 12VDC output
to panel and controller and 24VDC to panel backlight inverter.
CNB1 – +24VDC, max 8A Power input
Connector used : JST S8B-XH-A, (Mating type : JST XHP-8 or compatible )
Suggested matching cable used : P/N 426014500-3, 460mm (solder end)
Pin
Pin definition
1
24VDC input
2
24VDC input
3
24VDC input
4
24VDC input
5
Ground
6
Ground
7
Ground
8
Ground
CNB2 – +24VDC, 4A (when PP1 & PP2 at max output) power output – for backlight inverter
Connector used : JST S8B-XH-A, (Mating type : JST XHP-8 or compatible )
Suggested matching cable used : P/N 426014500-3, 460mm (solder end)
Pin
Pin definition
1
24VDC output
2
24VDC output
3
24VDC output
4
24VDC output
5
Ground
6
Ground
7
Ground
8
Ground
Page 1 of 2
PP1 – 12VDC, max 4A power output – for external 12V panel power
Connector used : Molex 43045-0400 compatible (Mating type : Molex 43025-0400 or compatible)
Suggested matching cable used : P/N426014300-3, 300mm
Pin
Pin definition
1
12VDC output
2
Ground
3
12VDC output
4
Ground
PP2 – 12VDC, max 4A power output – for controller
Connector used : Molex 43650-0200 compatible (Mating type : Molex 43645-0200 or
compatible)
Suggested matching cable used : P/N 426014400-3, 300mm
Pin
Pin definition
1
12VDC output
2
Ground
Mechanical Drawing :
Application Notes :
The converter supports a derated wattage of 160W (24V x 8A x 85%) that is limited by
the current rating of the CNB1. On applications requiring higher total wattage the
inverter should be driven directly from the 24V supply without passing through the
converter board.
