1
•
•
•
•
Out of the Box
Controller board v2.2-A
TMD2620 Daughterboard
USB Cable with A connector and mini B connector
Flash Drive with Application Software and Documents
Each TMD2620 Evaluation Kit comes with the following components:

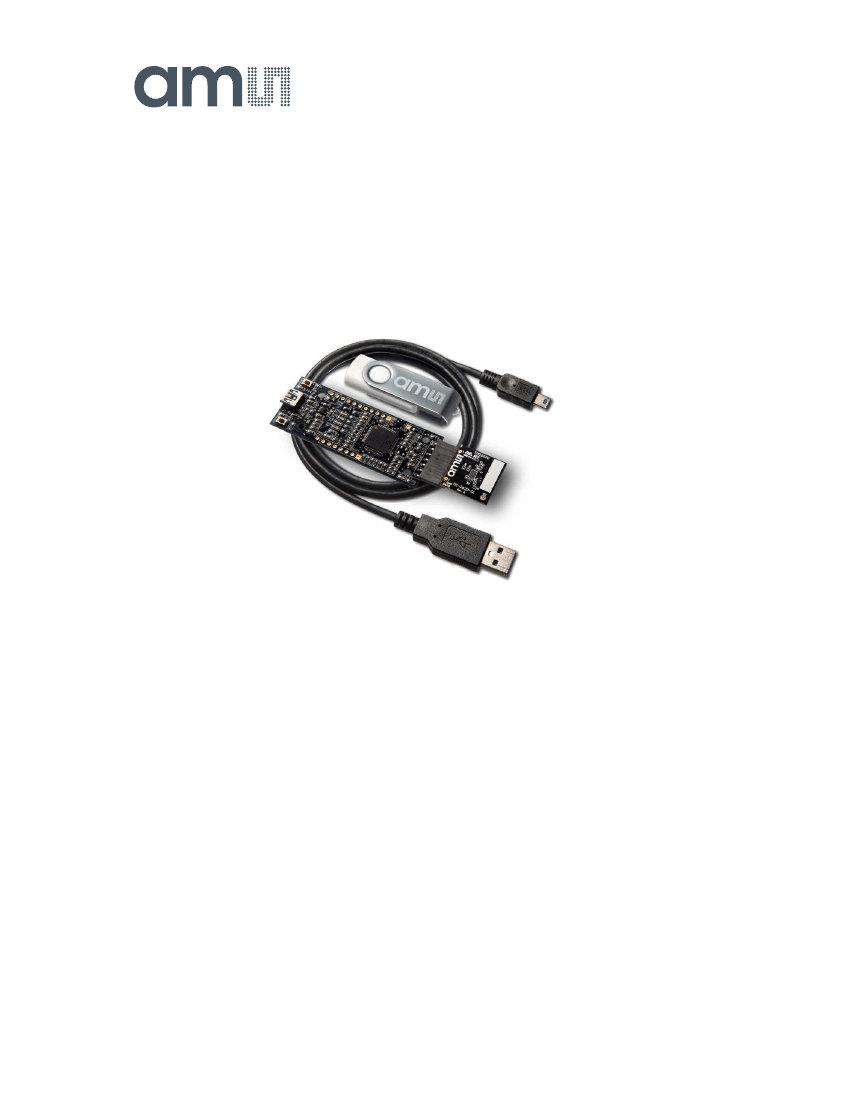

Figure 1 TMD2620 EVM Kit
2
Software Installation
Most PCs should have one or more Universal Serial Bus (USB) ports. Install the
ams
flash drive
into an unused USB port. Double-click the
Setup.exe
file on the flash drive, or click Start -> Run
and type E:setup.exe and press Enter. IMPORTANT: Use the appropriate drive letter in the above
command to install the software. Flash Drive will commonly be assigned the next available drive
letter for example C: hard drive D: CD-ROM E: flash drive
The Setup Wizard will open and guide you through the installation of the TMD2620 host software,
(Figures 2 through 8). To re-install, run the setup.exe program again. To remove the software from
your computer (Figure 9), select
ams
-> TMD2620 EVM -> Uninstall TMD2620 EVM or use the
Windows Control Panel.
3
Connect Hardware
Plug the TMD2620 Daughterboard into the Controller board. (Figure 1) Always use ESD procedures
when handling the EVM.
Using the enclosed USB cable, plug the mini-B connector into the EVM module. Using the other
end of the cable, plug the USB A-connector into a USB port on the computer.
4
Start the Application
To start the application select
ams->TMD2620
EVM->TMD2620 EVM on the All Programs menu.
page 3/5

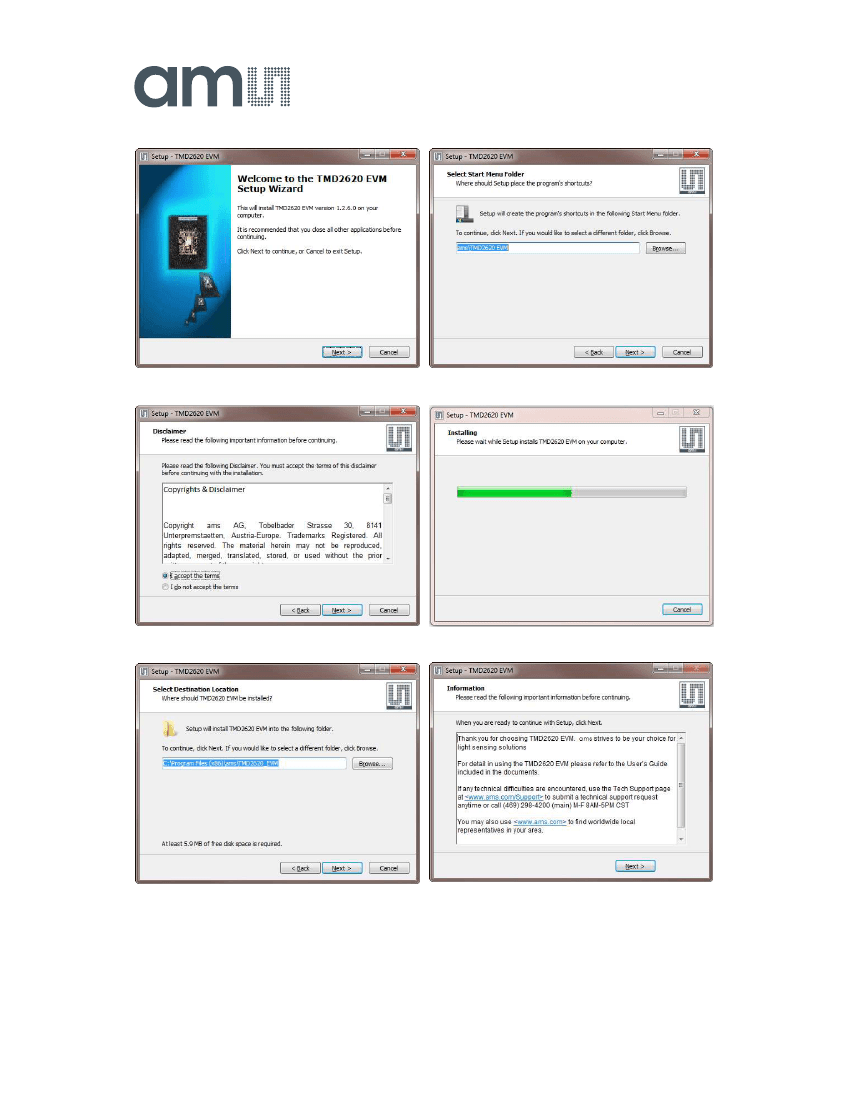

Figure 2 Welcome Screen
Figure 5 Select Start Menu Folder
Figure 3 Liability Disclaimer
Figure 6 Installation in Progress
Figure 4 Select Installation Folder
Figure 7 Information Screen
page 4/5

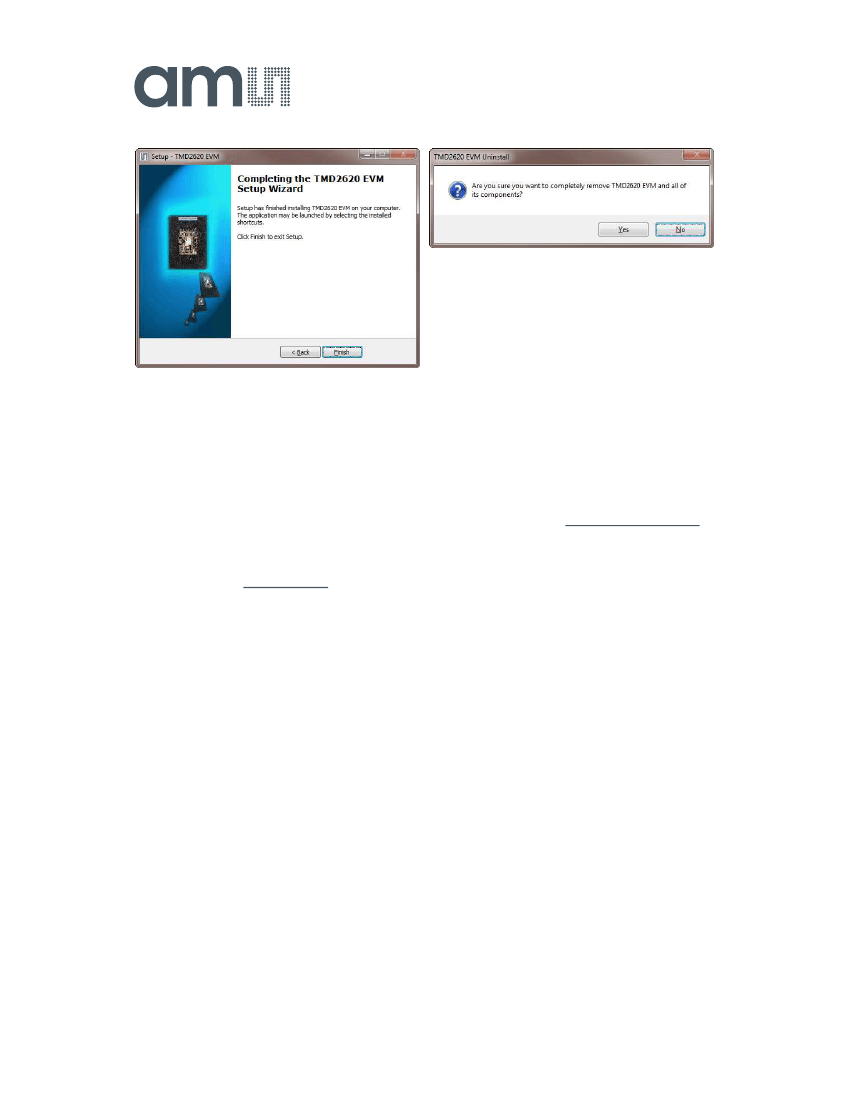

Figure 9 Remove Installation
Figure 8 Installation Completed Successfully
5
Contact and Support
For detail in using the TMD2620 EVM please refer to the User’s Guide included in the documents.
If any technical difficulties are encountered, use the Tech Support page at
www.ams.com/Support
to submit a technical support request anytime or call (469) 298-4200 (main) M-F 8AM-5PM CST
You may also use
www.ams.com
to find worldwide local representatives in your area.
