About the IE-Giga-MiniMc
The IE-Giga-MiniMc is a 10/100/1000 Auto Negotiating switching miniature media
converter. The fiber port always operates at 1000 Mbps Full Duplex; the copper port
Auto Negotiates the connected device’s speed and duplex mode: 10/100/1000 Mbps
Half Duplex; or 10 /100/1000 Mbps Full Duplex (including Flow Control). The IE-
Giga-MiniMc supports jumbo packets up to 1632 bytes.
The IE represents the unit’s use as an Industrial Ethernet device, which allows for
extended temperature operation of -25°C to +85°C (-10°C to +50°C when using the
included AC adapter).
The IE-Giga-MiniMc converter offers plug-and-play operation, including the
AutoCross feature which automatically selects between a crossover workstation and
straight-through repeater hub connection depending on the connected device.
The IE-Giga-MiniMc can use either the included IMC Networks universal, external
power adapter with 100 to 240 ±10% VAC input or can be wired directly to the 7-
50 VDC terminal block (for extended temperature configuration). There is an
optional IE-PowerTray/18 in which up to 18 IE-Giga-MiniMcs can be installed.
Installing the IE-Giga-MiniMc
The IE-Giga-MiniMc installs virtually anywhere as a standalone device in locations
with extremely limited space. Installation options include:
•
•
•
•
Velcro strips
DIN rail mounting with DIN Rail clips
A wall mount bracket
A PowerTray/18 for high density applications
Installation Tip
Several models of the IE-Giga-MiniMc support single-strand fiber for operation. Since
single-strand fiber products use optics that transmit and receive on two different
wavelengths, single-strand fiber products must be deployed in pairs. For example,
connect an IE-Giga-MiniMc, TX/SSLX-SM1310-SC (which has 1310 xmt and 1550 rcv) to a
product which has 1550 xmt and 1310 rcv, e.g. iMcV-Gigabit, TX/SSLX-SM1550-SC. The
two connected products must also have the same speed and distance capabilities (i.e.
both are single-mode [20km] or both are single/PLUS [40km]).
1
Hardware Mounting Options
The IE-Giga-MiniMc can be mounted on a DIN rail or using wall mount brackets
(shown below).
DIN rail clips (part number 806-39105) and wall mount brackets (part number 895-
39229) are available for purchase through an IMC Networks Distributor.

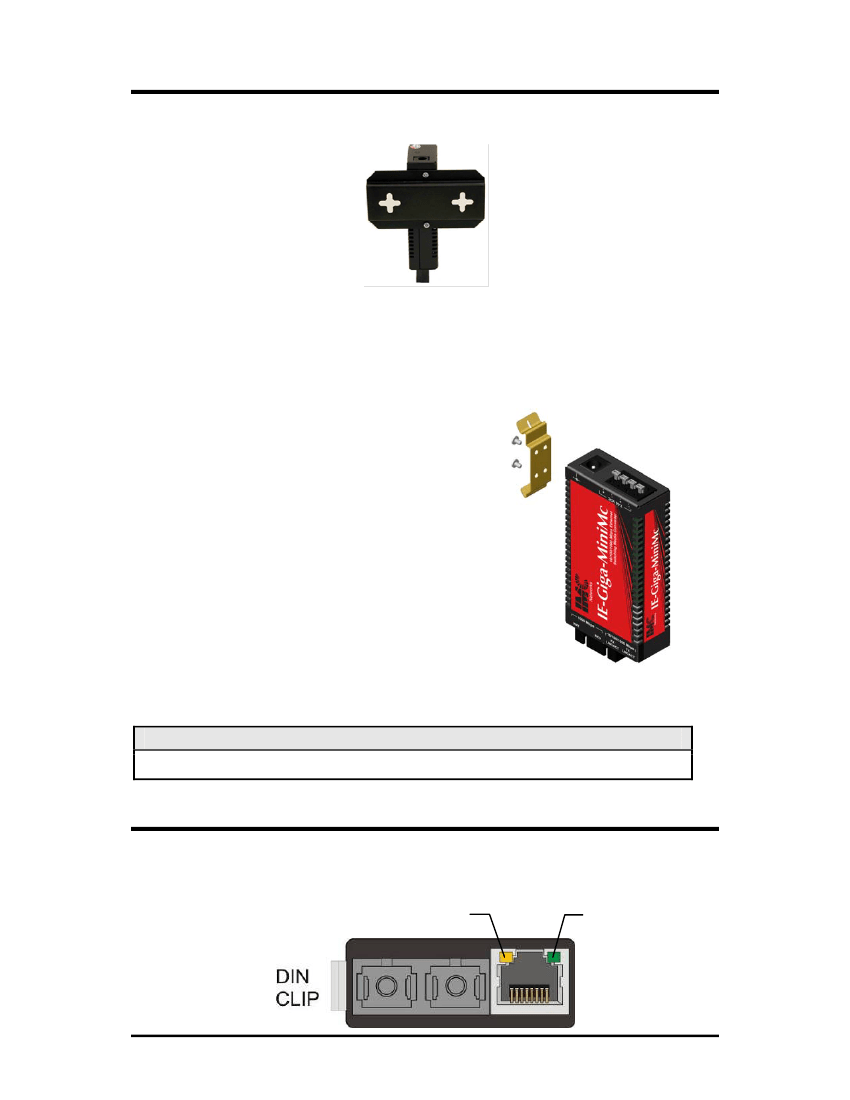

DIN Rail Clips
The DIN Rail clips include screws, to allow
the installation onto a DIN Rail. Install the
screws into DIN Rail clips, which should be
mounted parallel or perpendicular to the DIN
Rail. Snap the converter onto the clips. To
remove the converter from the DIN Rail, use
a flat-head screwdriver into the slot to gently
pry the converter from the rail.
NOTE
The DIN clips are designed for use on a DIN-35 rail.
LED Operation
Each IE-Giga-MiniMc converter includes two LEDs, located on the RJ-45 connector.
LED functions are as follows:
FX LNK/ACT
TX LNK/ACT
2
