DLP-RF430BP
BoosterPack User’s Guide
FEATURES:
•
•
•
•
•
•
•
•
•
Texas Instruments RF430CL330H, Rev D Silicon
ISO14443B Compliant
13.56MHz RF Interface Supports up to 848 Kbps
NFC Tag Type 4 Compliant
3K SRAM Bytes Available for NDEF Message Storage
Automatic Checking of NDEF Structure
Interrupt to Indicate End of Read or End of Write
Onboard Antenna or Optional External Antenna Connection (Remove R2 and R3)
Operational Power Supplied by the LaunchPad (Purchased Separately)
1.0 INTRODUCTION
The DLP Design DLP-RF430BP BoosterPack is used to demonstrate the capabilities of the
RF430CL330H and help aid in the development process by providing a working hardware/firmware
reference example for NFC operations. This BoosterPack demonstrates a secure, simplified pairing
process for Bluetooth® and Wi-Fi connections with the only dynamic NFC tag device designed
specifically for NFC connection handover and service-interface functions.
The DLP-RF430BP BoosterPack is an add-on board designed to fit TI’s MCU LaunchPads. This product
allows the software application developer to get familiar with the functionalities of the RF430CL330H on
their Texas Instruments embedded microcontroller platform of choice without having to worry about
designing the antenna.
This document provides direction for RF430CL330H users who wish to implement an NFC tag emulator
that is connected to and controlled by a Texas Instruments embedded microcontroller or microprocessor
development platform. Examples of such development platforms are the MSP-EXP430G2 LaunchPad
and the MSP-EXP430F5529LP LaunchPad.
LaunchPads from Texas Instruments are easy-to-use flash programming and debugging tools for the
MSP430, C2000, TIVA, etc. lines of microcontrollers. They feature everything you need to start
developing on a Texas Instruments microcontroller device. There is on-board emulation for
programming and debugging, on-board button switches, LED’s and BoosterPack-compatible pinouts to
support a wide range of plug-in modules like the DLP-RF430BP.
Free software development tools are also available, such as TI’s Eclipse-based Code Composer Studio.
Open-source development is also possible thanks to community-driven projects such as the MSPGCC
compiler or Energia, a branch of the popular Wiring framework.
Rev 1.1 (May 2014)
1
©
2013 DLP Design, Inc.
2.0 SCOPE
This document describes the DLP-RF430BP module for evaluation and development purposes in
conjunction with Texas Instruments embedded development platforms. This manual does not cover the
in-depth details of the
RF430CL330H
family as these are documented in the datasheets for those parts
along with application notes that can be found on their product pages (see the links in Section 3).
3.0 REFERENCES
• DLP-RF430BP:
www.tiboosterpacks.com
or
www.dlpdesign.com
• RF430CL330H Product Page:
http://www.ti.com/product/rf430cl330h
• RF430CL330H Datasheet:
http://www.ti.com/lit/ds/symlink/rf430cl330h.pdf
4.0 MODULE DESCRIPTION
The DLP-RF430BP BoosterPack (Figure 1) allows NFC connection handover for an alternative carrier
like Low Energy (BLE) and Wi-Fi as an easy and intuitive pairing or authentication process with only a
tap. As a general NFC interface, the RF430CL330H enables electronic products to communicate with
the fast-growing infrastructure of NFC-enabled smart phones, tablets and notebooks.
Connection to Texas Instruments LaunchPad platforms are made via 10-pin, 0.1-inch spaced,
0.025-square inch female headers located on the back of the board. The electrical schematic is
available for download from both the DLPDesign.com and TIBoosterPacks.com sites.

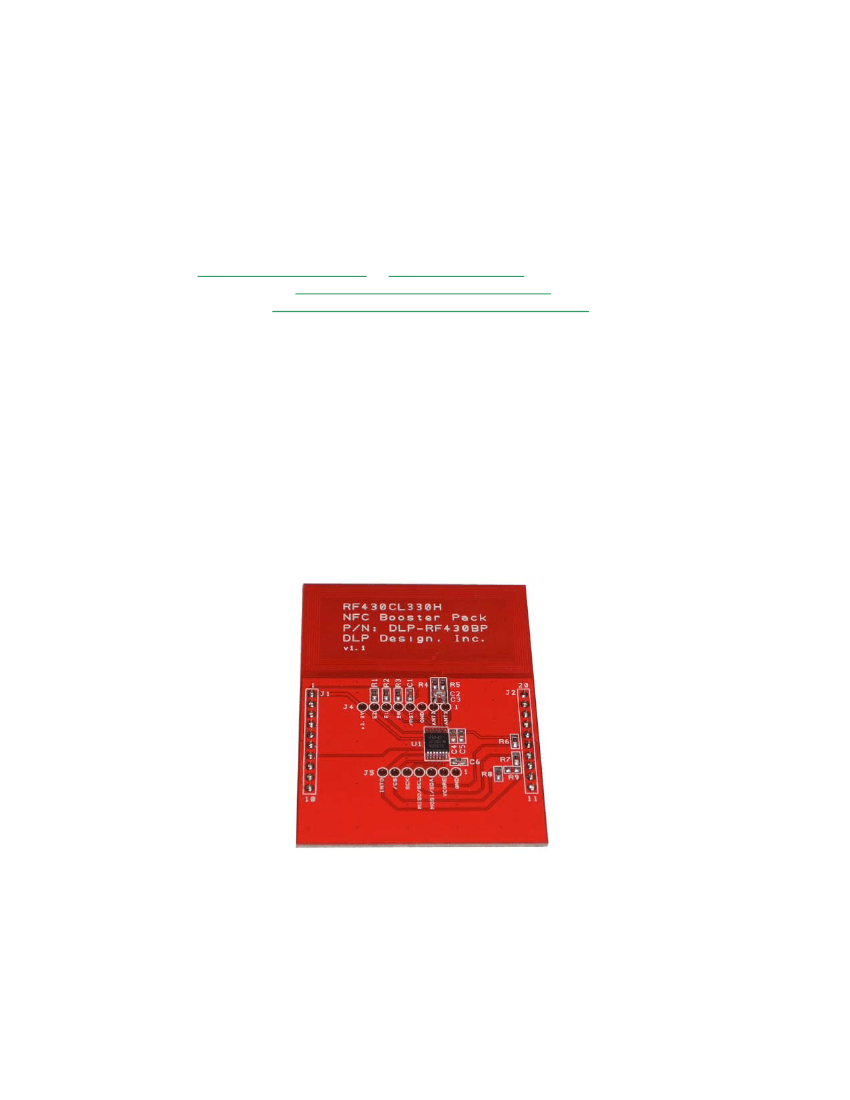

Figure 1. DLP-RF430BP Evaluation Module
Rev 1.1 (May 2014)
2
©
2013 DLP Design, Inc.
5.0 MODULE PINOUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
DLP-RF430BP MODULE PIN CONNECTIONS TO THE LAUNCHPAD
VCC - 3.0V power from the LaunchPad
Unused by the DLP-RF430BP
Unused by the DLP-RF430BP
Unused by the DLP-RF430BP
Unused by the DLP-RF430BP
Unused by the DLP-RF430BP
DATA_CLK - Clock from the microcontroller if in SPI mode. Default: I2C mode.
RESET
Unused by the DLP-RF430BP
Unused by the DLP-RF430BP
Unused by the DLP-RF430BP
INTO - Interrupt to microcontroller
SPI_CS - Chip select from microcontroller for SPI mode
MISO/SCL - SPI serial data to the microcontroller if in SPI mode. Clock from
microcontroller if in I2C mode.
MOSI/SDA - SPI serial data from the microcontroller if in SPI mode. Data to/from
microcontroller if in I2C mode.
Unused by the DLP-RF430BP
Unused by the DLP-RF430BP
Unused by the DLP-RF430BP
Unused by the DLP-RF430BP
GROUND
6.0 QUICK START GUIDE
If using Code Composer to load, edit and compile the demonstration firmware:
1. Remove jumper P1.6 from the G2 LaunchPad.

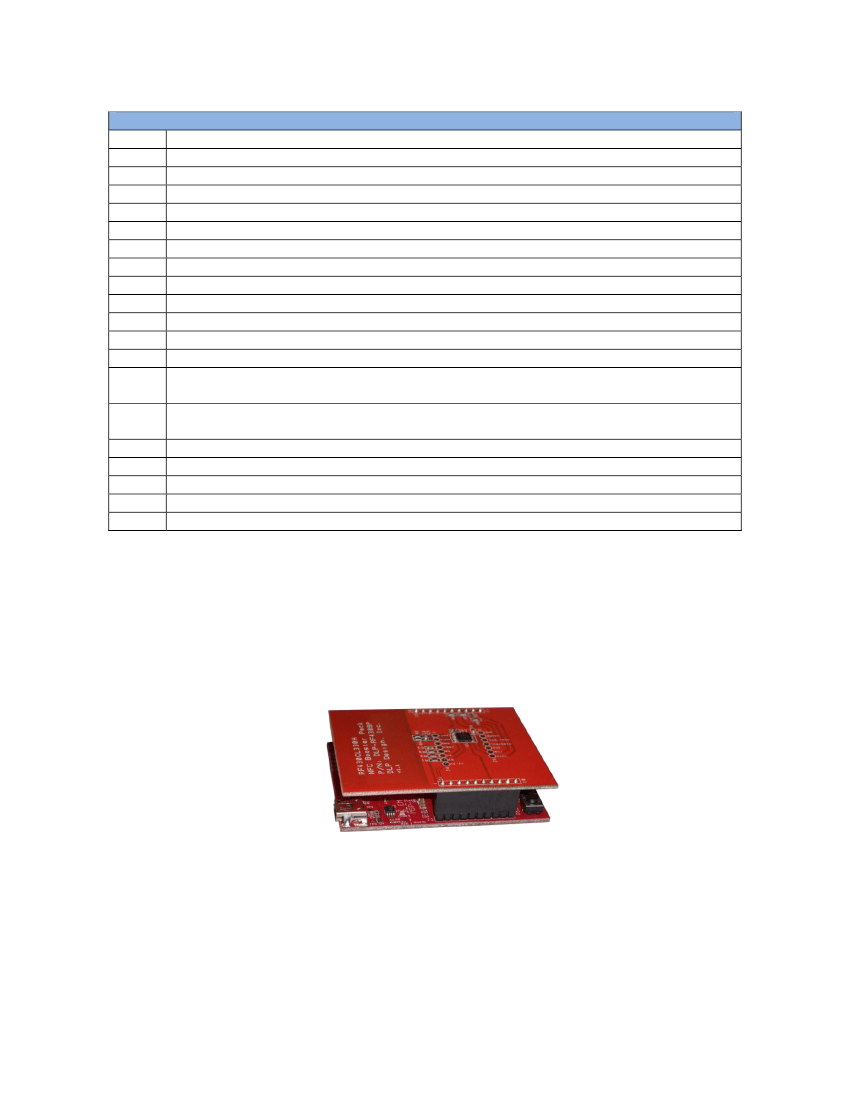

2. Attach the G2 LaunchPad to the DLP-RF430BP as shown here.
3. Apply power by connecting a USB cable to the LaunchPad.
4. Load (Import) the base application firmware into Code Composer Studio. The firmware project is
available for download from this link: http://www.ti.com/lit/zip/sloc303
5. Enter Debug mode and test for basic functionality by holding an NFC-enabled smart phone, tablet or
notebook close to the onboard loop antenna. The device should display "Hello, world!" for the default
NDEF message.
©
2013 DLP Design, Inc.
Rev 1.1 (May 2014)
3
6. Modify the source code as desired to change the default message.
If using Uniflash to load the precompiled .out file:
1. Remove jumper P1.6 from the G2 LaunchPad.
2. Attach the G2 LaunchPad to the DLP-RF430BP as shown here.
3. Apply power by connecting a USB cable to the LaunchPad.
4. Download Uniflash - http://www.ti.com/tool/uniflash

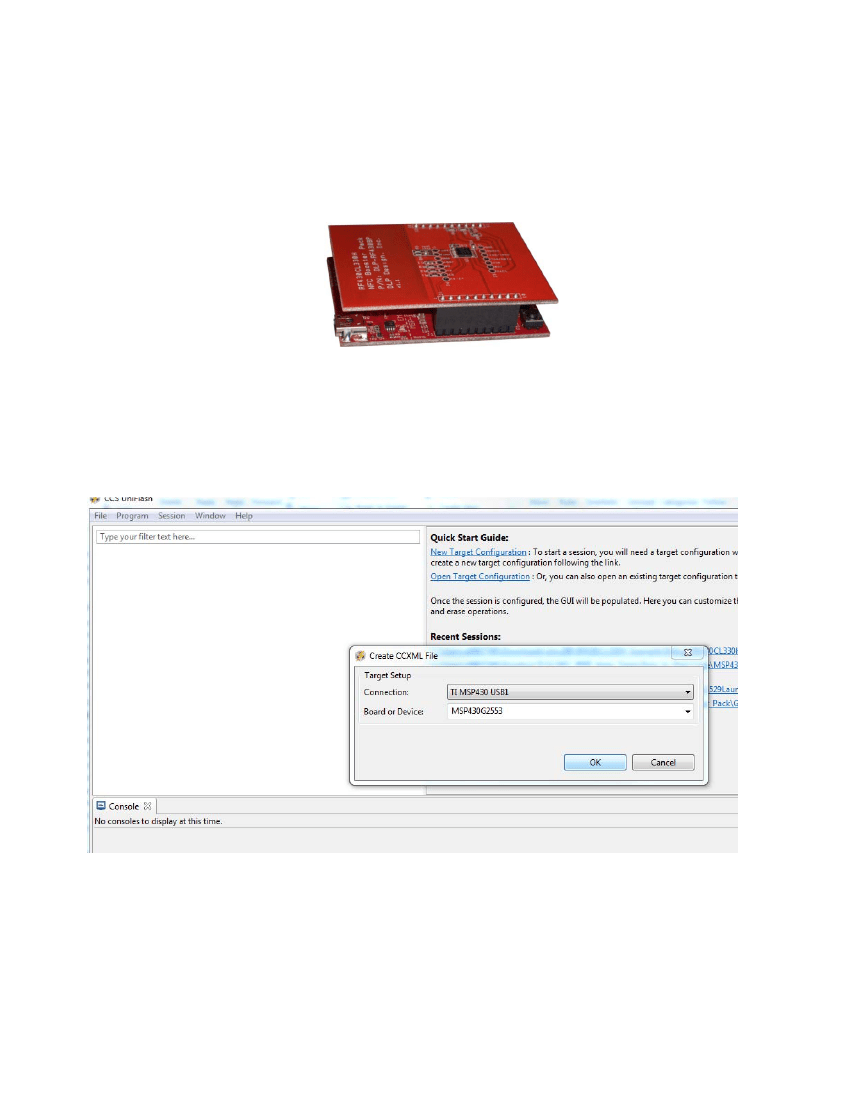

5. Make a new target configuration for the MSP430G2553: Click on File, New Target Configuration,
which leads you to this window to launch the session:
Rev 1.1 (May 2014)
4
©
2013 DLP Design, Inc.

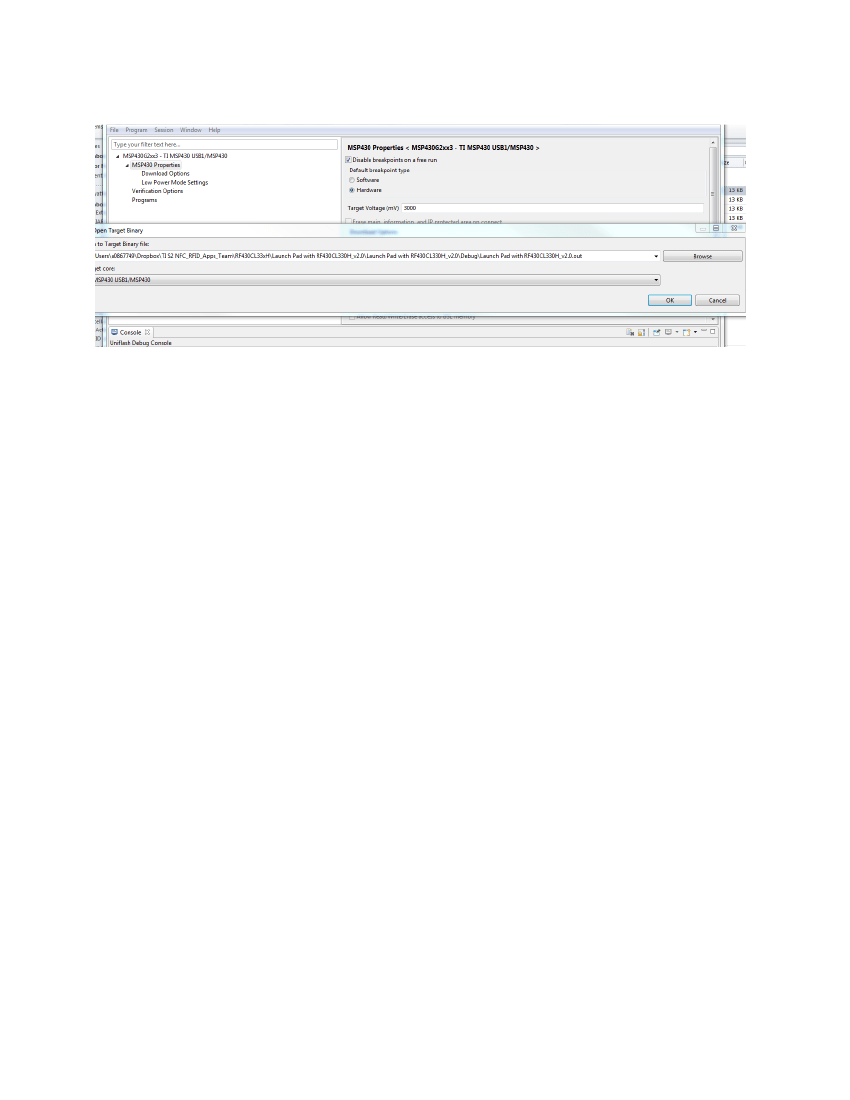

6. Next, click on Program, Load Program, and navigate (using Browse button) to the project files and find
the .out file
7. Click OK to load the .out file.
8. Cycle power on the LauchPad (unplug - replug) and the code will be running.
9. Test for basic functionality by holding an NFC-enabled smart phone, tablet or notebook close to the
onboard loop antenna. The device should display "Hello, world!" for the default NDEF message.
7.0 BASE APPLICATION FIRMWARE
DLP-RF430BP Module Application Firmware for the various Texas Instruments LaunchPads is available
from the DLP Design websites. Visit the appropriate download/product pages for all available firmware
project downloads.
Rev 1.1 (May 2014)
5
©
2013 DLP Design, Inc.
