ARES-1500-A23 Overview

Embedded Box Computers Rugged Box PC AMD G-T40N 1GHz USB

ARES-1500-A23 Parametric

Parameter Name	Attribute value
Product Category	Embedded Box Computers
Manufacturer	ARBOR
RoHS	Details
Processor Brand	AMD
Processor Type	AMD G-T40N
Chipsets	AMD A50M
Frequency	1 GHz
Memory Size	8 GB
Interface Type	Ethernet, RJ-45, RS-232/422/485, USB
Operating Supply Voltage	12 V
Maximum Operating Temperature	+ 55 C
Dimensions	288 mm x 149.5 mm x 40 mm
Description/Function	Module PC for POS without storage device, memory
Memory Type	DDR3
Minimum Operating Temperature	- 25 C
Power Consumption	28.8 W
Factory Pack Quantity	1

Preview

Download Datasheet

View All

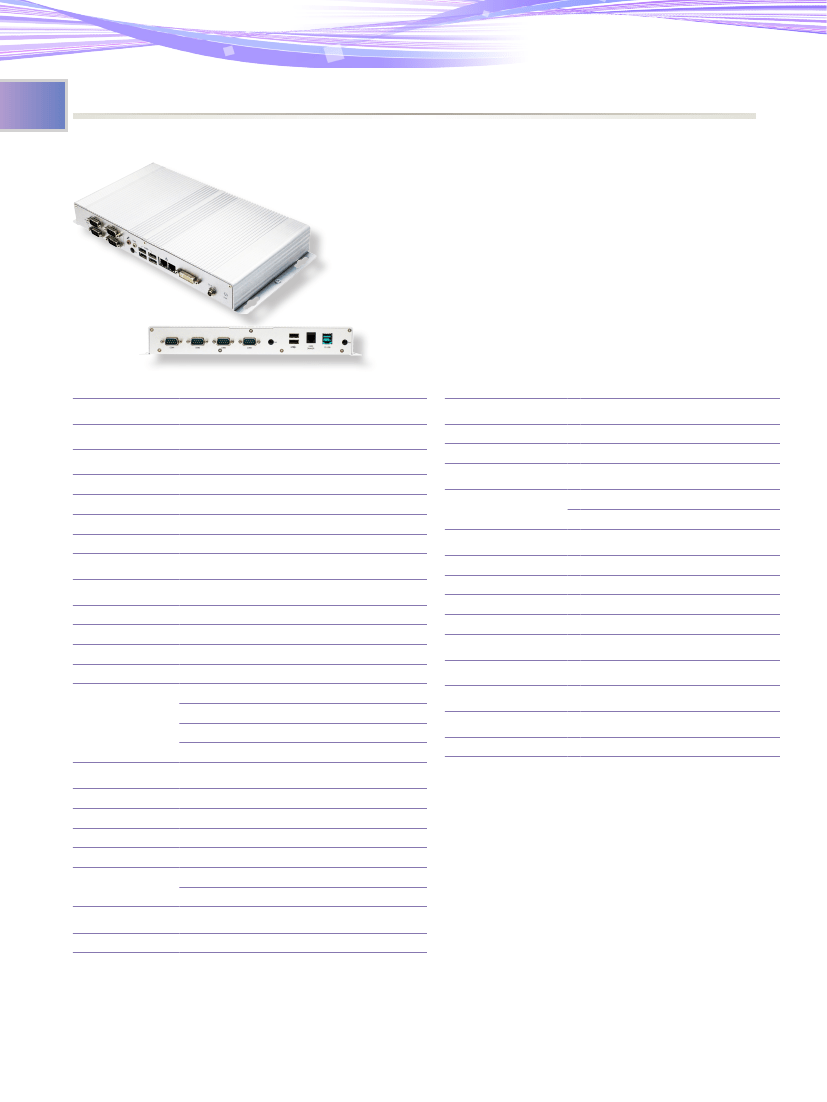

ARES-1500-A23

Robust Box PC with AMD G-T40N Platform for POS Controller

Features

•

Fanless Design

•

Low Profile Enclosure

•

AMD G-T40N Dual-Core 1GHz Processor

•

Rich I/O (6 x USB, 8 x COM, 2 x GbE LAN, 1 x DVI-I, 4 x MiniCard)

•

Fanless with Aluminum Chassis Design Suitable for Harsh Environment

•

mSATA and SATA storage

•

RJ11 for cash drawer (24V) , 12V USB output for 2nd monitor

System

CPU

Memory

Chipset

Graphics

LAN Chipset

Watchdog Timer

Soldered onboard AMD G-T40N Dual Core 1.0GHz

processor

1 x 204-pin DDR3 SO-DIMM socket, supporting

800/1066MHz SDRAM up to 8GB

AMD A50M

Integrated AMD G-Series

2 x Realtek 8111 GbE controllers

1~255 levels reset

Power Requirement

Power Input

DC 12V input by 2.5mm power jack

Power Consumption

Max. 28.8W (w/o 2nd Display)

Storage

Type

1 x mSATA sockets

1 x SATA III port

I/O

Serial Port

USB Port

LAN

Video Port

Audio

4 x RS-232 (one is RS-232/422/485 configurable)

4 x 5V/12V RS-232 Output (w/ 2.5kv isolation - option)

6 x USB 2.0 ports

2 x RJ-45 GbE ports

1 x DVI-I female connector for digital video output

Mic-in/Line-out

4 x Mini-card slot interconnected with SIM card socket

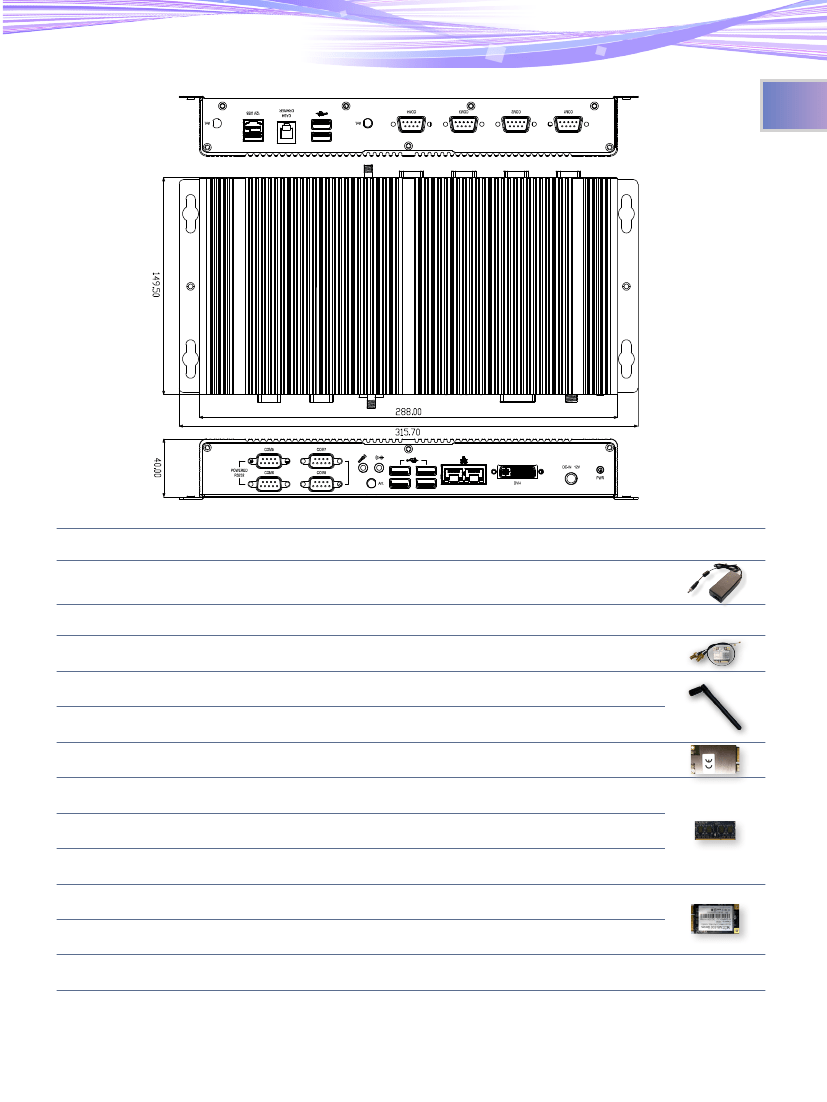

Mechanical

Construction

Mounting

Aluminum alloy

Wall-mount

Weight (Net / Gross)

1.575Kg (3.465lb) / 1.7Kg (3.741lb)

Dimensions (W x D x H)

288 x 149.5 x 40mm (11.23” x 5.83” x 1.56”)

OS Support

Windows XP Embedded / Windows XP Professional / Windows Embedded

Professional 7 / Windows Embedded Standard 7

Expansion Bus

1 x SIM socket

1 x RJ11 for cash drawer (24V)

1 x 12V USB output for 2nd monitor

Ordering Information

ARES-1500-A23

Module PC for POS w/o storage device and

memory

ARES-1500-A23-16S2G

Module PC for POS w/ full configuration

Environmental

Operating Temp.

Storage Temp.

Vibration

Shock

-25 ~ 55°C (-13 ~ 131°F), ambient w/ air flow

-35 ~ 65°C (-31~ -149°F)

Relative Humidity

10 ~ 95% @ 55°C (non-condensing)

3 Grms/5~500Hz/random operation

Operating 20G (11ms), Non-operating 60G with HDD

Operating 50G (11ms), Non-operating 80G with SSD

Qualification

Certification

CE, FCC Class A

All specifications are subject to change without notice.
