P-NUCLEO-USB001
STM32 Nucleo pack for USB Type-C
™
and Power Delivery
Data brief
Features
•
Two DRP USB Type-C
™
receptacles
•
USB 2.0 FS data communication interface as
peripheral
•
V
BUS
load and discharge switches
•
V
CONN
switches
•
Voltage and current sensing for V
BUS
monitoring
•
EMI filters
•
A power connector to interface with external
power supply (not supplied)
Description
The STM32 Nucleo pack for USB Type-C
™
and
Power Delivery (P-NUCLEO-USB001) is a
development tool for learning and developing
solutions based on USB Type-C
™
and USB
Power Delivery technologies.
This tool, in association with the certified
embedded software solution (X-CUBE-USB-PD),
provides the means to control two USB Type-C
™
ports using a single STM32F072 32-bit
microcontroller, based on ARM
®
Cortex
®
-M0.
The X-CUBE-USB-PD is compliant with the USB
Type-C 1.2 and USB Power Delivery 2.0
specifications.
A simple analog front-end PHY is used to
interface the STM32F072 MCU with the
Configuration Channels (CC lines) of the Type-C
receptacles and to allow the communication over
these lines using the Power Delivery
communication protocol.
The P-NUCLEO-USB001 is fully configurable and
ready to support different configurations such as
Provider, Consumer or DRP.
X-CUBE-USB-PD is compliant with the USB
Type-C
™
1.2 and the Power Delivery 2.0
specifications.

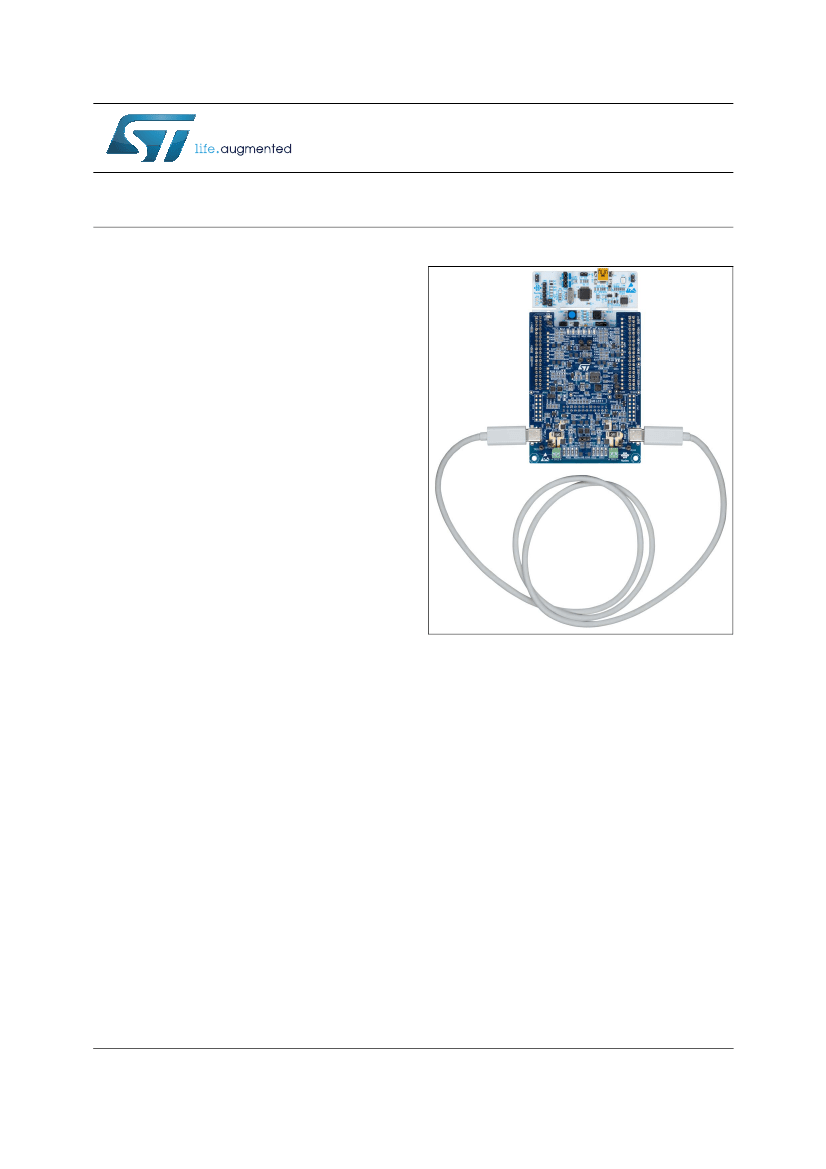

1. Picture is not contractual.
February 2017
DocID029202 Rev 2
1/7
www.st.com
For further information contact your local STMicroelectronics sales office.
P-NUCLEO-USB001 system architecture
P-NUCLEO-USB001
1
P-NUCLEO-USB001 system architecture
The STM32 Nucleo pack for USB Type-C
™
and Power Delivery is composed of two main
blocks (see
Figure 1: P-NUCLEO-USB001 system architecture):
•
•
A
control block:
the NUCLEO-F072RB MCU board where the stack is running
A
USB Type-C
™
interface:
the MB1257 expansion board
Note:
A certified USB Type-C
™
full-featured cable is provided inside the package.
2/7
DocID029202 Rev 2
P-NUCLEO-USB001
P-NUCLEO-USB001 system architecture

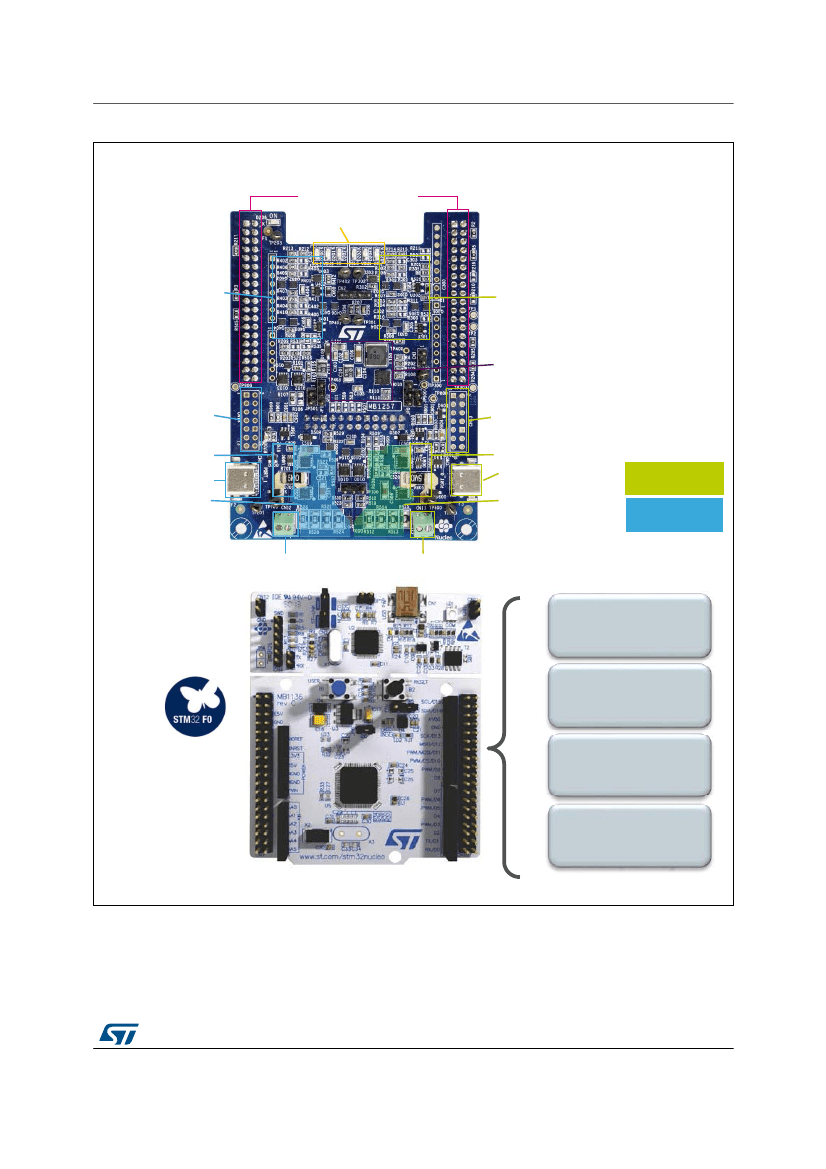

Figure 1. P-NUCLEO-USB001 system architecture
Expansion Board
ST morpho connectors
User LEDs
CC AFE and
V
CONN
Switch Port 1
CC AFE and
V
CONN
Switch Port 0
Local Power
Management
Extension
Connector Port 1
V
BUS
Current/Voltage
sensing Port 1
Type-C Receptacle Port 1
V
BUS
Port 1 Switch
and discharge
Extension
Connector Port 0
V
BUS
Current/Voltage
sensing Port 0
Type-C Receptacle
Port 0
V
BUS
Port 0 Switch
and discharge
Port 0 connectors
and circuitry
Port 1 connectors
and circuitry
Connector for V
BUS
Load Port 1
Connector for V
BUS
Load
Port 0
Device Policy
Manager
Policy Engine
Protocol Layer
Physical Layer
(4b5b, CRC,
SOP, BMC)
NUCLEO-F072RB
DocID029202 Rev 2
3/7
7
P-NUCLEO-USB001 system architecture
P-NUCLEO-USB001
The USB-C and Power Delivery expansion board includes:
•
Two DRP USB Type-C
™
ports with:
–
–
–
–
•
•
•
•
•
•
Discrete analog front-end PHY for USB Type-C
™
configuration and management
(Rp, Rd, switches)
Voltage and current sensing
Dead Battery Management
EMI filters
Dedicated power connector to interface with an external power supply (not included) to
provide different profiles and V
CONN
(5 V)
On-board power management able to provide internal supply voltages
Six-status control LEDs
USB 2.0 interface capability available on Port 0 only acting as UFP
RoHS compliant
PCB type and size:
–
–
Material of PCB: FR4
Four-layer layout
Total dimensions of the expansion board: 74 mm x 98 mm
•
Note:
Copper thickness: 35 µm
–
The integrated Rp value is 4.7 Kohm at 3.3 V to advertise current capability of 3 A at 5 V.
User has to change it according to power supply option capabilities.
NUCLEO-F072RB board includes:
•
An STM32F072RBT6 32-bit microcontroller based on ARM
®
Cortex
®
-M0 with 128
Kbytes of Flash memory,16 Kbytes of SRAM, USB 2.0 FS data interface in LQFP64
package
Two types of extension resources:
–
–
•
•
Arduino
™
Uno Revision 3 connectivity
STMicroelectronics ST morpho extension pin headers for full access to all STM32
I/Os
selection-mode switch to use the pack as a standalone ST-LINK/V2-1
USB V
BUS
on Type-B connector or external source
Power management access point
USB communication (LD1), user LED (LD2), power LED (LD3)
•
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
–
–
–
Flexible board power supply:
•
•
Three LEDs:
–
Two push-buttons: USER and RESET
4/7
DocID029202 Rev 2
P-NUCLEO-USB001
•
P-NUCLEO-USB001 system architecture
USB re-enumeration capability: three different interfaces are supported on USB
–
–
–
Virtual COM port
(a)
Mass storage
Debug port
•
Note:
Supported by wide choice of Integrated Development Environments (IDEs) including
IAR
™
, Keil
®
, GCC-based IDEs
The NUCLEO-F072RB board included in the pack has a different configuration respect to
the default one. The differences are listed below:
•
•
•
Solder bridges SB48, SB49, SB62, SB63 are closed
Solder bridges SB13, SB14, SB15, SB21 are open
0 Ohm resistors R34, R36 are removed
a. For all the details refer to
STM32 Nucleo pack for USB Type-C
™
and Power Delivery with the Nucleo-F072RB
board
User manual (UM2050).
DocID029202 Rev 2
5/7
7
