DBL201G - DBL209G
Taiwan Semiconductor
CREAT BY ART

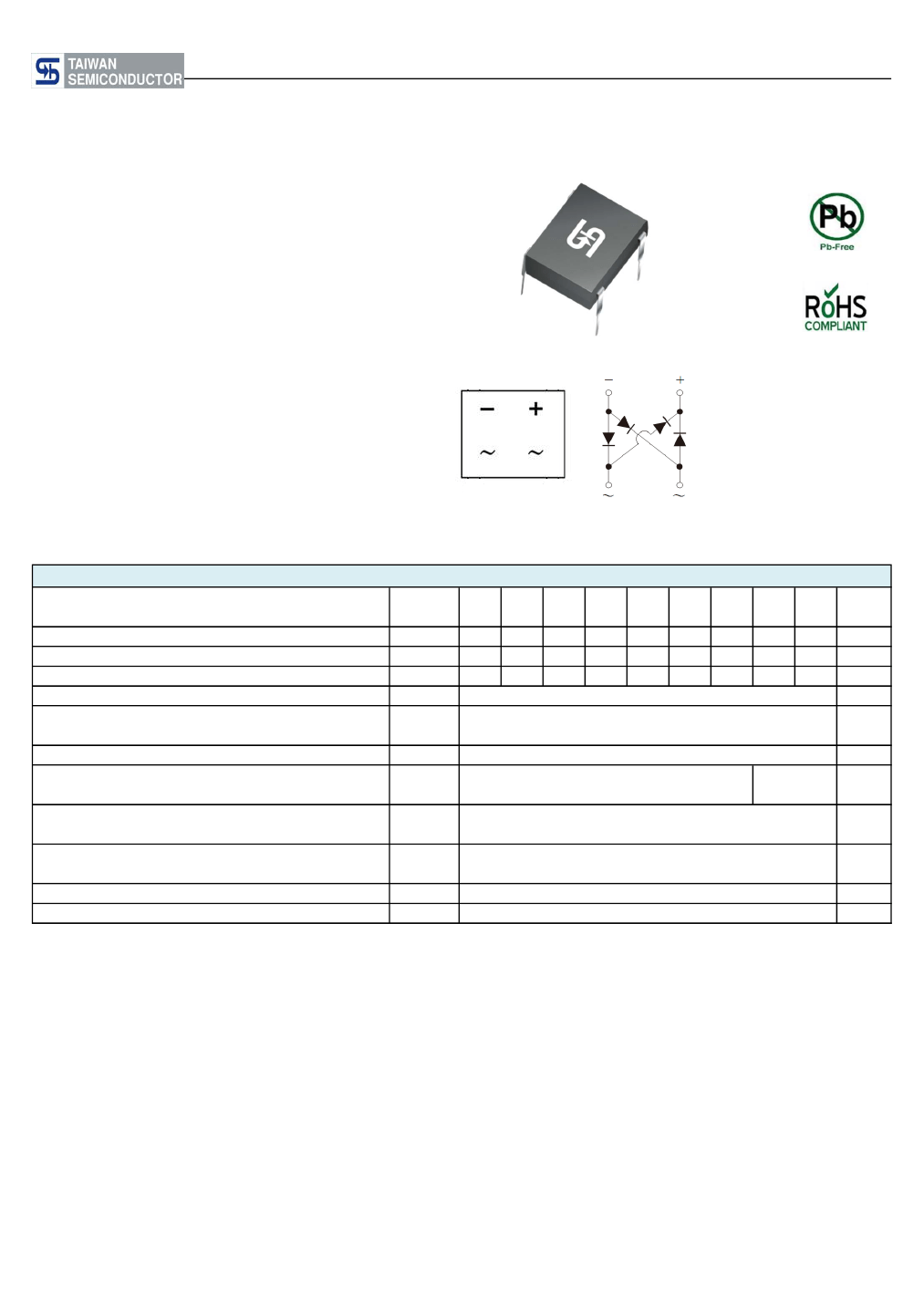

2A, 50V - 1400V Glass Passivated Bridge Rectifiers
FEATURES
- Ideal for automated placement
- Reliable low cost construction utilizing molded plastic technique
- High surge current capability
- UL Recognized File # E-326854
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
DBL
MECHANICAL DATA
Case:
Molded plastic body
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Polarity as marked on the body
Weight:
0.38 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage (Note 1)
I
F
= 2 A
Maximum reverse current @ rated V
R
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse Test with PW=300μs,1% Duty Cycle
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
R
θJL
R
θJA
T
J
T
STG
1.15
2
500
15
40
- 55 to +150
- 55 to +150
DBL
50
35
50
DBL
100
70
100
DBL
200
140
200
DBL
400
280
400
DBL
600
420
600
2.0
50
10.3
1.30
DBL
800
560
800
DBL
1000
700
1000
DBL
1200
840
1200
DBL
1400
980
1400
201G 202G 203G 204G 205G 206G 207G 208G 209G
UNIT
V
V
V
A
A
A
2
s
V
μA
°C/W
°C
°C
Document Number: DS_D1311014
Version: J15
DBL201G - DBL209G
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
DBL20xG
(Note 1)
*: Optional available
PACKING CODE
H
PACKING
CODE
C1
PACKING CODE
SUFFIX
G
(*)
PACKAGE
DBL
PACKING
50 / TUBE
Note 1: "x" defines voltage from 50V (DBL201G) to 1400V (DBL209G)
EXAMPLE
PREFERRED P/N
DBL207GHC1G
PART NO.
DBL207G
PART NO.
SUFFIX
H
PACKING CODE
C1
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

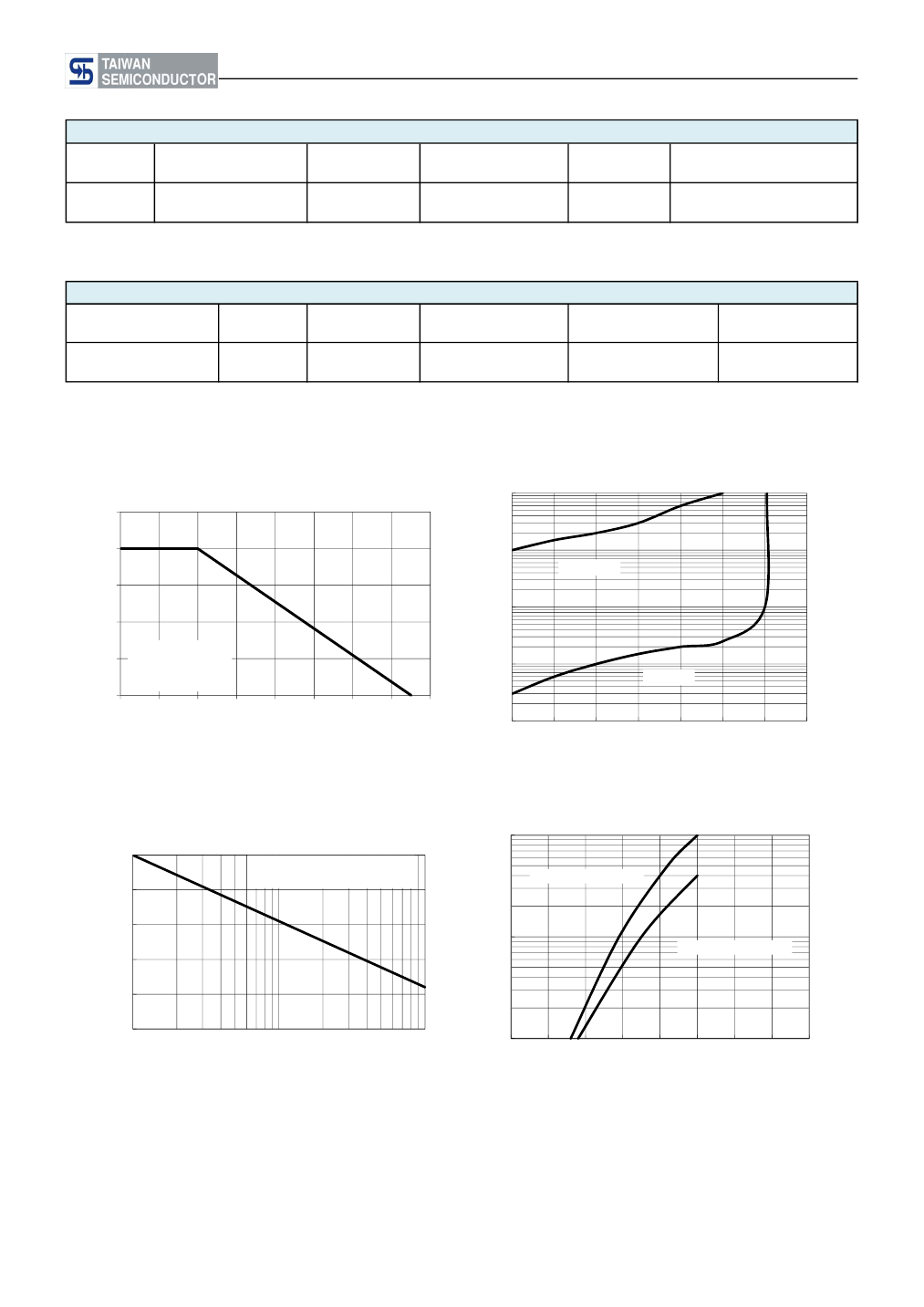

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
100
FIG.1 FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT (A)
2.5
2
1.5
1
0.5
0
0
20
40
60
80
100
120
140
160
AMBIENT TEMPERATURE (
o
C)
INSTANTANEOUS REVERSE CURRENT (μA)
10
T
J
=125°C
1
RESISTIVE OR
INDUCTIVE LOAD
WITH HEATSINK
0.1
T
J
=25°C
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
50
8.3ms Single Half Sine Wave
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
10
INSTANTANEOUS FORWARD CURRENT
(A)
DBL201G - DBL207G
1
DBL208G - DBL209G
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
FORWARD VOLTAGE (V)
1.8
2
Document Number: DS_D1311014
Version: J15
DBL201G - DBL209G
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
CAPACITANCE (pF)
A
10
f=1.0MHz
Vsig=50mVp-p
1
1
10
REVERSE VOLTAGE (V)
100

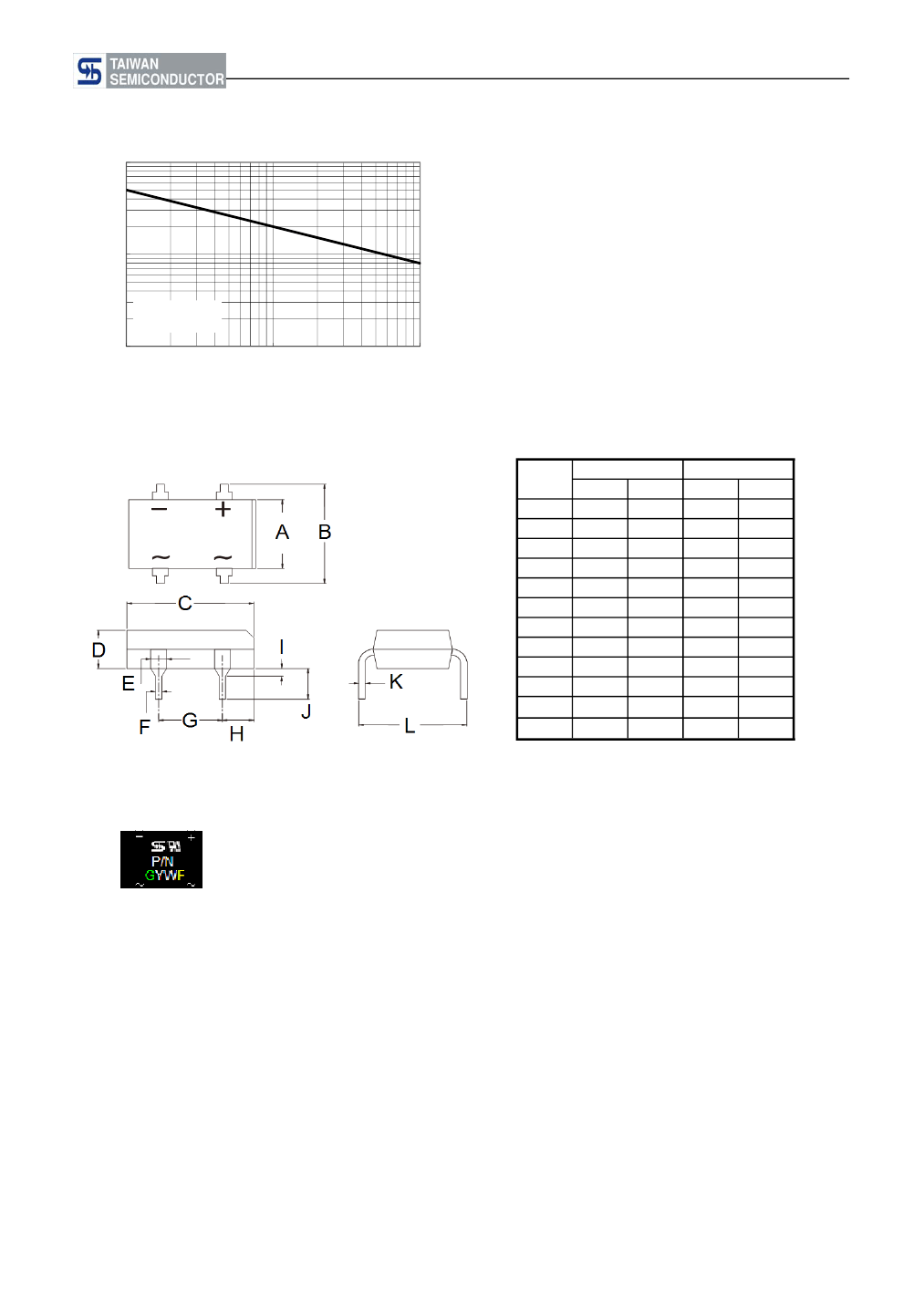

PACKAGE OUTLINE DIMENSIONS
DBL
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
Unit (mm)
Min
6.20
7.24
8.12
2.40
0.89
0.46
5.00
1.39
1.27
3.81
0.22
7.60
Max
6.50
8.00
8.51
2.60
1.14
0.58
5.20
1.90
2.03
4.69
0.33
8.90
Unit (inch)
Min
0.244
0.285
0.320
0.094
0.035
0.018
0.197
0.055
0.050
0.150
0.009
0.299
Max
0.256
0.315
0.335
0.102
0.045
0.023
0.205
0.075
0.080
0.185
0.013
0.350
MARKING DIAGRAM
P/N
G
YW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1311014
Version: J15
DBL201G - DBL209G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1311014
Version: J15
