87368-5025

Description
Headers u0026 Wire Housings MGrid Rec S/E SMT D. T D.R. .76AuLF 50Ckt
CategoryThe connector    The connector
File Size141KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87368-5025 Online Shopping

Suppliers Part Number Price MOQ In stock
87368-5025 - - View Buy Now

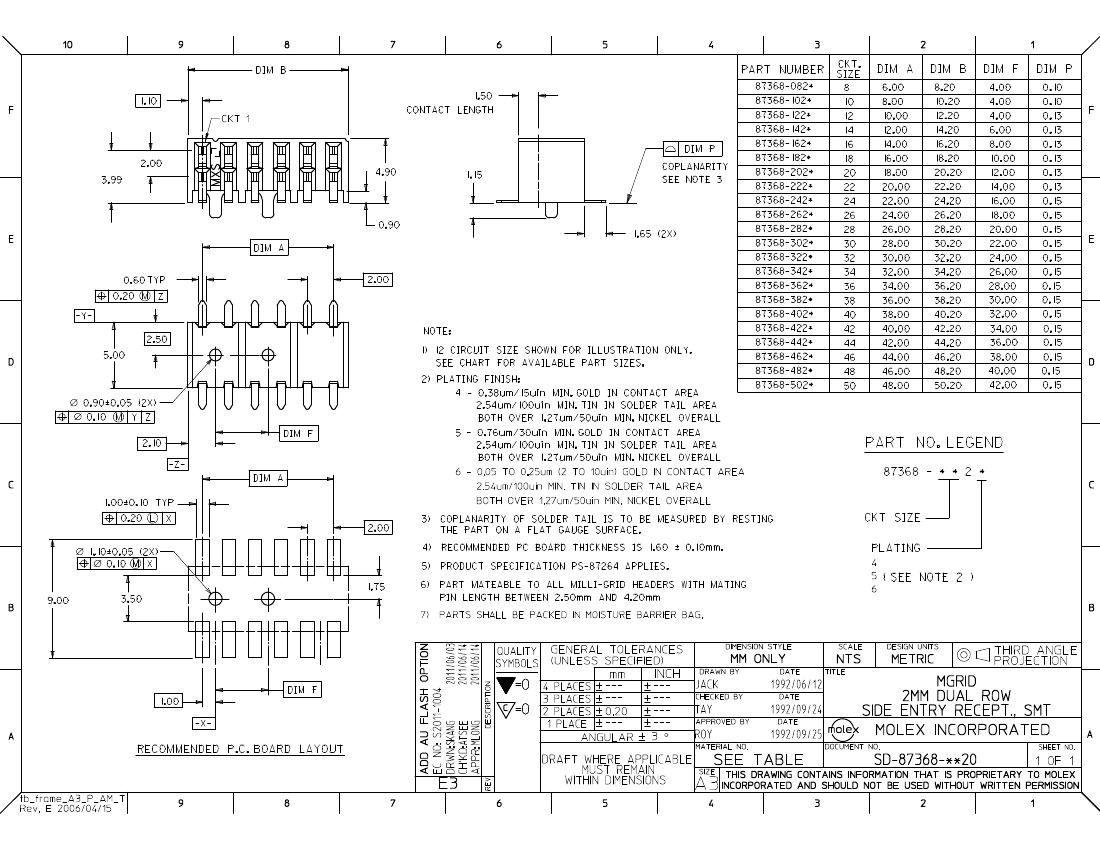

87368-5025 Overview

Headers u0026 Wire Housings MGrid Rec S/E SMT D. T D.R. .76AuLF 50Ckt

87368-5025 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSIDE ENTRY
Board mount optionsPEG
body width0.193 inch
subject depth0.197 inch
body length1.976 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN (100) OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance15 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage700VAC V
Durability25 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force1.7514 N
Insulation resistance1000000000 Ω
insulator materialNYLON
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number87368
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing6.2484 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts50
UL Flammability Code94V-0
Evacuation force-minimum value.1946 N
Base Number Matches1
