1-2229794-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-2229794-1

1-2229794-1: DescriptionD3950 REC 11POS 1ROW X KEY MARKED; CategoryThe connector; File Size457KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-2229794-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-2229794-1	-	-	View	Buy Now

1-2229794-1 Overview

D3950 REC 11POS 1ROW X KEY MARKED

1-2229794-1 Parametric

Parameter Name	Attribute value
Connector type	female end
Connector System	wire to board
shield	no
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Connector type	Connector components
stress relief	Without
Glow Wire Ratings	Standard Parts - Non-Glow Wire
Series number	3000
Number of Positions	11
Rows	1
keying	X
Pre-installed	yes
Operating voltage (VAC)	300
Operating voltage (VDC)	300
Terminal plating materials	gold
Contact Current Rating (Max) (A)	14.5
Shunt/short-circuit bar	Without
Multiple terminal type	Without
Terminal type	socket
Terminal layout	Direct plug-in
PCB mounting alignment	Without
Terminal retention type	lock spring
joint alignment	with
Joint alignment type	keying
joint fixation	with
Joint fixation type	latch
PCB installation and fixation	Without
Terminal positioning force	with
Lock type	latch
Centerline (Pitch) (in)	.295
Shell color	black
length	80.2 mm [ 3.15 in ]
high	9.7 mm [ .381 in ]
width	25.4 mm [ .999 in ]
Working group temperature range	-30 – 105 °C [ -22 – 221 °F ]
Halogen-free	yes
Applicable to	Public end
Component integration features	Without
UL flammability rating	UL 94V-0
Tested by VDE	no
Encapsulation method	Pallets, boxes and pallets
Package quantity	30

Preview

Download Datasheet

View All

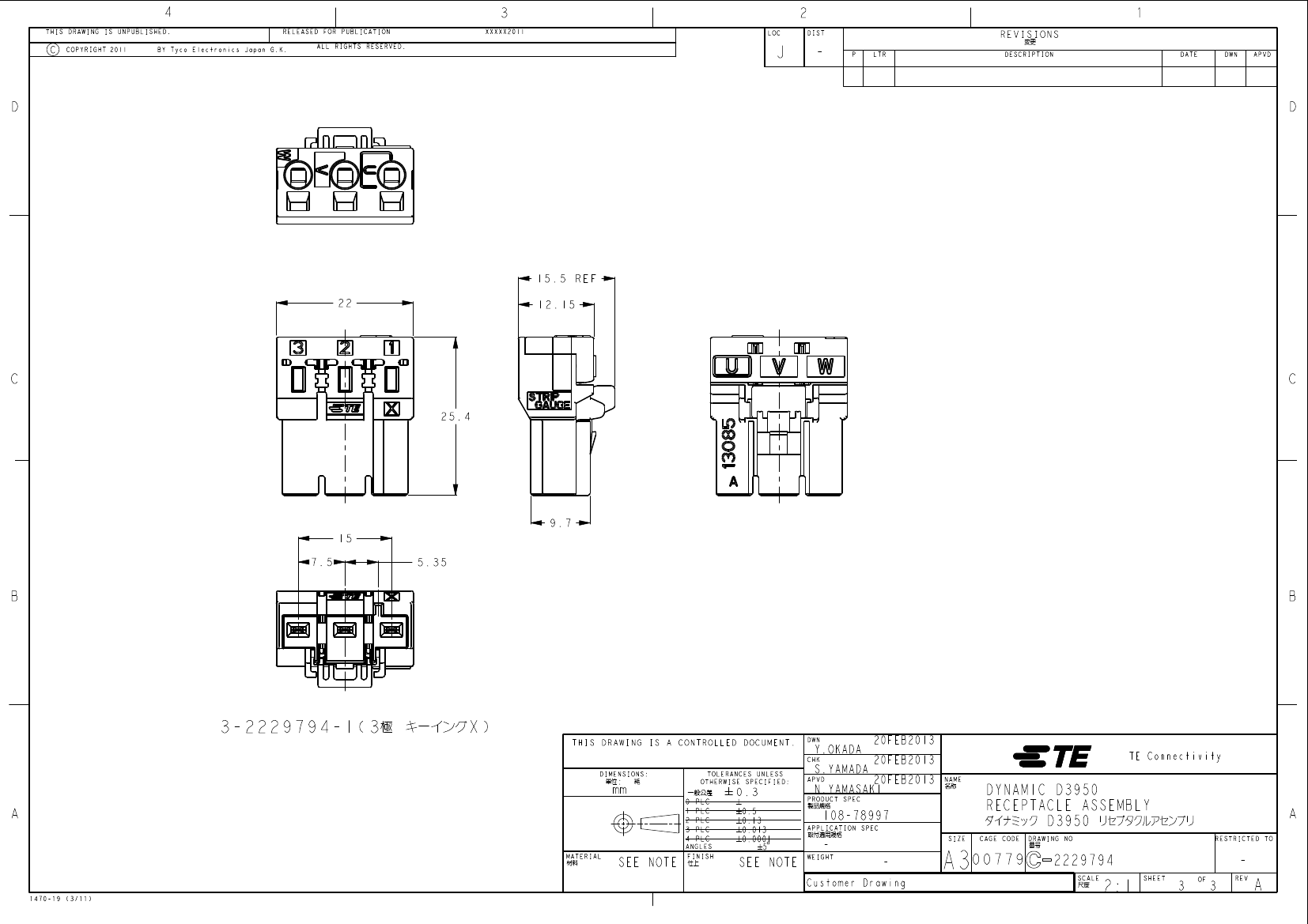

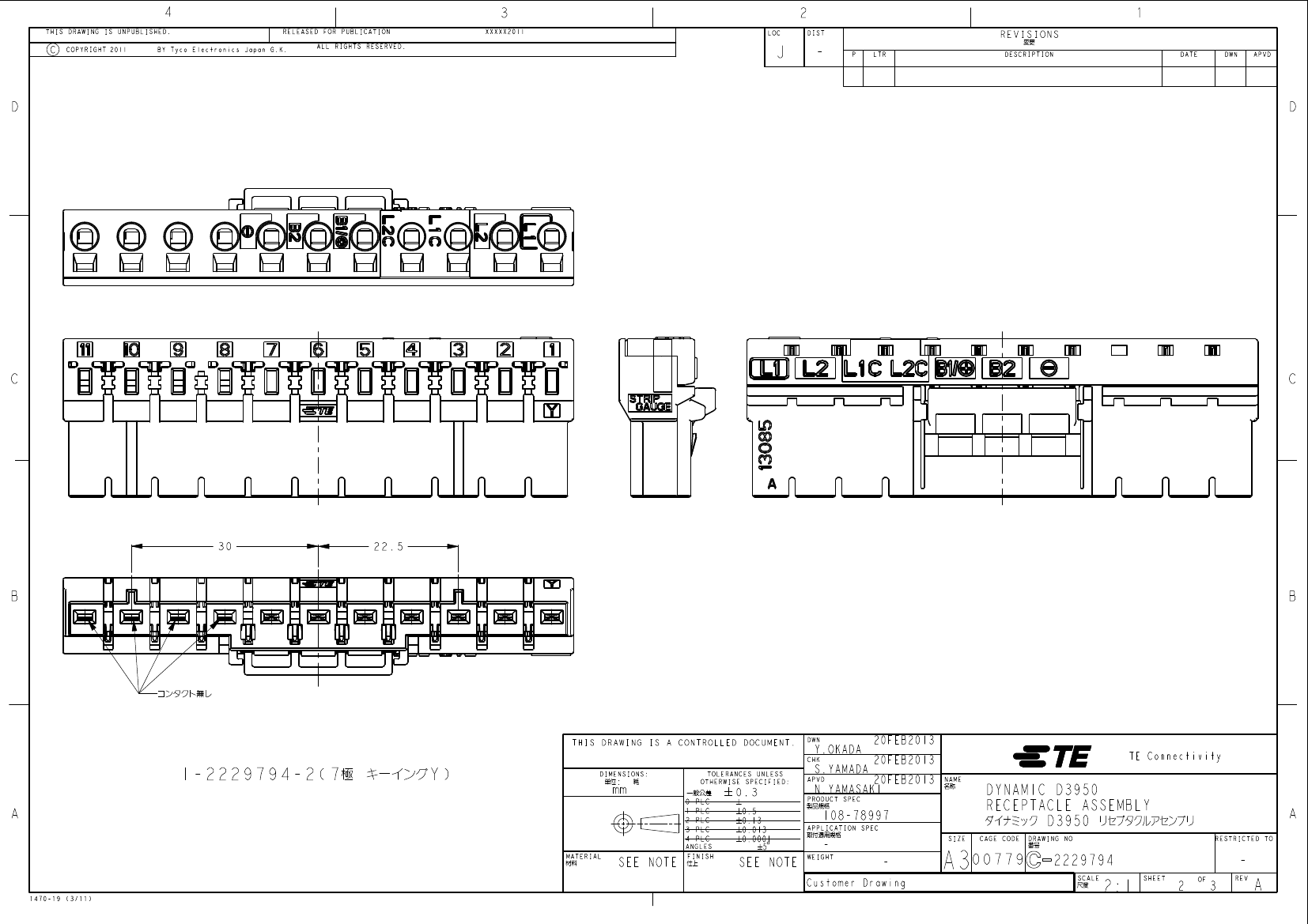

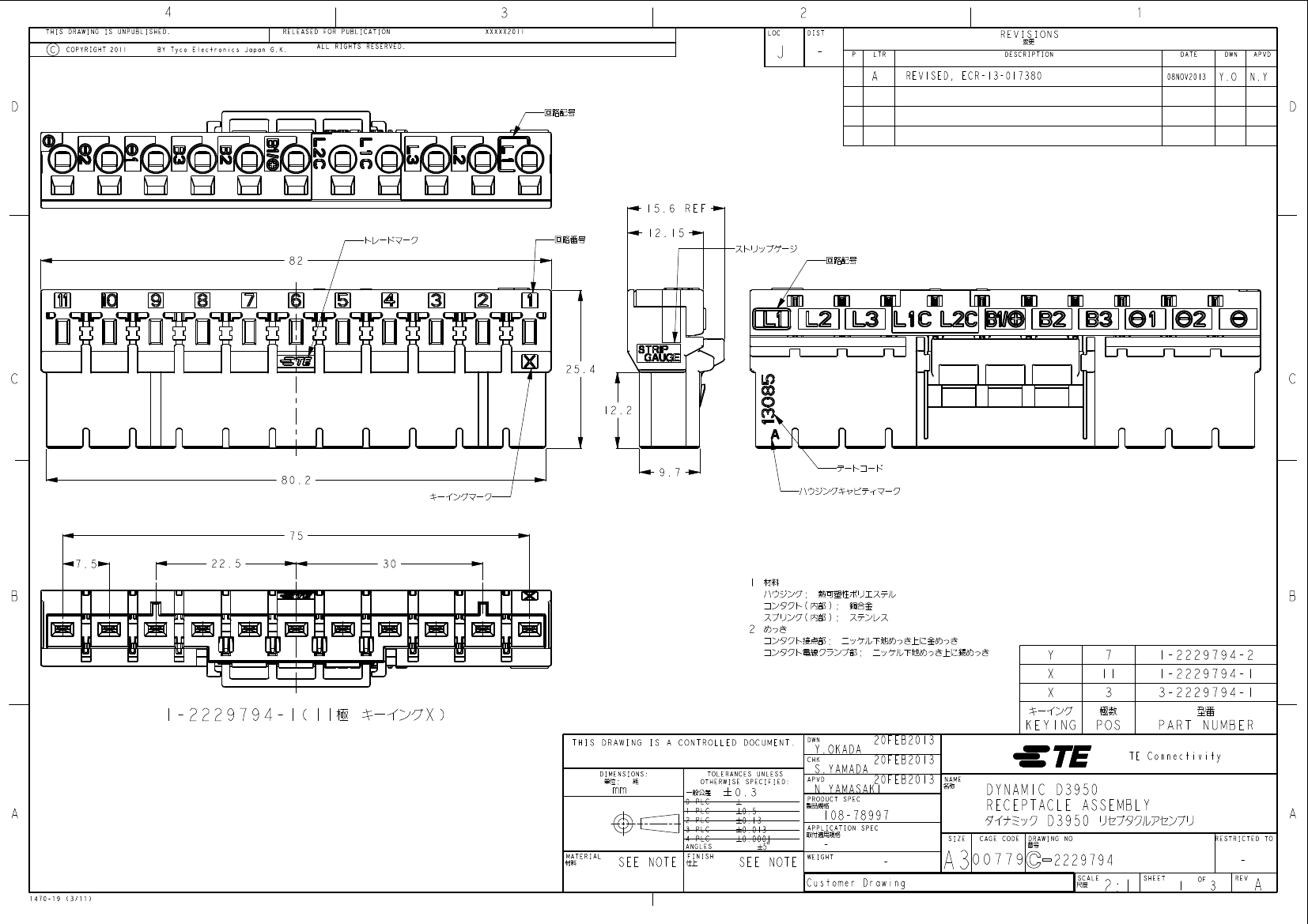

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY Tyco Electronics Japan G.K.

XXXXX2011

LOC

DIST

2011

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED, ECR-13-017380

08NOV2013

Y.O

N.Y

15.6

12.15

REF

25.4

12.2

80.2

9.7

7.5

22.5

(

20FEB2013

NAME

1-2229794-2

1-2229794-1

3-2229794-1

PART NUMBER

TE Connectivity

1-2229794-1(11

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

KEYING

POS

Y.OKADA

S.YAMADA

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

ANGLES

PLC

0.3

APVD

SEE NOTE

FINISH

SEE NOTE

0.5

0.13

0.013

0.0001

5 $

PRODUCT SPEC

N.YAMASAKI

APPLICATION SPEC

108-78997

SIZE

WEIGHT

Customer Drawing

1470-19 (3/11)

00779

CAGE CODE

DYNAMIC D3950

RECEPTACLE ASSEMBLY

D3950

DRAWING NO

RESTRICTED TO

2229794

SCALE

2:1

SHEET

REV
