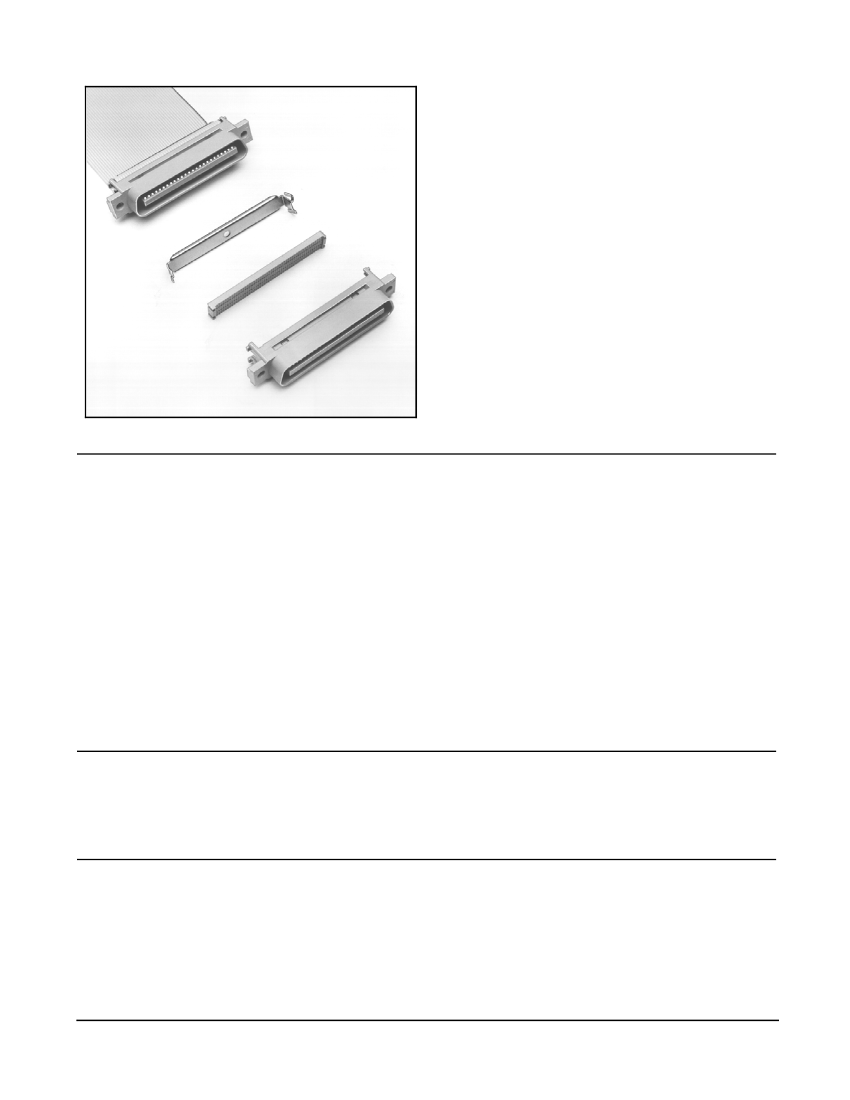

3M
™
D Ribbon Wiremount Plug
Molded Shell
•
•
•
•
3000 Series
Accepts 26-28 AWG wire
Accepts .050 inch round, flat or jacketed cable
Low profile
Flexible design offers various mounting
applications
• Contact design efficiency enables
multiple insertion/withdrawals
• Optional bail mount kit available
• RoHS* compliant
Date Modified: January 9, 2007
TS-0819-08
Sheet 1 of 3
Physical
Insulation
Material:
Glass Filled Polyester (PBT)
Flammability:
Color:
Contact
Material:
Plating:
Underplating:
Wiping Area:
Strain Relief
Material:
Wire Accommodation:
UL 94V-0
Gray
Copper Alloy
100
μ″
[ 2.54
μm
] Nickel
30
μ″
[ 0.76
μm
] Gold
Stainless Steel - 0.012 [ 0.30 ] Thick
26 and 28 AWG Solid or Stranded
Marking:
3M Logo, Part Number Identification, Position 1
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1
×
10
9
Ω
at 500 V
DC
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
D Ribbon Wiremount Plug
Molded Shell
Contact
Quantity
14
24
36
50
3M Part
Number
3572
3548
3366
3564
Dimension
A
1.75 [ 44.5 ]
2.17 [ 55.1 ]
2.68 [ 68.1 ]
3.27 [ 83.1 ]
B
1.42 [ 36.0 ]
1.84 [ 46.8 ]
2.35 [ 59.7 ]
2.95 [ 74.8 ]
C
1.28 [ 32.5 ]
1.70 [ 43.2 ]
2.21 [ 56.1 ]
2.81 [ 71.4 ]

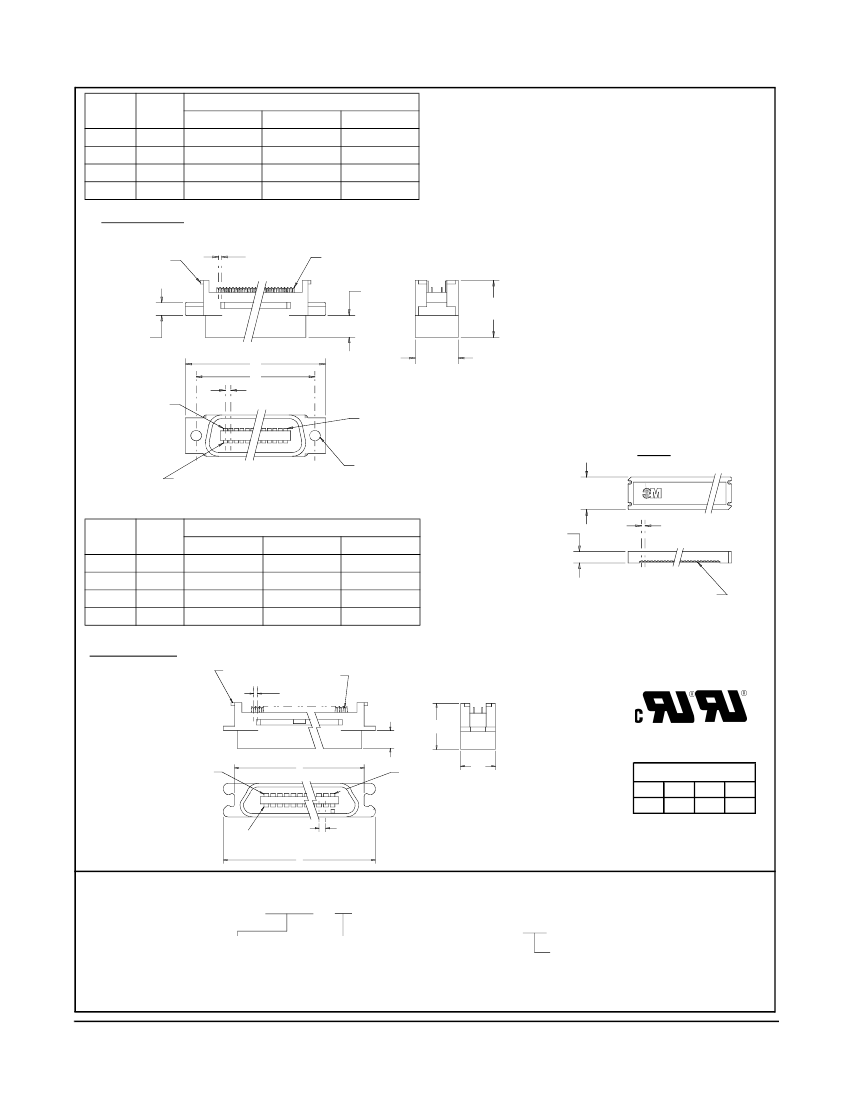

3000 Series
Standard Body
Strain Relief
Flange
.050 Ref
[ 1.27 ]
“U” Contact
.32
[ 8.1 ]
.187
[ 4.75 ]
A
B
.085
[ 2.16 ]
.60
[ 15.2 ]
.82
[ 20.8 ]
Contact Position
14, 24, 36, or 50
Contact Position
8, 13, 19, or 26
1
Cover
See Ordering Information
.46
[ 11.7 ]
Contact Position
7, 12, 18, or 25
3XXX
.050 Typ
[ 1.27 ]
Contact
Quantity
14
24
36
50
Series
A
3572
3548
3366
3564
1.58 [ 40.1 ]
2.01 [ 51.1 ]
2.52 [ 64.0 ]
3.11 [ 79.0 ]
Dimensions
B
1.20 [ 30.5 ]
1.63 [ 41.4 ]
2.14 [ 54.4 ]
2.73 [ 69.3 ]
C
1.28 [ 32.5 ]
1.70 [ 43.2 ]
2.21 [ 56.1 ]
2.81 [ 71.4 ]
.16
[ 4.1 ]
Non-Conductive Adhesive
Transfer with Liner
Bailmount Body
Strain Relief
Flange
“U” Contact
.050 Ref
[ 1.27 ]
.32
[ 8.1 ]
.82
[ 20.8 ]
In c h
.60
[ 15.2 ]
Contact
Position
14, 24, 36, or
50
[m m ]
T o le ra n c e U n le s s N o te d
.0
in c h
± .1
.0 0
.0 0 0
± .0 1 ± .0 0 5
B
Contact
Position
8, 13, 19, or 26
1
Contact Position
7, 12, 18, or 25
A
.085 Ref
[ 2.16 ]
[ ] D im e n s io n s fo r R e fe re n c e
O n ly
Ordering Information Connector
XXXX-100X
Series
See Table
0 = .158 [ 4.01 ] Dia Hole
1 = Bailmount
2 = #4-40 UNC Insert
Strain Relief
(Order Separately)
3448-XX
Optional 3475-X
Bail Mount Kit
(Order Separately)
See TS-0142
60 = 14 Position
61 = 24 Position
62 = 36 Position
63 = 50 Position
TS-0819-08
Sheet 2 of 3
For recommended 3M™
Mating Connectors
refer to TS-2203.
Assembly tools: 3M™ Press, 3640 (or equivalent) ; 3M™ Locator Plate, 3443-58; 3M™ Platen, 3442-9
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
D Ribbon Wiremount Plug
Molded Shell
3000 Series
Notes:
For rear mounting of connector with IEEE-488 Type 3M Jack Socket 3341-3, use .098
″
[ 2.49 mm ] R.
Cantact
Quantity
14
36
50
14
24
36
50
3M Part
Number
3572
3366
3564
3572
3548
3366
3564
Mounting
Method
Front
Front
Front
Rear
Rear
Rear
Rear
Dimension "D"
1.315 [33.41]
1.740 [44.20]
2.250 [57.16]
2.845 [72.26]
1.160 [29.46]
1.585 [53.21]
2.690 [68.33]
.075
±
.015
[ 1.9 ]
.50
±
.02
[ 12.7 ]
C Ref
3448-XX Strain Relief
Material: Stainless Steel
(Order Separately)
TS-0819-08
Sheet 3 of 3
