354079: DescriptionERNI Electronics 20P 1.27MM RA FML TYPE Q 3GBITS SMT; CategoryThe connector The connector; File Size57KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

354079 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	354079	-	-	View	Buy Now

354079 Overview

ERNI Electronics 20P 1.27MM RA FML TYPE Q 3GBITS SMT

354079 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Samacsys Description	Female SMD Header
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

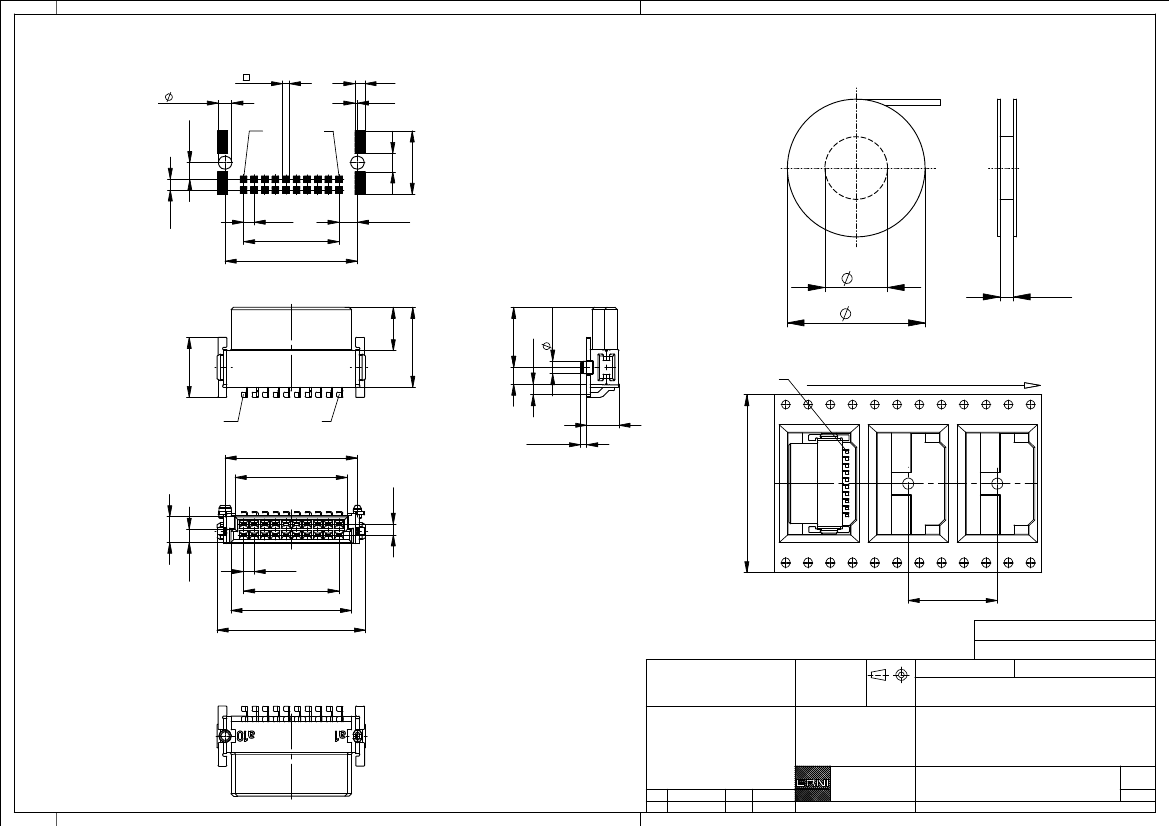

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

0,8

1,6

-0,03

±0,05

a10

1,2

0,3

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 560 Stück -

Packaging unit: 560 pcs

1,27

9 x 1,27 = 11,43

15,85

±0,03

2,21

±0,03

7,6

2,2

150

1,5

-0,03

5,2

32,5

330

9,6

7,2

1,27

Abspulrichtung -

Reel off Direction

b10

15,85

±0,03

13,45

0,75

-0,05

3,85

1,27

Performance Level 1

Kontaktbereich vergoldet

3,05

Mating Area gold plating

1,27

9 x 1,27 = 11,43

14,45

17,78

Anschlussbereich verzinnt 4-6 µm

1,55

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

Anforderungsstufe 1

Coplanarity Area of Termination

≤

0,1 mm

BA7-03 - Standard Bauhöhe

type7-03 - standard assembly height

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

3:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

05.04.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federl. SMC-Q 20-SMD-BA7-03

Female SMC-Q 20-SMD-type7-03

www.ERNI.com

Class

354079

SMCQ
