GI1401 THRU GI1404
FAST EFFICIENT PLASTIC RECTIFIER
Reverse Voltage -
50 to 200 Volts
TO-220AC
0.185 (4.70)
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.154 (3.91)
DIA.
0.148 (3.74)
0.055 (1.39)
0.045 (1.14)
0.175 (4.44)
Forward Current -
8.0 Amperes
FEATURES
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
Glass passivated chip junction
♦
Low power loss
♦
Low leakage current
♦
High surge capability
♦
Superfast recovery time for high efficiency
♦
High temperature soldering guaranteed:
250°C, 0.16" (4.06mm) from case for 10 seconds
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.560 (14.22)
0.530 (13.46)
0.410 (10.41)
0.390 (9.91)
PIN
1
0.160 (4.06)
0.140 (3.56)
0.560 (14.22)
0.530 (13.46)
2
0.635 (16.13)
0.625 (15.87)
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.110 (2.79)
0.100 (2.54)
MECHANICAL DATA
Case:
JEDEC TO-220AC molded plastic body over
passivated chip
Terminals:
Lead solderable per MIL-STD-750,
Method 2026
Polarity:
As marked
Mounting Position:
Any
Weight:
0.064 ounce, 1.81 grams
0.105 (2.67)
0.095 (2.41)
0.037 (0.94)
0.027 (0.68)
0.022 (0.56)
0.014 (0.36)
PIN 1
0.205 (5.20)
0.195 (4.95)
PIN 2
CASE
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
GI1401
GI1402
GI1403
GI1404
UNITS
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
C
=125°C
Peak forward surge current
8.3ms single half sine-wave superimposed
on rated load (JEDEC Method) at T
C
=125°C
Maximum instantaneous forward voltage at:
I
F
=4A, T
J
=100°C
I
F
=8A, T
J
=100°C
I
F
=4A, T
J
=25°C
I
F
=8A, T
J
=25°C
Maximum DC reverse current
at rated DC blocking voltage
Maximum reverse recovery time
(NOTE 1)
Typical junction capacitance
(NOTE 2)
Typical thermal resistance
(NOTE 3)
(NOTE 4)
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
50
35
50
100
70
100
8.0
125.0
150
105
150
200
140
200
Volts
Volts
Volts
Amps
Amps
V
F
0.800
0.895
0.900
0.975
5.0
150.0
35.0
85.0
15.0
2.2
-65 to +150
Volts
T
C
=25°C
T
C
=100°C
I
R
t
rr
C
J
R
ΘJA
R
ΘJC
T
J
, T
STG
µA
ns
pF
°C/W
°C
Operating and storage temperature range
NOTES:
(1) Reverse recovery test conditions: I
F
=0.5A, I
R
=1.0A, I
rr
=0.25A
(2) Measured at 1.0 MH
Z
and applied reverse voltage of 4.0 Volts
(3) Thermal resistance from junction to ambient in free air, no heatsink
(4) Thermal resistance from junction to case mounted on heatsink
4/98

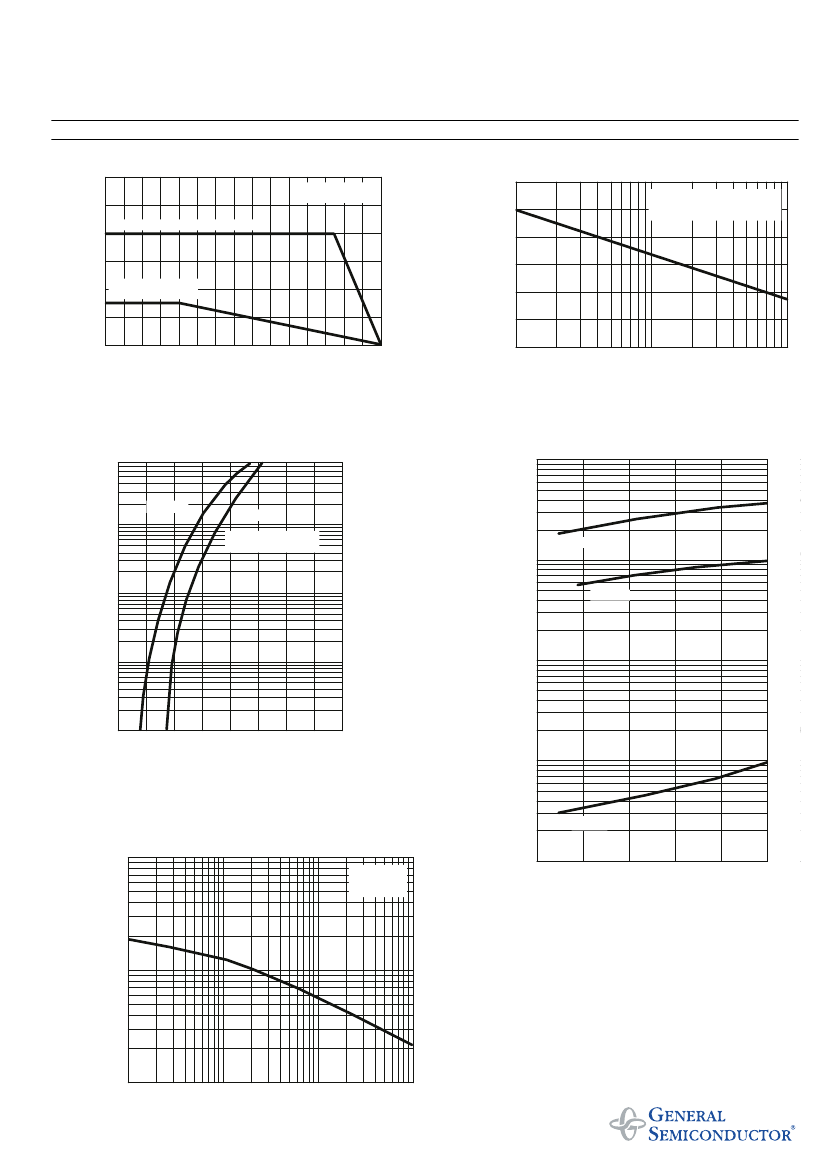

RATINGS AND CHARACTERISTIC CURVES GI1401 THRU GI1404
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
FIG. 1 - FORWARD CURRENT DERATING CURVES
12
10
INFINITE HEATSINK MOUNTING, T
C
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE CURRENT,
AMPERES
RESISTIVE OR
INDUCTIVE LOAD
150
125
100
75
50
25
0
1
T
C
=125°C
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
8.0
6.0
4.0
P.C.B. MOUNTING
2.0
0
0
50
100
150
TEMPERATURE, °C
FREE AIR RATING, T
A
10
NUMBER OF CYCLES AT 60 H
Z
100
FIG. 3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
FIG. 4 - TYPICAL REVERSE LEAKAGE
CHARACTERISTICS
80
100
INSTANTANEOUS FORWARD CURRENT,
AMPERES
T
J
=125°C
T
J
=25°C
10
INSTANTANEOUS REVERSE LEAKAGE CURRENT,
MICROAMPERES
PULSE WIDTH=300µs
1% DUTY CYCLE
T
J
=125°C
10
T
J
=100°C
1
0.1
1
0.01
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1 1.2
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
0.1
T
J
=25°C
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
1,000
TJ=25°C
f=1.0 MH
Z
Vsig=50mVp-p
0.01
0
20
40
60
80
100
JUNCTION CAPACITANCE, pF
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
100
10
0.1
1
10.0
100
REVERSE VOLTAGE, VOLTS
