ECS-120-20-5PX-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-120-20-5PX-TR

ECS-120-20-5PX-TR: DescriptionCrystal 12MHz ±30ppm (Tol) ±50ppm (Stability) 20pF FUND 50Ohm 2-Pin HC-49/USX SMD T/R; CategoryPassive components Crystal/resonator; File Size387KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-120-20-5PX-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ECS-120-20-5PX-TR	-	-	View	Buy Now

ECS-120-20-5PX-TR Overview

Crystal 12MHz ±30ppm (Tol) ±50ppm (Stability) 20pF FUND 50Ohm 2-Pin HC-49/USX SMD T/R

ECS-120-20-5PX-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECS
package instruction	SMD, 2 PIN
Reach Compliance Code	compliant
Factory Lead Time	16 weeks
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	791214
Samacsys Pin Count	2
Samacsys Part Category	Crystal or Oscillator
Samacsys Package Category	Other
Samacsys Footprint Name	ECS-36-20-5PX
Samacsys Released Date	2018-12-09 00:00:36
Is Samacsys	N
Other features	TR
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e2
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	12 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L11.4XB4.8XH4.3 (mm)/L0.449XB0.189XH0.169 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Base Number Matches	1

Preview

Download Datasheet

View All

CSM-7X

SMD CRYSTAL

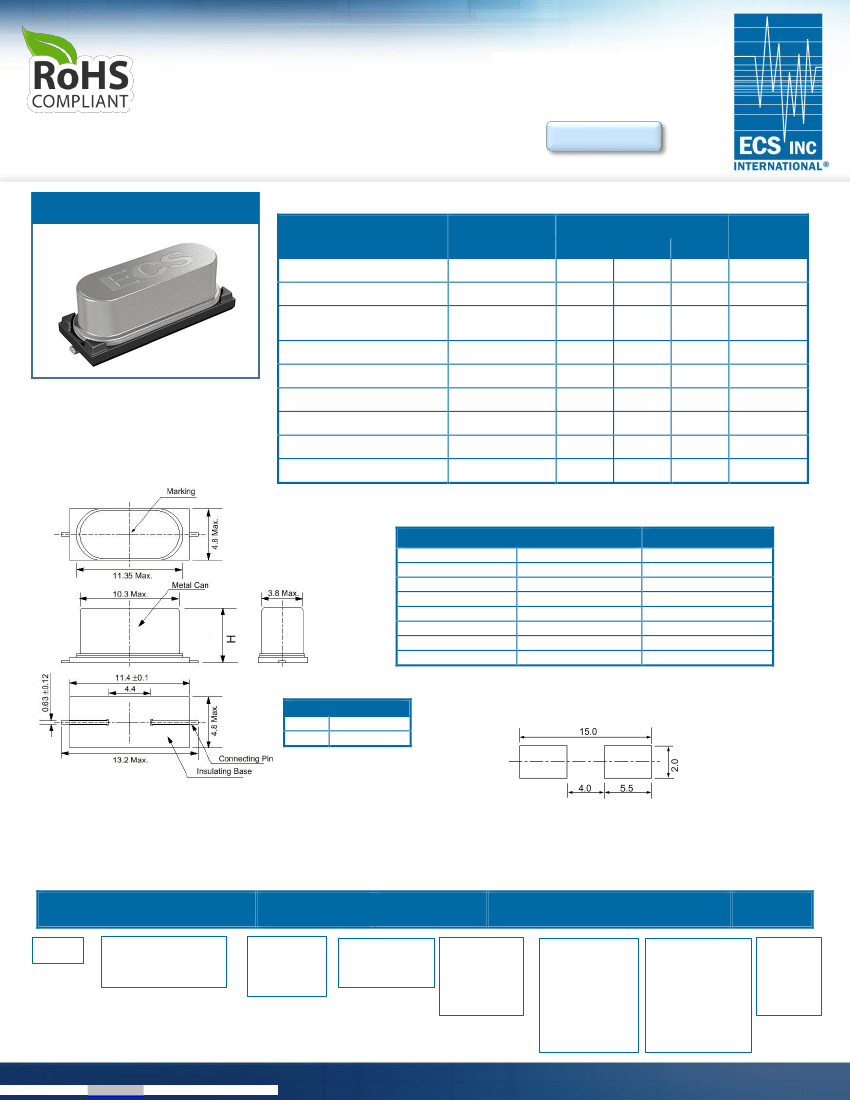

The CSM-7X is an excellent choice for a low cost SMD Crystal. The CSM-7X (5PX)

has a case height of 4.3 mm Max. in a resistance weld metal package. Lower

profile package height of 3.2 mm is available with the (5PLX) package.

Request a Sample

CSM-7X SMD CRYSTAL

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance*

Frequency Stability*

Shunt Capacitance

Load Capacitance

@ +25°C

Standard

-10 ~ +70°C

CONDITIONS

MIN

CSM-7X

TYP

MAX

UNITS

70.000

± 30

± 50

MHz

ppm

μW

°C

ppm

3.57

Specify in P/N

opr

stg

@ +25°C ±3°C

-10

-55

•

Series

500

+70

+125

±5

Cost Effective

Low Profile

Industry Standard Footprint

Pb Free/RoHS Compliant

Drive Level

Operating Temperature*

Storage Temperature

Aging (First Year)

DIMENSIONS (mm)

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

Frequency (MHz)

3.57 ~ 4.999

5.000 ~ 5.999

6.000 ~ 6.999

7.000 ~ 8.999

9.000 ~ 12.999

13.000 ~ 19.999

20.000 ~ 40.000

40.000 ~ 70.000

ESR Ω Max.

150

Mode of Osc.

Fundamental

Overtone

Height “H” Max.

-5PX

5PLX

4.3 mm

3.2 mm

Figure 1)

Top, Side, Bottom, and End

Crystal is symmetrical, pin 1 & 2 are interchangeable.

Figure 2)

Suggested land

pattern

PART NUMBERING GUIDE: Example ECS-200-20-5PX-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

20 = 20 pF

10 = 10 pF

S = Series

PACKAGE

Tolerance

5PX = 4.3 mm

5PLX = 3.2 mm

Blank = Std

A = ± 25

ppm

J = ± 20

ppm

R = ± 15

ppm

C = ± 10

ppm

AVAILABLE OPTIONS

Stability

Blank= Std

D= ±100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm

†

W = ±15 ppm

†

K = ± 10 ppm

†

PACKAGING

Temp Range

Blank= Std

L = -10 ~ +70°C

M = -20 ~ +70°C

Y = -30 ~ +85°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

U = -55 ~ +125°C

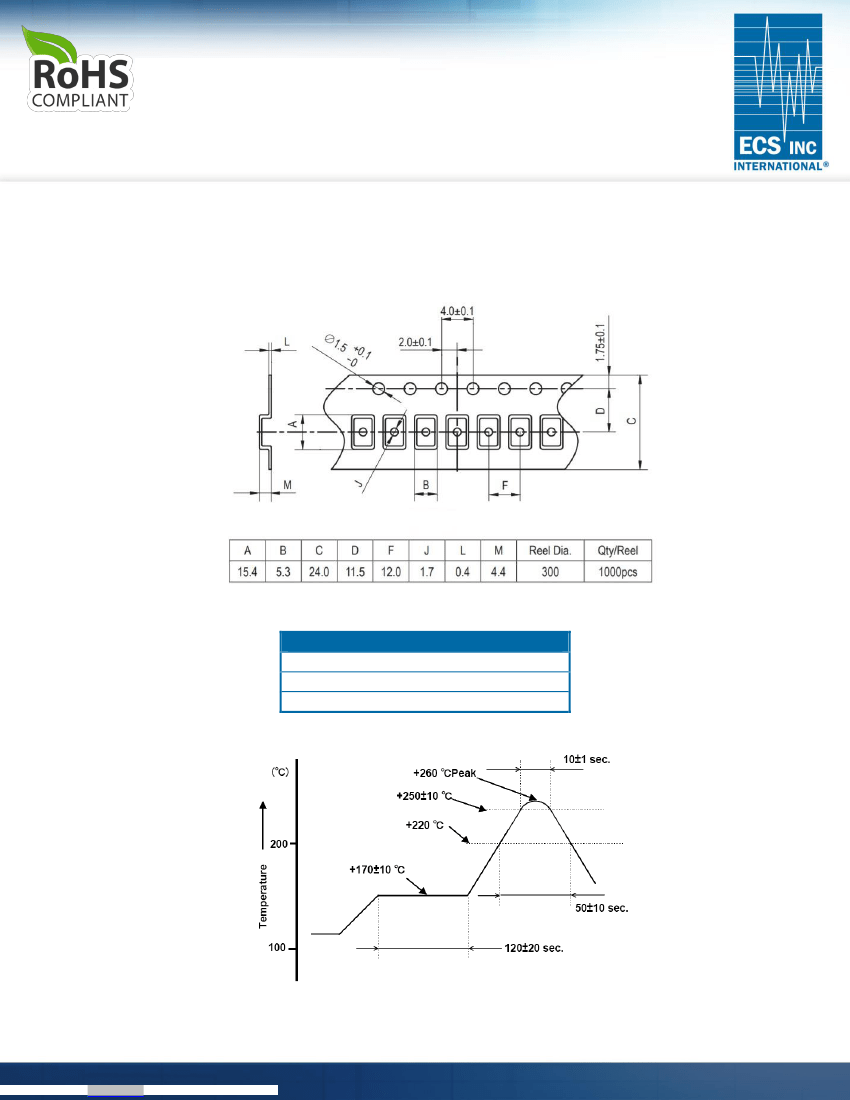

TR =

Tape

& Reel

1K/Reel

ECS

200 = 20.000 MHz

See P/N Guide

* Specify available options in P/N.

†

Contact ECS for availability over extended temp range.

Rev.2020

15351 West 109

Street

Lenexa, KS 66219

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
