36PR20KLF

Description
Trimmer Resistors - Through Hole 6mm 20K Open Type Trimmer
CategoryPassive components
File Size69KB,3 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Download Datasheet Parametric View All

36PR20KLF Online Shopping

Suppliers Part Number Price MOQ In stock
36PR20KLF - - View Buy Now

36PR20KLF Overview

Trimmer Resistors - Through Hole 6mm 20K Open Type Trimmer

36PR20KLF Parametric

Parameter NameAttribute value
Product CategoryTrimmer Resistors - Through Hole
ManufacturerTT Electronics plc
RoHSDetails
Termination StyleRadial
ProductSingle Turn
Number of Turns1
Resistance20 kOhms
AdjustmentTop Crossed
Power Rating0.3 W
Voltage Rating100 V
Tolerance20 %
Temperature Coefficient250 PPM / C
Operating Temperature Range- 30 C to + 100 C
PackagingBulk
Element TypeCermet
Height6.2 mm
Length6.8 mm
Maximum Operating Temperature+ 100 C
Minimum Operating Temperature- 30 C
MountingThrough Hole
Factory Pack Quantity1000
TaperLinear
TypeOpen Type Trimmer
Width8.2 mm
Model 36

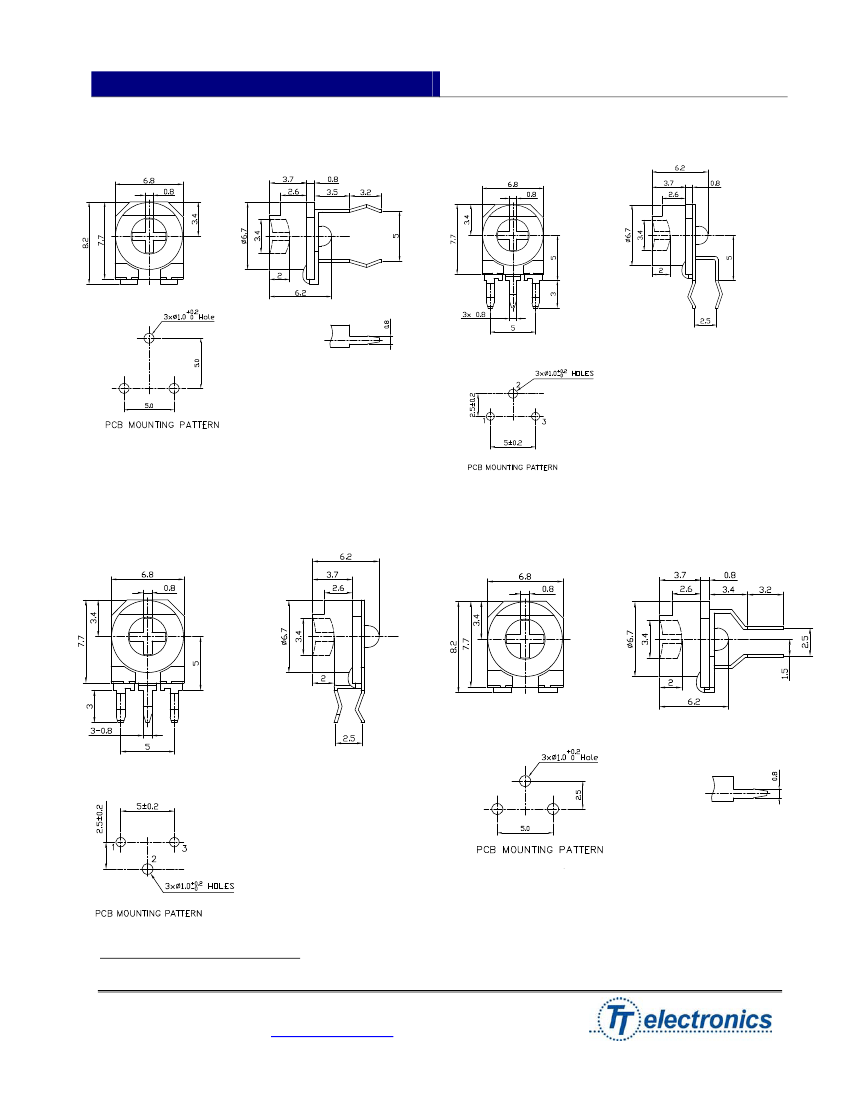

6 MM SINGLE-TURN
Open Frame
Cermet Trimming
Potentiometer
RoHS Compliant
STYLES AVAILABLE
Top Adjust
Side Adjust
Side Adjust
Top Adjust (2.5 mm pin spacing)
36F
36K
36W
36P
ELECTRICAL
1
Resistance Range
Standard Resistance Tolerance
Input Voltage, Maximum
Power rating, Watts
End Resistance, Maximum
Actual Electrical Travel
Mechanical Travel
Insulation Resistance, Minimum
Resolution
Contact Resistance Variation
Temperature Coefficient of Resistance
100 to 1,000,000 Ohms
±
20%
100 V
0.3 @ 70°C
<500 ohms: 10 Ohms Max; > 500 ohms: 2% Max.
215° ±5°
240° ±20°
100 Megohms
Essentially infinite
5% Max.
±250 ppm/°C
MECHANICAL
Torque, Maximum
Weight, Approx.
Wiper Position
2.1 in. oz.
0.01 oz.
Approx. 50%
1
Specifications subject to change without notice.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
May 21, 2009
Website:
www.bitechnologies.com
page 1 of
3
