8860-0125-324-72 datasheet, PDF

Datasheet> All Categories > Passive components> 8860-0125-324-72

8860-0125-324-72: DescriptionEMI Gaskets, Sheets u0026 Absorbers SHEET EcE072 3.2 x 18 x 18in; CategoryPassive components; File Size362KB，2 Pages; ManufacturerLSR

Download Datasheet Parametric View All

8860-0125-324-72 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8860-0125-324-72	-	-	View	Buy Now

8860-0125-324-72 Overview

EMI Gaskets, Sheets u0026 Absorbers SHEET EcE072 3.2 x 18 x 18in

8860-0125-324-72 Parametric

Parameter Name	Attribute value
Product Category	EMI Gaskets, Sheets & Absorbers
Manufacturer	LSR
RoHS	Details
Packaging	Bulk
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Silicone Elastomer

ECE072

NiCkEl

GraphitE FillEd siliCoNE ElastoMEr

ECE072 is a nickel

graphite filled silicone elastomer. ECE072 has excellent shielding properties and

conductivity. This material has excellent sealing at temperature extremes, is ozone resistant,

and has a long shelf life. It has been developed to meet UL94 V-0 standard.

This material can be molded, extruded, or formed into sheets and then die-cut. See our catalog for

standard shapes available, or provide information about your needs for a custom profile.

FEaturEs

• Utilizes both conductive and

non-conductive materials

• Provides stronger environmental shielding

to the outside of gaskets due to pure silicone

• Retains strong EMI protection

• Cost-effective solution

• Able to extrude in various sizes and profiles

PARAMETER

color

elastomer type

Filler type

Density

Electrical

shielding effectiveness

(20-mhz through 10-Ghz)

Volume resistivity 0.1 ohm-cm, maximum

Mechanical Properties

hardness - shore a

Tensile strength

elongation

Tear strength

compression set

Temperature range (min)

Temperature range (max)

Ul Flammability rating

MarkEts

• DataCom

• Military

• Medical

• Industrial Electronics

TEST METhoD

Visual inspection

Formulation

asTm D792

mil-DTl-83528c (4.5.12)

mil-DTl-83528c (4.5.10)

asTm D2240

asTm D412

asTm D624, die c

asTm D395

asTm D1329

mil-DTl-83528c (4.5.15)

File e203070

TyPICAL VALUE

Gray

silicone resin

nickel coated on Graphite

2.2 ± 0.25 g/cm

100 dB, minimum

0.08 ohm-cm, maximum

shore a, 68 ± 7

280 psi, minimum

150%, minimum

55 ppi, minimum

30%, maximum

-45°c

150°c

UL94 V0 Certified

ShEEt MatErial

The Table below lists thicknesses and sizes for

our molded sheet material.

Thickness/Tolerance

0.045 ± 0.005 (1,1 ± 0,1)

0.062 ± 0.007 (1,5 ± 0,2)

18 X 18 sheeT

8860-0045-324-XX

8860-0062-324-XX

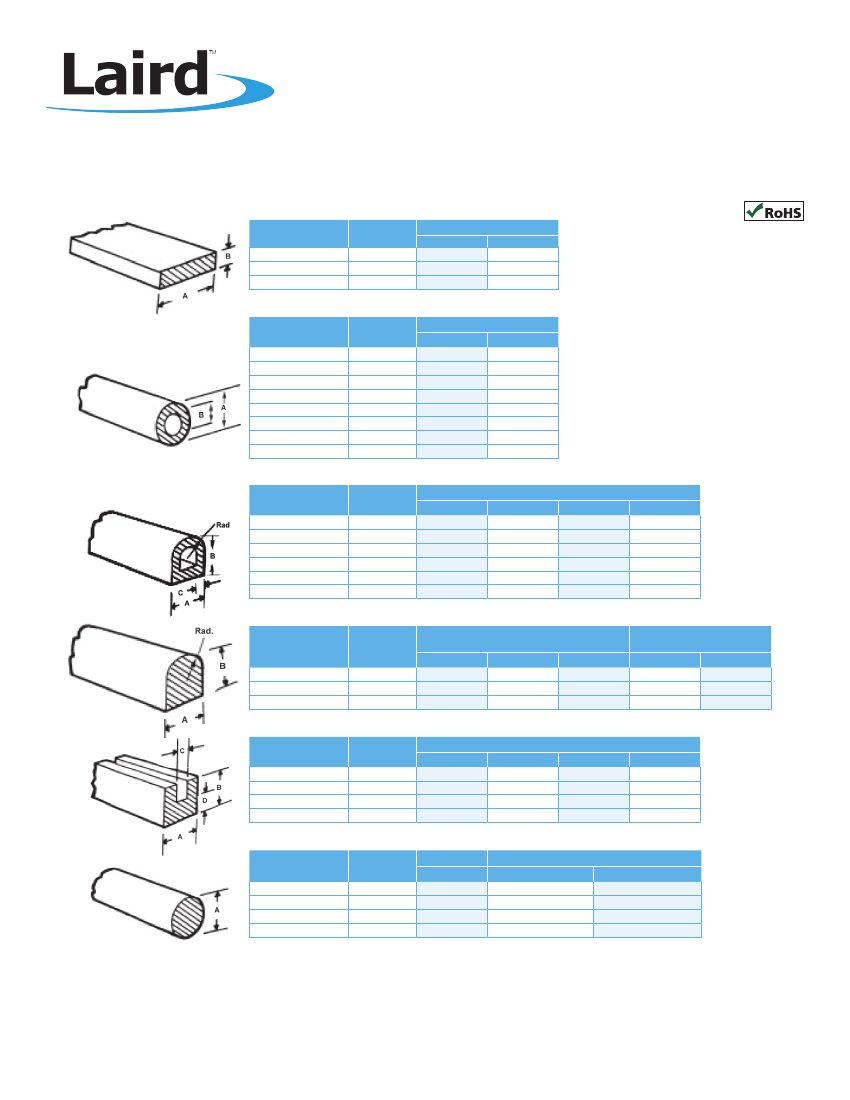

tolErancES all ProfilES

Dimensions

Tolerance

Under 0.101 (2,6)

0.101 to 0.200 (2,6 to 5,1)

0.201 to 0.300 (5,1 to 7,6)

0.301 to 0.500 (7,6 to 12,7)

over 0.500 (12,7)

± 0.005 (0,15)

± 0.008 (0,2)

± 0.010 (0,3)

± 0.015 (0,4)

± 0.020 (0,5)

USA: +1.866.928.8181

Europe: +49.0.8031.2460.0

Asia: +86.755.2714.1166

www.lairdtech.com
