FC4L16R010FER datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> FC4L16R010FER

FC4L16R010FER: DescriptionFerrite Beads 0805 220 OHM; CategoryPassive components The resistor; File Size497KB，2 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com; Environmental Compliance

Download Datasheet Parametric View All

FC4L16R010FER Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FC4L16R010FER	-	-	View	Buy Now

FC4L16R010FER Overview

Ferrite Beads 0805 220 OHM

FC4L16R010FER Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMT, 0603
Reach Compliance Code	compliant
structure	Chip
JESD-609 code	e3
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
method of packing	TR, 7 Inch
Rated power dissipation(P)	0.25 W
resistance	0.01 Ω
Resistor type	FIXED RESISTOR
size code	0603
technology	METAL FOIL
Temperature Coefficient	-50,50 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Tolerance	1%
Base Number Matches	1

Preview

Download Datasheet

View All

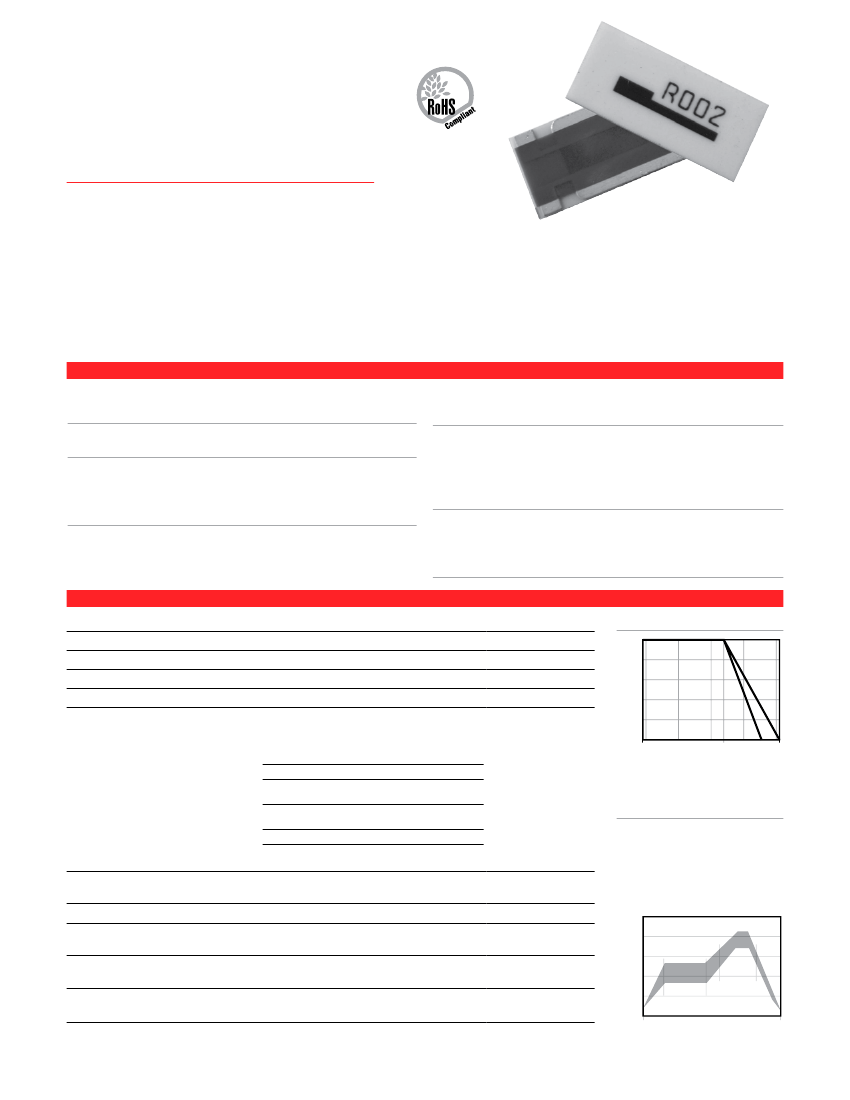

FC4L Series

FC4L Four Terminal Current Sense

Metal Foil Construction

F e at u r e S

• Foil Construction ensures a very stable TCR

(Temperature Coefficient of Resistance)

• Designed for automatic insertion

• Industry standard sizes

• High heat resistant use

• Low heat electromotive use

• Color: white (top) and green (bottom)

Ohmite extends its FC4L Series with this 4-terminal Kelvin

type FC4L derivative in 2 watt and 5 watt package sizes.

Employing the same Ni-Cu-Mn resistive element this prod-

uct affords the user an added advantage of a built in 4-ter-

minal design with 2 larger electrodes for current manage-

ment and 2 smaller electrodes for current measurement.

S e r I e S S P e C I F I C at I O N S

Power

Resistance

Series

Rating

Range

FC4L16 0.25W 5m, 10m, 20m,

50mΩ ~ 100mΩ

FC4L32 1W

1mΩ

2mΩ

3mΩ

4mΩ ~ 500mΩ

TCR Weight

Tol. (ppm/°C) (g)

±1%

±50 0.004

±5%

±2%

±1%

±100

±50

0.015

Power Resistance

Series

Rating

Range

FC4L64 2W

1mΩ

2mΩ

3mΩ

4m ~ 100mΩ

10m ~ 50mΩ

FC4L110 5W

1mΩ

2mΩ

3mΩ ~ 100mΩ

10m ~ 50mΩ

Maximum ∆R

TCR Weight

Tol.

(ppm/°C) (g)

±5%

±100 0.038

±2%

±100

±1%

±100

±1%

±50

±0.5%

±50

±5%

±100 0.110

±2%

±50

±1%

±50

±0.5%

±50

CharaCterIStICS

Test Condition

Max. temperature for rated power

70°C

Operating temperature range

-55°C ~ +155°C (FC4L16: -40°C ~ +125°C)

Rated voltage

√(Rated power x Resistance value) V

Overload

(FC4L16 only) Rated power x 1.5 for 5s

In-rush current

Rated current 10 msec ON, 60 sec OFF, 10

cycles.

Series

FC4L32

FC4L64

Power

Rating

1 watt

Resistance

Range

In-rush Max.

Power Current

2.5W

45A

24A

FC4L16 0.25 watt 5m, 10mΩ

Derating

100

Percent Rated Power

-55

FC4L16

50 70 100 125 155

Ambient Temperature,

°C

Others

±(0.5%+0.0005Ω)

±(1.0% +0.0005Ω)

2 watt

FC4L110 5 watt

1mΩ~9mΩ

100W

10mΩ~100mΩ 50W

1mΩ~50mΩ

100W

1mΩ~9mΩ

25W

10mΩ~500mΩ 12.5W

In-rush current =

√(in-rush

power/resistance

value), or max. current, whichever is smaller

100A

85A

35A

Recommended Reflow

Temperature Profile

For lead free soldering (Sn-Ag-Cu

solder)

Preheating: 130° ~ 180° 60s ~ 90s

Heating: Over 220° 30s ~ 90s

Peak:

240° ~ 260° Max. 10s

Max. number of reflow: 2

300

Rapid change of temperature

-55°C (30min.)/+155°C (30min.), 100 cycles

1000 cycles, FC4L16 only

Solderability

245°C ±5°C for 3 ±0.5 sec.

Endurance at 70°C

70°C ±3°C, Rated voltage 1.5h ON, 0.5h

OFF, 1000h

Resistance to soldering heat

260°C ±5°C for 10 ±1 sec.

±(1.0% +0.0005Ω)

±(2.0%+0.0005Ω)

Min. 90% coverage

±(1.0% +0.0005Ω)

(±0.5% FC4L16)

Temperature °C

250

200

150

100

Peak

240 ~ 260℃ Max. 10s

Moisture resistance

60°C ±2°C, 90~95% RH, Rated voltage 1.5h ±(2.0% +0.0005Ω)

ON, 0.5h OFF, 1000h

(±1.0% FC4L16)

Preheating

130 ~ 180℃

60 ~ 90 sec.

Over 220℃

30s ~ 90s

Heating

Time (sec.)

1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
