4094-0-15-01-47-27-04-0: DescriptionCircuit Board Hardware - PCB 200u"SN/PB OVR NI 47CON; CategoryThe connector terminals; File Size741KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

4094-0-15-01-47-27-04-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4094-0-15-01-47-27-04-0	-	-	View	Buy Now

4094-0-15-01-47-27-04-0 Overview

Circuit Board Hardware - PCB 200u"SN/PB OVR NI 47CON

4094-0-15-01-47-27-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	4094
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

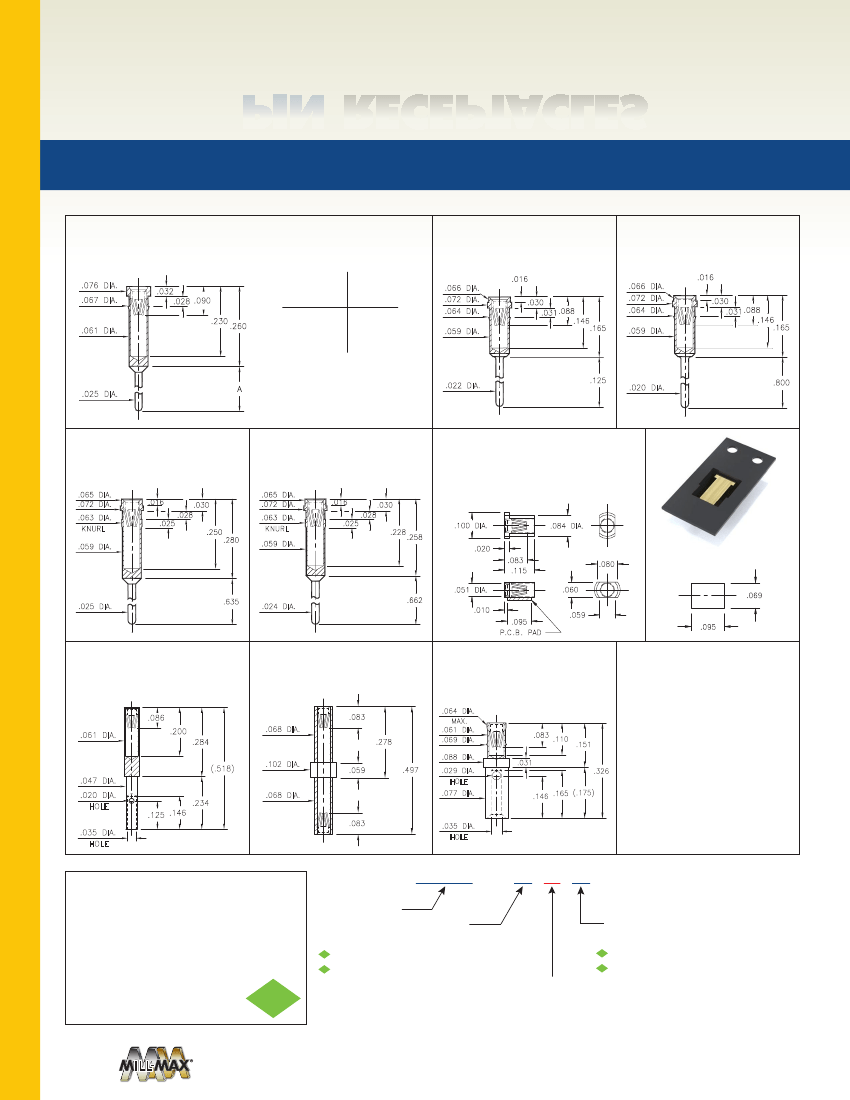

RECEPTACLES

FOR .025” - .037” DIAMETER PINS AND .025” SQUARE PINS

0401/6401

.076 DIA.

.067 DIA.

X401-0-15-XX-47-XX-04-0

Press-fit in .064 mounting hole

.032

.028 .090

.230

.260

1303

Basic Part

Number

Length

.066 DIA.

.072 DIA.

.064 DIA.

.059 DIA.

1303-0-15-XX-47-XX-04-0

Press-fit in .061 mounting hole

.016

.030

.031 .088

.146

8303

.066 DIA.

.072 DIA.

.064 DIA.

.165

8303-0-15-XX-47-XX-04-0

Press-fit in .061 mounting hole

.016

.030

.031 .088

.146

.165

.061 DIA.

0401-0

6401-0

.340

.540

.059 DIA.

.025 DIA.

.022 DIA.

.125

.020 DIA.

.800

4095

.065 DIA.

.072 DIA.

.063 DIA.

KNURL

.059 DIA.

4095-0-15-XX-47-XX-04-0

Press-fit in .061 mounting hole

.016

.025

.028

.250

.280

.030

4014

.065 DIA.

.072 DIA.

.063 DIA.

KNURL

.059 DIA.

4014-0-15-XX-47-XX-04-0

Press-fit in .061 mounting hole

.016

.025

.028

.228

.030

8806

8806-0-18-XX-47-XX-40-0

Surface mount

Also available on 12mm wide carrier tape:

4,000 parts per 13” reel

Order as: 8806-0-58-XX-47-XX-10-0

.100 DIA.

.084 DIA.

.258

.020

.083

.115

.051 DIA.

.060

.059

.095

.080

P.C.B. Layout

.025 DIA.

.635

.024 DIA.

.662

.010

.095

P.C.B. PAD

.069

0722

0722-0-33-XX-47-XX-10-0

6839

Wire crimp termination. Accepts wire

sizes 22 AWG Max. / 28 AWG Min.

.086

.061 DIA.

.200

.284

(.518)

.047 DIA.

.020 DIA.

HOLE

.035 DIA.

HOLE

.234

.125 .146

6839-0-40-XX-47-XX-10-0

Double Ended Receptacle

6368

.064 DIA.

MAX.

.061 DIA.

.069 DIA.

.088 DIA.

6368-0-33-XX-47-XX-10-0

Wire crimp termination. Accepts wire

sizes 22 AWG Max. / 26 AWG Min.

.083

.068 DIA.

.278

.102 DIA.

.083

.110

.151

.059

.497

.029 DIA.

HOLE

.077 DIA.

.031

.326

(.175)

.146 .165

.068 DIA.

.083

.035 DIA.

HOLE

PAGE 180 | PIN RECEPTACLES

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

2011/65/EU

ORDER CODE: XXXX - X - XX - XX -

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

RoHS - 2

SELECT CONTACT:

#47

CONTACT (DATA ON PAGE 256)

(For alternate contact choices, see group D on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
