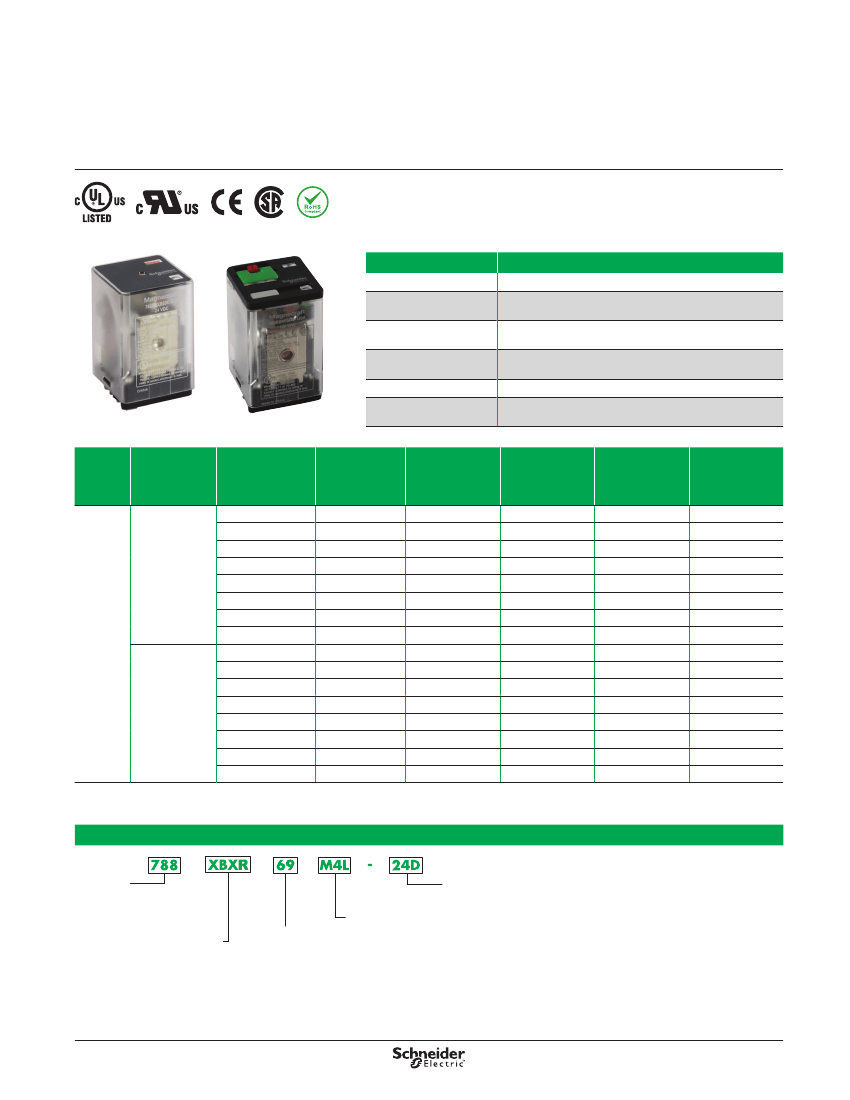

UL listed when used with proper Magnecraft sockets
The 788 Series square base, plug-in relays offer clear, full-feature, top flange, and
side flange covers as well as optional sockets and accessories.
Feature
10 A max. switching current
Clear or full-feature cover
options
DPDT and 3PDT contact
configurations
Socket mount option
Gold-flashed contacts
Mechanical flag indicator
Benefit
Ideal for automation panels and controls
Full-feature covers include LED indicator and locking test
button
Simultaneously control separate circuits
Simplifies installation and maintenance while also allowing the use
of protection modules, hold-down clips and other accessories
Reduces contact oxidation and increases shelf life
Standard feature displays relay status during testing or
operation
788 Clear Cover
788 Full-Feature Cover
Standard
Part Number:
Clear Cover
788XBXRC-12A
788XBXRC-24A
788XBXRC-120A
788XBXRC-240A
788XBXRC-12D
788XBXRC-24D
788XBXRC-48D
788XBXRC-110D
788XCXRC-12A
788XCXRC-24A
788XCXRC-120A
788XCXRC-240A
788XCXRC-12D
788XCXRC-24D
788XCXRC-48D
788XCXRC-110D
Contact
Rating
Contact
Configuration
Nominal Voltage
12 Vac 50/60Hz
24 Vac 50/60Hz
120 Vac 50/60Hz
240 Vac 50/60Hz
12 Vdc
24 Vdc
48 Vdc
110 Vdc
12 Vac 50/60Hz
24 Vac 50/60Hz
120 Vac 50/60Hz
240 Vac 50/60Hz
12 Vdc
24 Vdc
48 Vdc
110 Vdc
Coil
Resistance (Ω)
16.9
72
1700
6800
120
470
1800
7300
16.9
72
1700
6800
120
470
1800
7300
Standard
Part Number:
Clear Cover
with LED
788XBXRCL-12A
788XBXRCL-24A
788XBXRCL-120A
788XBXRCL-240A
788XBXRCL-12D
788XBXRCL-24D
788XBXRCL-48D
788XBXRCL-110D
788XCXRCL-12A
788XCXRCL-24A
788XCXRCL-120A
788XCXRCL-240A
788XCXRCL-12D
788XCXRCL-24D
788XCXRCL-48D
788XCXRCL-110D
Standard
Part Number:
Flange Mount
788XBXRC1-12A
788XBXRC1-24A
788XBXRC1-120A
788XBXRC1-240A
788XBXRC1-12D
788XBXRC1-24D
788XBXRC1-48D
788XBXRC1-110D
788XCXRC1-12A
788XCXRC1-24A
788XCXRC1-120A
788XCXRC1-240A
788XCXRC1-12D
788XCXRC1-24D
788XCXRC1-48D
788XCXRC1-110D
Standard
Part Number:
Full-Feature
788XBXRM4L-12A
788XBXRM4L-24A
788XBXRM4L-120A
788XBXRM4L-240A
788XBXRM4L-12D
788XBXRM4L-24D
788XBXRM4L-48D
788XBXRM4L-110D
788XCXRM4L-12A
788XCXRM4L-24A
788XCXRM4L-120A
788XCXRM4L-240A
788XCXRM4L-12D
788XCXRM4L-24D
788XCXRM4L-48D
788XCXRM4L-110D
DPDT
10 A
3PDT
Note: Magnetic blowout versions are also available with an added contact rating of 3 A at 150 Vdc. Please refer to the Part Number Explanation shown below.
Part Number Explanation
Series:
788 =
788 Series
Relay
Contact Configuration:
XBXR =
DPDT
XCXR =
3PDT
Coil Voltages:
12–240A =
12–240 VAC
Cover Options:
12–110D =
12–110 VDC
C =
Clear Cover
DC Switching:
CL =
Clear Cover and LED
Blank =
None
C1 =
Flange Cover
69 =
Magnetic
M4L =
Locking Push Button
Blowout
and LED
Please contact Customer Service
(Clear Cover
for more information (847-441-2540).
only)
29
Specifications
Magnecraft General Purpose Relays
788 Series
DPDT and 3PDT 10 A
Specifications
Part Number
Contact Characteristics
Terminal Style
Contact Configuration
Maximum Current
Contact Materials
Maximum Switching Voltage
Rated Switching Current at Voltage
(Conforming to IEC AC-1 and DC-1)
Rated Switching Current at Voltage
(Conforming to UL)
Blade
DPDT/3PDT
10 A
Silver Alloy
IEC: 250 Vac / 28 Vdc
UL/CSA: 300 Vac / 30 Vdc
NO: 10 A at 250 Vac, NC: 5 A at 250 Vac
NO: 10 A at 28 Vdc, NC: 5 A at 28 Vdc
Resistive:
10 A at 277 Vac 50 / 60 Hz, 200k cycles
Resistive:
10 A at 30 Vdc, 200k cycles
Motor:
1/3 HP at 120 Vac, 6k cycles
Motor:
1 HP at 277 Vac, 6k cycles
Pilot Duty:
B300, 6k cycles
UL: 3 A at 150 Vdc (DPDT only), 6k cycles
10 mA at 17 Vdc
788XBXR/XCXR
Rated Current with Magnetic Blowout (Code 69)
Minimum Switching Requirement
Coil Characteristics
Maximum Operating Voltage
Maximum Pickup Voltage
Drop-out Voltage Threshold
Average Consumption
General Characteristics
Electrical Life at Rated Load
Mechanical Life (Unpowered)
Operating Time (Response Time)
Dielectric Strength - Between Coil and Contact (AC)
Dielectric Strength - Between Poles (AC)
Dielectric Strength - Between Open Contacts (AC)
Ambient Air Temperature around the Device -
Storage
Ambient Air Temperature around the Device -
Operation
Vibration Resistance - Operational
Shock Resistance
Degree of Protection (Housing Only)
Weight
Agency Approvals
110% (AC / DC)
85% (AC); 80% (DC)
15% (AC); 10% (DC)
3 VA (AC); 1 .4 W (DC)
100,000 operations
5,000,000 operations
20 ms
2500 V(rms)
2000 V(rms)
1500 V(rms)
-40 to +85 °C (-40 to +185 °F)
-40 to +55 °C (-40 to +131 °F)
+/- 1 mm (10–35 Hz) and 3 g-n (35–150 Hz)
10 g-n
IP 40
83 g (2 .93 oz)
UL with socket, UR (E164862), CE, CSA (225619), RoHS
Note: Actual product performance may vary depending on application and environmental conditions.
30
Dimensions,
Wiring Diagrams
Magnecraft General Purpose Relays
788 Series
DPDT and 3PDT 10 A
Dimensions — inches (millimeters)
Clear Cover Dimensions
1.4
(35.7)
1.97
(50)
1.38
(35)
Full-Feature Cover Dimensions
1.4
(35.7)
0.24
(6.1)
2.09
(53)
1.38
(35)
Side Flange Cover Dimensions
2.77
(70.3)
2.37
(60.3)
1.9
(48.2)
0.04
(1.0)
1.4
(35.7)
1.38
(35)
Wiring Diagrams
DPDT
1
12
4
14
7
11
B
A2
A
A1
3
22
6
24
9
21
B
A2
1
12
4
14
7
11
A
A1
PDT
2
32
5
34
3PDT
2
32
5
34
8
31
3
22
6
24
9
21
B
A2
NEMA
IEC
31
Description
Magnecraft General Purpose Relays

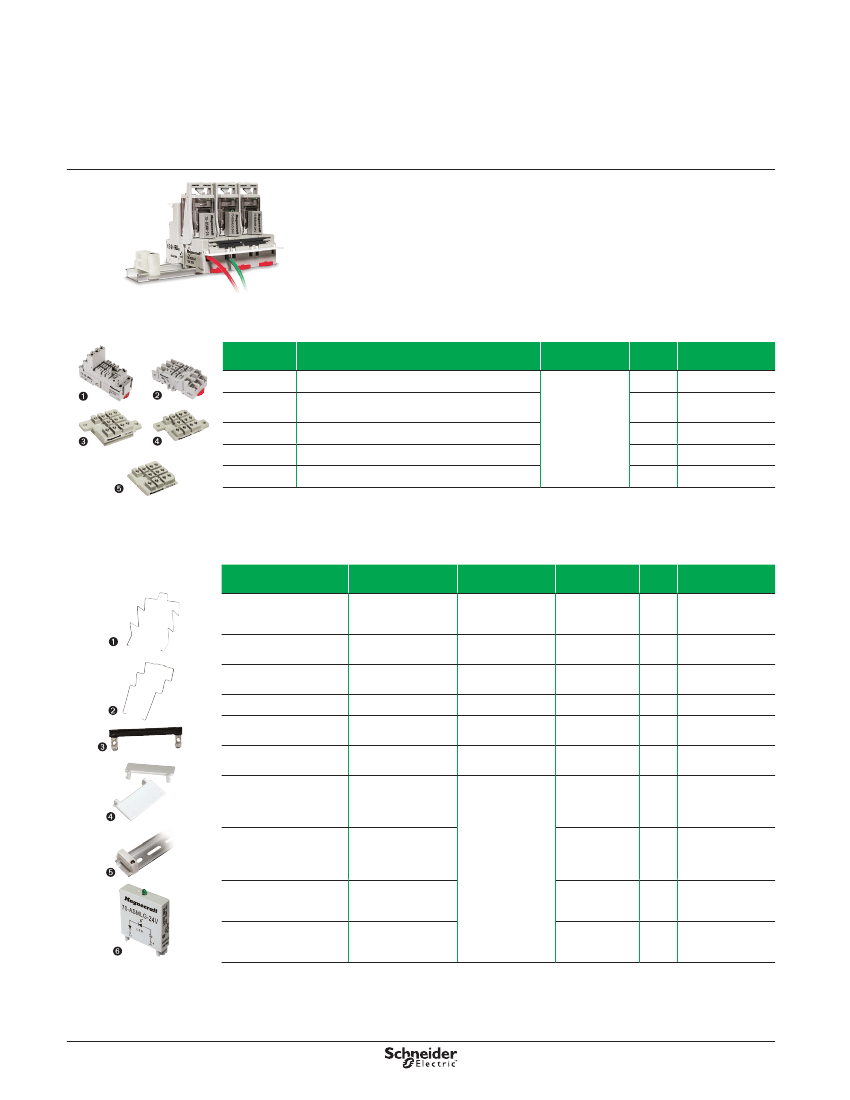

788 Series Accessories
Description
Optional sockets offer customizable, Fingersafe solutions including protection
modules, hold-down clips, and ID tags . Sockets are DIN rail and panel mount
compatible .
Relay Accessories
Description
Socket
Socket
Socket
Socket
Socket
Function
DIN mount with elevator terminals
DIN/Panel mount with screw terminals and clamping
plates
0 .187 in . Quick Connect terminals with mounting tabs
Printed circuit terminals with mounting tabs
Printed circuit terminals without mounting tabs
For Use With
Relays
Pkg.
Min.
10
10
Standard
Part Number
70-788EL11-1
70-463-1
70-124-2
70-178-1
70-178-2
➊
➋
➌
➍
➎
788XBXR/XCXR
10
10
10
Socket Accessories
Description
Metal Spring Clip
Metal Spring Clip
Function
For Use With
Sockets
70-788EL11-1,
70-463-1, 70-124-1,
70-178-1, 70-178-2
70-463-1
70-788EL11-1
70-788EL11-1
70-788EL11-1,
70-463-1
–
Coil Voltage
–
–
–
–
–
–
Pkg.
Min.
10
10
10
10
10
10
Standard
Part Number
16-1351
16-1344
16-750/788CBJ-1
16-750/788FT-1
16-700DIN
16-DCLIP-1
➊
➋
Secures relay in
socket
Secures relay in
socket
Wireless socket
connection
Write-on plastic labels
Quick installation and
removal of sockets
Holds sockets firmly in
place on DIN rail
MOV Suppressor
(Protects from
damaging electrical
spikes)
Protection Diode
(Protects external drive
circuitry from inductive
voltages)
Insulated Coil Bus Jumper
System
➌
Plastic I .D . Tag
➍
Extruded Aluminum DIN
Rail, 39 .37'' (1000 mm)
➎
DIN Rail End Clip
➎
Large Socket Module
24 Vac/Vdc
10
70-ASMM-24
Large Socket Module
250 Vdc
70-788EL11-1
110/240 Vac/Vdc
10
70-ASMD-250
Large Socket Module
➏
LED Indicator
(Provides coil status
at a glance)
RC Suppressor
(Snubs back EMF of
relay coil)
10
70-ASMLG-110/240
Large Socket Module
110/240 Vac
10
70-ASMR-110/240
Note: Use of LED or RC socket module may increase coil power draw by up to 10%.
