FTR-B3SA012Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> FTR-B3SA012Z

FTR-B3SA012Z: DescriptionHigh Frequency / RF Relays SIGNAL; CategoryMechanical and electronic products relay; File Size673KB，10 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

FTR-B3SA012Z Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FTR-B3SA012Z	-	-	View	Buy Now

FTR-B3SA012Z Overview

High Frequency / RF Relays SIGNAL

FTR-B3SA012Z Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Reach Compliance Code	unknown
ECCN code	EAR99
body width	7.2 mm
body height	5.45 mm
Body length or diameter	10.6 mm
Maximum coil current (DC)	0.012 A
Coil operating voltage (DC)	9 V
Coil power	140 mW
Coil release voltage (DC)	1.2 V
Coil resistance	1028 Ω
Maximum coil voltage (DC)	12 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	62.5VA@250VAC
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated power R load	30W@220VDC
Contact (DC) maximum rated R load	2A@220VDC
Contact resistance	75 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Nickel
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
Installation features	SURFACE MOUNT-STRAIGHT
Number of terminals	8
operating hours	3 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TUBE
physical size	10.6mm x 7.2mm x 5.45mm
Guideline	CSA; EN; IEC; UL
Relay action	MOMENTARY
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	3 ms
seal	PLASTIC SEALED
surface mount	NO
Termination type	SOLDER
weight	0.85 g

Preview

Download Datasheet

View All

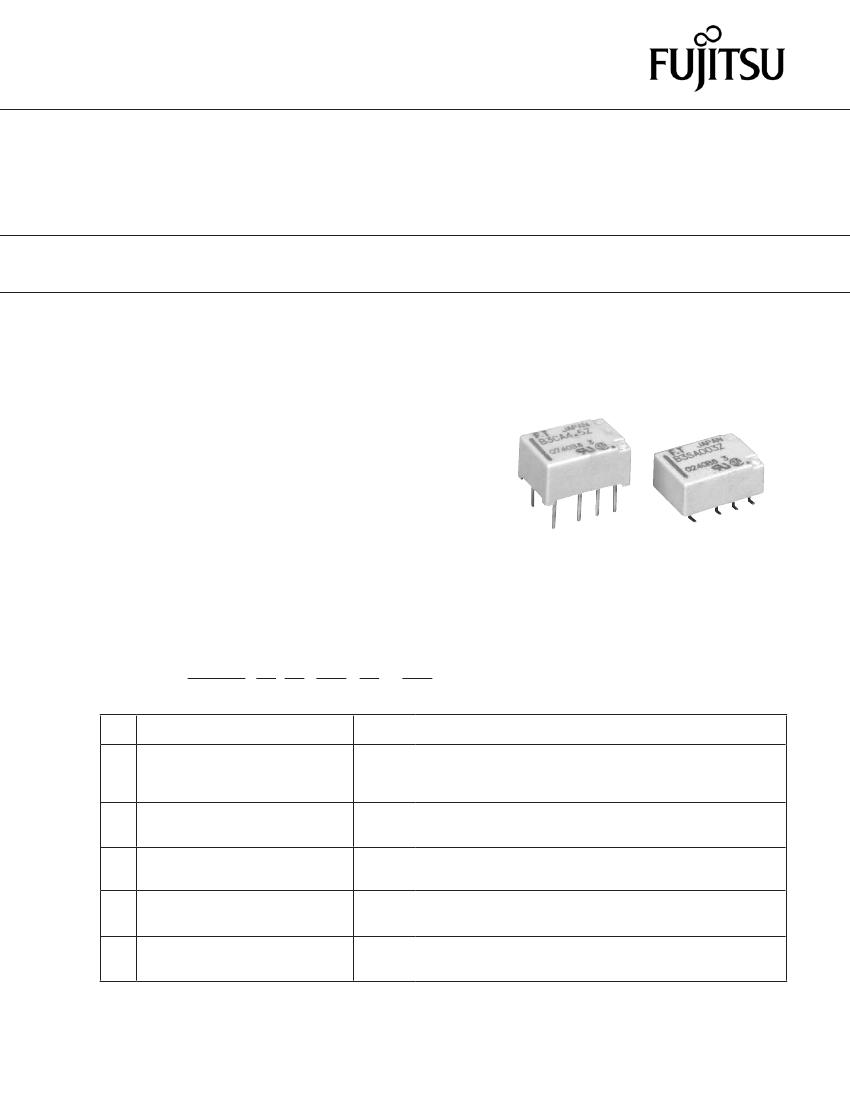

FTR-K1 SERIES

ULTRA MINIATURE RELAY

2 POLES - 2 A (Low Profile Signal Relay)

FTR-B3 Series

FEATURES

DPDT 2C

Ultra miniature low profile relay with high heat resistant material

Height: 5.45mm, Weight: 0.85g, Mounting space: 87mm

Adopted superior contact spring for high frequency characteristic

Comply with Telcordia / FCC standard

- Isolation distance: min. 1.6mm

- Dielectric strength between coil and contact: 1500VAC

- Surge strength: 2500V

Low power: Non-latching: 140mW (230mW at 24V)

Latching: 100mW (120mW at 24V)

High reliable bifurcated gold overlay silver contact

UL, CSA recognized. Confirms to IEC 60950, UL1950,

EN60950. Spacing & high breakdown voltage (basic

insulation, 150 working volts, pollution degree 2)

RoHS compliant. Please see page 9 for more information

Plastic sealed

PARTNUMBER INFORMATION

FTR-B3

(a)

G B

(b) (c)

[Example]

(a)

(b)

012

(d)

Z - B10

(e)

(f)

FTR-B3

012

Nil

B10

: FTR-B3-Series

: Through hole

: Surface mount

: Surface mount, space saving

: Standard type

: Latching type (1 coil)

: 1.5.....24 VDC

Coil rating table at page 3

: Gold overlay silver nickel

: Gold overlay silver palladium

: Tube packaging

: Tape&Peel packaging (only for surface mount type)

Relay type

Terminal type

(c)

(d)

(e)

(f)

Coil type

Coil rated voltage

Contact material

Packaging

Remarks: Actual marking on relay would not carry code FTR and be as below:

Ordering code: FTR-B3GB012Z-B10

Actual marking: B3GB012Z

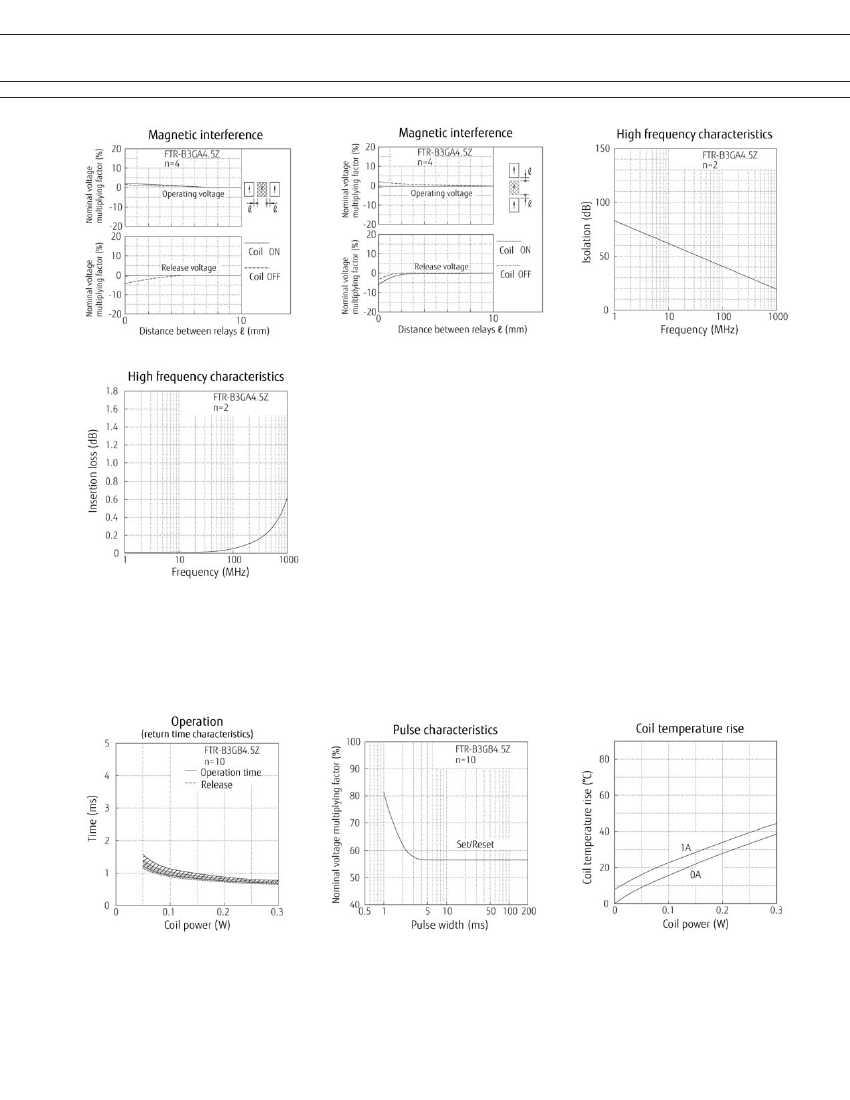

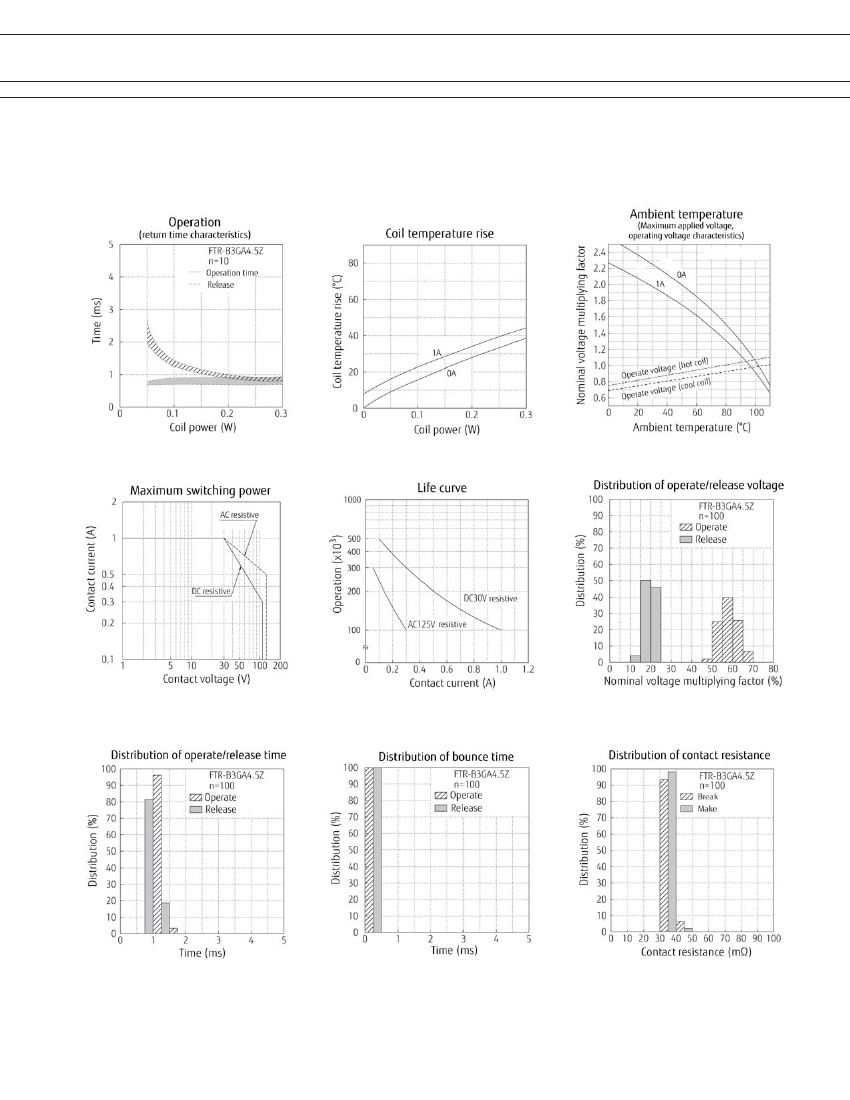

FTR-B3SA012Z Related Products

	FTR-B3SA012Z	FTR-B3SB012Z-B10	FTR-B3SB003Z-B10	FTR-B3GA15Z	FTR-B3GB45Z	FTR-B3SB024Z-B10
Description	High Frequency / RF Relays SIGNAL	High Frequency / RF Relays SIGNAL	High Frequency / RF Relays SIGNAL	High Frequency / RF Relays SIGNAL	Multilayer Ceramic Capacitors MLCC - SMD/SMT 1206 22uF 35volts X5R 20%	High Frequency / RF Relays SIGNAL
Reach Compliance Code	unknown	unknown	unknown	-	-	unknown
ECCN code	EAR99	EAR99	EAR99	-	-	EAR99
body width	7.2 mm	7.2 mm	7.2 mm	-	-	7.2 mm
body height	5.45 mm	5.45 mm	5.45 mm	-	-	5.45 mm
Body length or diameter	10.6 mm	10.6 mm	10.6 mm	-	-	10.6 mm
Maximum coil current (DC)	0.012 A	0.008 A	0.033 A	-	-	0.005 A
Coil operating voltage (DC)	9 V	9 V	2.25 V	-	-	18 V
Coil power	140 mW	100 mW	100 mW	-	-	120 mW
Coil release voltage (DC)	1.2 V	-9 V	-2.25 V	-	-	-18 V
Coil resistance	1028 Ω	1440 Ω	90 Ω	-	-	4800 Ω
Maximum coil voltage (DC)	12 V	12 V	3 V	-	-	24 V
Nominal coil voltage	12 V	12 V	3 V	-	-	24 V
Coil/Input Power Type	DC	DC	DC	-	-	DC
Contact (AC) maximum rated power R load	62.5VA@250VAC	62.5VA@250VAC	62.5VA@250VAC	-	-	62.5VA@250VAC
Contact (AC) maximum rated R load	2A@250VAC	1A@250VAC	1A@250VAC	-	-	1A@250VAC
Maximum contact current (AC)	2 A	1 A	1 A	-	-	1 A
Maximum contact current (DC)	2 A	1 A	1 A	-	-	1 A
Contact (DC) maximum rated power R load	30W@220VDC	30W@220VDC	30W@220VDC	-	-	30W@220VDC
Contact (DC) maximum rated R load	2A@220VDC	1A@220VDC	1A@220VDC	-	-	1A@220VDC
Contact resistance	75 mΩ	75 mΩ	75 mΩ	-	-	75 mΩ
Maximum contact voltage (AC)	250 V	250 V	250 V	-	-	250 V
Maximum contact voltage (DC)	220 V	220 V	220 V	-	-	220 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	-	-	AC/DC
Dielectric strength between coil and contacts	1500 Vrms	1500 Vrms	1500 Vrms	-	-	1500 Vrms
Dielectric strength between breaking contacts	1000 Vrms	1000 Vrms	1000 Vrms	-	-	1000 Vrms
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	-	-	100000 Cycle(s)
End contact material	Silver Nickel	Silver Nickel	Silver Nickel	-	-	Silver Nickel
End contact plating	GOLD	GOLD	GOLD	-	-	GOLD
Input switching control type	Random	Random	Random	-	-	Random
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	-	1000000000 Ω
Installation features	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	-	-	SURFACE MOUNT-STRAIGHT
Number of terminals	8	8	8	-	-	8
operating hours	3 ms	3 ms	3 ms	-	-	3 ms
Maximum operating temperature	85 °C	85 °C	85 °C	-	-	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-	-40 °C
method of packing	TUBE	TAPE AND REEL	TAPE AND REEL	-	-	TAPE AND REEL
physical size	10.6mm x 7.2mm x 5.45mm	10.6mm x 7.2mm x 5.45mm	10.6mm x 7.2mm x 5.45mm	-	-	10.6mm x 7.2mm x 5.45mm
Guideline	CSA; EN; IEC; UL	CSA; EN; IEC; UL	CSA; EN; IEC; UL	-	-	CSA; EN; IEC; UL
Relay action	MOMENTARY	LATCHED	LATCHED	-	-	LATCHED
Relay style	2 FORM C	2 FORM C	2 FORM C	-	-	2 FORM C
Relay function	DPDT	DPDT	DPDT	-	-	DPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	-	-	POWER/SIGNAL RELAY
release time	3 ms	3 ms	3 ms	-	-	3 ms
seal	PLASTIC SEALED	PLASTIC SEALED	PLASTIC SEALED	-	-	PLASTIC SEALED
surface mount	NO	NO	NO	-	-	NO
Termination type	SOLDER	SOLDER	SOLDER	-	-	SOLDER
weight	0.85 g	0.85 g	0.85 g	-	-	0.85 g
