GL34K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> GL34K

GL34K: Description0.5 A, 50 V, SILICON, SIGNAL DIODE, DO-213AA; CategoryDiscrete semiconductor diode; File Size119KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GL34K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GL34K	-	-	View	Buy Now

GL34K Overview

0.5 A, 50 V, SILICON, SIGNAL DIODE, DO-213AA

GL34K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	DO-213AA
package instruction	PLASTIC, MINIMELF-2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-213AA
JESD-30 code	O-PELF-R2
JESD-609 code	e2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-50 °C
Maximum output current	0.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse recovery time	1.5 µs
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

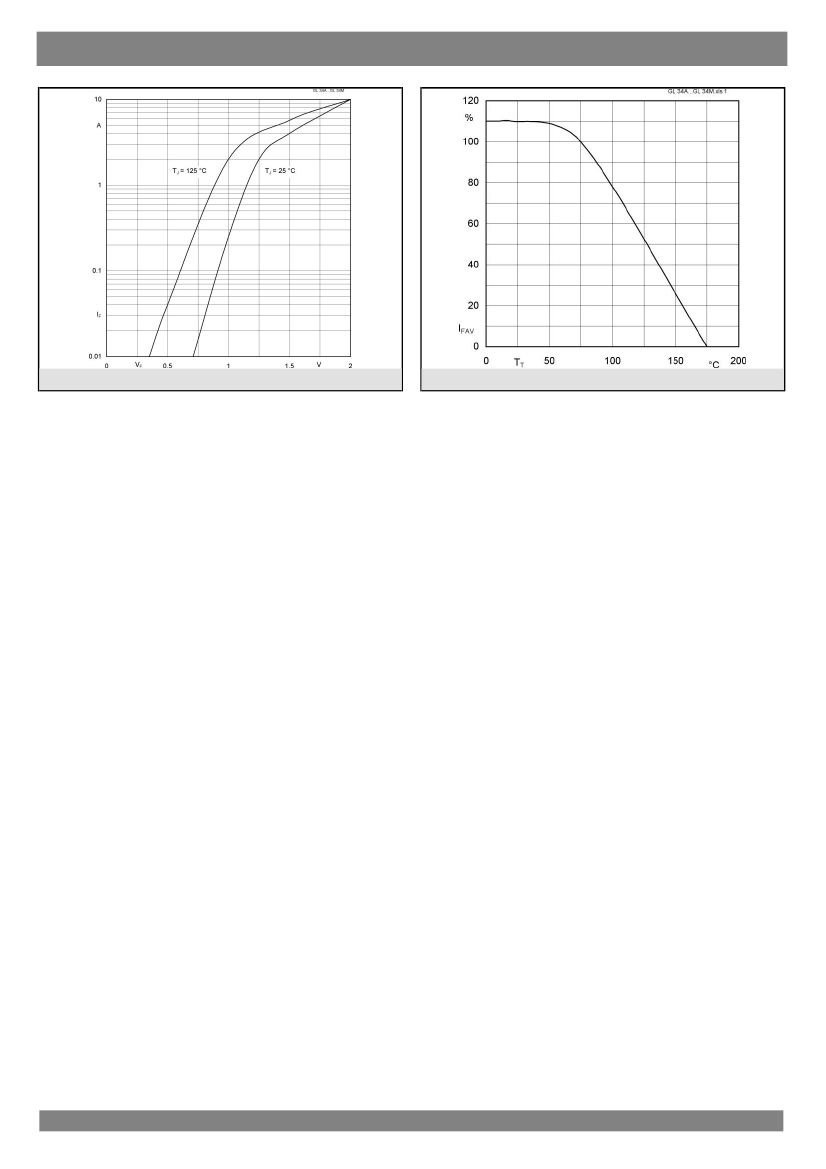

Preview

Download Datasheet

View All

GL 34A...GL 34M

Surface mount diode

Standard silicon rectifier

diodes

GL 34A...GL 34M

Forward Current: 0,5 A

Reverse Voltage: 50 to 1000 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

Characteristics

Symbol Conditions

Values

Units

Mechanical Data

Dimensions in mm

25-03-2004 SCT

GL34K Related Products

	GL34K	GL34A	GL34B	GL34D	GL34G	GL34J	GL34M
Description	0.5 A, 50 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 50 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 100 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 200 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 400 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 600 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 1000 V, SILICON, SIGNAL DIODE, DO-213AA
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
Parts packaging code	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA
package instruction	PLASTIC, MINIMELF-2	O-PELF-R2	PLASTIC, MINIMELF-2	O-PELF-R2	PLASTIC, MINIMELF-2	O-PELF-R2	PLASTIC, MINIMELF-2
Contacts	2	2	2	2	2	2	2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA
JESD-30 code	O-PELF-R2	O-PELF-R2	O-PELF-R2	O-PELF-R2	O-PELF-R2	O-PELF-R2	O-PELF-R2
JESD-609 code	e2	e2	e2	e2	e2	e2	e2
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	50 V	100 V	200 V	400 V	600 V	1000 V
Maximum reverse recovery time	1.5 µs	1.5 µs	1.5 µs	1.5 µs	1.5 µs	1.5 µs	1.5 µs
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END	END	END	END
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1	1	1
