9548-0-15-80-21-14-10-0 Overview

Circuit Board Hardware - PCB

9548-0-15-80-21-14-10-0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMill-Max
Reach Compliance Codecompliant
Terminal and terminal strip typesPCB TERMINAL

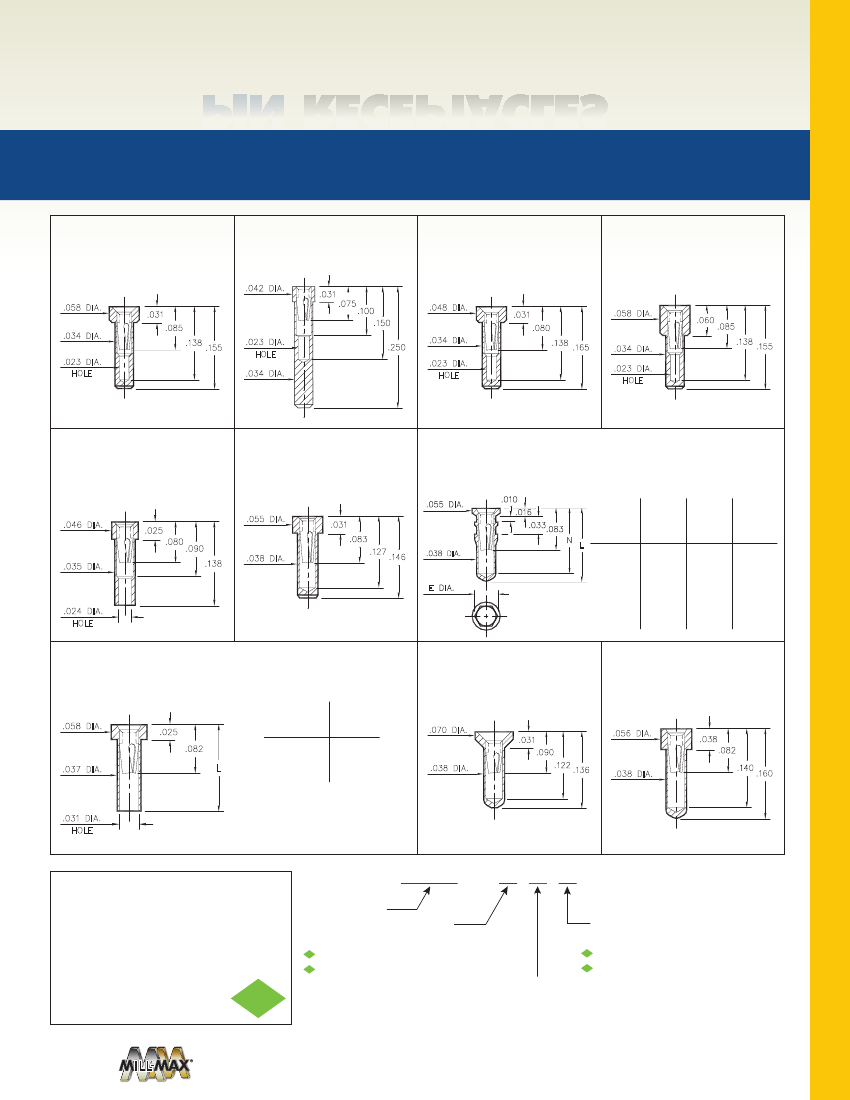

PIN
RECEPTACLES
FOR .015” - .020” DIAMETER PINS (#11 CONTACT)
AND .015” - .022” DIAMETER PINS (#21 CONTACT)
(SEE SPECIFIC CONTACT RANGE ON PAGE 251)
0548
0548-0-15-XX-21-XX-10-0
Solder mount in .036 min. mounting hole
8975
.042 DIA.
8975-0-15-XX-21-XX-10-0
Solder mount in .036 min. mounting hole
.031
3016
3016-0-15-XX-21-XX-10-0
Solder mount in .036 min. mounting hole
9548
9548-0-15-XX-21-XX-10-0
Solder mount in .036 min. mounting hole
.058 DIA.
.034 DIA.
.023 DIA.
HOLE
.075
.031
.085
.138
.155
.100
.150
.250
.048 DIA.
.031
.080
.138
.058 DIA.
.060
.085
.138
.155
.023 DIA.
HOLE
.034 DIA.
.034 DIA.
.023 DIA.
HOLE
.165
.034 DIA.
.023 DIA.
HOLE
8637
8637-0-15-XX-21-XX-10-0
1407
Solder mount in .037 min. mounting hole
Also available on 16mm wide carrier tape:
2,000 parts per 13” reel
Order as: 8637-0-57-XX-21-XX-10-0
.046 DIA.
.025
.080
.035 DIA.
.090
.138
1407-0-15-XX-11-XX-10-0
Solder mount in .040 min. mounting hole
0553/4553/8553
X553-X-15-XX-X1-XX-10-0
.055 DIA.
.010
.016
.033
.083
N
Hex press-fit in .041 plated through-hole
for Part Numbers
0553-X
and
8553-0
ONLY
Hex press-fit in .042 plated through-hole
for Part Number
4553-0
ONLY
Also available on 16mm wide carrier tape:
1,580 parts per 13” reel
Order as: 0553-2-57-XX-11-XX-10-0
.055 DIA.
.031
.083
.127
.038 DIA.
L
Basic
Part
Number
Hex
Dia.
E
Length
L
Depth
N
.038 DIA.
.146
E
DIA.
.024 DIA.
HOLE
0553-1
0553-2
0553-3
4553-0
8553-0
.044
.044
.044
.045
.044
.140
.170
.282
.170
.245
.124
.154
.266
.154
.229
0566
.058 DIA.
0566-X-15-XX-21-XX-10-0
Solder mount in .039 min. mounting hole
0442
Basic Part
Number
Length
L
0442-0-15-XX-11-XX-10-0
Solder mount in .040 min. mounting hole
0554
0554-0-15-XX-21-XX-10-0
Solder mount in .040 min. mounting hole
.025
.082
.070 DIA.
.037 DIA.
L
0566-1
0566-2
.083
.138
.031
.090
.122
.056 DIA.
.038
.082
.140
.038 DIA.
.136
.038 DIA.
.160
.031 DIA.
HOLE
SPECIFICATIONS:
Shell Material:
Brass Alloy 360, 1/2 Hard
Contact Material:
Beryllium Copper Alloy 172, HT
Dimensions: Inches
Tolerances On:
Lengths:
± .005
2011/65/EU
ORDER CODE: XXXX - X - XX - XX -
XX
- XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200
μ”
TIN/LEAD OVER NICKEL
80
200
μ”
TIN OVER NICKEL (RoHS)
15
10
μ”
GOLD OVER NICKEL (RoHS)
SPECIFY CONTACT FINISH:
02
100
μ”
TIN/LEAD OVER NICKEL
84
100
μ”
TIN OVER NICKEL (RoHS)
27
30
μ”
GOLD OVER NICKEL (RoHS)
Diameters: ± .002
Angles:
±2°
RoHS - 2
SELECT CONTACT:
#11 or #21
CONTACT (DATA ON PAGE 251)
(For alternate contact choices, see group A on page 248)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 157 | PIN RECEPTACLES
