ZB4BV043 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> ZB4BV043

Preview

ZB4BV043: DescriptionIndustrial Panel Mount Indicators / Switch Indicators PILOT LIGHT HEAD RED; CategoryTopical application Mechanical and electrical/engineering/automation; File Size81KB，2 Pages; ManufacturerSCHNEIDER ELECTRIC

Download Datasheet Parametric Compare View All

ZB4BV043 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZB4BV043	-	-	View	Buy Now

ZB4BV043 Overview

Industrial Panel Mount Indicators / Switch Indicators PILOT LIGHT HEAD RED

ZB4BV043 Parametric

Parameter Name	Attribute value
Product Category	Industrial Panel Mount Indicators / Switch Indicators
Manufacturer	SCHNEIDER ELECTRIC
Type	Pilot Light
For Use With	XB4 Series
Designed for	22 mm Pushbutton Switches
Mounting Style	Panel
Width	22 mm
Color	Red
Features	NEMA 1/2/3/4/4X/13; IP66
Actuator	Illuminated
Product	Indicators
Factory Pack Quantity	1

Preview

Download Datasheet

View All

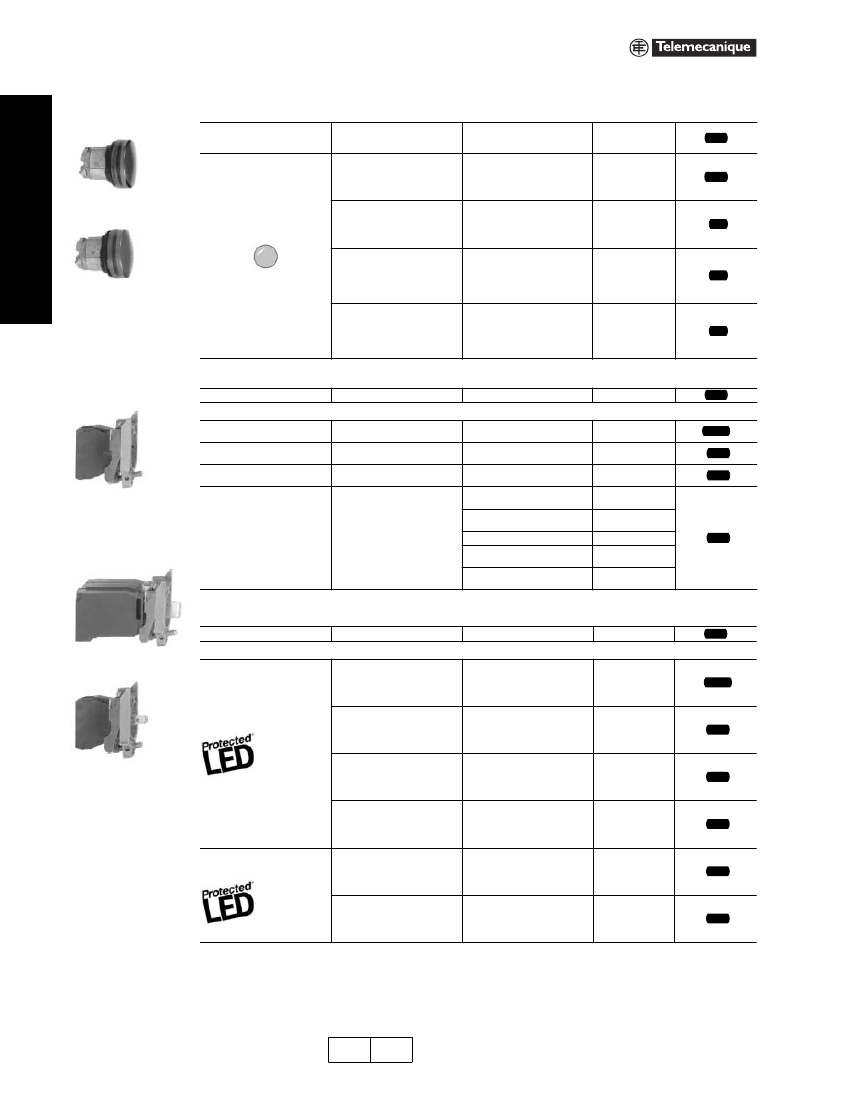

Push Buttons—XB4 22 mm

Pilot Lights

Pilot Light Heads

PUSH BUTTONS AND

OPERATOR INTERFACE

Shape of Head

For Use with Body

Comprising Light

Module Type

Color of Lens

White

Green

Red

Yellow

Blue

White

Green

Red

Amber

Blue

White

Green

Red

Yellow

Blue

Clear

White

Green

Red

Amber

Blue

Clear

www.SquareD.com

For the most up-to-date information

Catalog Number

ZB4BV013

ZB4BV033

ZB4BV043

ZB4BV053

ZB4BV063

ZB4BV013S

ZB4BV033S

ZB4BV043S

ZB4BV053S

ZB4BV063S

ZB4BV01

ZB4BV03

ZB4BV04

ZB4BV05

ZB4BV06

ZB4BV07

ZB4BV01S

ZB4BV03S

ZB4BV04S

ZB4BV05S

ZB4BV06S

ZB4BV07S

Price

PROTECTED LED

®

only

$3.80

ZB4BV063

PROTECTED LED only

Fresnel (jeweled) lens

3.80

17

For BA9s incandescent

bulb, neon or LED only

3.80

ZB4BV04

For BA9s incandescent

bulb, neon or LED

Fresnel (jeweled) lens

3.80

Complete Bodies (Mounting Collar + Light Module for BA9s Incandescent Bulb, Neon or LED)

Description

Light Source

Supply Voltage (V)

Catalog Number

Price

Screw clamp terminal connections

Direct supply

BA9s bulb 2.4 W max.

Not included

a

BA9s incandescent

bulb included

BA9s incandescent

bulb included

≤

250

24 v 2 Watt

120 v 2.4 Watt

110–120 Vac

50/60 Hz

230–240 Vac

50/60 Hz

Transformer type

1.2 VA, 6 V secondary

BA9s incandescent

bulb included

400–50 Hz

440–480 Vac

60 Hz

550–600 Vac

60 Hz

a

Order bulb separately, see page 17-32.

ZB4BV6

ZB4BV624

ZB4BV6120

ZB4BV3

ZB4BV4

ZB4BV5

ZB4BV8

ZB4BV9

49.20

$19.30

24.60

ZB4BV6

Complete Bodies (Mounting Collar + Light Module with PROTECTED LED)

Light Source

Supply Voltage

Color of Light Source

Catalog Number

Price

ZB4BV•

Screw clamp terminal connections

b

12 Vac/dc

White

Green

Red

Yellow

Blue

White

Green

Red

Yellow

Blue

White

Green

Red

Yellow

Blue

White

Green

Red

Yellow

Blue

White

Green

Red

Yellow

Blue

White

Green

Red

Yellow

Blue

ZB4BVJ1

ZB4BVJ3

ZB4BVJ4

ZB4BVJ5

ZB4BVJ6

ZB4BVB1

ZB4BVB3

ZB4BVB4

ZB4BVB5

ZB4BVB6

ZB4BVBG1

ZB4BVBG3

ZB4BVBG4

ZB4BVBG5

ZB4BVBG6

ZB4BVG1

ZB4BVG3

ZB4BVG4

ZB4BVG5

ZB4BVG6

ZB4BV18B1

ZB4BV18B3

ZB4BV18B4

ZB4BV18B5

ZB4BV18B6

ZB4BV18G1

ZB4BV18G3

ZB4BV18G4

ZB4BV18G5

ZB4BV18G6

$28.60

24 Vac/dc

28.60

ZB4BV••

24–120 Vac/dc

28.60

110–120 Vac

28.60

Flashing

24 Vac/dc

33.10

110–120 Vac

33.10

b

For Quick-Connect version, add “3” to the end of the catalog number Example: ZB4BVJ13 (Quick-Connect size 1 x 0.250" or 2 x 0.110").

For additional information, reference Catalog #9001CT0001.

17-24

8/1/04

I

Discount

Schedule

8/1/04

ZB4BV043 Related Products

	ZB4BV043	ZB4BVB3	ZB4BVB1	ZB4BVG4	ZB4BV053	ZB4BVB4
Description	Industrial Panel Mount Indicators / Switch Indicators PILOT LIGHT HEAD RED	Switch Hardware 24VAC/DC GRN LT MZB4BVB3X	Industrial Panel Mount Indicators / Switch Indicators MOUNTING COLLAR W/ 24V WHITE LED	Switch Actuators ILLUM.MUSHROOM 2 POS 40MM KNOB, RED	Standard Circular Connector PLUG 9 POSITION shell size 13	Switch Hardware 24VAC/DC RED LT MODULE
Product Category	Industrial Panel Mount Indicators / Switch Indicators	Switch Hardware	Industrial Panel Mount Indicators / Switch Indicators	Industrial Panel Mount Indicators / Switch Indicators	Industrial Panel Mount Indicators / Switch Indicators	Switch Hardware
Manufacturer	SCHNEIDER ELECTRIC	SCHNEIDER ELECTRIC	SCHNEIDER ELECTRIC	SCHNEIDER ELECTRIC	SCHNEIDER ELECTRIC	SCHNEIDER ELECTRIC
Type	Pilot Light	Pilot Light	Lamp Socket	Lamp Socket	Pilot Light	Pilot Light
For Use With	XB4 Series	XB4 Series	XB4 Series	XB4 Series	XB4 Series	XB4 Series
Designed for	22 mm Pushbutton Switches	22 mm Pushbutton Switches	22 mm Pushbutton Switches	22 mm Pushbutton Switches	22 mm Pushbutton Switches	22 mm Pushbutton Switches
Product	Indicators	Indicators	Indicators	Indicators	Indicators	Indicators
Factory Pack Quantity	1	1	1	1	1	1
Mounting Style	Panel	-	Panel	Panel	Panel	-
Illumination	-	LED	LED	LED	-	LED
Illumination Color	-	Green	White	Red	-	Red
Voltage Rating	-	24 VDC	24 VDC	120 VAC	-	24 VDC
