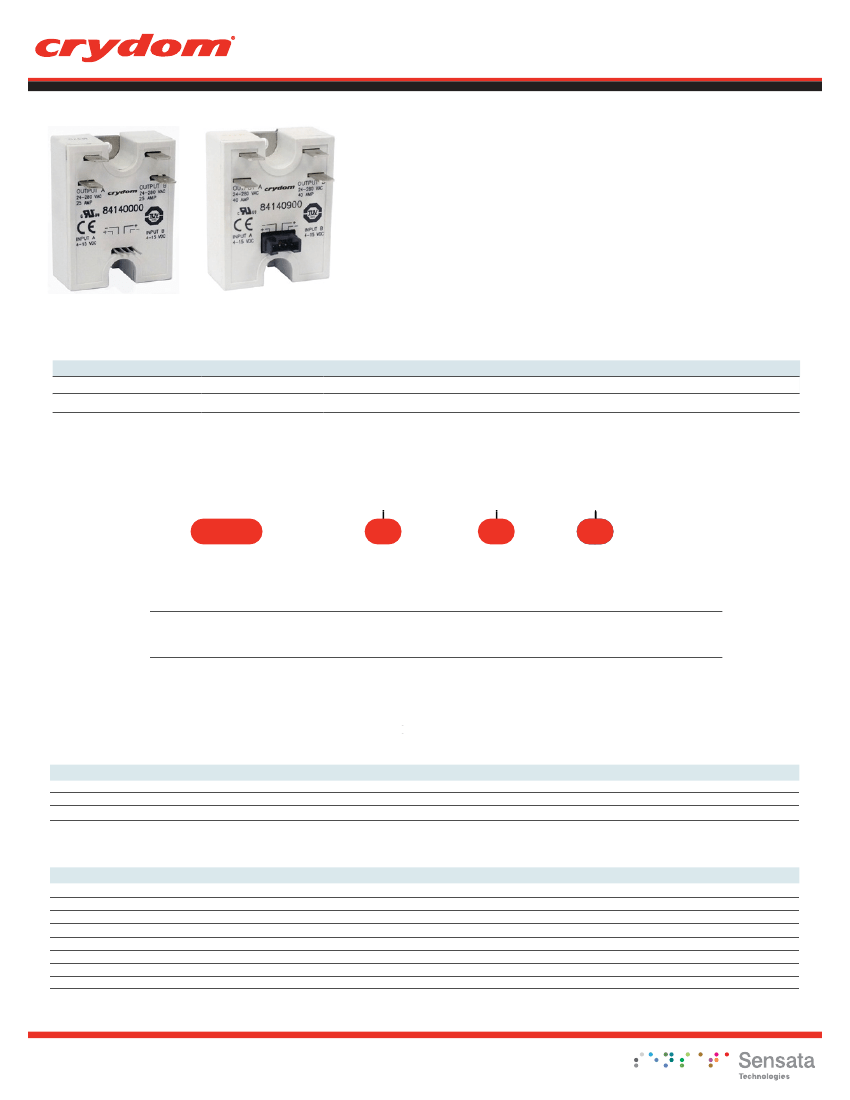

Datasheet
•
Current rating 25 and 40 Amps
•
Output voltage 24-280 VAC and 48-660 VAC
•
Direct bond copper substrate
•
Back to back dual SCR output
•
4000 VAC optical isolation
•
Zero Voltage and Instantaneous Turn-On
•
UL/cUL Recognized, CE Compliant
Panel Mount
Dual GN Series
PRODUCT SELECTION
Control Voltage
4-15 VDC
17-32 VDC
1/4” Quick Connect 280 VAC
25 A
40 A
84140000
84140410
84140200
84134210
1/4” Quick Connect 660 VAC
40 A
25 A
84140500
84140510
84140600
84140610
Locking Connector 280 VAC
25 A
40 A
84140800
84140810
84140900
84140910
AVAILABLE OPTIONS
Series
Rated Load Current
Control Voltage
Operating Voltage
84140
1/4” Quick Connect 280 VAC
0
0:
25 Amp/Zero Voltage Turn-On
1:
25 Amp/Instantaneous Turn-On
2:
40 Amp/Zero Voltage Turn-On
3:
40 Amp/Instantaneous Turn-On
5:
25 Amp
6:
40 Amp
8:
25 Amp
9:
40 Amp
1
0:
4-15 VDC
1:
17-32 VDC
U
0
0:
24-280 VAC
1/4” Quick Connect 660 VAC
Locking Connector 280 VAC
0:
4-15 VDC
1:
17-32 VDC
0:
4-15 VDC
1:
17-32 VDC
0:
48-660 VAC/Zero Voltage Turn-On
1:
48-660 VAC/Instantaneous Turn-On
0:
24-280 VAC/Zero Voltage Turn-On
1:
24-280 VAC/Instantaneous Turn-On
OUTPUT SPECIFICATIONS
(1)
Description
Operating Voltage [Vrms]
Transient Voltage(t=1 min.) [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage (@ max. line voltage) [mArms]
280 VAC
24-280
550
0.1
660 VAC
48-660
1000
0.25
OUTPUT SPECIFICATIONS
(1)
Description
Maximum Load Current [Arms]
Minimum Load Current [mArms]
Maximum 1 Cycle Surge Current (50/60Hz) [Apk]
1 Second surge current (50/60 Hz @ Ta=25°C)
[Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec]
Maximum Off-State dv/dt @ Maximum Rated Voltage [V/ sec]
25 A
25
100
275/300
85
1.4
0.6
380/370
500
40 A
40
100
710/750
150
1.3
0.4
2520/2320
500
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range [Vdc]
Minimum Turn-On Voltage [Vdc]
Must Turn-Off Voltage [Vdc]
Minimum Input Current (for on-state) [mA]
Maximum Input Current [mA]
Nominal Input Impedance [Ohms]
Maximum Turn-On Time [msec]
(2)
Maximum Turn-Off Time [msec]
Panel Mount
84140x0x
4-15
4
1
7.5
34
500
1/2 Cycle
1/2 Cycle
84140x1x
17-32
17
1
13
24
1500
GENERAL SPECIFICATIONS
(1)
Description
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Input to Output Isolation
Input/Output to Ground Isolation
Input to Output Capacitance
Operation Frequency
Housing Material
Weight (typical)
Parameters
-40 to 80 °C
-40 to 100 °C
4000 Vrms
2500 Vrms
8pF
47 to 63 Hz
UL94 V-0 (self extinguishing)
3.2 oz (91.5g)
GENERAL NOTES
(1)
All parameters at 25°C unless otherwise specified.
(2)
Turn-on time for Instantaneous turn-on versions is 0.02 msec.
For additional information or specific questions, contact Crydom Technical Support.
WIRING DIAGRAM
AC
V
AC
V
Load
1A ( )
2A ( )
2B ( )
Load
1B ( )
S O L I D S TAT E R E L AY
Input A
+
-
+ Input B
-
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet

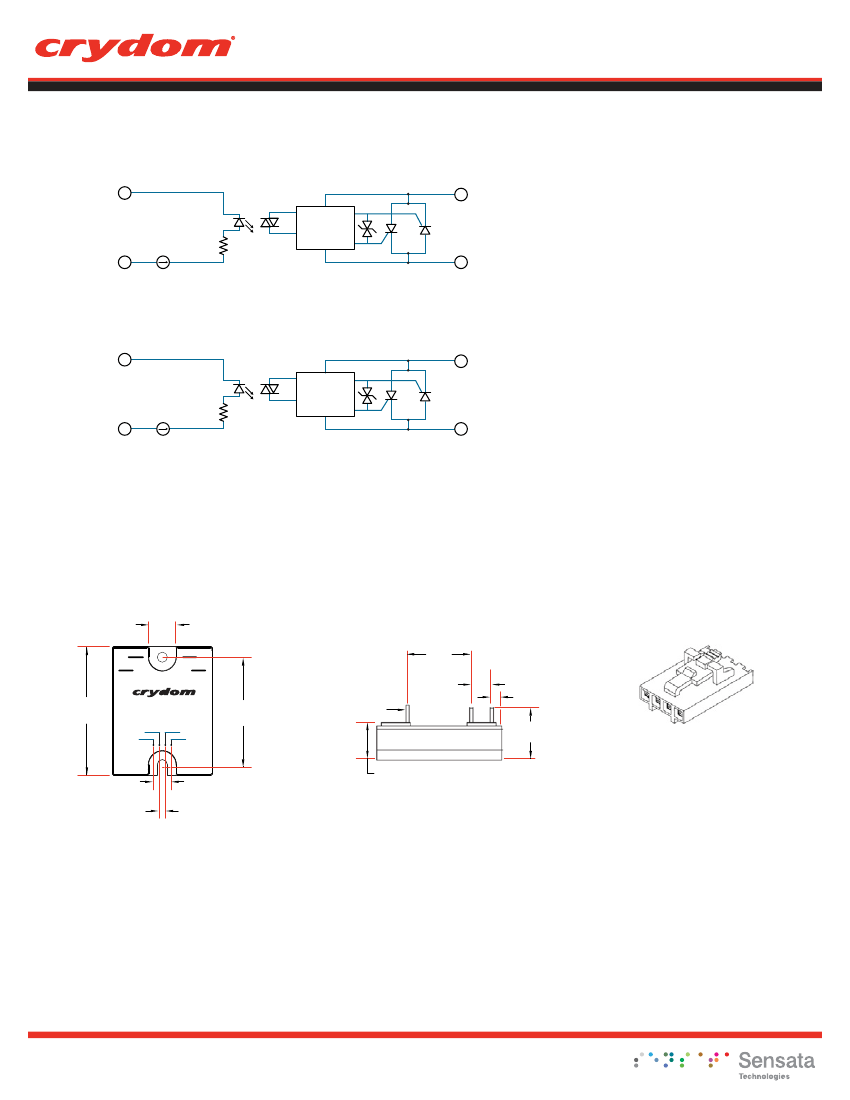

EQUIVALENT CIRCUIT BLOCK DIAGRAMS
-DC
-
2A
AC
Panel Mount
INPUT
Trigger
Circuit
+DC
+
Current
Limiter
-DC
-
INPUT
Trigger
Circuit
+DC
+
Current
Limiter
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
MECHANICAL SPECIFICATIONS
(1)
0.47
[11.9]
1.31
[33.2]
0.37
[9.39]
0.17
[4.31]
1.25
[31.7]
0.88
[22.3]
0.10
[2.54]
Mating Connector for 841408xxx and 841409xxx
Molex # 50-57-9404 without pins
Crimp Pins Molex # 16-02-0103
2.25
[57.3]
S O L I D S TAT E R E L AY
1.88
[47.6]
Mating Connector
AMP #640441-4
Input A
+
-
+ Input B
-
0.30
[7.62]
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
OUTPUT
1B
AC
OUTPUT
1A
AC
2B
AC
Datasheet

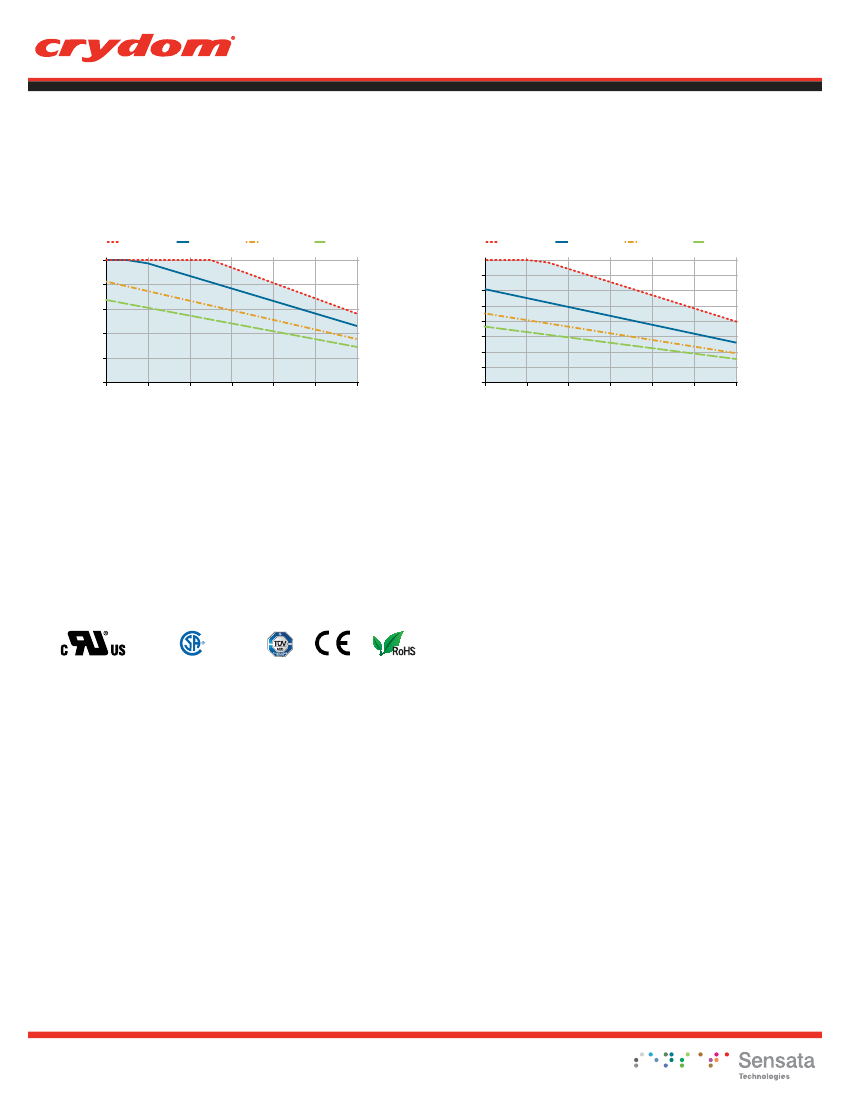

THERMAL DERATE INFORMATION
25 A
0.7°C/W
50
1°C/W
1.5°C/W
2°C/W
80
70
60
50
40
30
20
10
0
0.5°C/W
1°C/W
Panel Mount
40 A
1.5°C/W
2°C/W
Combined Channel
Output Current (Amp)
40
30
20
10
0
20
30
40
50
60
70
80
Combined Channel
Output Current (Amp)
20
30
40
50
60
70
80
Ambient Temperature (ºC)
Ambient Temperature (ºC)
AGENCY APPROVALS
EN60950-1: Meets the requirements of sections1.5: 1,7: 2.9: 2.10.5.3: 4.2: 4.5: 4.7:
Certified according to EN 62314:2006
IEC 61000-4-2 Electrostatic Discharge Level 3
IEC 61000-4-4 Electrically Fast Transients Level 3
IEC 61000-4-5 Electrical Surges Level 3
E79183
LR 38595
Rev. 092616
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
