513-0606-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 513-0606-001

513-0606-001: DescriptionPushbutton Switches M/F BC SW 513601604; CategoryMechanical and electronic products switch; File Size29KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric View All

513-0606-001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	513-0606-001	-	-	View	Buy Now

513-0606-001 Overview

Pushbutton Switches M/F BC SW 513601604

513-0606-001 Parametric

Parameter Name	Attribute value
Maker	DIALIGHT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	20.65 mm
body height	46.23 mm
Body length or diameter	20.65 mm
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@12VDC
Maximum contact voltage (DC)	12 V
Installation features	PANEL MOUNT
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

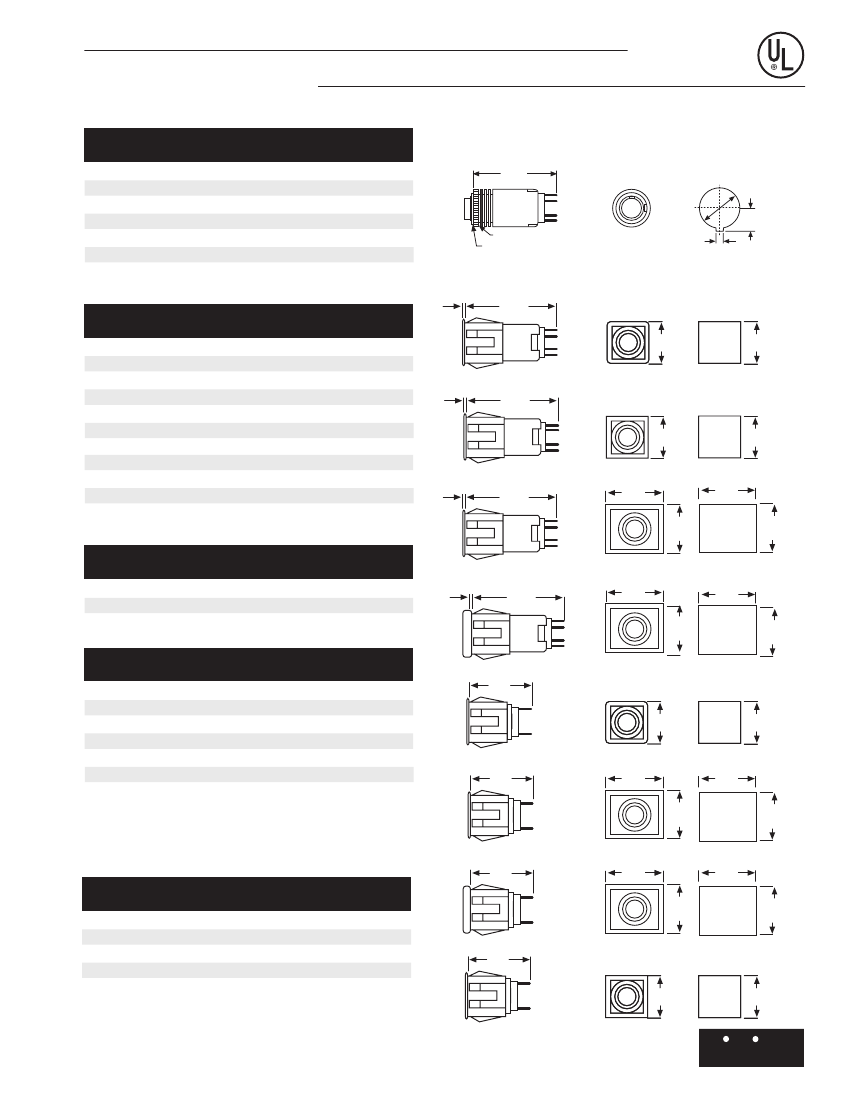

ILLUMINATED PUSHBUTTON SWITCHES & MATCHING PANEL MOUNT INDICATORS

513 SERIES SWITCHES

MOMENTARY, SNAP ACTION

5 AMP-RESISTIVE; 2 AMP-INDUCTIVE; 125VAC/30VDC

Caps Ordered Separately See Page 24.

Uses:

T-1 3/4 MIDGET

FLANGE BASE

INCANDESCENT LAMP

PART NO.

513-1601-604

513-1606-001

513-1611-001

513-1701-604

513-1706-001

513-1711-001

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

3/4" SQ.

ALL

5/8" SQ.

3/4" SQ.

CONTACT

CIRCUIT

SPDT

TWO CIRCUIT

FIG

SIDE VIEW

37.28

[1.468]

FRONT VIEW

MOUNTING HOLE

[.501]

[.505]

DIA

7.16

[.282]

12.70 [.500] 32NS-2A THD.

KNURLED FLANGED NUT

2.39 [.094] x 12.93 [.509] MAX O.D.

REAR PANEL MOUNT BASE

1.96

[.077]

FIG 1

MOMENTARY ACTION

3 AMP; 125VAC/30VDC; GOLD PLATED CONTACT

1.14

[.045]

PART NO.

513-0101-604

513-0106-001

513-0109-001

513-0110-001

513-0111-001

513-0301-604

513-0306-001

513-0309-001

513-0310-001

513-0311-001

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

3/4" X 1"

3/4" SQ.

ALL

5/8" SQ.

3/4" X 1"

3/4" SQ.

CONTACT

CIRCUIT

SPST N.O.

TWO CIRCUIT

46.23

[1.820]

MAX

20.65

[.813]

SQ.

19.25

±13

[.758±.005]

SQ.

FIG

1.14

[.045]

FIG 2

46.23

[1.820]

MAX

23.83

[.938]

SQ.

22.45

±.13

[.883±.005]

SQ.

FIG 3

1.14

[.045]

46.23

[1.820]

MAX

29.57

[1.16]

28.19

±.13

[1.110

.005]

MOMENTARY ACTION

5 TO 100 mA; 3 TO 12VDC; HEAVY GOLD PLATING

23.47

[.924]

22.10

±.13

[.870

±.005]

PART NO.

513-0601-604

513-0606-001

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

CONTACT

CIRCUIT

TWO CIRCUIT

FIG

FIG 4

5.94

[.234]

46.23

[1.820]

MAX

29.57

[1.16]

28.19

±.13

[1.110

.005]

ALTERNATE ACTION

5 AMP-RESISTIVE; 2 AMP-INDUCTIVE; 125VAC/30VDC

23.47

[.924]

22.10

±.13

[.870

±.005]

PART NO.

513-1401-604*

513-1406-001**

513-1409-001**

513-1411-001**

513-1501-604*

513-1506-001**

513-1511-001**

ACCEPTS

CAP SIZE

ALL

5/8" SQ.

3/4" X 1"

3/4" SQ.

ALL

5/8" SQ.

3/4" SQ.

CONTACT

CIRCUIT

SPDT

TWO CIRCUIT

FIG

FIG 5

27.43

[1.08]

MAX

20.65

[.813]

SQ.

19.25

±13

[.758±.005]

SQ.

Fig. 6

27.43

[1.08]

MAX

29.57

[1.16]

28.19

±.13

[1.110

.005]

* Add 12.7 (.500) to length dimension

** Add 13.08 (.515) to length dimension

23.47

[.924]

22.10

±.13

[.870

±.005]

533 SERIES INDICATORS

PART NO.

533-0601

533-0901

533-1001 (w/built-in barrier)

533-1101

Fig. 7

27.43

[1.08]

MAX

29.57

[1.16]

28.19

±.13

[1.110

.005]

ACCEPTS

CAP SIZE

5/8" SQ.

3/4" X 1"

3/4" SQ.

FIG

Fig. 8

23.47

[.924]

22.10

±.13

[.870

±.005]

27.43

[1.08]

MAX

Material & Finish: Base, Clear anodized aluminum;

Bezel, Heat resistant black plastic.

Neon and incandescent lamp information on Pages 35 and 36.

Dimensions in mm [inches]

Fig. 9

23.83

[.938]

SQ.

22.43

±.13

[.883

±.005]

SQ.

Dialight

Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com
