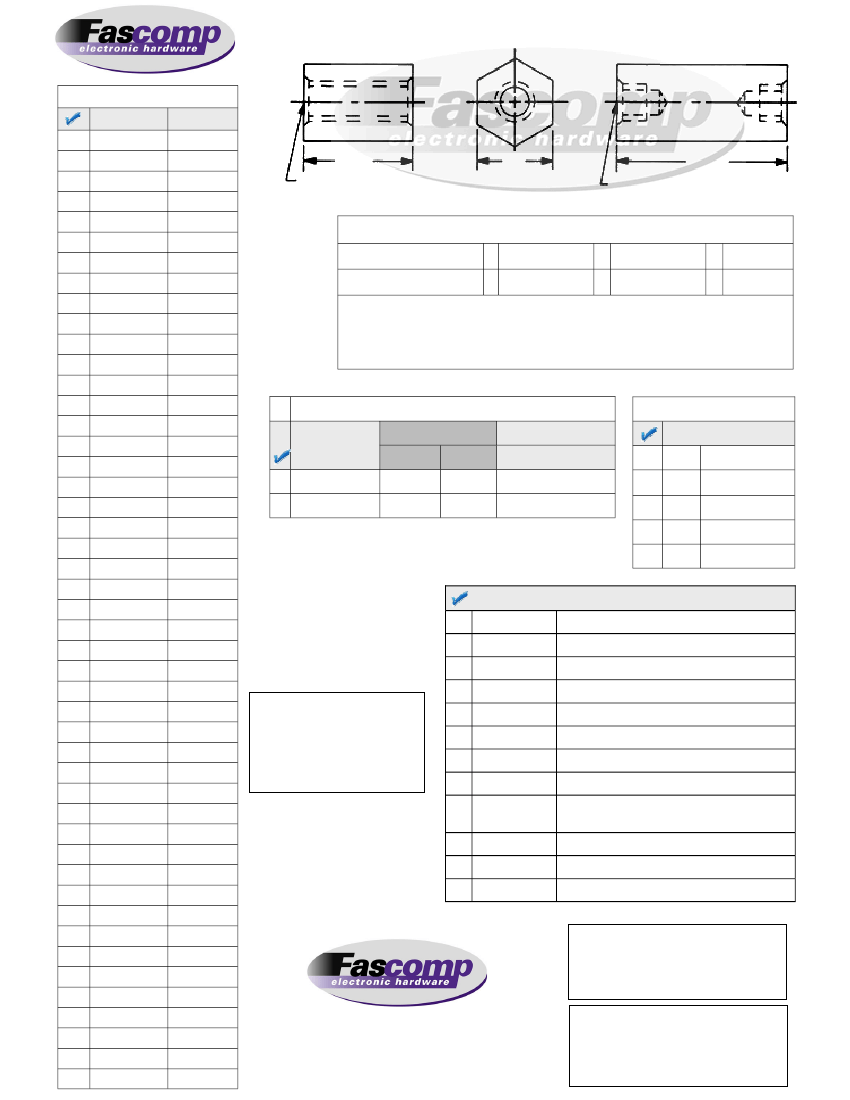

3/16 Hex Female Standoff
Hex Code Table
FCXXXX
FC2051
FC2052
FC2053
FC2054
FC2055
FC2056
FC2057
FC2058
FC2059
FC2060
FC2061
FC2062
FC2063
FC2064
FC2065
FC2066
FC2067
FC2068
FC2069
FC2070
FC2071
FC2072
FC2073
FC2074
FC2075
FC2076
FC2077
FC2078
FC2079
FC2080
FC2081
FC2082
FC2083
FC2084
FC2085
FC2086
FC2087
FC2088
FC2089
FC2090
FC2091
FC2092
FC2093
FC2094
FC2095
FC2096
FC2097
Length (L
)
1/8
3/16
1/4
5/16
3/8
7/16
1/2
9/16
5/8
11/16
3/4
13/16
7/8
15/16
1
1-1/16
1-1/8
1-3/16
1-1/4
1-5/16
1-3/8
1-7/16
1-1/2
1-9/16
1-5/8
1-11/16
1-3/4
1-13/16
1-7/8
1-15/16
2
2-1/16
2-1/8
2-3/16
2-1/4
2-5/16
2-3/8
2-7/16
2-1/2
2-9/16
2-5/8
2-11/16
2-3/4
2-13/16
2-7/8
2-15/16
3
Fascomp Electronic Hardware
7814 Kingspointe Pkwy
Orlando, FL 32819
www.fascomp.com
Tel: (407) 226-2112
Fax: (407) 226-3370
L
THREAD
3/16
L
THREAD (TYPICAL)
Create a part number:
Length
FCXXXX
Thread
XXX
Material
XX
Finish
XX
________________
-
__________
-
__________
-
_______
Thread
Thread Code
(XXX)
256
440
Tapped Thru
A, B, S
3/4
1
SS
5/8
3/4
Longer Parts
Blind Tap Depth
3/16
1/4
Material
Material Code (XX)
A
B
S
SS
N
Aluminum
Brass
Steel
Stainless Steel
Nylon
Aluminum (A), Brass (B), Steel (S), Stainless Steel (SS)
Compatible Finish
A, B, S, SS
B, S
A
A
Tolerances
Unless otherwise Specified
.xxx +/-.005
.xx +/-.010
Angular +/- 1 Degree
Linear +/-.005
Break all sharp edges
0 - Plain
5 - Nickel Plate (QQ-N-290)
6 - Iridite #14 Gold (MIL-C-5541E)
7 - Iridite Clear (MIL-C-5541E)
9 - Alodine 1200
12 - Zinc Clear (ASTM-B-633)
16 - Electro Tin (MIL-T-10727 TYPE 1)
20 - Passivation (MIL-F-14072D)
22 - Clear Anodize (MIL-A-8625-TYPE2)
(Sulphuric) Hot Water Seal (Clear)
24 - Black Anodize (MIL-A-8625)
26 - Black Oxide
28 - Zinc Yellow (ASTM-B-633)
A
B, S
B, S
SS
A
A
B, S. SS
B, S
Source Control Drawing:
To be produced by
Fascomp Electronic Hardware
This document is the
property of Fascomp Inc. and shall not be
reproduced, distributed or used as a basis
for manufacturing without written
permission from Fascomp Inc.
