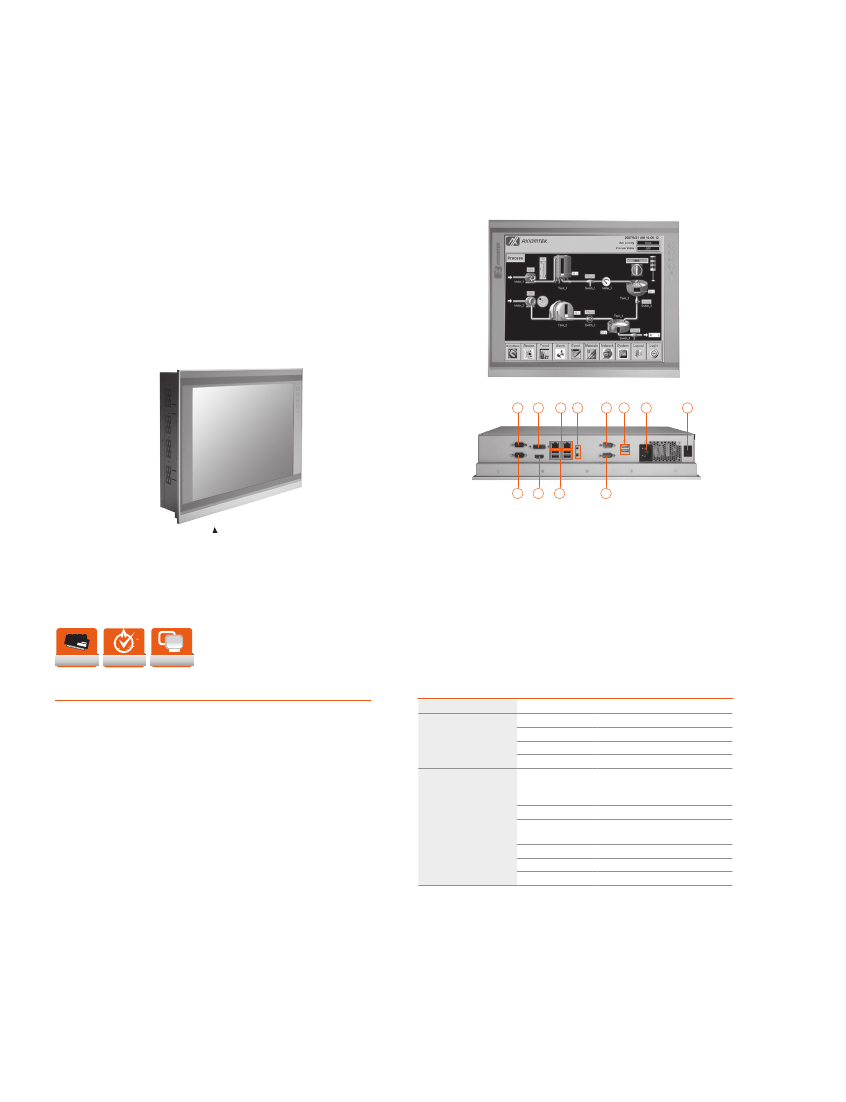

P1177S-871
17" SXGA TFT Slim Industrial Touch Panel Computer with 3rd Gen
Intel® Core™ i7/i5/i3, Celeron® & Pentium® Processor
Features
●
17" SXGA TFT LCD display
●
LGA1155 socket 3rd gen Intel® Core™ i7/i5/i3,
Celeron® & Pentium® processor
●
Intel® Q77 chipset
●
Less screw design for easy installation
●
4 USB 3.0, 2 USB 2.0 and 4 COM ports
●
Built-in speakers and optional Wi-Fi 802.11 b/g/n module
●
Robust aluminum with IP65 compliant front bezel design
1
2
3
4
5
6
7
8
9
10
11
12
6. USB 2.0 x 2
7. AC plug
8. Power switch
9. COM 2 (RS-232)
10. HDMI
11. USB 3.0 x 4
12. COM 4 (RS-232)
Side view
1. COM 1 with 5V & 12V
(RS-232/422/485)
2. DVI-I
3. Ethernet x 2
4. Audio (MIC-in/Line-out)
5. COM 3 with 5V & 12V (RS-232)
DDR3
DDR3
IP65
DualView
Introduction
The P1177S-871 is a multi-media 17" touch panel PC for kiosk application. It has a
fashionable mechanism design and industrial-grade material front bezel which can avoid
damage from chemical corrosion. To meet the demands of multimedia application, the
P1177S-871 is powered by the high performance LGA1155 socket 3rd generation Intel®
Core™ i7/i5/i3, Celeron® & Pentium® processor with Intel® Q77 Express chipset.
It features four COM ports, two Gigabit Ethernet and up to 16 GB memory of dual-
channel DDR3 that delivers high computing capability for high performance-demanding
applications. The industrial panel PC is most suitable for kiosk, factory and automation
fields.
Dual Monitor Display
If larger viewing area is desired, an additional display can be connected via the system’s
VGA or HDMI port to help enhance worker’s productivity level.
Speaker and WLAN Antenna Supported
The P1177S-871 features built-in speakers for kiosk application to display multimedia
content program. It also supports WLAN module (optional) antenna for wireless network
connectivity.
Friendly Less Screw Design
The P1177S-871 is designed with ease of maintenance in mind. There are only three
screws on the back chassis, so that technicians can quickly remove the system’s back
cover with minimum effort.
Specifications
Front Bezel
LCD Panel
Aluminum w/ IP65/NEMA 4 rugged protection
Display Type
17" SXGA TFT LCD
Brightness
350 nits
Resolution
1280 x 1024 pixels
Viewing Angle
170°/160°
CPU
LGA1155 socket 3rd generation
Intel® Core™ i7/i5/i3, Celeron® &
Pentium® processor
Chipset
Intel® Q77
System Memory
2 x 204-pin DDR3-1333/1600
SO-DIMM, up to 16GB
BIOS
AMI UEFI BIOS with OA 3.0 built
Storage
1 x 3.5" or 2 x 2.5" SATA HDD
Watchdog Timer
255 levels, 1~255 sec.
Main System
619
* All specifications and photos are subject to change without notice.

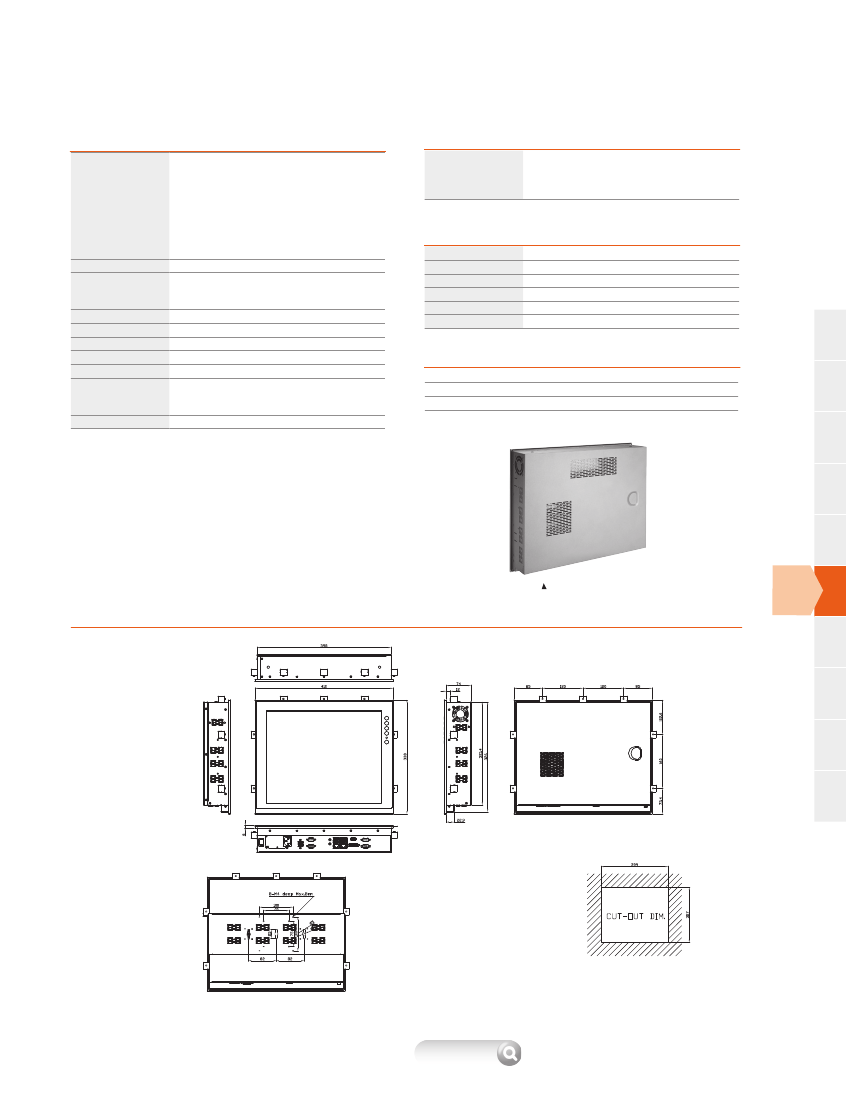

Specifications
IO Connector
2 x RS-232 (COM 2/4)
1 x RS-232/422/485 with 5V & 12V (COM 1)
1 x RS-232 with 5V & 12V (COM 3)
1 x DVI-I
1 x HDMI
4 x USB 3.0
2 x USB 2.0
2 x 10/100/1000 Mbps Ethernet (Intel® 82579LM/82583V)
1 x Audio (Mic-in/Line-out)
N/A
5-wire resistive type
Light transmission 79%
1 million activations (typical) at a single point
100 ~ 240 VAC, 27 W
178 W
410 mm (16.14") (W) x 80 mm (3.15") (D) x 338 mm (13.3") (H)
610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm (23.23") (H)
7 kg (15.43 lb)/ 10.8 kg (23.8 lb)
Operating temperature: 0°C ~ +45°C (+32°F ~ +113°F)
Relative humidity: 10%~ 95% @ 40°C, non-considering
Operating vibration: 1.0G, 5-500Hz, random
CE
Ordering Information
P1177S-871
17" SXGA slim industrial touch panel computer with
LGA1155 socket 3rd generation Intel® Core™ i7/i5/i3,
Pentium® & Celeron® processor, resistive touch screen
and 100~240 VAC
* Specification and certifications are based on options and may vary.
Optional Accessories
82211271000E
82011750130E
82211770060E
82211770070E
E981604011
E981604012
Wireless LAN kit
2 x 2.5" HDD Kit
VESA & wall mount kit
Rack mount kit
ATC10 (VESA arm clamp type)
ATW10 (VESA arm wall mount)
Expansion Interface
Touchscreen
Power Supply
Power Consumption
Dimensions
Packing Dimension
Weight(net/gross)
Environment
Optional OS Installation
Windows® XP/XPe
Windows® 7/8.1
Windows® Embedded 7/8
0
1
2
3
4
Industrial
Touch Panel
Computers
Certificate
Less screw design
Dimensions
5
6
7
8
9
* All specifications and photos are subject to change without notice.
ax io m tek .c om
© 2017 Axiomtek Co., Ltd. All rights reserved.
