SEALED ROCKER SWITCHES
Resources:
IGS
STP
The L-Series rocker switch is an innovative product offering total design flexibility, while at the same
time setting new standards for performance and reliability. Its versatile design features include a neatly
proportioned size that fits into an industry standard mounting hole of 1.734 x .867 (44.0mm x 22.0mm),
countless unique choices for ratings, circuits, colors, illuminations and laser etched legends. These single
or double pole switches also feature a broad choice of actuator styles, colors, and lenses with up to twelve
terminals offering an extensive range of switch and lamp circuit options, including LED or incandescent
illumination. Additionally, an optional plug-in terminal connector enables pre-wiring of wire harness.
Download 3D CAD Files
Watch Product Video
Product Highlights:
IP67 certified sealed front panel components
Withstands temperatures from -40°C to +85°C
Vibration, shock, thermoshock, moisture and salt
spray resistant
Typical Applications:
Construction machinery
Agricultural equipment
On-highway transportation equipment
Carling Technologies, Inc.
60 Johnson Avenue, Plainville, CT
06062
Email:
sales
@
carlingtech.com
Application Support:
team2
@
carlingtech.com
Phone:
860.793.9281
Fax:
860.793.9231
www.carlingtech.com
2 |
L–Series Sealed Rocker Switches - Design Features
L-Series Switch

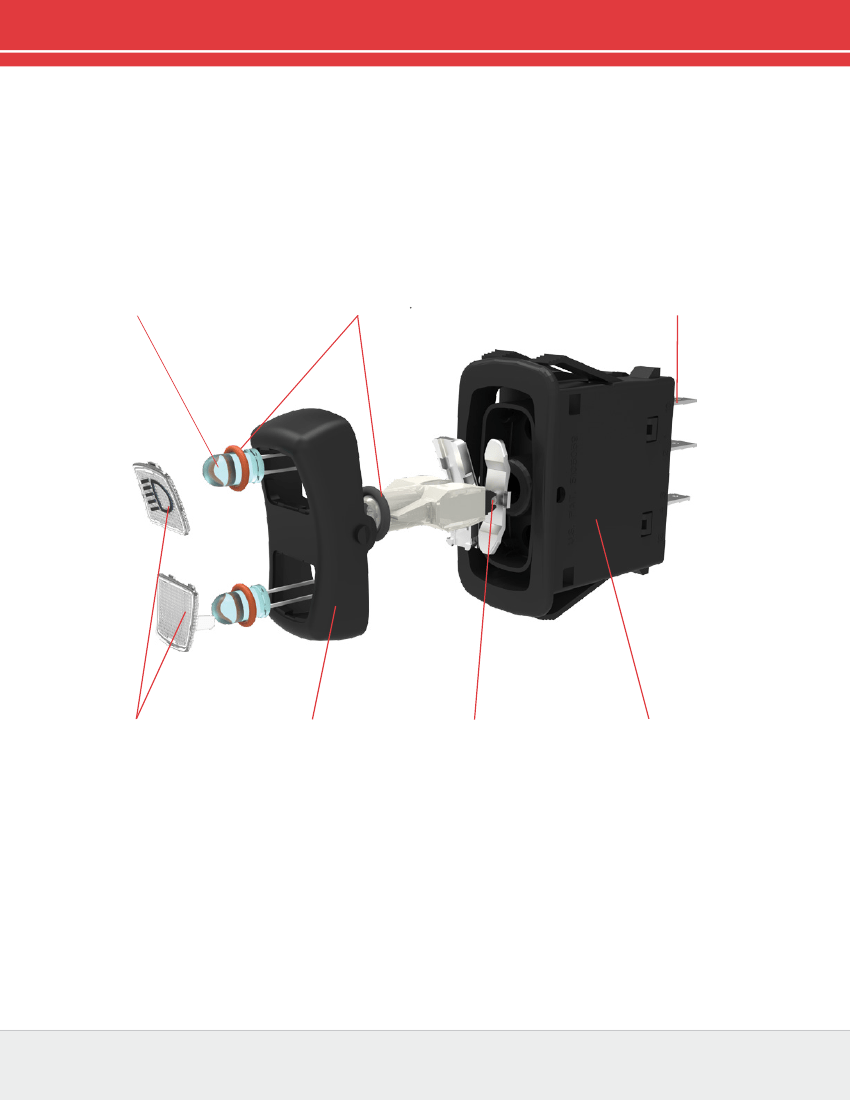

DESIGN FEATURES
Utilize less current and are not
affected by vibration, providing
long lasting illumination.
Available in 3 standard colors.
LED LIGHTING
Locks out elements such as
water, dust & debris. Certified
to IP67 for front panel
components.
SEAL PROTECTION
Available with 2 industry
standard termination options:
.250 or .187 tabs with up to 12
terminal options.
TERMINALS
Lens available in 2 sizes and 6
standard colors in either translucent
or transparent materials. Numerous
symbols and text available for
imprinting or laser etching.
LENS & LEGENDS
Available in rocker or
paddle styles. Several
standard color options
also available.
ACTUATOR
Eliminates need for
lubricants, increasing the
temperature range of the
switch from -40˚ C to +85˚C
[-40˚ F to 185˚ F].
ROLLER PIN
Fits into industry
standard mounting
hole of 1.734 x .867 in
[44.0mm x 22.0mm].
BASE
*Manufacturer reserves the right to change product specification without prior notice.
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
L–Series Sealed Rocker Switches - General Specifications
| 3
Electrical
.4VA @ 24VDC (MAX) resistive
15 amps, 125VAC
10 amps, 250VAC
20 amps, 4-14VDC
15 amps, 15-28VDC
Dielectric Strength
1250 Volts RMS between pole to
pole
3750 Volts RMS between live
parts and accessible surfaces
Insulation Resistance
50 Megaohms
Initial Contact Resistance 10 milliohms max. @ 4 VDC
Life
100,000 cycles maintained,
50,000 cycles momentary at rated
voltage and current
Contacts
90/10 silver-nickel, silver
tin-oxide, gold
Terminals
Brass or copper/silver plate
3/16” (4.76mm) & 1/4” (6.3mm)
Quick Connect terminations
standard.
Contact Rating
Environmental
Environmental
IP67 for above panel components
of the actual switch, representing
an index of protection as applied
to electrical equipment in
accordance with IEC 529, BS
5490, DIN 400 50 & NFC 20 010.
Mixed Flowing Gas MFG Class III
per ASTM B-827 & B-845, Method
H, with 3 years exposure.
-40°C to + 85°C
Per Mil-Std 202F, Method 204D
Test Condition A 0.06 DA or
10G’s 10-500 Hz. Tested with
VCH connector. Test criteria - No
loss of circuit during test and pre
and post test contact resistance.
Resonance search
24-50 Hz 0.40 DA
50-2000 ±10 G’s peak
Results Horizontal Axis 3-5 G’s
max.
Random
24 Hz
0.06 PSD-Gsq/Hz
60 Hz
0.50
100 Hz
0.50
200 Hz
0.025
2000 Hz 0.025
No loss of circuit during test; <10µ
chatter.
Per Mil-Std 202F, Method 213B,
Test Condition K @ 30G’s. Tested
with VCH connector. Test criteria
- No loss of circuit during test,
pre, and post test contact
resistance.
Per Mil-Std 202F, Method 101D,
Test Condition A, 48 Hrs.
Per Mil-Std 202F, Method 107F,
Test Condition A, -55°C to 85°C.
Test criteria - pre and post test
contact resistance.
Per Mil-Std 202F, Method 106F,
Test Criteria - pre and post test
contact resistance.
Corrosion
Operating Temperature
Vibration 1
Vibration 2
Mechanical
Endurance
250,000 cycles minimum
Shock
Physical
Lighted
Incandescent - rated 10,000
hours
LED - rated 100,000 hours 1/2 life
(LED is internally ballasted for
voltages to 24 VDC)
Rocker, base & bracket are
sealed.
Nylon 66 GF rated to 85°C with a
flammability rating of 94V0.
Basic actuator structure molded
of thermoplastic polycarbonate
with a hard Nylon 66
thermoplastic surface overlay.
Acetal
Polycarbonate rated at 100°C
2 & 3 Position Rocker Style
Nylon Zytel
Nylon 66 rated at 85°C. Polarized.
Seals
Base
Actuator
Salt Spray
Thermal Shock
Moisture Resistance
Lock
Lens
Function
Bracket
Connector
Mounting Specifications
.867 [22.02]
1.970
Actuator Travel (Angular Displacement)
2 position
3 positions
.100 [2.54]
2.265 [57.53]
.390 [9.91]
.260 [6.60]
1.734 [44.04]
26°
13° from center
1.020 [25.91]
TEST CUT
HOLE IN
ACTUAL
MATERIAL
3.055 [77.60]
Panel Thickness Range
Acceptable Panel Thickness
.030 to .156 (.76mm to 3.96mm)
Recommended:
.030, .062, .093, .125 and .156
MOUNTING HOLE
T1
BAT
T2
OUTPUT
(LOAD)
.230 X .031
[5.84 X .79]
T3
GROUND
PADDLE STYLE ACTUATOR
1.300 [33.02]
.344 [8.74]
1.570 [39.88]
Q.C. SELECTION GUIDE
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
COMPANY
PACKARD
Phone: (860) 793–9281 Fax: (860) 793–9231
AWG WIRE GAGEMM
2
www.carlingtech.com
SERIES
PART NO.
12084590
12
3.0
4 |
L-Series Sealed Rocker Switches – Ordering Scheme
1
Series
L 11 E 3 C H N 1
2
Circuit
3
Rating
4
5
6
Termination Illumination Lamp
7
Lamp
8
Bracket
9
Actuator
3 A A 45
10
11
12
Lens Style Lens Style Legend
& Color
& Color
13
14
Legend
Actuator
Orientation Lens Legend
1 48
1 SERIES
L
2 CIRCUIT
2
Terminal Orientation
5 ILLUMINATION
S
A
B
C
D
E
F
4
G
H
J
1
2
Lamps
None
#1
#2
#1

#1
#1

#1

#1

#1

#1

#2
#1
Lamp #1:above terminals 9 & 10 end of switch.; Lamp #2 above terminals 11 & 12 end
of switch. Positive (+) and negative (-) symbols apply to LED lamps only.
Illumination Type
Lamp Wired to Terminals
9-
11-
9-
9-
9-
9-
9-
9-
9-
9-
9-
9-
9-
9-
10-
10-
12-
12-
( )
- momentary
SP - single pole - uses terminals 1, 2 & 4.
DP - double pole uses terminals 5, 6 & 8.
Terminals 9, 10 & 11 for lamp circuit only.
Position: 1
2
SP DP 2 & 4, 6 & 8
Connected Terminals
11
21
ON
NONE
12 22
(ON)
NONE
13 23
ON
NONE
14 24
ON
NONE
15 25
ON
NONE
16 26
ON
OFF
17 27
ON
OFF
18 28
(ON)
OFF
CIRCUITS WITH JUMPER TERMINALS
30*
(2,4&5), (1,6&8)
OFF, OFF
31
1, 2 & 5
2, 3 & 7
PROGRESSIVE CIRCUITS
51
3&4
2, 3
52
3&4
2, 3
53
(3 & 4)
2, 3
54
(3 & 4)
2, 3
55
(3 & 4)
2, 3
56
(3 & 4)
2, 3
57
3&4
2, 3
58*
2&4
2, 3
61
3 & 4, 7 & 8
2 & 3, 6 & 7
62
3 & 4, 7 & 8
2 & 3, 6 & 7
63
(3 & 4), (7 & 8)
2 & 3, 6 & 7
64
(3 & 4), (7 & 8)
2 & 3, 6 & 7
65
(3 & 4), (7 & 8)
2 & 3, 6 & 7
66
(3 & 4), (7 & 8)
2 & 3, 6 & 7
67
3 & 4, 7 & 8
2 & 3, 6 & 7
68
2 & 4, 7 & 8
2 & 4, OFF
69*
2 & 4, 1, 7 & 8
2 & 4, OFF
70
(2 & 4), (7 & 8)
2 & 4, 5 & 7
71
(2&4), (7 & 8)
2 & 4, 5 & 7
72
2 & 4, 7 & 8
2 & 4, 5 & 7
73
(2 & 4), (7 & 8)
2 & 4, OFF
80
2 & 4, 6 & 8
2 & 4, OFF
HAZARD WARNING CIRCUITS
A2
6,7 & 8, 3 & 4
NONE
A3
6,7 & 8, 2 & 4
NONE
* Available with ratings 1, 4, & E only.
3
1 & 2, 5 & 6
OFF
OFF
(OFF)
ON
(ON)
ON
(ON)
(ON)
(1,2&8), (4,5&6)
2, 4 & 8
1&2
OFF
1&2
(OFF)
(1 & 2)
(OFF)
(OFF)
1&2
1 & 2, 5 & 6
OFF, OFF
1 & 2, 5 & 6
OFF, OFF
(1 & 2), (5 & 6)
(OFF, OFF)
(OFF, OFF)
OFF, OFF
OFF, OFF
(1 & 2), (5 & 7)
1 & 2, 5 & 7
1 & 2, 5 & 7
OFF, OFF
OFF, 5 & 6
OFF, 1 & 2
OFF, 1 & 2
Independent
Independent
Independent
Independent
Dependent
Independent
Dependent
Independent
Dependent
Dependent
Independent
Both Independent
(in series)
Dependent
Dependent
Hazard
Hazard
10+
12+
10+
12+
4+
10+
4+
10+
8+
4+
10+
10+
4+
1+
6+
6+
6,7 LAMP (SAME CODING FOR BOTH SELECTIONS)
Selection 6: above terminals 10 & 9; Selection 7: above terminals 12 & 11
No lamp
0
Incandescent
4
3V
5
6V
6
12V
7
18V
8
24V
LED*
Red
Amber
Green
2VDC
A
L
F
6VDC
B
M
G
12VDC
C
N
H
24VDC
D
P
J
* Consult factory for “daylight bright”, blue/green and white LED options.
Typical current draw for LED is 20ma.
8 BRACKET COLOR
1
Standard Bracket
Rockerguard at Lamp 1
Rockerguard at Lamp 2
Black
1
A
E
White
2
B
F
Gray
3
C
G
Red
4
D
H
Laser Etched
3
4
9 ACTUATOR STYLE AND COLOR
1
Black White Gray
Red
Rocker
A
B
C
D
Paddle
J
N
K
M
3 RATING
2
1
.4VA @ 28VDC Resistive
4
10A 250VAC 1/2 HP, 15A 125VAC 1/2 HP, No Listings
B
15A 24V
C
20A 18V
D
20A 12V
E
15A 12V
G
20A 6V
H
20A 3V
4 TERMINATION
2,3
1
.250 (6.4mm) TAB (QC)
3
.187 (4.7mm) TAB (QC)
10 & 11 LENS STYLE AND COLOR
Lens color for LEDs must be clear, white, or match color of LED.
0
- No Actuator
Z
- No Lens
Clear White Amber Green Red Blue
1
-
B
G
M
T
Large Transparent
-
7
C
H
N
U
Large Translucent
3
-
D
J
P
V
Bar Transparent
-
9
E
K
R
W
Bar Translucent
5
A
-
-
-
-
Laser Etched
background color
12 LASER ETCHED, LENS OR BODY LEGEND
00
No legend this location / no actuator
For legend options & codes, visit us at carlingtech.com
13 LEGEND ORIENTATION
0
No legend (used with codes 11-18 in selection 12)
1
Orientation 1 - vertical, lamp 1 on top
2
Orientation 2 - horizontal, lamp 1 on right
3
Orientation 3 - vertical, lamp 1 on bottom
4
Orientation 4 - vertical, lamp 1 on left
Do not use silicone based lubricants to reduce terminal insertion forces during
connector assembly, as it is detrimental to function and performance.
Notes:
Consult factory to verify horsepower rating for your particular circuit choice.
1
Custom colors are available. Consult factory.
2
Circuits 30, 31, 58, 69 are not available with rating codes 4, C, D, G or H.
3
Termination 3 only available with rating codes 1, B, and E.
4
Not available with circuits 11-18, 51-57 and 69.
1
2
3AA-146
3
3AA-246
4
14 ACTUATOR LENS LEGEND
00
No legend this location / no actuator
For legend options & codes, visit us at carlingtech.com
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
L-Series Sealed Rocker Switches - Locking - Ordering Scheme
| 5
1
Series
L 11 D 1 S W C J
2
Circuit
3
Rating
4
5
6
Termination Illumination Lock
7
Lamp
8
Bracket
9
Actuator
P M H 00
10
Lens
11
Lock
12
Legend
13
Legend
Orientation
0
1 SERIES
L
2 CIRCUIT
5
Terminal Orientation
6 LOCK
W
Lock above terminals 10 & 9.
7 LAMP
Above terminals 12 & 11
No lamp
0
Incandescent
4
3V
LED*
Red
2VDC
A
6VDC
B
12VDC
C
24VDC
D
SP - single pole - uses terminals 1, 2 & 4.
DP - double pole uses terminals 5, 6 & 8.
Terminals 9, 10 & 11 for lamp circuit only.
3
1 & 2, 5 & 6
OFF
ON
ON
(ON)
(ON)
(1,2&8), (4,5&6)
2, 4 & 8
1&2
OFF
1&2
(OFF)
(1 & 2)
(OFF)
(OFF)
1&2
1 & 2, 5 & 6
OFF, OFF
1 & 2, 5 & 6
OFF, OFF
(1 & 2), (5 & 6)
(OFF, OFF)
(OFF, OFF)
OFF, OFF
OFF, OFF
(1 & 2), (5 & 7)
1 & 2, 5 & 7
1 & 2, 5 & 7
OFF, OFF
OFF, 5 & 6
( )
- momentary
Position: 1
2
SP DP 2 & 4, 6 & 8
Connected Terminals
11
21
ON
NONE
14 24
ON
NONE
16 26
ON
OFF
17 27
ON
OFF
18 28
(ON)
OFF
CIRCUITS WITH JUMPER TERMINALS
30
2
(2,4&5), (1,6&8)
OFF, OFF
31
2
1, 2 & 5
2, 3 & 7
PROGRESSIVE CIRCUITS
51
3&4
2, 3
52
3&4
2, 3
53
(3 & 4)
2, 3
54
(3 & 4)
2, 3
55
(3 & 4)
2, 3
56
(3 & 4)
2, 3
57
3&4
2, 3
58
2&4
2, 3
61
3 & 4, 7 & 8
2 & 3, 6 & 7
62
3 & 4, 7 & 8
2 & 3, 6 & 7
63
(3 & 4), (7 & 8)
2 & 3, 6 & 7
64
(3 & 4), (7 & 8)
2 & 3, 6 & 7
65
(3 & 4), (7 & 8)
2 & 3, 6 & 7
66
(3 & 4), (7 & 8)
2 & 3, 6 & 7
67
3 & 4, 7 & 8
2 & 3, 6 & 7
68
2 & 4, 7 & 8
2 & 4, OFF
69
2 & 4, 1, 7 & 8
2 & 4, OFF
70
(2 & 4), (7 & 8)
2 & 4, 5 & 7
71
(2&4), (7 & 8)
2 & 4, 5 & 7
72
2 & 4, 7 & 8
2 & 4, 5 & 7
73
(2 & 4), (7 & 8)
2 & 4, OFF
80
2 & 4, 6 & 8
2 & 4, OFF
* Consult factory for “daylight bright”, blue/green and white LED options.
Typical current draw for LED is 20ma.
5
6V
Amber
L
M
N
P
6
12V
Green
F
G
H
J
7
18V
8
24V
8 BRACKET COLOR
1
J
Black
9 ACTUATOR STYLE AND COLOR
1
Black
Red
Locking Rocker
P
R
10 & 11 LENS STYLE AND COLOR
Lens color for LEDs must be clear, white, or match color of LED.
0
- No Actuator
Z
- No Lens
Clear White Amber Green Red Blue
1
-
B
G
M
T
Large Transparent
-
7
C
H
N
U
Large Translucent
3
-
D
J
P
V
Bar Transparent
-
9
E
K
R
W
Bar Translucent
11 LOCK FUNCTION AND COLOR
Locking Position
Up
Down Up & Down
Center
3
Lock Color
A
H
R
1
Match Actuator
B
J
S
2
Black
C
K
T
3
White
D
L
V
4
Red
E
M
W
5
Safety Orange
12 LASER ETCHED, LENS OR BODY LEGEND
00
No legend this location / no actuator
For legend options & codes, visit us at carlingtech.com
13 LEGEND ORIENTATION
0
No legend (used with codes 11-18 in selection 12)
1
Orientation 1 - vertical, lamp 1 on top
2
Orientation 2 - horizontal, lamp 1 on right
3
Orientation 3 - vertical, lamp 1 on bottom
4
Orientation 4 - vertical, lamp 1 on left
P
P
P
P
3 RATING
2
1
.4VA @ 28VDC Resistive
4
10A 250VAC 1/2 HP, 15A 125VAC 1/2 HP, No Listings
B
15A 24V
C
20A 18V
D
20A 12V
E
15A 12V
G
20A 6V
H
20A 3V
4 TERMINATION
4
1
.250 (6.4mm) TAB (QC)
3
.187 (4.7mm) TAB (QC)
Do not use silicone based lubricants to reduce terminal insertion forces during
connector assembly, as it is detrimental to function and performance.
5 ILLUMINATION
S
B
Lamps
None
#2
Lamp #1:above terminals 9 & 10 end of switch.; Lamp #2 above terminals 11 & 12 end
of switch. Positive (+) and negative (-) symbols apply to LED lamps only.
PZAY2-1
1
PZAY2-2
2
3
4
Illumination Type
Lamp Wired to Terminals
11-
Independent
12+
Notes:
Consult factory to verify horsepower rating for your particular circuit choice.
1
Custom colors are available. Consult factory.
2
Additional lamp circuits available. Consult factory.
3
Available only with 3 position circuits.
4
Termination 3 only available with ratings 1, B and E.
5
Circuits 30, 31, 58 and 69, are not available with rating codes 4, C, D, G or H.
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
京公网安备 11010802033920号
EEWORLD
