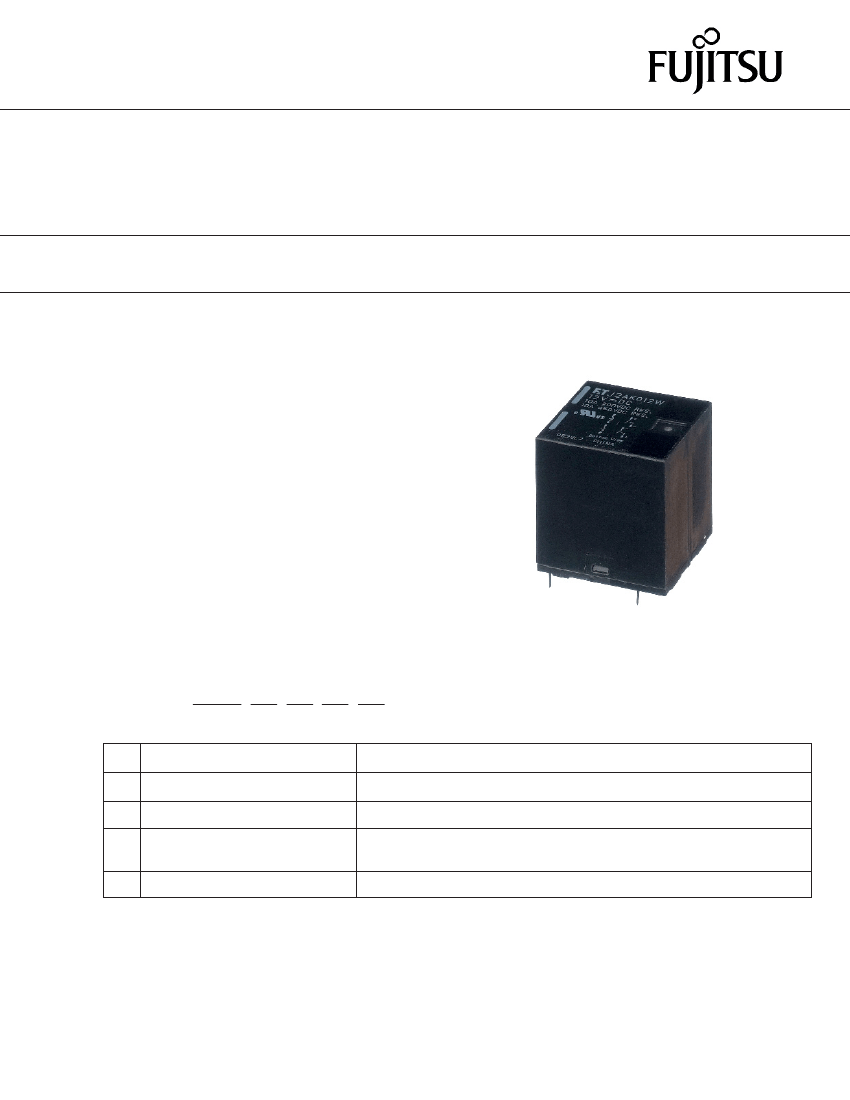

FTR-K1 SERIES
POWER RELAY
ULTRA SMALL HIGH VOLTAGE DC RELAY
FTR-J2 Series
n
FEATURES
10A, 450VDC high-voltage switching
(2 x 10A, 200VDC switching)
l
Contact voltage drop: typical 0.1V
l
Inrush current 150A (capacitive load)
l
Compact size (L x W X H= 24x23.5x27mm)
l
2 x 1 form A
l
Coil sensitivity 1W (each coil connect in series)
l
High insulation between contacts and coil
- Insulation distance : Clearance/creepage > 6mm
- Dielectric strength
: 4,000 VAC
- Surge strength
: 10,000 V (1.2 x 50µsec)
l
Plastic materials conform to UL94 flame class V-0
l
Flux proof, RTII
l
RoHS compliant
Please see page 8 for more information
l
n
PARTNUMBER INFORMATION
[Example]
(a)
(b)
(c)
(d)
(e)
FTR-J2
(a)
A
(b)
K
(c)
012
(d)
W
(e)
FTR-J2
A
K
012
W
: FTR-J2-Series
: 2 x 1 form A
: Standard sensitivity
: 5.....110 VDC
Coil rating table at page 3
: Silver alloy
Relay type
Contact configuration
Coil power
Coil rated voltage
Contact material
Actual marking does not carry the type name : "FTR"
E.g.: Ordering code: FTR-J2AK012W
Actual marking: J2AK012W
1
FTR-J2 SERIES
FTR-K1 SERIES
n
SPECIFICATION
Item
Contact Data
Configuration
Material
Contact resistant (initial)
Contact rating
FTR-J2
2 x 1 form A
Silver alloy
Max. 100 mΩ at 1A, 6VDC
10A, 450VDC (resistive load) (+ polarity pin 7 and 4)
* each NO contact connected in series
10A, 200VDC (resistive load) (single contact) +
(polarity pin 7 and 4) * for each NO contact
10A, 500VDC (resistive load), 50 operations
* each NO contact connected in series
10A, 250VDC (resistive load)
* for each NO contact
12A
Peak 150A
600VDC, each NO contact connection in series
300VDC, each NO contact
Typical 0.1V (at nominal contact current)
2M operations
10K operations
Maximum 70% of nominal voltage
Minimum 5% of nominal voltage
-40 to +85 °C
Max. 15ms (without bounce)
Max. 5ms (no diode)
Min. 1000MΩ at 500VDC
Between open contacts
Dielectric strength
Between contact sets
Between contacts and
coil
Coil to contacts
Misoperation
Endurance
Misoperation
Endurance
1,000VAC (50/60Hz) 1min
1,000VAC (50/60Hz) 1min
4,000 VAC (50/60 Hz) 1 min.
10,000V/ 1.2 x 50µs standard wave
10 to 55Hz double amplitude 1.5mm
10 to 55Hz double amplitude 1.5mm
Min. 200m/s² (11 ± 1ms)
Min. 1,000m/s² (6 ± 1ms)
Approximately 26g
Flux proof RTII
Overload switching *
Maximum carrying current
Inrush current
Maximum switching voltage
Contact voltage drop (initial)
Life
Coil Data
Mechanical
Electrical
Operate voltage (at 20 °C)
Release voltage (at 20 °C)
Operating temperature range (no frost)
Timing Data
Insulation
Operate (at nominal voltage)
Release (at nominal voltage)
Resistance (initial)
Surge strength
Other
Vibration
resistance
Shock
Weight
Sealing
Note: Use a varistor as a protective circuit against reverse surge connected parallel to the coil. The reverse blocking voltage
should be about 3 times the value of the power source voltage.
* Minimum switching loads mentioned above are reference values. Please perform the confirmation test with actual
load before production since reference values may vary according to switching frequencies, environmental conditions
and expected reliability levels.
2
FTR-K1 SERIES
FTR-J2 SERIES
n
COIL RATING
Standard single coil
Coil
Code
005
006
012
024
048
060
110
Rated Coil
Voltage
(VDC)
5
6
12
24
48
60
110
Coil Resistance
+/- 10% (Ohm) *
47
68
270
1,100
4,400
6,790
22,800
Must Operate
Voltage
(VDC) *
3.5
4.2
8.4
16.8
33.6
42
77
Must Release
Voltage
(VDC) *
0.25
0.3
0.6
1.2
2.4
3
5.5
Approximately
0.53
Rated Power (W)
(±10%)
2 coils in series (Connect relay coil terminal No.2 to No.3) See note 2.
Coil
Code
005
006
012
024
048
060
110
Rated Coil
Voltage
(VDC)
10
12
24
48
96
120
220
Coil Resistance
+/- 10% (Ohm) *
94
136
540
2,200
8,800
13,580
45,600
Must Operate
Voltage
(VDC) *
7
8.4
16.8
33.6
67.2
84
154
Must Release
Voltage
(VDC) *
0.5
0.6
1.2
2.4
4.8
6
11
Approximately
1.06
Rated Power (W)
(±10%)
2 coils in parallel (Connect relay coil terminal No.1 to No.3 and No.2 to No.4)
Coil
Code
005
006
012
024
048
060
110
Rated Coil
Voltage
(VDC)
5
6
12
24
48
60
110
Coil Resistance
+/- 10% (Ohm) *
23.5
34
135
550
2,200
3,395
11,400
Must Operate
Voltage
(VDC) *
3.5
4.2
8.4
16.8
33.6
42
77
Must Release
Voltage
(VDC) *
0.25
0.3
0.6
1.2
2.4
3
5.5
Approximately
1.06
Rated Power (W)
(±10%)
Note 1: All values in the tables are valid for 20°C and zero contact current.
Note 2: Nominal voltage is different from indication of part number. Please refer to the coil rating
chart "single coil (10A, 200VDC configuration)" for single coil configuration data.
Note 3: Please use with nominal voltage. When energizing higher voltage to coil, please refer to
characteristic data "coil temperature rise" and "operating range" (page 4) to set suitable voltage.
* Specified operate values are valid for pulse wave voltage.
3
FTR-K1 SERIES
FTR-J2 SERIES
n
SAFETY STANDARDS
Type
UL
Compliance
UL 508
Contact rating
10A, 450VDC, resistive, 10,000 cycles for series connection of each NO
contact
10A, 400VDC, resistive, 10,000 cycles for series connection of each NO
contact
10A, 200VDC, resistive, 10,000 cycles for each NO contact
10A, 400VDC, resistive, 10,000 cycles for series connection of each NO
contact
10A, 200VDC, resistive, 10,000 cycles for each NO contact
VDE
0435
n

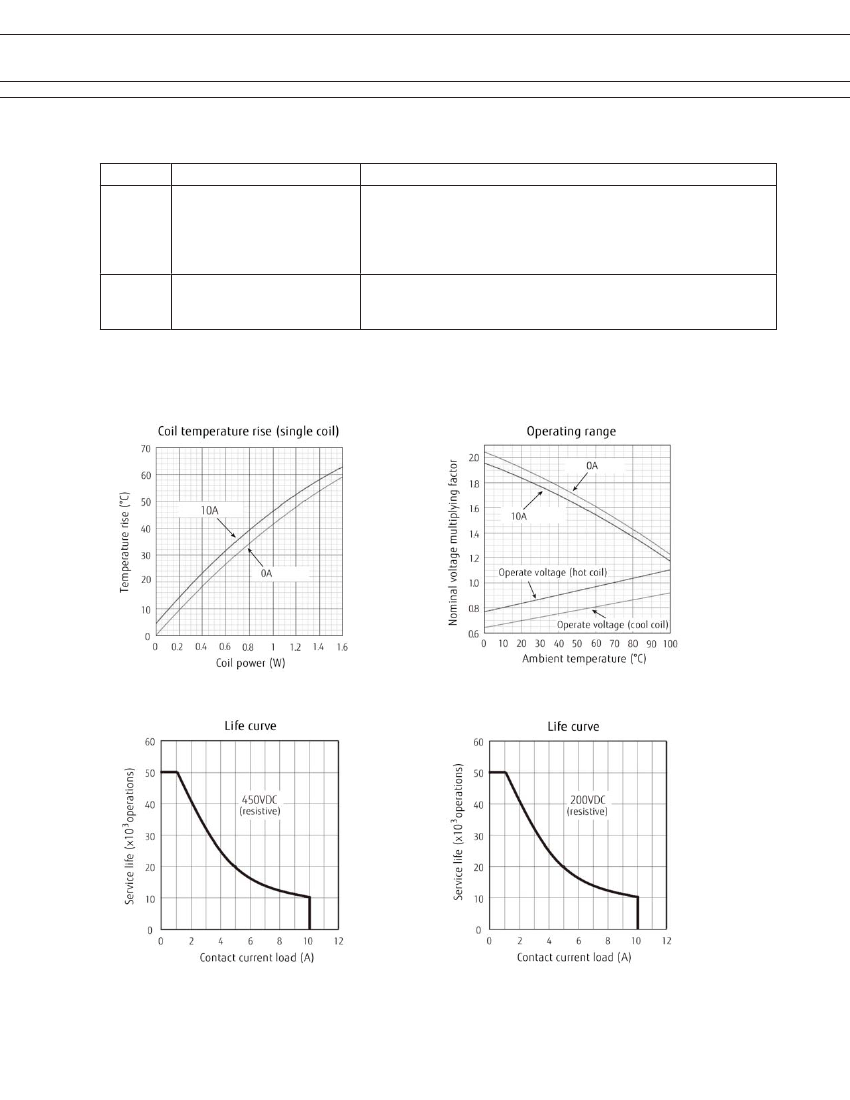

CHARACTERISTIC DATA
* Each NO contact connect in series
* Each NO contact
4
FTR-K1 SERIES
FTR-J2 SERIES
n

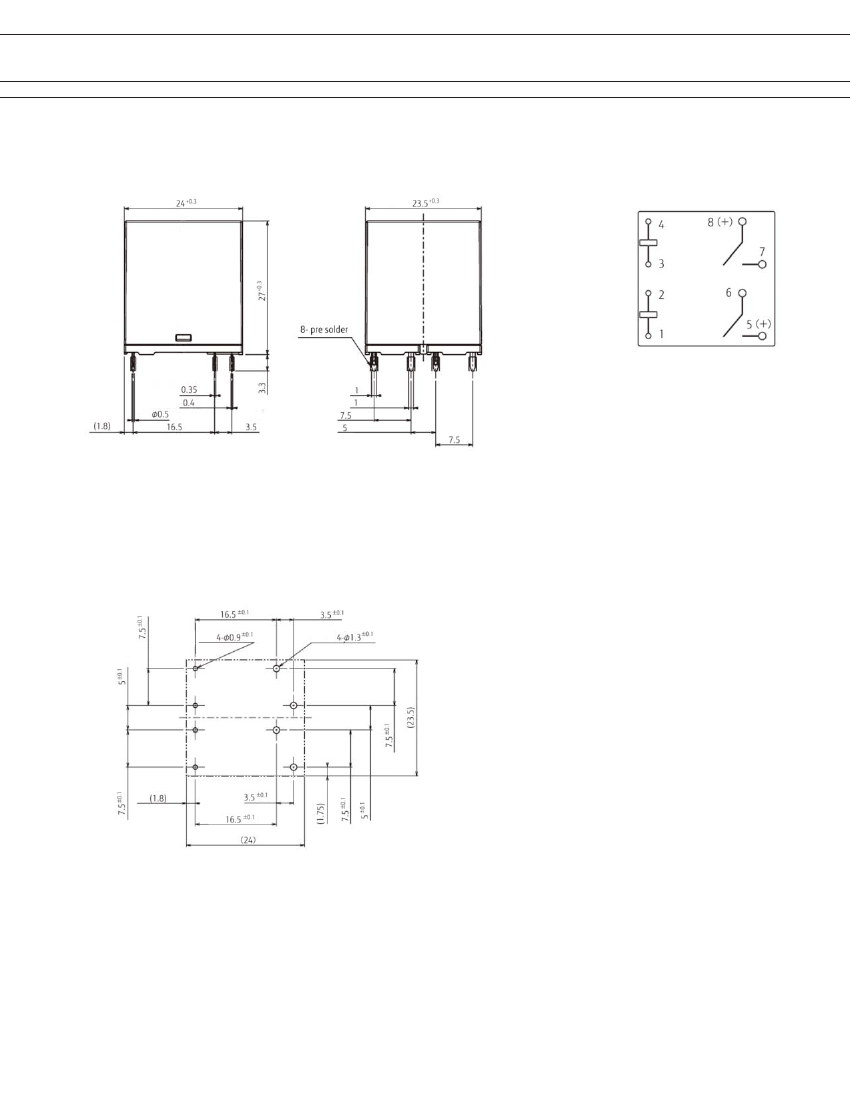

DIMENSIONS
l
Dimensions
l
Schematics
(BOTTOM VIEW)
l
PC board mounting
hole layout
(BOTTOM VIEW)
Unit: mm
5
