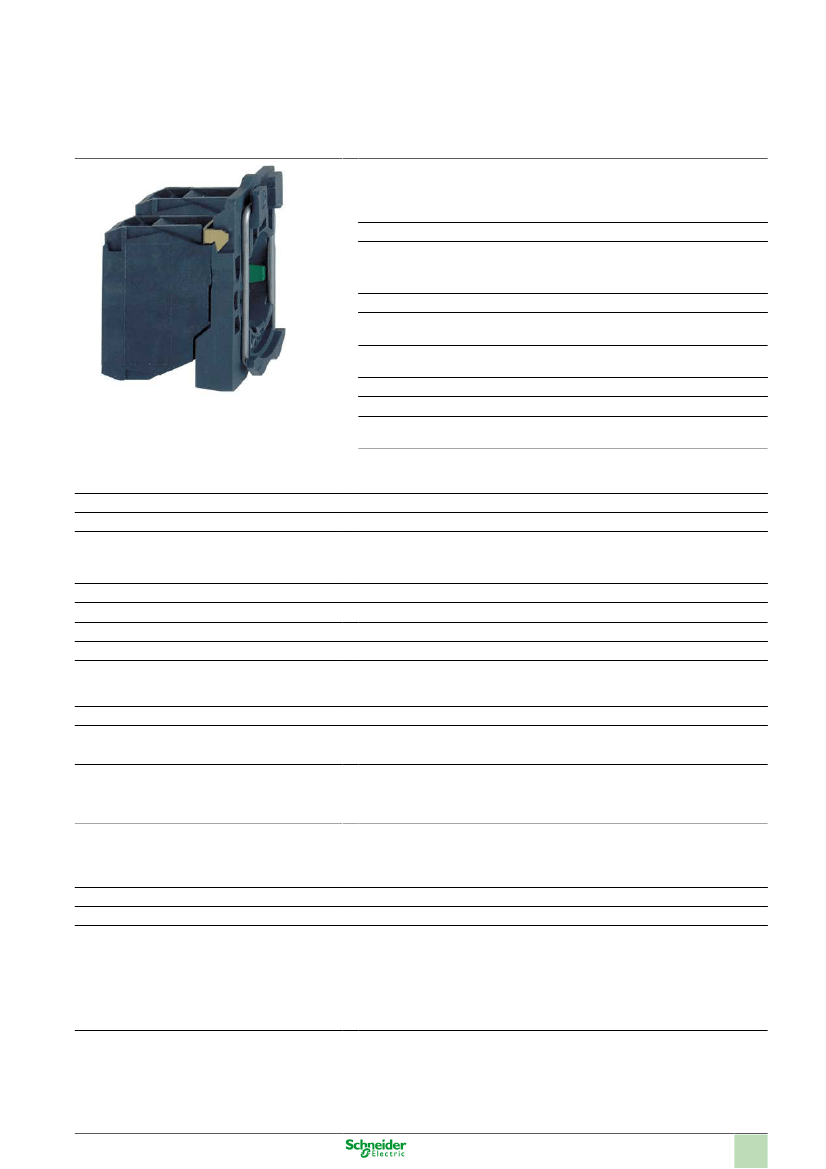

Product data sheet
Characteristics
ZB5AZ1053
single contact block with body/fixing collar 1NO
+1NC faston connector
Product availability: Non-Stock - Not normally stocked in distribution facility
Main
Commercial Status
Range of product
Product or component
type
Device short name
Fixing collar material
Sale per indivisible
quantity
Contacts type and
composition
Contacts operation
Contact block type
Connections - terminals
Commercialised
Harmony XB5
Complete body/contact assembly
ZB5
Plastic
1
1 NO + 1 NC
Slow-break
Faston connector(2 x 2.8 mm)
Faston connector(1 x 6.35 mm)
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Single
Complementary
CAD overall width
CAD overall height
CAD overall depth
Terminals description ISO n°1
Product weight
Additional information
Contacts usage
Positive opening
Operating travel
1.18 in (30 mm)
1.65 in (42 mm)
1.26 in (32 mm)
(11-12)NC
(13-14)NO
0.07 lb(US) (0.03 kg)
With body/fixing collar
Standard contacts
With positive opening conforming to EN/IEC 60947-5-1 appendix K
0.17 in (4.3 mm) (total travel)
0.1 in (2.6 mm) (NO changing electrical state)
0.06 in (1.5 mm) (NC changing electrical state)
5000000 cycles
Silver alloy (Ag/Ni)
250 V (degree of pollution: 3) conforming to EN 60947-1
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC
60947-5-4
Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC
60947-5-4
Mechanical durability
Contacts material
[Ui] rated insulation voltage
Electrical reliability IEC 60947-5-4
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
IP degree of protection
Standards
TH
-40...158 °F (-40...70 °C)
-13...158 °F (-25...70 °C)
IP20 conforming to IEC 60529
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
UL 508
CSA C22.2 No 14
Feb 28, 2016
1
Product certifications
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27
30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-27
Vibration resistance
Shock resistance
Ordering and shipping details
Category
Discount Schedule
GTIN
Nbr. of units in pkg.
Package weight(Lbs)
Product availability
Returnability
Country of origin
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW
CS2
00785901852957
1
0.10
Non-Stock - Not normally stocked in distribution facility
N
FR
Contractual warranty
Period
18 months
2
Embedded System
