FW1120D00 datasheet, PDF - EEWORLD Datasheet

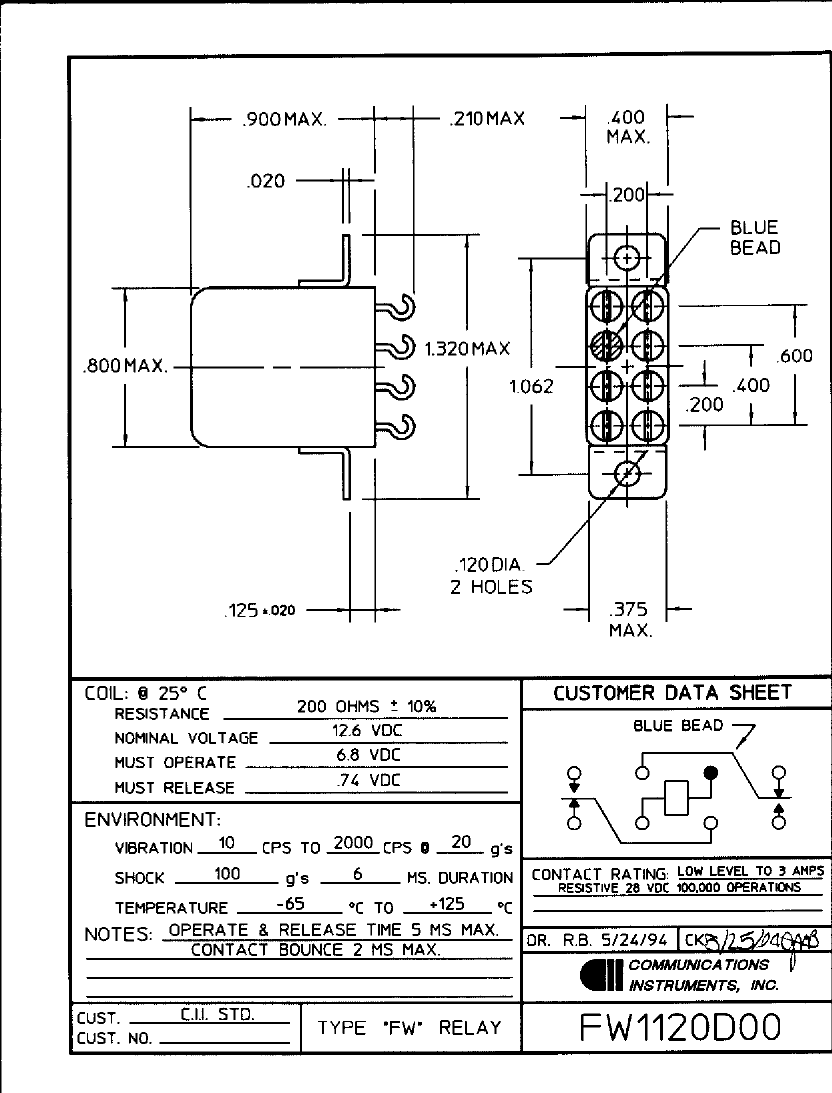

FW1120D00: DescriptionFW1120D00=FW RELAY; CategoryMechanical and electronic products relay; File Size25KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

FW1120D00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FW1120D00	-	-	View	Buy Now

FW1120D00=FW RELAY

Parameter Name	Attribute value
Brand Name	CII
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	10.16 mm
body height	22.23 mm
Body length or diameter	20.32 mm
Maximum coil current (DC)	0.063 A
Coil operating voltage (DC)	9.4 V
Coil power	790 mW
Coil release voltage (DC)	0.49 V
Coil resistance	200 Ω
Maximum coil voltage (DC)	12.6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	1A@115VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Maximum insertion loss	0.4 dB
Maximum isolation	23 dB
Manufacturer's serial number	FW
Installation features	PANEL MOUNT
operating hours	8 ms
Maximum operating frequency	1000 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
physical size	20.32mm X 10.16mm X 22.23mm
Guideline	MIL-R-5757/10
Relay action	MOMENTARY
Relay function	DPDT
Relay type	RF RELAY
release time	8 ms
seal	HERMETICALLY SEALED
surface mount	NO
switching time	16 ms
Termination type	SOLDER HOOK
voltage standing wave ratio	1.19
Base Number Matches	1
