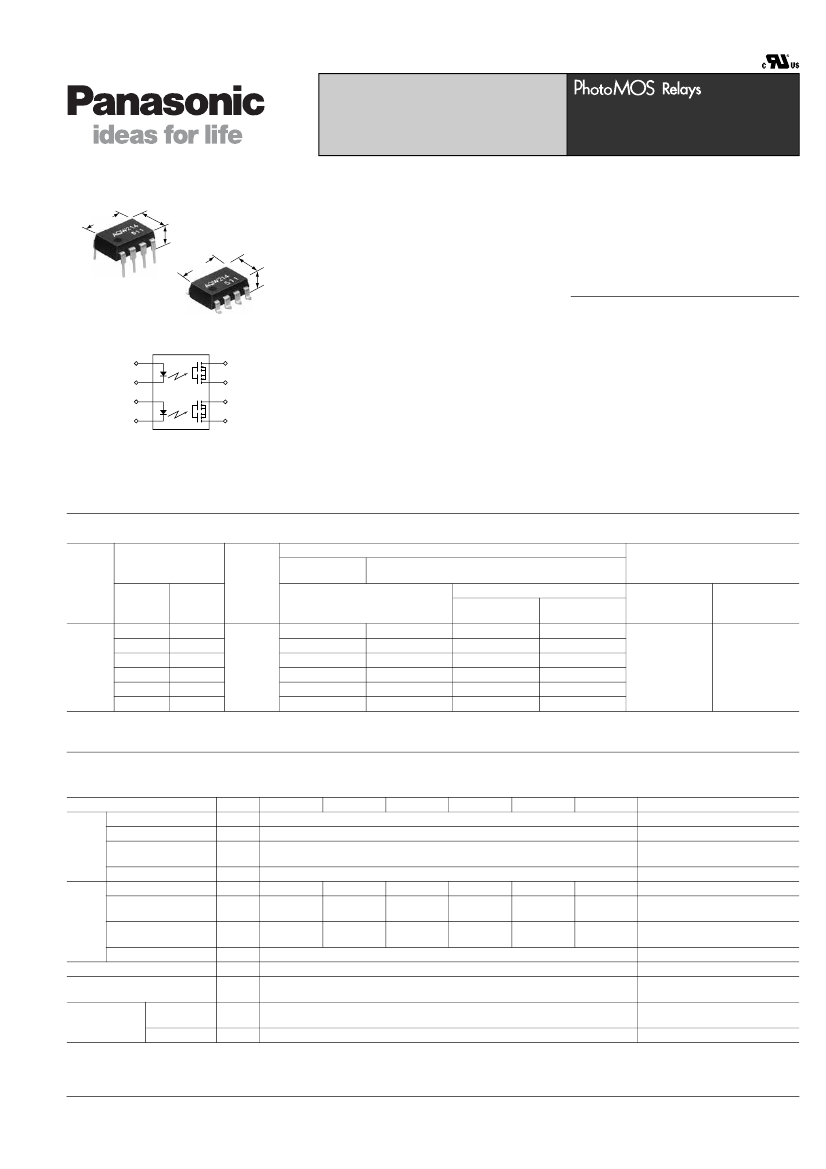

GU 2 Form A (AQW21 )
Compact DIP8-pin type of
60V to 600V load voltage
FEATURES
9.78
.385
6.4
.252
3.9
.154
9.78
.385
6.4
.252
3.6
.142
GU 2 Form A
(AQW21 )
mm
inch
1
2
3
4
8
7
6
5
1. Compact 8-pin DIP size
The device comes in a compact (W) 6.4
×
(L) 9.78
×(H)
3.9 mm
(W) .252×(L)
.385×(H) .154 inch,
8-pin DIP size
(through hole terminal type).
2. Applicable for 2 Form A use as well
as two independent 1 Form A use
3. Controls low-level analog signals
PhotoMOS relays feature extremely low
closed-circuit offset voltage to enable
control of low-level analog signals without
distortion.
4. High sensitivity and high speed
response
Can control max. 0.6 A load current with
5 mA input current. Fast operation speed
of typ. 0.65 ms (AQW212).
5. Low-level off state leakage current
of max. 1
μA
6. Wide variation of load voltage 60V
to 600V
TYPICAL APPLICATIONS
• High-speed inspection machines
• Telephones equipment
• Computer
TYPES
Part No.
Output rating*
Package
Load
voltage
60V
100 V
AC/DC
dual use
200 V
350 V
400 V
600 V
Load
current
500 mA
300 mA
160 mA
120 mA
100 mA
40 mA
DIP8-pin
Through hole
terminal
Tube packing style
AQW212
AQW215
AQW217
AQW210
AQW214
AQW216
AQW212A
AQW215A
AQW217A
AQW210A
AQW214A
AQW216A
Surface-mount terminal
Tape and reel packing style
Picked from the
1/2/3/4-pin side
AQW212AX
AQW215AX
AQW217AX
AQW210AX
AQW214AX
AQW216AX
Picked from the
5/6/7/8-pin side
AQW212AZ
AQW215AZ
AQW217AZ
AQW210AZ
AQW214AZ
AQW216AZ
1 tube contains:
40 pcs.
1 batch contains:
400 pcs.
Tube
Tape and reel
Packing quantity
1,000 pcs.
*Indicate the peak AC and DC values.
Note: The surface mount terminal shape indicator “A” and the packing style indicator “X” or “Z” are not marked on the relay.
RATING
1. Absolute maximum ratings (Ambient temperature: 25°C
77°F)
Item
LED forward current
LED reverse voltage
Input
Peak forward current
Power dissipation
Load voltage (peak AC)
Output
Continuous load
current
Peak load current
Power dissipation
Total power dissipation
I/O isolation voltage
Temperature
limits
Operating
Storage
Symbol
I
F
V
R
I
FP
P
in
V
L
I
L
I
peak
P
out
P
T
V
iso
T
opr
T
stg
60 V
0.50 A
(0.60A)
1.0 A
100 V
0.30 A
(0.35 A)
0.9 A
200 V
0.16 A
(0.2 A)
0.48 A
AQW212(A)
AQW215(A)
AQW217(A)
AQW210(A)
AQW214(A)
AQW216(A)
Remarks
50 mA
5V
1A
75 mW
350 V
0.12 A
(0.14 A)
0.36 A
400 V
0.10 A
(0.13 A)
0.3 A
600 V
0.04 A
(0.05 A)
0.12 A
Peak AC, DC
( ): in case of using only 1 channel
A connection: 100 ms (1 shot),
V
L
= DC
f = 100 Hz,
Duty factor = 0.1%
800 mW
850 mW
1,500 V AC
–40°C to +85°C
–40°F to +185°F
–40°C to +100°C
–40°F to +212°F
Between input and output/between
contact sets
Non-condensing at low
temperatures
ds_x615_en_aqw21: 140509J
1
GU 2 Form A (AQW21 )
2. Electrical characteristics (Ambient temperature: 25°C
77°F)
Item
LED operate
current
Input
LED turn off
current
LED dropout
voltage
On resistance
Output
Off state leakage
current
Turn on time*
Turn off time*
I/O capacitance
Initial I/C isolation
resistance
Maximum
Maximum
Typical
Maximum
Typical
Maximum
Typical
Maximum
Minimum
I
Leak
T
on
T
off
C
iso
R
iso
0.65 ms
2 ms
0.08 ms
0.60 ms
2 ms
0.06 ms
0.25 ms
1.0 ms
0.05 ms
0.8 pF
1.5 pF
1,000 MΩ
0.2 ms
Typical
Maximum
Minimum
Typical
Typical
Maximum
Typical
R
on
Symbol
I
Fon
I
Foff
V
F
0.83
Ω
2.5
Ω
2.3
Ω
4.0
Ω
AQW212(A)
AQW215(A)
AQW217(A)
AQW210(A)
AQW214(A)
AQW216(A)
Condition
I
L
= Max.
I
L
= Max.
I
F
= 50 mA
30
Ω
50
Ω
70
Ω
120
Ω
I
F
= 5 mA
I
L
= Max.
Within 1 son time
I
F
= 0 mA
V
L
= Max.
0.25 ms
0.5 ms
0.05 ms
0.31 ms
0.5 ms
0.05 ms
0.28 ms
0.5 ms
0.04 ms
I
F
= 5 mA
I
L
= Max.
I
F
= 5 mA
I
L
= Max.
f = 1 MHz
V
B
= 0 V
500 V DC
0.9 mA
3 mA
0.4 mA
0.8 mA
1.25 V (1.14 V at I
F
= 5 mA)
1.5 V
11
Ω
15
Ω
1
μA
23
Ω
35
Ω
Transfer
characteristics
*Turn on/Turn off time
Input
90%
Output
Ton
Toff
10%
RECOMMENDED OPERATING CONDITIONS
Please obey the following conditions to ensure proper relay operation and resetting.
Item
Input LED current
Symbol
I
F
Recommended value
5
Unit
mA
Dimensions
Schematic and Wiring Diagrams
Cautions for Use
■
These products are not designed for automotive use.
If you are considering to use these products for automotive applications, please contact your local Panasonic Electric
Works technical representative.
Please refer to our information on
PhotoMOS Relays for Automotive Applications.

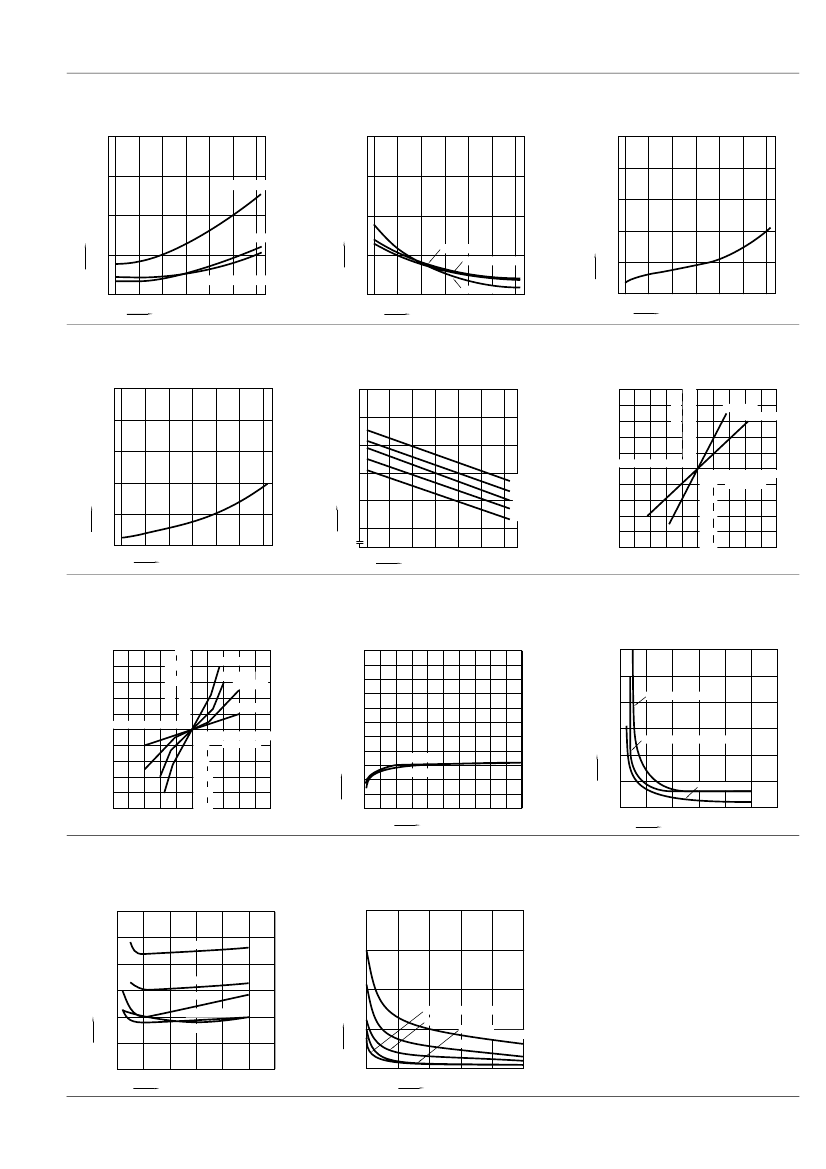

REFERENCE DATA
1. Load current vs. ambient temperature
characteristics
Allowable ambient temperature: –40°C to +85°C
–40°F to +185°F
600
500
Load current, mA
2.-(1) On resistance vs. ambient temperature
characteristics
Measured portion: between terminals 5 and 6, 7 and 8;
LED current: 5 mA; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
5
2.-(2) On resistance vs. ambient temperature
characteristics
Measured portion: between terminals 5 and 6, 7 and 8;
LED current: 5 mA; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
120
100
AQW216
AQW212
On resistance,
Ω
AQW215
3
On resistance,
Ω
4
400
300
200
100
AQW215
80
60
AQW214
40
AQW210
20
0
AQW217
–40
–20
0
20
40
60
8085
Ambient temperature,
°C
2
AQW212
1
AQW217
AQW210
AQW214
AQW216
0
8085 100
–40 –20
0
20
40
60
Ambient temperature,
°C
0
–40
–20
0
20
40
60
8085
Ambient temperature,
°C
2
ds_x615_en_aqw21: 140509J
GU 2 Form A (AQW21 )
3. Turn on time vs. ambient temperature
characteristics
LED current: 5 mA; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
2.0
4. Turn off time vs. ambient temperature
characteristics
LED current: 5 mA; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
0.4
5. LED operate current vs. ambient
temperature characteristics
Sample: All types; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
5
LED operate ourrent, mA
4
Turn on time, ms
AQW212,AQW215
Turn off time, ms
1.5
0.3
3
1.0
AQW214
0.5
AQW216,AQW210,AQW217
0
–40
–20
0
20
40
60
8085
0.2
2
0.1
AQW212,215
AQW216,210,217
1
0
–40
–20
0
20
AQW214
40
60
8085
0
–40
–20
0
20
40
60
8085
Ambient temperature,
°C
Ambient temperature,
°C
Ambient temperature,
°C
6. LED turn off current vs. ambient temperature
characteristics
Sample: All types; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
5
LED turn off current, mA
7. LED dropout voltage vs. ambient
temperature characteristics
Sample: All types;
LED current: 5 to 50 mA
1.5
8.-(1) Current vs. voltage characteristics of
output at MOS portion
Measured portion: between terminals 5 and 6, 7 and 8;
Ambient temperature: 25°C
77°F
0.5
Current, A
0.4
0.3
0.2
AQW212
AQW215
LED dropout voltage, V
4
1.4
1.3
1.2
1.1
1.0
3
0.1
–1.0 –0.8 –0.6 –0.4 –0.2
50mA
30mA
20mA
10mA
5mA
0 0.2
0.4
0.6
0.8
1.0
–0.1 Voltage, V
2
–0.2
–0.3
–0.4
1
0
–40
–20
0
20
40
60
8085
Ambient temperature,
°C
0
–40
–20
0
20
40
60
8085
Ambient temperature,
°C
–0.5
8.-(2) Current vs. voltage characteristics of
output at MOS portion
Measured portion: between terminals 5 and 6, 7 and 8;
Ambient temperature: 25°C
77°F
Current, mA
200
9. Off state leakage current vs. load voltage
characteristics
Measured portion: between terminals 5 and 6, 7 and 8;
Ambient temperature: 25°C
77°F
10. Turn on time vs. LED forward current
characteristics
Measured portion: between terminals 5 and 6, 7 and 8;
Load voltage: Max. (DC); Continuous load current:
Max. (DC); Ambient temperature: 25°C
77°F
1.2
Off state leakage current, A
160
120
80
40
AQW217
AQW210
AQW214
AQW216
1
–40
–80
–120
–160
–200
2 3 4 5
Voltage, V
10
–3
1.0
Turn on time, ms
10
–6
0.8
0.6
AQW212,AQW215
–5 –4 –3 –2 –1
AQW210,AQW216,AQW217
0.4
0.2
0
10
–9
AQW216
AQW214
10
–12
AQW214
10
20
30
40
50
0
20
40
80
60
Load voltage, V
100
LED forward current, mA
11. Turn off time vs. LED forward current
characteristics
Measured portion: between terminals 5 and 6, 7 and 8;
Load voltage: Max. (DC); Continuous load current:
Max. (DC); Ambient temperature: 25°C
77°F
0.12
12. Output capacitance vs. applied voltage
characteristics
Measured portion: between terminals 5 and 6, 7 and 8;
Frequency: 1 MHz;
Ambient temperature: 25°C
77°F
200
Output capacitance, pF
0.10
AQW212
Turn off time, ms
150
0.08
AQW215
0.06
0.04
0.02
0
AQW216
AQW210,217
AQW214
100
AQW216,AQW210
AQW217
AQW214
AQW212
AQW215
50
0
10
20
30
40
50
0
0
10
20
30
40
50
LED forward current, mA
Applied voltage, V
ds_x615_en_aqw21: 140509J
3
