4Mb: 256K x 18, 128K x 32/36
PIPELINED, SCD SYNCBURST SRAM
4Mb SYNCBURST
SRAM
FEATURES
™
MT58L256L18P, MT58L128L32P,
MT58L128L36P; MT58L256V18P,
MT58L128V32P, MT58L128V36P
3.3V V
DD
, 3.3V or 2.5V I/O, Pipelined, Single-Cycle
Deselect
• Fast clock and OE# access times
• Single +3.3V +0.3V/-0.165V power supply (V
DD
)
• Separate +3.3V or +2.5V isolated output buffer supply
(V
DD
Q)
• SNOOZE MODE for reduced-power standby
• Single-cycle deselect (Pentium
®
BSRAM-compatible)
• Common data inputs and data outputs
• Individual BYTE WRITE control and GLOBAL WRITE
• Three chip enables for simple depth expansion and
address pipelining
• Clock-controlled and registered addresses, data I/Os
and control signals
• Internally self-timed WRITE cycle
• Burst control pin (interleaved or linear burst)
• Automatic power-down for portable applications
• 100-lead TQFP package for high density, high speed
• 119-bump BGA package
• Low capacitive bus loading
• x18, x32 and x36 versions available
100-Pin TQFP*
119-Bump BGA
OPTIONS
• Timing (Access/Cycle/MHz)
3.1ns/5ns/200 MHz
3.5ns/6ns/166 MHz
4.0ns/7.5ns/133 MHz
5ns/10ns/100 MHz
• Configurations
3.3V I/O
256K x 18
128K x 32
128K x 36
2.5V I/O
256K x 18
128K x 32
128K x 36
• Packages
100-pin TQFP
119-bump, 14mm x 22mm BGA
• Operating Temperature Range
Commercial (0°C to +70°C)
Industrial (-40°C to +85°C)
MARKING
-5
-6
-7.5
-10
MT58L256L18P
MT58L128L32P
MT58L128L36P
MT58L256V18P
MT58L128V32P
MT58L128V36P
T
B
None
IT
*JEDEC-standard MS-026 BHA (LQFP).
GENERAL DESCRIPTION
The Micron
®
SyncBurst
™
SRAM family employs high-
speed, low-power CMOS designs that are fabricated using
an advanced CMOS process.
Micron’s 4Mb SyncBurst SRAMs integrate a 256K x 18,
128K x 32, or 128K x 36 SRAM core with advanced synchro-
nous peripheral circuitry and a 2-bit burst counter. All
synchronous inputs pass through registers controlled by a
positive-edge-triggered single clock input (CLK). The syn-
chronous inputs include all addresses, all data inputs,
active LOW chip enable (CE#), two additional chip enables
for easy depth expansion (CE2, CE2#), burst control inputs
• Part Number Example: MT58L256L18PT-6 IT
4Mb: 256K x 18, 128K x 32/36 Pipelined, SCD SyncBurst SRAM
MT58L256L18P.p65 – Rev. 9/99
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©1999,
Micron Technology, Inc.
All registered and unregistered trademarks are the sole property of their respective companies.
4Mb: 256K x 18, 128K x 32/36
PIPELINED, SCD SYNCBURST SRAM

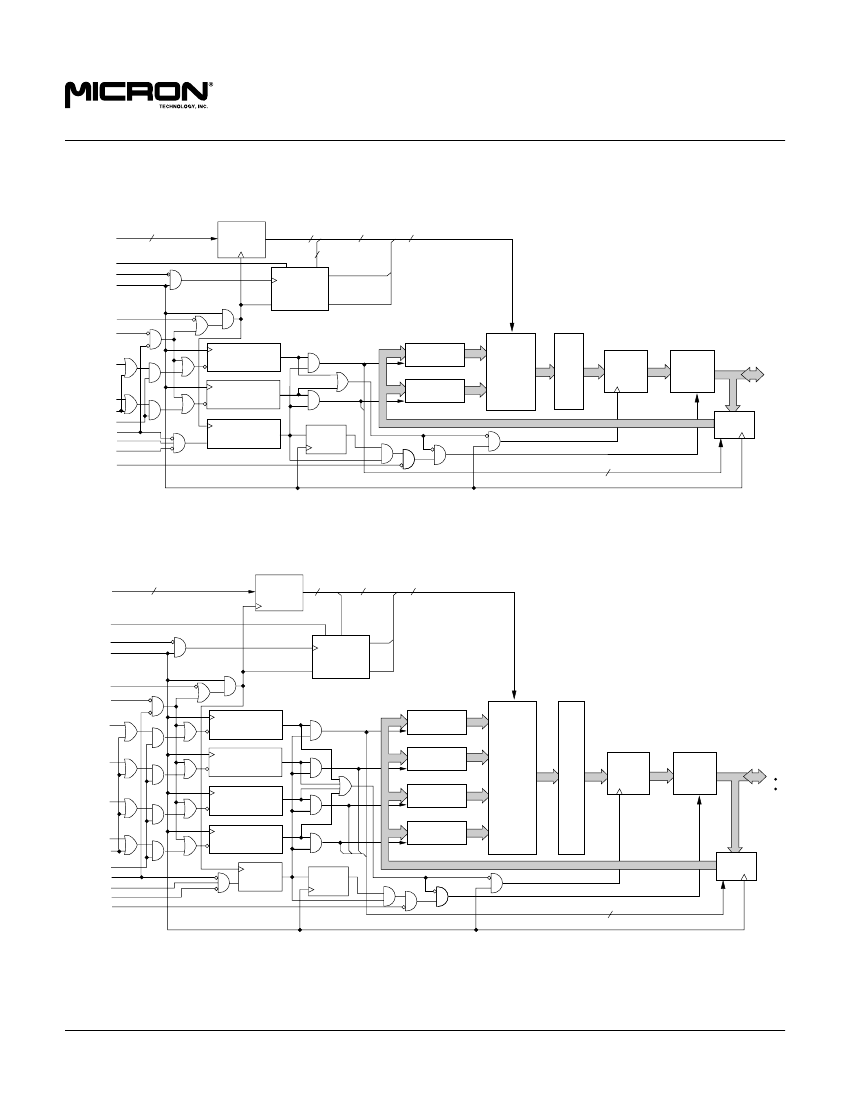

FUNCTIONAL BLOCK DIAGRAM
256K x 18
18
SA0, SA1, SA
MODE
ADV#
CLK
ADDRESS
REGISTER
18
16
18
2
SA0, SA1
SA1'
BINARY Q1
COUNTER AND
LOGIC
CLR
Q0
SA0'
ADSC#
ADSP#
BYTE “b”
WRITE REGISTER
9
BYTE “b”
WRITE DRIVER
9
256K x 9 x 2
MEMORY
ARRAY
9
18
SENSE
18
AMPS
BWb#
OUTPUT
18
REGISTERS
OUTPUT
BUFFERS
E
18
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
BYTE “a”
WRITE DRIVER
DQs
DQPa
DQPb
ENABLE
REGISTER
18
PIPELINED
ENABLE
2
INPUT
REGISTERS
FUNCTIONAL BLOCK DIAGRAM
128K x 32/36
17
SA0, SA1, SA
ADDRESS
REGISTER
17
15
SA0, SA1
17
MODE
ADV#
CLK
Q1
SA1'
BINARY
COUNTER
SA0'
CLR
Q0
ADSC#
ADSP#
BWd#
BYTE “d”
WRITE REGISTER
BYTE “d”
WRITE DRIVER
BYTE “c”
WRITE DRIVER
BYTE “b”
WRITE DRIVER
BYTE “a”
WRITE DRIVER
INPUT
REGISTERS
128K x 8 x 4
(x32)
128K x 9 x 4
(x36)
MEMORY
ARRAY
SENSE
AMPS
BWc#
BYTE “c”
WRITE REGISTER
OUTPUT
REGISTERS
BWb#
BYTE “b”
WRITE REGISTER
OUTPUT
BUFFERS
E
DQs
DQPa
DQPd
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
ENABLE
REGISTER
PIPELINED
ENABLE
4
NOTE:
Functional Block Diagrams illustrate simplified device operation. See Truth Table, Pin Descriptions and timing
diagrams for detailed information.
4Mb: 256K x 18, 128K x 32/36 Pipelined, SCD SyncBurst SRAM
MT58L256L18P.p65 – Rev. 9/99
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©1999,
Micron Technology, Inc.
4Mb: 256K x 18, 128K x 32/36
PIPELINED, SCD SYNCBURST SRAM
GENERAL DESCRIPTION (continued)
(ADSC#, ADSP#, ADV#), byte write enables (BWx#) and
global write (GW#).
Asynchronous inputs include the output enable (OE#),
clock (CLK) and snooze enable (ZZ). There is also a burst
mode input (MODE) that selects between interleaved and
linear burst modes. The data-out (Q), enabled by OE#, is
also asynchronous. WRITE cycles can be from one to two
bytes wide (x18) or from one to four bytes wide (x32/x36),
as controlled by the write control inputs.
Burst operation can be initiated with either address status
processor (ADSP#) or address status controller (ADSC#)
inputs. Subsequent burst addresses can be internally gener-
ated as controlled by the burst advance input (ADV#).
Address and write control are registered on-chip to sim-
plify WRITE cycles. This allows self-timed WRITE cycles.
Individual byte enables allow individual bytes to be writ-
ten. During WRITE cycles on the x18 device, BWa# controls
DQa’s and DQPa; BWb# controls DQb’s and DQPb. During
WRITE cycles on the x32 and x36 devices, BWa# controls
DQa’s and DQPa; BWb# controls DQb’s and DQPb; BWc#
controls DQc’s and DQPc; BWd# controls DQd’s and DQPd.
GW# LOW causes all bytes to be written. Parity bits are only
available on the x18 and x36 versions.
This device incorporates a single-cycle deselect feature
during READ cycles. If the device is immediately dese-
lected after a READ cycle, the output bus goes to a High-Z
state
t
KQHZ nanoseconds after the rising edge of clock.
Micron’s 4Mb SyncBurst SRAMs operate from a +3.3V
V
DD
power supply, and all inputs and outputs are TTL-
compatible. Users can choose either a 3.3V or 2.5V I/O
version. The device is ideally suited for Pentium and
PowerPC pipelined systems and systems that benefit from
a very wide, high-speed data bus. The device is
also ideal in generic 16-, 18-, 32-, 36-, 64- and 72-bit-wide
applications.
Please refer to the Micron Web site (www.micron.com/
mti/msp/html/sramprod.html)
for the latest data sheet.
