23/06/2014
www.crouzet.com
812 - 814 - 815 - 815 E digital timers Timer 815 Part number 88857301
Relay output digital timers
LCD or LED (815E)
Multi-range
Multi-voltage
1 or 2 relay outputs
Reset function on panel (Timers 815, 815E)
Data saved in the event of a break in supply (Timer 815, 815E)
Access to programming lockable (Timer 814, 815 and 815E)
Up or down timing mode
Internal power supply by battery (10 years / 20 °C) (Not 815E)
Part numbers
Type
88857301
Timer 815

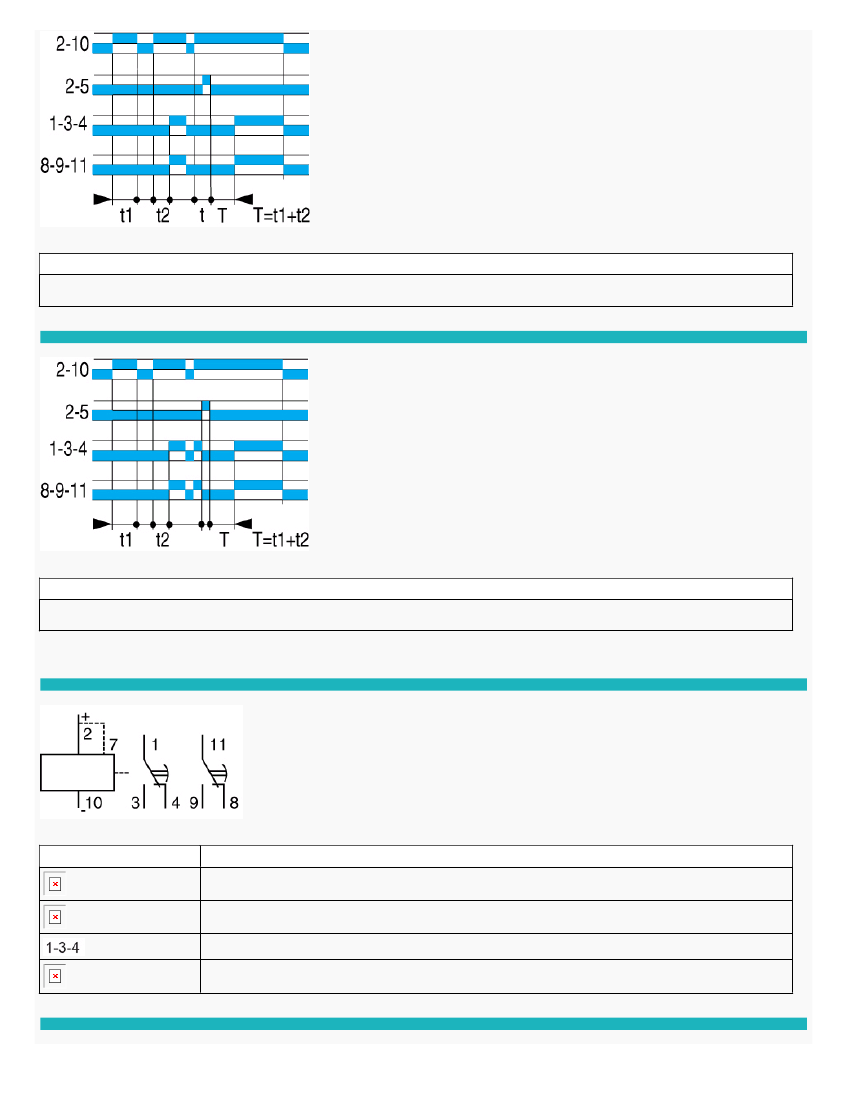

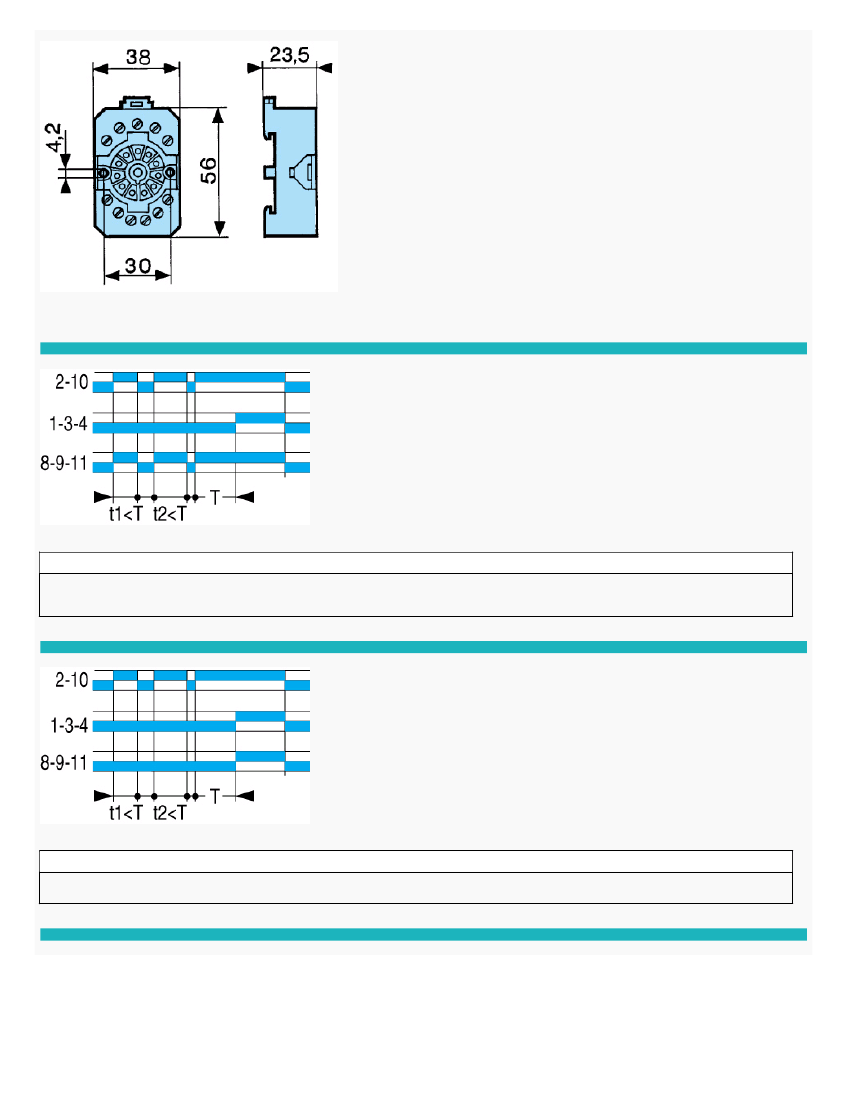

Functions
A1, A2, AM, AMt
Connections
11-pin plug-in
Relay outputs
1 timed changeover or instantaneous
Supply voltage
24 V DC/AC220 →240 V AC
Nominal rating
2x8A
Specifications
Number of digits
Height of digits
Timing ranges
4
TIMER 812 - 814 - 815 : 8 mm
TIMER 815E : 7mm
99,99 s
999,9 s
9999 s
99 min 59 s
99,99 min
999,9 min
9999 min
99 h 59 min
99,99 h
999,9 h
9999 h ( ? 815E)
Repetition accuracy (with constant parameters)
TIMER 812 - 814 - 815 : ± 0,03 % ± 20 ms
TIMER 815E : ± 0,01 %
Display precision
TIMER 812 - 814 - 815 : ± 0,03 % ± 20 ms
TIMER 815E : ± 0,01 %
Min. control pulse
50 ms
Maximum reset time by de-energisation during timed delay
50 ms
Maximum reset time by de-energisation after timing
50 ms
Nominal rating
TIMER 814 - 815 : 8 A AC 8 A DC
TIMER 812 : 5 A AC 5 A DC
TIMER 815E : 5 A - 250 V AC
TIMER 812 - 814 - 815 : 250 V AC 30 V DC
TIMER 815E : 250 V AC 20 V DC
TIMER 814 - 815 : 2000 VA - 190 W
TIMER 812 : 1250 VA - 120 W
TIMER 815E : 1500 VA - 100 W
15 A < 0,01 s
TIMER 812 - 814 - 815 : 250 V AC 30 V DC 100 mA
TIMER 815E : 500 mW (10 V / 5 mA)
10
5
600
TIMER 812 - 814 - 815 : 5 x 10
6
TIMER 815E : 20 x 10
6
Voltage variation
Immunity from micro power cuts
Max. absorbed power
TIMER 814 : + 10 % - 15 %
TIMER 815E : + 10 % - 10 %
< 0,03 s
0.5 W / 12 V 1 VA / 24 V
0.5 W / 24 V 3.5 VA / 110 V
1 W / 48 V 11 VA / 220 V
TIMER 815E : Max. 3 W
TIMER 812 - 814 - 815 : -10 °C →+60 °C
TIMER 815E : 0 °C →+60 °C
TIMER 812 - 814 - 815 : -30 °C →+70 °C
TIMER 815E : -30 °C →+80 °C
TIMER 812 - 814 - 815 : IP65
TIMER 815E : IP30
EN61812-1 - IEC255-5
Max. breaking voltage
Maximum power rating (resistive)
Maximum admissible current
Minimum current
Electrical life at I max., 250 V AC resistive (cycles)
Max. permitted number of operations at 1 max 250 V AC
resistive per hour
Mechanical life (operations)
Temperature limits use (°C)
Temperature limits stored (°C)
Degree of protection front face
Insulation according to standard IEC/EN 61812-1, IEC/EN
60255-5
Protection class according to CEI/EN 60529

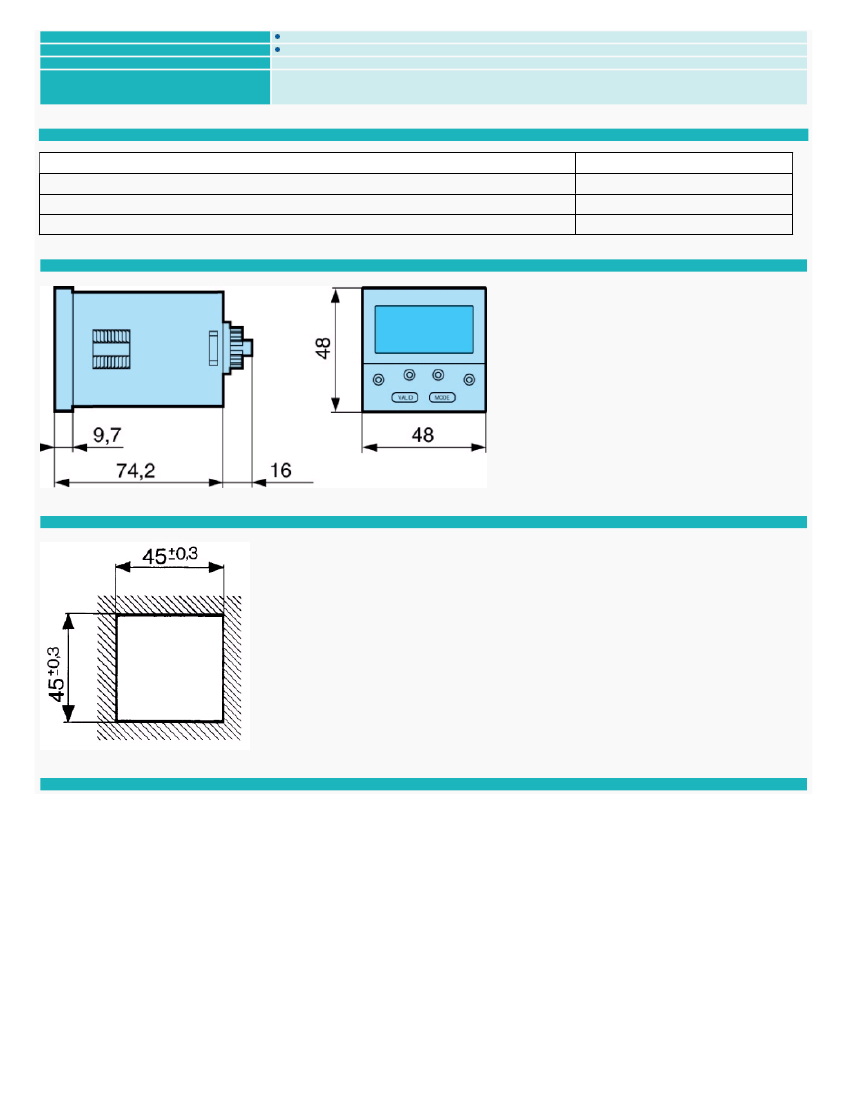

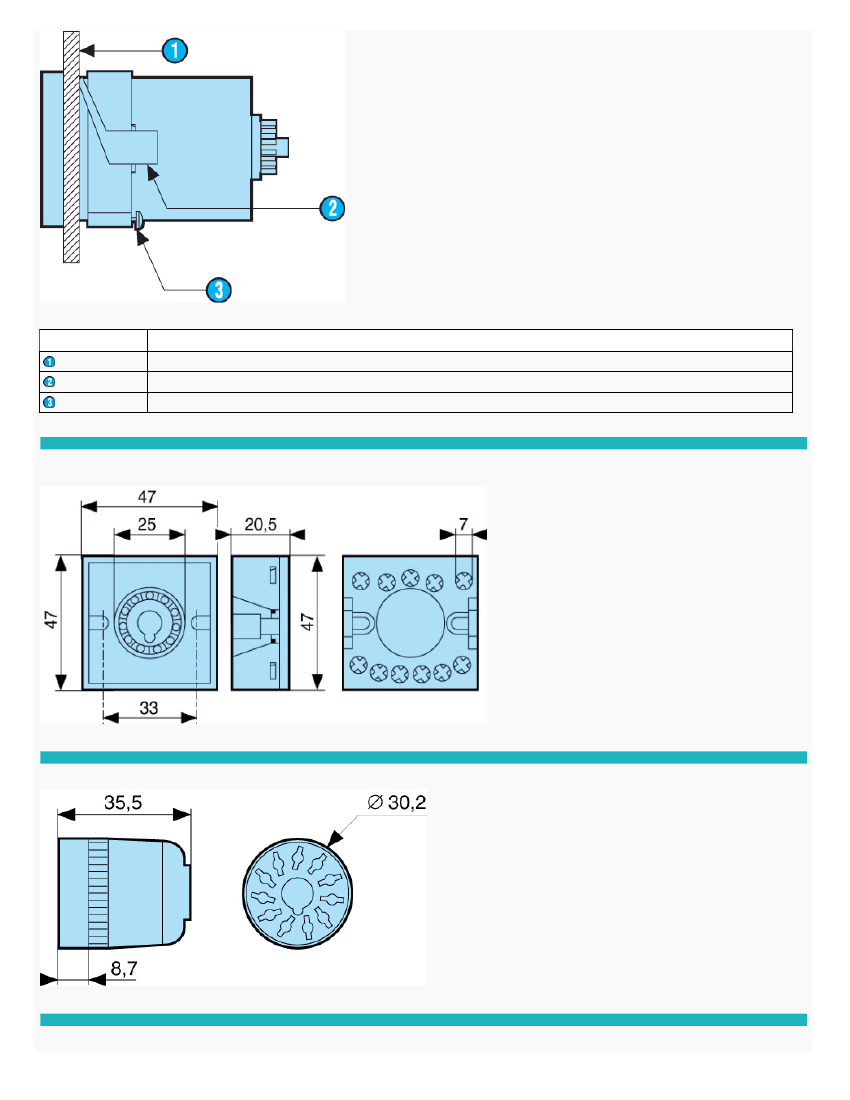

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
