60MT: Description3 PHASE, 60 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE; Categorysemiconductor Discrete semiconductor; File Size97KB，7 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Compare View All

60MT Overview

3 PHASE, 60 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE

Preview

Download Datasheet

View All

Bulletin I27500 rev. A 05/03

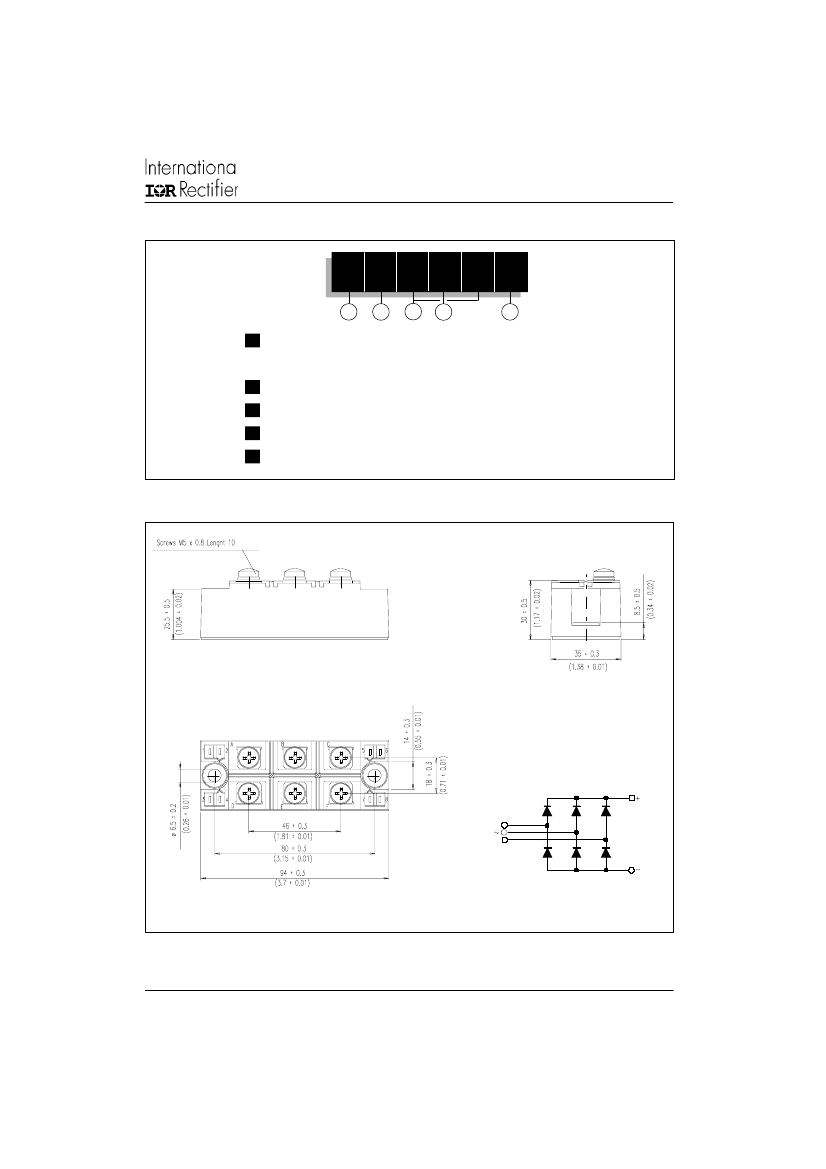

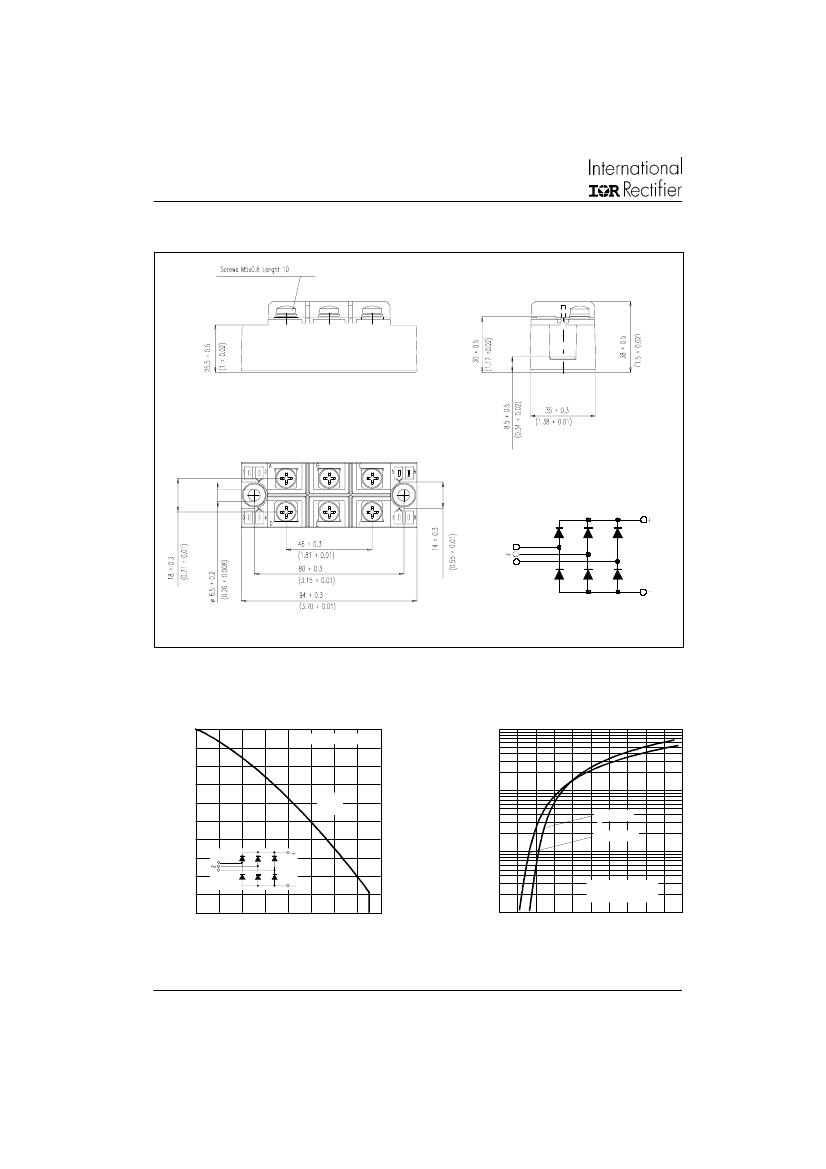

MT..KB SERIES

THREE PHASE BRIDGE

Power Modules

Features

Package fully compatible with the industry standard INT-A-

pak power modules series

High thermal conductivity package, electrically insulated case

Outstanding number of power encapsulated components

Excellent power volume ratio, outline for easy connections to

power transistor and IGBT modules

4000 V

RMS

isolating voltage

UL E78996 approved

60 A

70 A

Description

A range of extremely compact, encapsulated three phase

bridge rectifiers offering efficient and reliable operation.

They are intended for use in general purpose and heavy

duty applications.

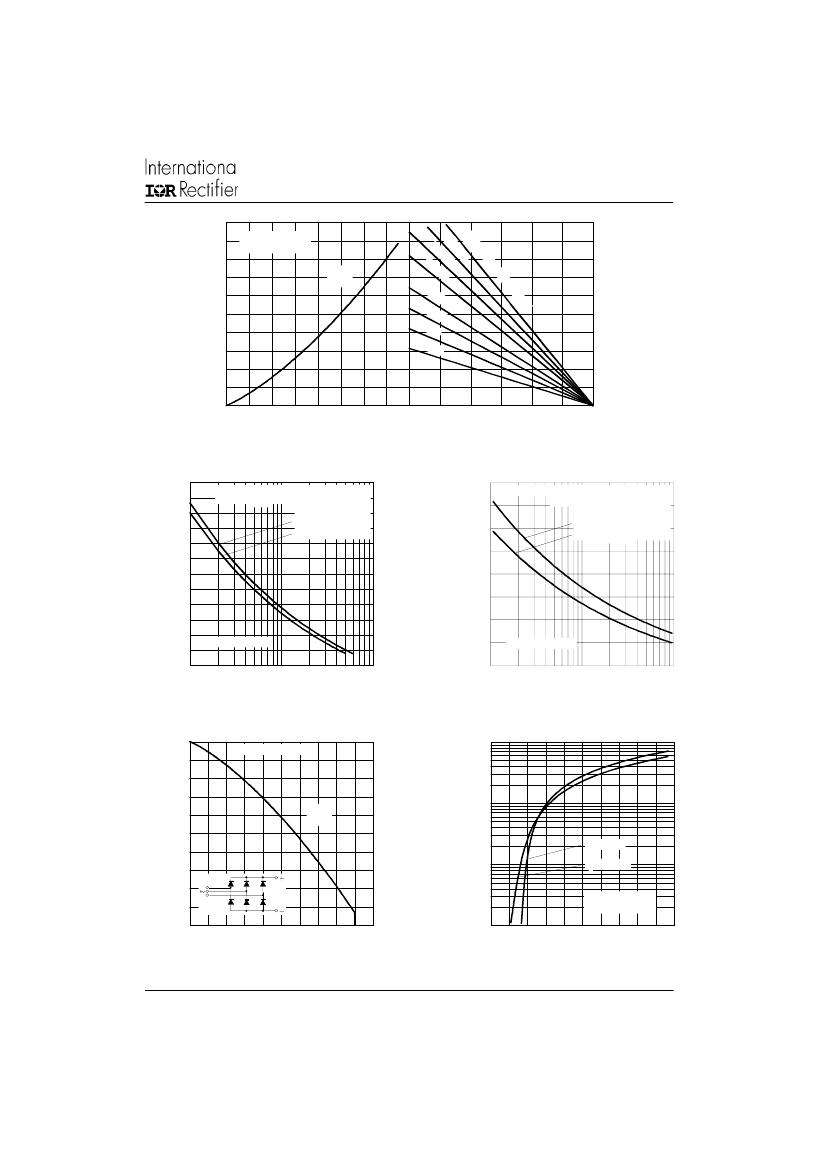

Major Ratings and Characteristics

Parameters

@ T

FSM

@ 50Hz

@ 60Hz

@ 50Hz

@ 60Hz

√t

RRM

STG

range

60MT.KB

60 (75)

85 (61)

420

440

870

790

8700

70MT.KB

70 (90)

85 (57)

480

500

1150

1050

11500

Units

°C

√s

°C

800 to 1600

- 40 to 150

www.irf.com

60MT Related Products

	60MT	70MT	60MT100KB	60MT140KB	60MT160KB	60MT80KB	70MT160KB	70MT100KB	70MT140KB	70MT80KB
Description	3 PHASE, 60 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE	3 PHASE, 60 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE	3 PHASE, 60 A, 1000 V, SILICON, BRIDGE RECTIFIER DIODE	3 PHASE, 60 A, 1400 V, SILICON, BRIDGE RECTIFIER DIODE	3 PHASE, 60 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE	3 PHASE, 60 A, 800 V, SILICON, BRIDGE RECTIFIER DIODE	3 PHASE, 70 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	3 PHASE, 70 A, 1400 V, SILICON, BRIDGE RECTIFIER DIODE	3 PHASE, 70 A, 800 V, SILICON, BRIDGE RECTIFIER DIODE
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	-	-	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	-	-	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6
Contacts	-	-	6	6	6	6	6	6	6	6
Reach Compliance Code	-	-	compli	compli	compliant	compli	compli	compliant	compliant	compliant
Other features	-	-	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	-	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	-	-	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	-	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	-	-	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	-	-	1.75 V	1.75 V	1.75 V	1.75 V	1.55 V	1.55 V	1.55 V	1.55 V
JESD-30 code	-	-	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6
JESD-609 code	-	-	e0	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	-	-	440 A	440 A	440 A	440 A	500 A	500 A	500 A	500 A
Number of components	-	-	6	6	6	6	6	6	6	6
Phase	-	-	3	3	3	3	3	3	3	3
Number of terminals	-	-	6	6	6	6	6	6	6	6
Maximum operating temperature	-	-	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	-	-	60 A	60 A	60 A	60 A	70 A	70 A	70 A	70 A
Package body material	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	-	-	1000 V	1400 V	1600 V	800 V	1600 V	1000 V	1400 V	800 V
surface mount	-	-	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	-	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	-	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	-	-	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	-	-	1	-	1	1	-	1	1	1
