SPECIFICATION
Patent Pending
Part No.
Product Name
:
:
FXP75.07.0045B
FXP.75 Atom 2.4GHz Series

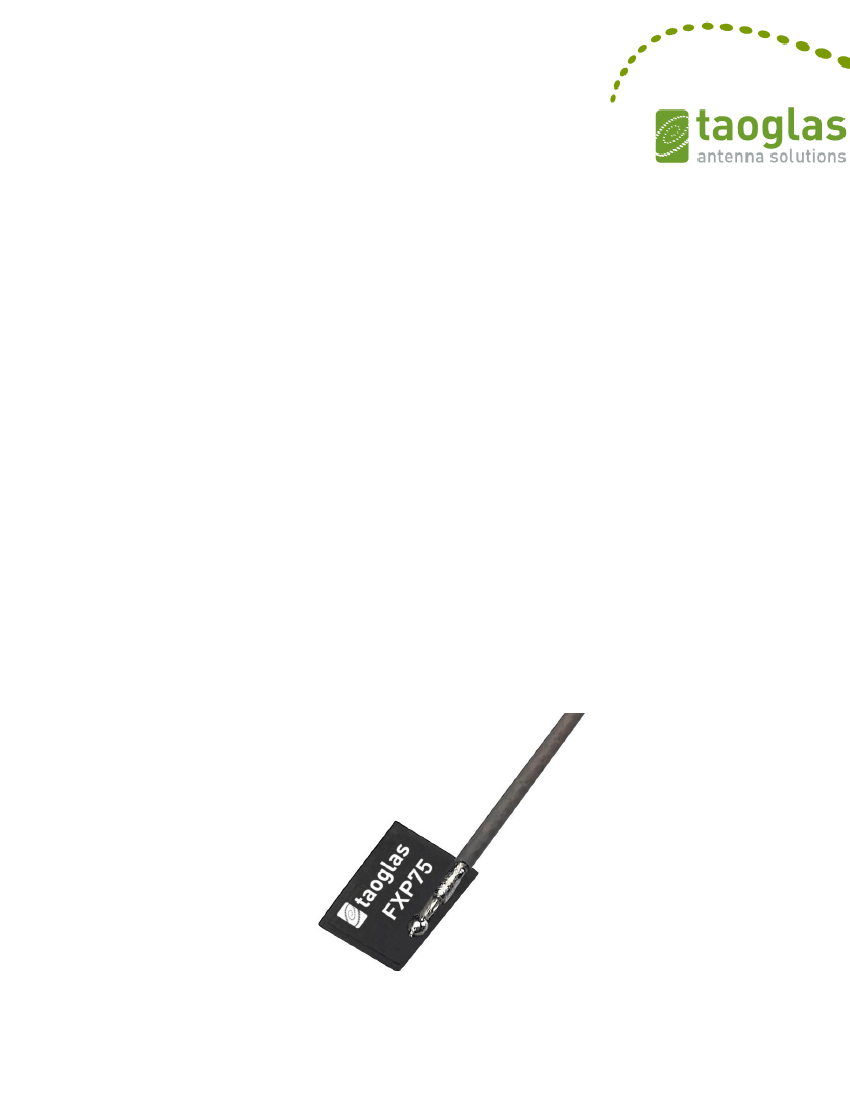

Ultra-Miniaturized 2dBi Bluetooth Antenna
Features
:
Patent Pending
Worldwide smallest cabled 2.4GHz antenna
Ideal for Bluetooth earphones
Flexible Ultra Low Profile 5.9*4.1*0.24mm
Adheres directly to inside of product housing
Form factor and cable routing convenient for integration
IPEX MHF1 Connector (U.FL compatible)
45mm Ø 0.81mm mini-coaxial cable
RoHS Compliant
SPE-13-8-067/C/EZ
Page 1 of 11
1. Introduction
The FXP75 Atom is a super small monopole ultra-low profile antenna for 2.4GHz band that
includes Bluetooth, Wi-Fi, ZigBee and ISM bands application. The FXP75 has a peak gain of
2.5dBi at 2.4GHz and efficiencies of 45%.
This Taoglas patent pending antenna is unique in the market. Two years of constant research
and development have created the world's smallest coax cabled true 2.4GHz antenna. Made
from poly-flexible material, the antenna has a tiny form factor of 5.9*4.1*0.24mm and has
double-sided 3M tape for easy “peel and stick” mounting.
The cable routes conveniently directly out of the bottom of the antenna, reducing the volume the
antenna takes up in the device to an absolute minimum compared to other designs. The FXP75
is the ideal all-round antenna solution for fitting into narrow spaces and still maintaining high
performance, for example in a Bluetooth earphone where metal and electrical noise degrades
onboard SMT antenna performance. The FXP75 is small enough to be routed away from metal
and electrical noise to deliver much improved range and reliable sound quality in Bluetooth
earphones.
Many module manufacturers specify peak gain limits for any antennas that are to be connected
to that module. Those peak gain limits are based on free-space conditions. In practice, the peak
gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when put inside a
device. So ideally you should go for a slightly higher peak gain antenna than mentioned on the
module specification to compensate for this effect, giving you better performance.
Upon testing of any of our antennas with your device and a selection of appropriate layout,
integration technique, or cable, Taoglas can make sure any of our antennas’ peak gain will be
below the peak gain limits. Taoglas can then issue a specification and/or report for the selected
antenna in your device that will clearly show it complying with the peak gain limits, so you can
be assured you are meeting regulatory requirements for that module.
For example, a module manufacturer may state that the antenna must have less than 2dBi peak
gain, but you don’t need to select an embedded antenna that has a peak gain of less than 2dBi
in free-space. This will give you a less optimized solution. It is better to go for a slightly higher
free-space peak gain of 3dBi or more if available. Once that antenna gets integrated into your
device, performance will degrade below this 2dBi peak gain due to the effects of GND plane,
surrounding components, and device housing. If you want to be absolutely sure, contact Taoglas
and we will test. Choosing a Taoglas antenna with a higher peak gain than what is specified by
SPE-13-8-067/C/EZ
Page 2 of 11
