Suppressors
TEMPERATURE
RANGE - 40/+125
ROHS
COMPLIANT
HALOGEN
FREE
MERCURY
FREE
FFAM Series
Features and Benefits
Flexible Ferrite Absorbent Material
Commercial Applications
Applications
•
Notebook and personal computers, workstations.
•
Peripheral devices for computers.
•
LNB's for satellite systems.
•
Wireless equipment.
•
Mobile phones.
•
Base stations.
•
Gasketing.
•
Anechoic chambers (irregular surface).
•
Provides effective EMI Suppression in a wide
Frequency Range (1MHz to 3GHz).
•
Highly effective in preventing resonance and
suppressing coupling.
•
Change the magnetic flux path to avoid interference
other components.
•
Ultra thin (0.25mm through 2.5mm) and extremely flexible,
can be freely arranged in space.
•
High surface resistance (10 to 10 Ohms).
6
8
•
Mobile communications equipment.
•
Non-conductive adhesive backing (UL Recognized) available.
•
Can be easily cut in any shape.
•
Consumer electronics.
•
High speed clocks.
Uses

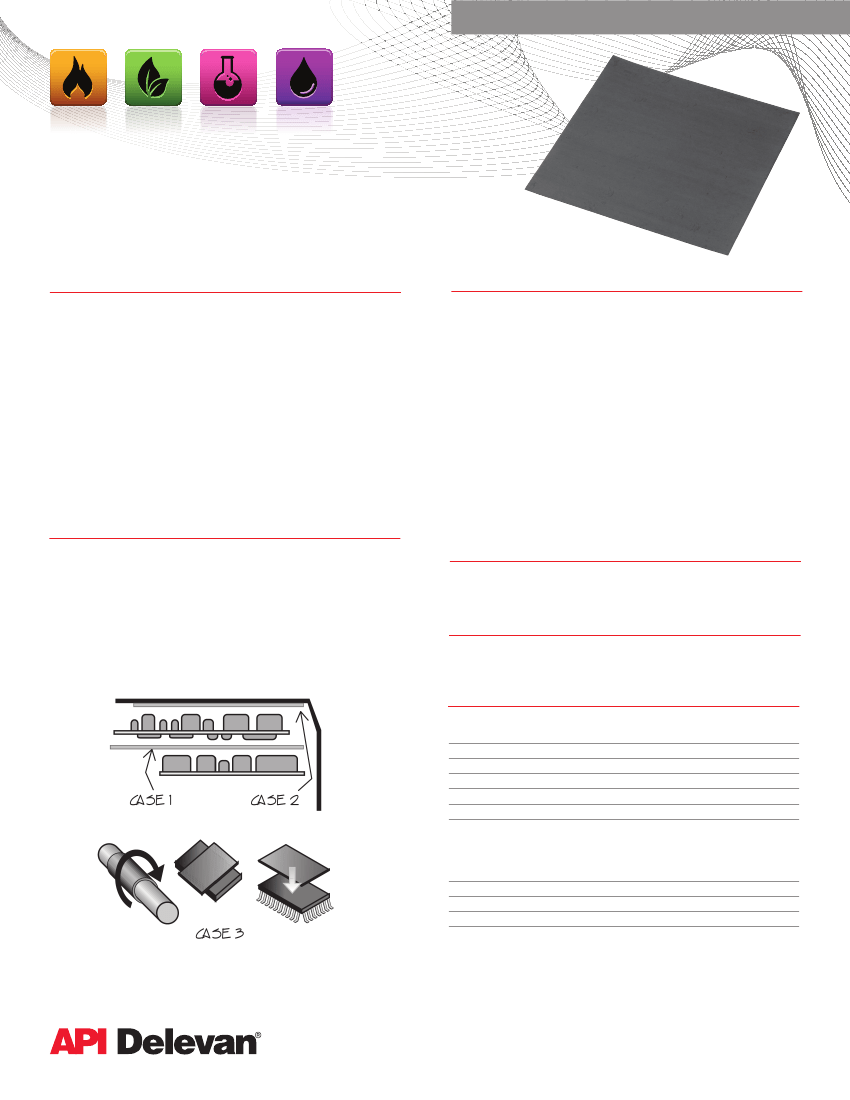

Case 1:
To suppress noise generated between circuit boards,
apply between boards.
Parameters
Operating Temperature Range
–55°C to +125°C
Case 2:
To suppress noise generated by casing, apply directly
to casing.
Case 3:
To suppress unwanted radiation of noises from LSI, IC
and cables. For LSI & IC, apply directly to top surface
(Caution - thermal conductivity). For flat cables, apply
directly. For round cables, wrap around and apply
heatshrink material.
Testing
Impedance Testing using HP4191A.
Dimensions
Thicknesses Available (with MH13008 UL Recognized tape)
Inches
Millimeters
FFAM025
0.009
0.25
FFAM06
0.024
0.60
FFAM10
0.039
1.00
FFAM15
0.059
1.50
FFAM20
0.079
2.00
FFAM25
0.098
2.50
Sizes Available
Inches
3.93 x 3.93
7.87 x 7.87
11.81 x 11.81
15.75 x 15.75
Millimeters
100 x 100
200 x 200
300 x 300
400 x 400
270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • E-mail: apisales@delevan.com • www.delevan.com
Suppressors
TEMPERATURE
RANGE - 40/+125
ROHS
COMPLIANT
HALOGEN
FREE
MERCURY
FREE
FFAM Series

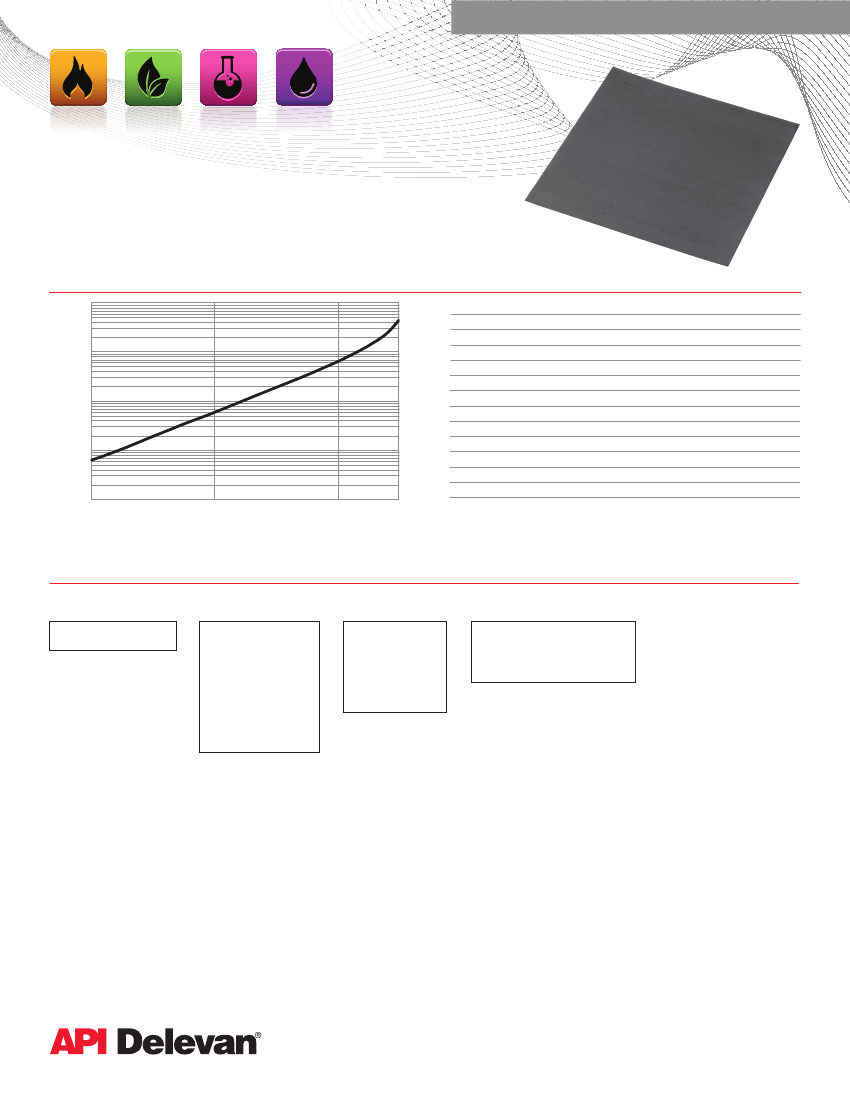

Impedance vs. Frequency
1000
100
Flexible Ferrite Absorbent Material
Commercial Applications
FREQ. FFAM025 FFAM06 FFAM10 FFAM15 FFAM20 FFAM25
1
0.52
0.57
0.57
0.59
0.59
0.60
10
5.30
5.30
6.00
6.00
6.00
0.60
20
12.00
12.00
12.00
12.00
12.00
12.00
30
17.00
17.00
17.00
17.00
17.00
18.00
40
23.00
23.00
23.00
23.00
23.00
24.00
50
26.00
28.00
29.00
29.00
29.00
30.00
60
35.00
35.00
35.00
35.00
35.00
36.00
70
41.00
41.00
41.00
41.00
42.00
43.00
80
47.00
47.00
47.00
48.00
48.00
49.00
90
54.00
54.00
54.00
54.00
55.00
56.00
100
55.00
58.00
60.00
61.00
62.00
63.00
200
135.00
144.00
150.00
154.00
155.00 159.00
300
303.00
349.00
370.00
395.00
396.00 412.00
Impedance (Ohms)
10
1.0
0.10
1
Frequency (MHz)
10
100
300
How To Order
FFAM
Delevan Series
06
Material Thickness
025 = 0.25 mm
06 = 0.6 mm
10 = 1.0 mm
15 = 1.5 mm
20 = 2.0 mm
25 = 2.5 mm
3
1 = 100x100 mm
2 = 200x200 mm
3 = 300x300 mm
4 = 400x400 mm
Sheet Size
T1
Optional Adhesive Backing
T1 = single-sided
T2 = double-sided
270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • E-mail: apisales@delevan.com • www.delevan.com
03/08/2017
