SM44T Series 3.3 V
CMOS Clock Oscillators
April 2017

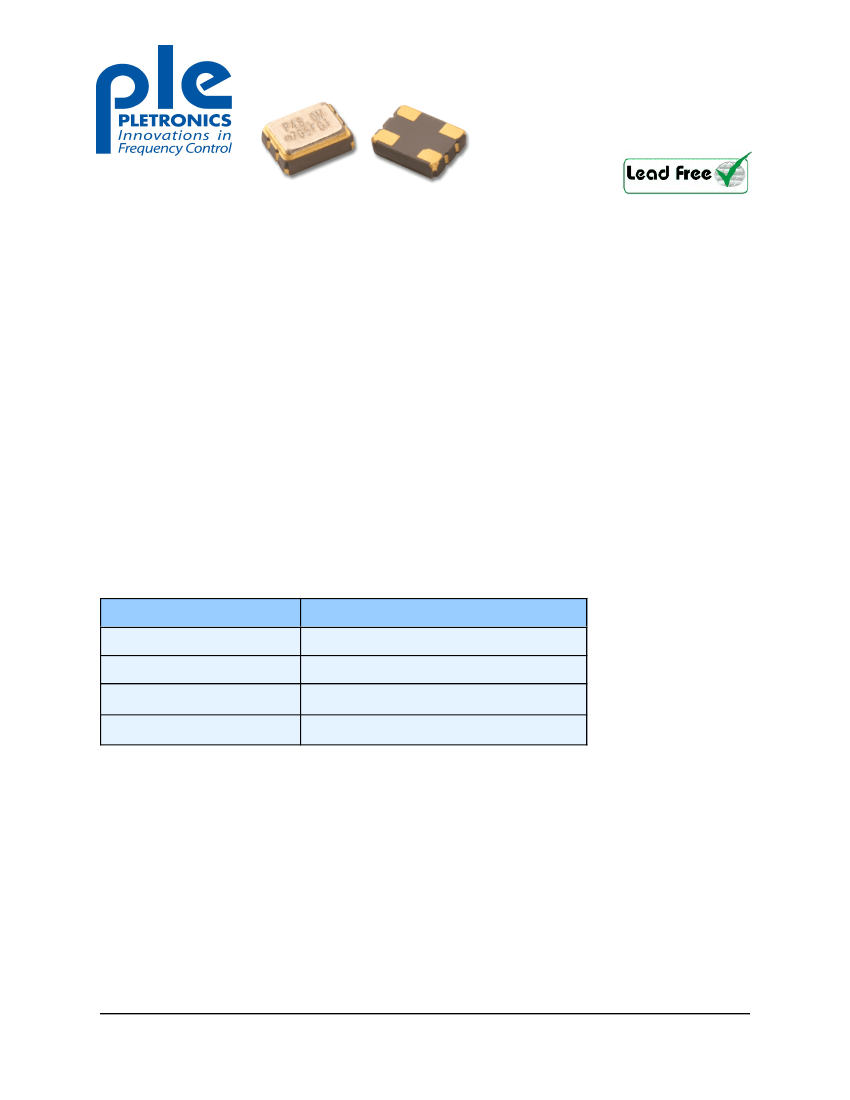

• Pletronics’ SM44 Series is a quartz crystal
controlled precision square wave generator with a
CMOS output.
• The package is designed for high density surface
m ount designs.
• This is a low cost m ass produced oscillator.
• Tape and Reel or cut tape packaging is available.
0.8 to 180 MHz
2.5 x 3.2 m m LCC Ceram ic Package
Enable/Disable Function
Disable function
includes low standby power m ode
• Low Jitter
•
•
•
•
Pletronics Inc. certifies this device is in accordance with the
RoHS 6/6 (2011/65/EC) and WEEE (2002/96/EC) directives.
Pletronics Inc. guarantees the device does not contain the following:
Cadm ium , Hexavalent Chrom ium , Lead, Mercury, PBB’s, PBDE’s
W eight of the Device: 0.041 gram s
Moisture Sensitivity Level: 1 As defined in J-STD-020C
Second Level Interconnect code: e4
Absolute Maximum Ratings:
Parameter
V
CC
Supply Voltage
Vi
Vo
Io
Input Voltage
Output Voltage
Output Current
Unit
-0.5V to +7.0V
-0.5V to V
CC
+ 0.5V
-0.5V to V
CC
+ 0.5V
+25 m A to -25 m A
Thermal Characteristics
The m axim um die or junction tem perature is 155
o
C
The therm al resistance junction to board is 40 to 60
o
C/W att depending on the solder pads, ground plane
and construction of the PCB.
P roduct inform ation is current as of publication date. T he product conform s
to specifications per the term s of the P letronics standard warranty. Production
processsing does not necessarily include testing of all param eters.
Copyright © 2010, Pletronics Inc.
SM44T Series 3.3 V
CMOS Clock Oscillators
April 2017
Part Number:
SM44
45
T
E
V
- 75.0M
-XX
Packaging code or blank
T250
= 250 per Tape and Reel
T500
= 500 per Tape and Reel
T1K
= 1000 per Tape and Reel
Frequency in M Hz
Supply Voltage V
CC
V
= 3.3V _ 10%
+
Temperature Range
Blank = Temp. range -10 to +70
o
C
C
= Temp. range -20 to +70
o
C
E
= Temp. range -40 to +85
o
C
Series M odel
Frequency Stability
45
= _ 50 ppm
+
44
= _ 25 ppm
+
20
= _ 20 ppm
+
Series M odel
Part Marking:
Marking legend:
P
FF.FFF
YMD or YM
= Pletronics
= Frequency in MHz
= Date of Manufacture (year
and m onth, or year-m onth-
day)
PFF.FFM
CYMDxx
or
PFF.FFM
CYMxxx
All other m arkings are internal factory codes
Specifications such as frequency stability, supply voltage and operating tem perature range, etc. are
not identified from the m arking. External packaging labels and packing list will correctly identify the
ordered Pletronics part num ber.
Codes for Date Code YM D
Code
3
Code
A
4
5
6
7
B
C
D
E
F
G
H
J
K
L
M
Year
2013 2014 2015 2016 2017
Month
JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC
Code
Day
Code
Day
1
1
H
17
2
2
J
18
3
3
K
19
4
4
L
20
5
5
M
21
6
6
N
22
7
7
P
23
8
8
R
24
9
9
T
25
A
10
U
26
B
11
V
27
C
12
W
28
D
13
X
29
E
14
Y
30
F
15
Z
31
G
16
www.pletronics.com
425-776-1880
2
SM44T Series 3.3 V
CMOS Clock Oscillators
April 2017
Electrical Specification for 3.30V +10% over the specified temperature range
_
Item
Frequency Range
Frequency Accuracy
“45"
“44"
“20"
Min
0.8
-50
-25
-20
90
-
45
-
-
-
Enable/Disable Internal Pull-up
V disable
V enable
Output leakage
V
OUT
= V
CC
V
OUT
= 0V
Standby Current I
CC
Enable time
Disable time
Start up time
Operating Temperature Range
50
-
70
-10
-10
-
-
-
-
-10
-10
-40
Storage Temperature Range
-55
Max
180
+50
+25
+20
CMOS
-
10
55
0.6
2.5
100
-
30
-
+10
+10
3
100
100
3
+70
+70
+85
+125
%
%
%
pS RMS
pS RMS
pS pk-pk
Kohm
%
%
uA
uA
uA
nS
nS
mS
o
o
o
o
Unit
MHz
ppm
Condition
For all supply voltages, load changes, aging for
1 year, shock, vibration and temperatures
Output Waveform
Output High Level
Output Low Level
Output Symmetry
Jitter
of V
CC
(See load circuit)
at 50% point of V
CC
12 KHz to 20 MHz from the output frequency
10 Hz to 1 MHz from the output frequency
@ 25.0 MHz
to V
CC
of V
CC
applied to pad 1
Pad 1 low, device disabled
Time for output to reach a logic state
Time for output to reach a high Z state
Time for output to reach specified frequency
Standard Temperature Range
Extended Temperature Range
Extended Temperature Range
“C” Option
“E” Option
C
C
C
C

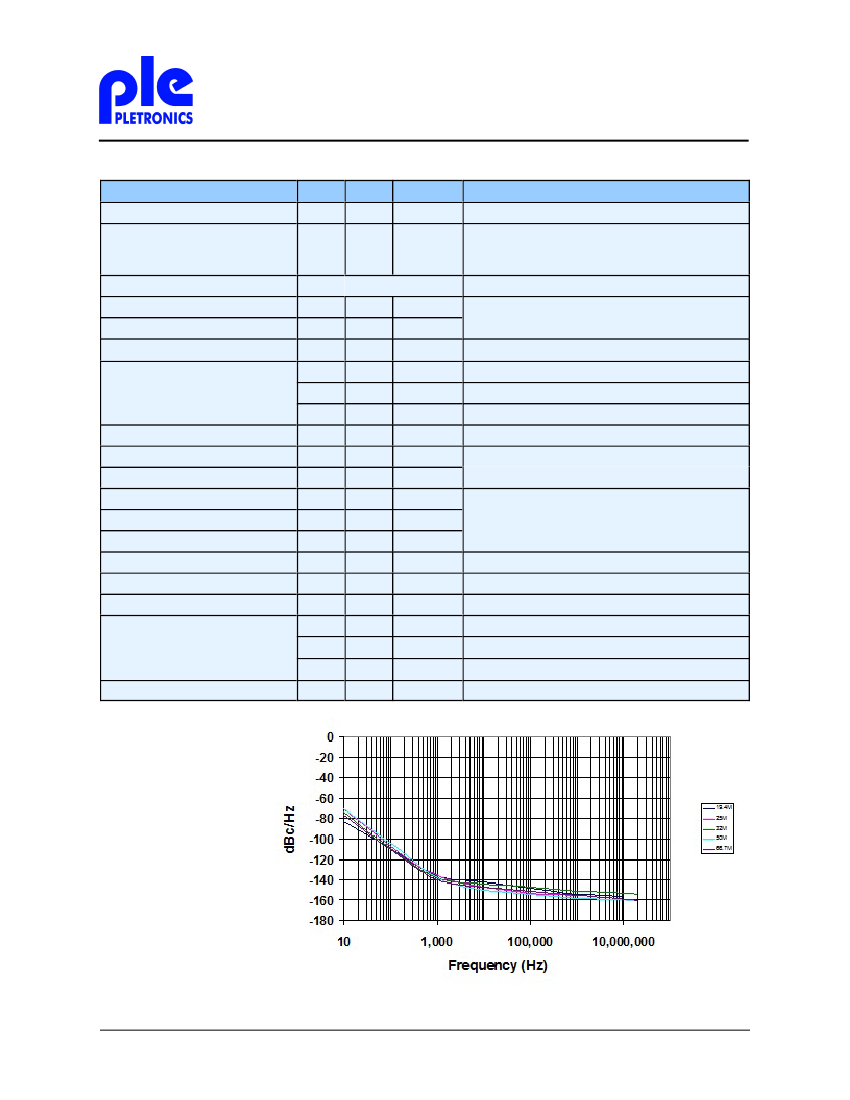

Typical phase noise plot
for 5 oscillators at
different output
frequencies.
www.pletronics.com
425-776-1880
3
SM44T Series 3.3 V
CMOS Clock Oscillators
April 2017
Electrical Specification for 3.30V +10% over the specified temperature range
_
Item
Output T
RISE
and T
FALL
Typ
2.5
1.5
1
4
3
2
V
CC
Supply Current (I
CC
)
2
3
4
12
23
45
3
4
6
16
30
Max
5
3
2
8
5
3
4
5
6
18
36
70
5
6
8
22
43
Unit
nS
nS
nS
nS
nS
nS
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
Condition
< 35 MHz
> 35 MHz and < 70MHz
> 70 MHz
< 35 MHz
> 35 MHz and < 70MHz
> 70 MHz
< 8 MHz
> 8 MHz and < 16 MHz
> 16 MHz and < 35 MHz
> 35 MHz and < 70MHz
> 70 MHz and < 110MHz
> 110 MHz
< 8 MHz
> 8 MHz and < 16 MHz
> 16 MHz and < 35 MHz
> 35 MHz and < 70MHz
> 70 MHz and < 120MHz
C
LOAD
= 30 pF
C
LOAD
= 15 pF
C
LOAD
=30 pF
10% to 90% of V
CC
See Load Circuit
C
LOAD
= 15 pF
10% to 90% of V
CC
See Load Circuit
Specifications with Pad 1 E/D open circuit

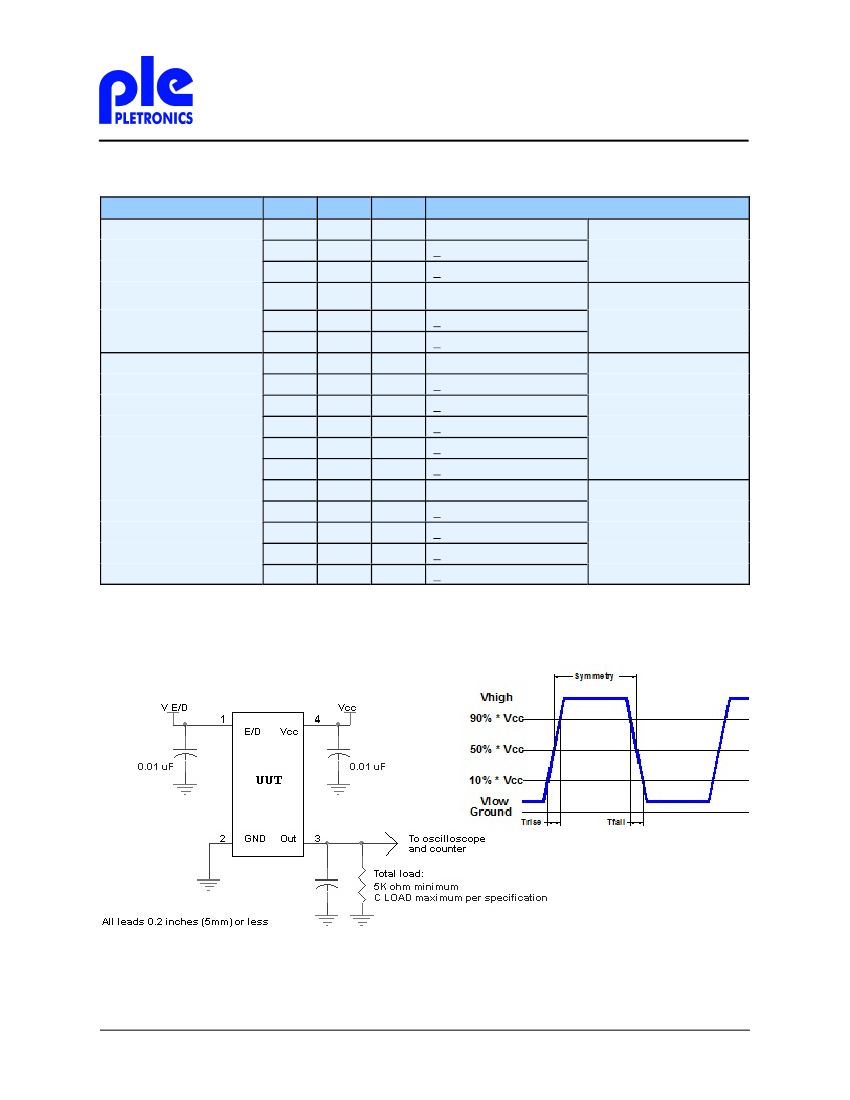

Load Circuit and Test Waveform
www.pletronics.com
425-776-1880
4
SM44T Series 3.3 V
CMOS Clock Oscillators
April 2017
Reliability
:
Parameter
Environmental Com pliance
Condition
MIL-STD-883 Method 2002, Condition B
MIL-STD-883 Method 2007, Condition A
MIL-STD-883 Method 2003
MIL-STD-883 Method 1011, Condition A
Mechanical Shock
Vibration
Solderability
Thermal Shock
ESD Rating
Model
Human Body Model
Charged Device Model
Minimum Voltage
1500
1000
Conditions
MIL-STD-883 Method 3115
JESD 22-C101
Package Labeling
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Courier New
Bar code is 39-Full ASCII
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Arial
www.pletronics.com
425-776-1880
5
