ZTA-600MG-TR: DescriptionResonators SIP-2 CER RES 6.0MHz; CategoryPassive components; File Size204KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric Compare View All

ZTA-600MG-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZTA-600MG-TR	-	-	View	Buy Now

ZTA-600MG-TR Overview

Resonators SIP-2 CER RES 6.0MHz

ZTA-600MG-TR Parametric

Parameter Name	Attribute value
Product Category	Resonators
Manufacturer	ECS
RoHS	Details
Frequency	6 MHz
Tolerance	0.5 %
Termination Style	SMD/SMT
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Height	7.5 mm
Length	10 mm
Maximum Operating Temperature	+ 80 C
Minimum Operating Temperature	- 20 C
Factory Pack Quantitywvvvrfza	2000
Width	5 mm

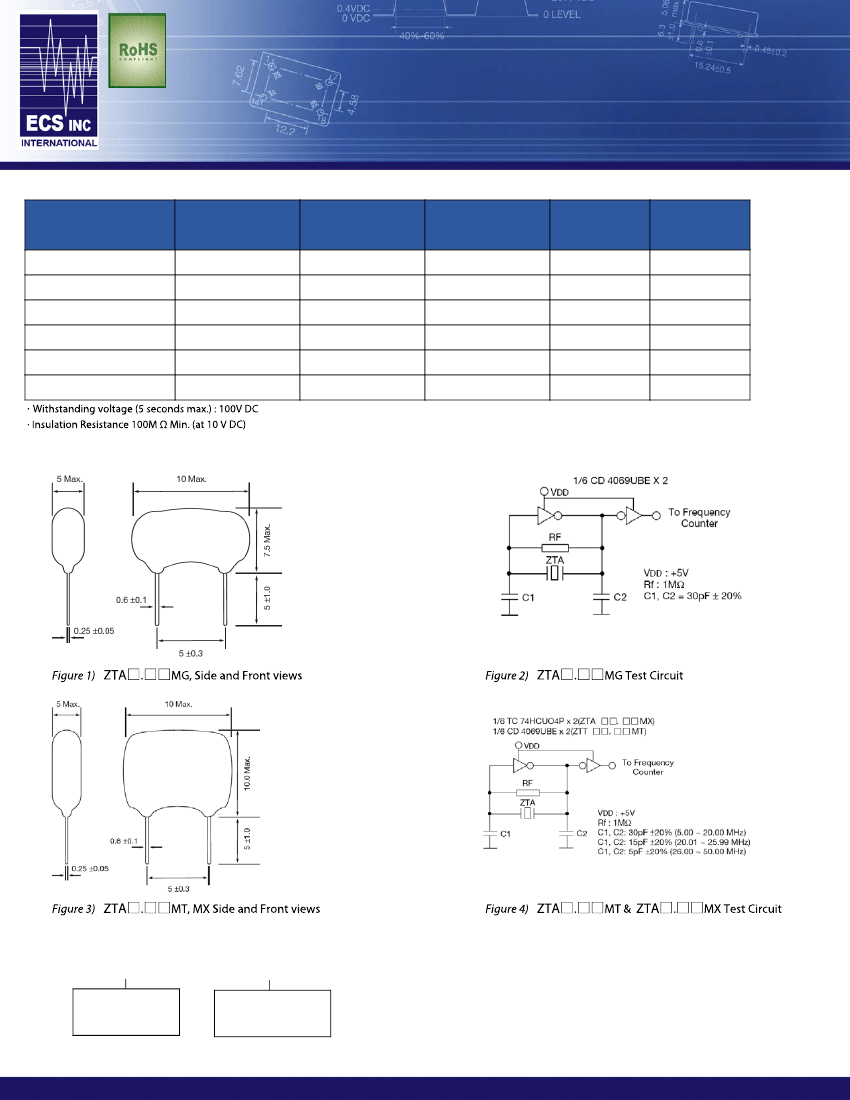

Preview

Download Datasheet

View All

Low Profile

Wide Frequency range

Extended temperature range

RoHS Compliant (Note 7 Exemption)

ZTA Series

Ceramic Resonator

The ZTA Series ceramic resonator offers a wide frequency

range and extended temperature range capabilities.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PART NUMBER *

ZTA

□.□□

ZTA

□.□□

ZTA

□.□□

ZTA

□.□□

ZTA

□□.□□

ZTA

□□.□□

FREQUENCY

RANGE

(MHz)

2.00 ~ 2.99

3.00 ~ 3.49

3.50 ~ 8.00

6.01 ~ 6.99

7.00 ~ 13.00

13.01 ~ 50.00

FREQUENCY

ACCURACY

@ 25°C(%)

±0.5

STABILITY IN

TEMPERATURE

-20~ +80°C (%)

±0.3

AGING FOR

TEN YEARS

(%)

±0.3

RESONANT

RESISTANCE

(Ω) MAX

PACKAGE DIMENSIONS (mm)

PART NUMBERING GUIDE: Example ZTA-4.00MG

ZTA

Frequency

Suffix

MG (2~8 MHz)

MT (6.01~13 MHz)

MX (13.01~50 MHz)

Note: ECS does not approve the use of it's products in Automotive,

Military, Avionics, Life Sustaining or Life Support systems or any other

related medical applications without written approval from ECS INC.

Rev 5/08

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com

4.00 MHz
