PM0805-39NM-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PM0805-39NM-RC

PM0805-39NM-RC: DescriptionFixed Inductors 39nH 20%; CategoryPassive components inductor; File Size273KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

PM0805-39NM-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM0805-39NM-RC	-	-	View	Buy Now

PM0805-39NM-RC Overview

Fixed Inductors 39nH 20%

PM0805-39NM-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	0805
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	0805
structure	Rectangular
core material	ALUMINA
DC Resistance	0.29 Ω
Nominal inductance(L)	0.039 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.2 mm
Package length	2 mm
Package form	SMT
Package width	1.25 mm
method of packing	TR, Embossed, 7 Inch
Minimum quality factor (at nominal inductance)	60
Maximum rated current	0.5 A
self resonant frequency	2000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q FACTOR IS MEASURED AT: 500MHZ
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	250 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Features

■

Formerly

■

0805 size

■

Available in E12 series

■

High Q up to 60 typ.

■

High operating temperature of 125 °C

■

RoHS compliant*

Applications

model

■

Mobile phones

■

Cellular phones

■

CTV, VCR, HIC, FDD

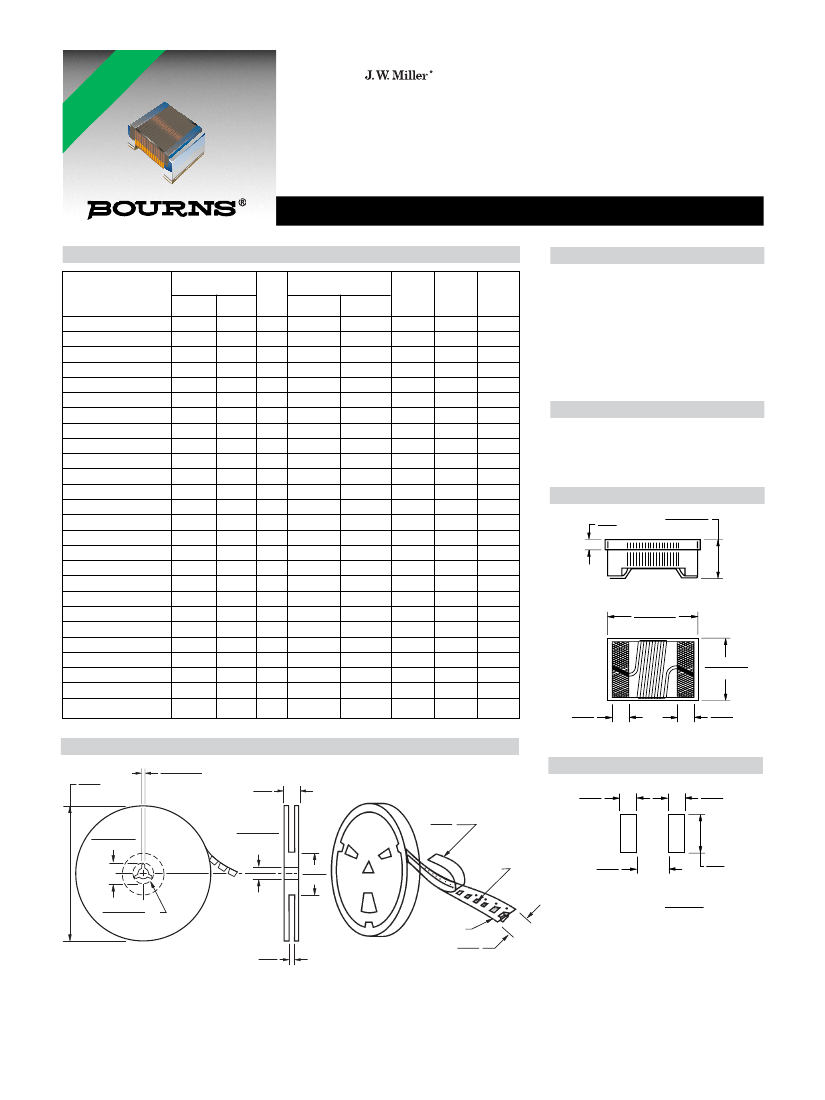

PM0805 Series - High Q Chip Inductors

Electrical Speciﬁcations

Inductance

Test Frequency (MHz)

General Speciﬁcations

SRF

Min.

(MHz)

6000

5800

5500

4800

4100

3600

3400

3300

2600

2400

2100

1700

1600

1450

1350

1200

1100

950

900

860

850

800

780

340

I rms

Max.

(mA)

800

600

500

400

350

300

250

200

170

230

Bourns Part No.

PM0805-2N8M-RC

PM0805-3N3M-RC

PM0805-5N6M-RC

PM0805-6N8M-RC

PM0805-8N2M-RC

PM0805-10NM-RC

PM0805-12NM-RC

PM0805-15NM-RC

PM0805-18NM-RC

PM0805-22NM-RC

PM0805-27NM-RC

PM0805-33NM-RC

PM0805-39NM-RC

PM0805-47NM-RC

PM0805-56NK-RC

PM0805-68NK-RC

PM0805-82NK-RC

PM0805-R10K-RC

PM0805-R12K-RC

PM0805-R15K-RC

PM0805-R18K-RC

PM0805-R22K-RC

PM0805-R27K-RC

PM0805-R33K-RC

PM0805-R39K-RC

PM0805-R56K-RC

2.8

3.3

5.6

6.8

8.2

100

120

150

180

220

270

330

390

560

Tol. %

±20

±10

Min.

250

200

150

100

1000

1500

1000

500

250

RDC

(Ω)

0.06

0.08

0.06

0.08

0.10

0.12

0.15

0.18

0.15

0.25

0.27

0.32

0.43

0.48

0.67

0.85

1.10

1.46

1.65

2.20

1.90

Temperature Rise

.................40 ˚C max. at rated current

Operating Temperature

................................-40 °C to +125 °C

Storage Temperature

................................-40 °C to +125 °C

Reﬂow Soldering .. 230 °C, 50 sec. max.

Resistance to Soldering Heat

...............................260 ˚C, 5 seconds

Materials

Core Material .......Alumina (1CC201211)

Wire ......Enamelled Copper (1W1E180)

Terminal ...........................Mo/Mn+Ni+Au

Packaging ................. 2,000 pcs. per reel

Product Dimensions

0.5

(.020)

1.3

0.2

(.051

.008)

2.1

0.2

(.083

.008)

1.5

0.2

(.059

.008)

0.5

(.020)

0.5

(.020)

Packaging Speciﬁcations

178.0

(7.00)

DIA.

2.0

0.5

(.079

.020)

Recommended Layout

12.5

(.492)

THICKNESS

0.10

(.004)

MAX.

EMBOSSED

CAVITY

REF.

1.02

(.040)

1.02

REF.

(.040)

21.0

0.8

(.827

.031)

13.0

0.5

(.512

.020)

DIA.

50.0

(1.969)

REF.

0.76

(.030)

1.78

REF.

(.070)

13.0

0.5

DIA.

(.512

.020)

DIMENSIONS:

EMBOSSED

CARRIER

10.0

(.393)

8.0

(.315)

(INCHES)

REV. 05/11

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
