PLF1E100MCL7TP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> PLF1E100MCL7TP

PLF1E100MCL7TP: DescriptionLED Lenses Clear Fresnel Lens Cliplite 5mm; CategoryPassive components; File Size547KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

PLF1E100MCL7TP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PLF1E100MCL7TP	-	-	View	Buy Now

PLF1E100MCL7TP Overview

LED Lenses Clear Fresnel Lens Cliplite 5mm

PLF1E100MCL7TP Parametric

Parameter Name	Attribute value
Product Category	Aluminum Organic Polymer Capacitors
Manufacturer	Nichicon
RoHS	Details
Product	Can
Termination Style	Radial
Capacitance	10 uF
Voltage Rating DC	25 VDC
Tolerance	20 %
ESR	65 mOhms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Diameter	6.3 mm
Height	6 mm
Ripple Current	1500 mA
Life	2000 Hour
Packaging	Cut Tape
Packaging	Reel
Dissipation Factor DF	0.12
Lead Spacing	2.5 mm
Leakage Current	125 uA
Factory Pack Quantityywzyvwzrtvrxea	2000
Type	Standard Conductive Polymer Aluminum Solid Electrolytic Capacitor

Preview

Download Datasheet

View All

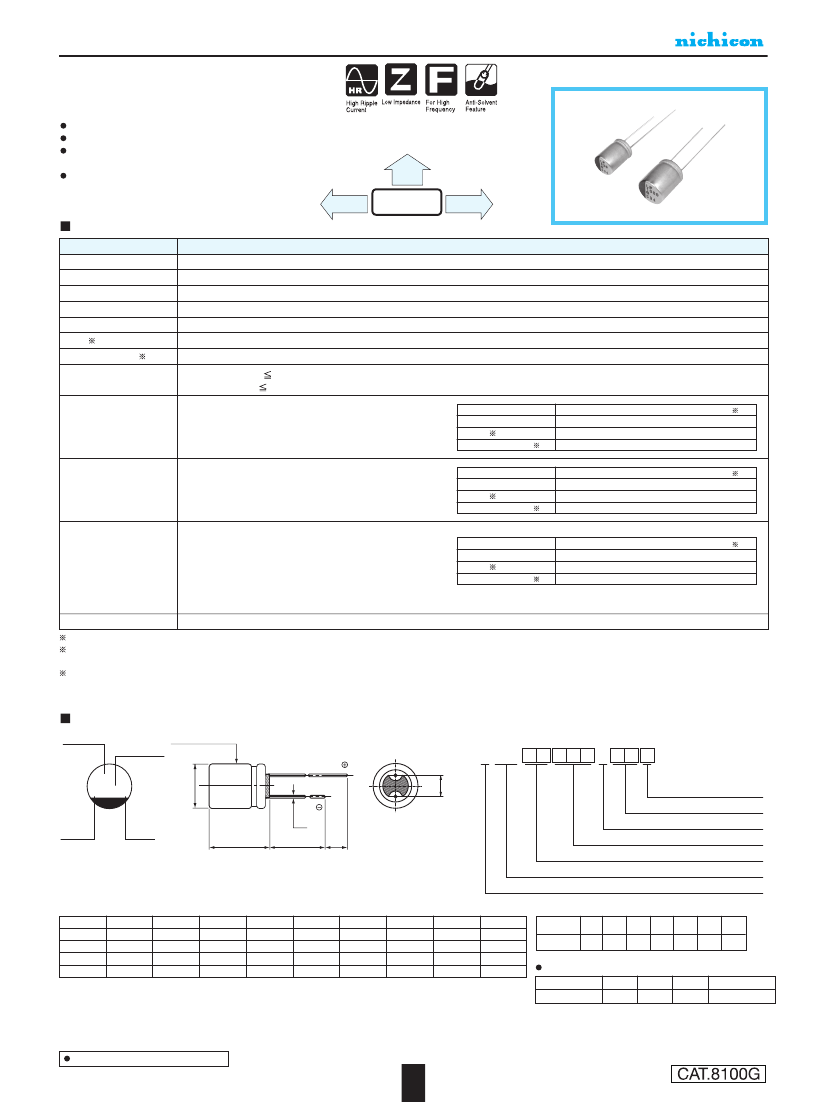

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

PLF

Specifications

Item

Radial Lead Type, Standard

Low ESR, High ripple current.

Load life of 2000 hours at 105°C.

Radial lead type :

Lead free flow soldering condition correspondence.

Compliant to the RoHS directive (2011/65/EU).

PLG

Higher

Capacitance

PLS

Long Life

PLF

Low ESR

PLE

Performance Characteristics

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

ESR (

– 55 to +105°C

2.5 to 25V

6.8 to 1500µF

± 20%

at 120Hz, 20°C

Tangent of loss angle (tan

δ)

Less than or equal to the specified value at 120Hz, 20°C

Less than or equal to the specified value at 100kHz, 20°C

Less than or equal to the specified value.

Z+105°C / Z+20°C

Z– 55°C / Z+20°C

1.25

(100kHz)

After 2 minutes' application of rated voltage at 20°C

Leakage Current (

Temperature Characteristics

(Max.Impedance Ratio)

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after the rated voltage is

applied for 2000 hours at 105°C.

Capacitance change

tan

ESR (

Leakage current ( 2)

Capacitance change

tan

Within ± 20% of the initial capacitance value ( 3)

150% or less than the initial specified value

Less than or equal to the initial specified value

Within ± 20% of the initial capacitance value ( 3)

150% or less than the initial specified value

Less than or equal to the initial specified value

Damp Heat

(Steady State)

The specifications listed at right shall be met when the

capacitors are restored to 20°C after the rated voltage is

applied for 1000 hours at 60°C, 90% RH.

ESR (

Leakage current ( 2)

Resistance to

Soldering Heat

After soldering the capacitor under the soldering conditions

prescribed here as preheat at 150 to 200°C for 60 to 180 seconds

and peak temperature at 265°C for 10 seconds or less, the

capacitor shall meet the specifications listed at right, provided that

its temperature profile is measured at both of terminal ends facing

the soldering side.

Navy blue print on the case top

Capacitance change

tan

ESR (

Leakage current ( 2)

Within ± 10% of the initial capacitance value ( 3)

130% or less than the initial specified value

Less than or equal to the initial specified value

Marking

1 ESR should be measured at both of the terminal ends closest to the capacitor body.

2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120

minutes at 105°C.

3 Initial value : The value before test of examination of resistance to soldering.

Dimensions

Capacitance

Type numbering system (Example : 4V 560

Resin coated Case

Voltage(g:4V)

φD±0.5

9 10 11 12

P L F 0 G 5 6 1 MDO 1

P ±0.5

Size code

Configuration

560

841

Series

Lot. No.

L+0.5MAX.

15MIN

4MIN

Capacitance tolerance (±20%)

Rated capacitance (560µF)

Rated voltage (4V)

Series name

Type

Size

φD

φd

φ6.3

10.5L

φ8

6.3

8.0

10.0

5.5

8.5

6.5

2.5

3.5

0.5

0.45

0.6

φ8

8.0

8.5

3.5

0.6

Please refer to page 20 about the end seal configuration.

(mm)

Voltage

φ8

12L

φ10

10L

φ10

13L

2.5 4 6.3 10 16 20 25

8.0

10.0

Code

11.5

7.5

9.5

12.5

3.5

5.0

Frequency coefficient of rated ripple current

0.6

Frequency0/ 120Hz 1kHz 10kHz 100kHz or more

Coefficient

0.05

0.30

0.70

1.00

Dimension table in next page.
