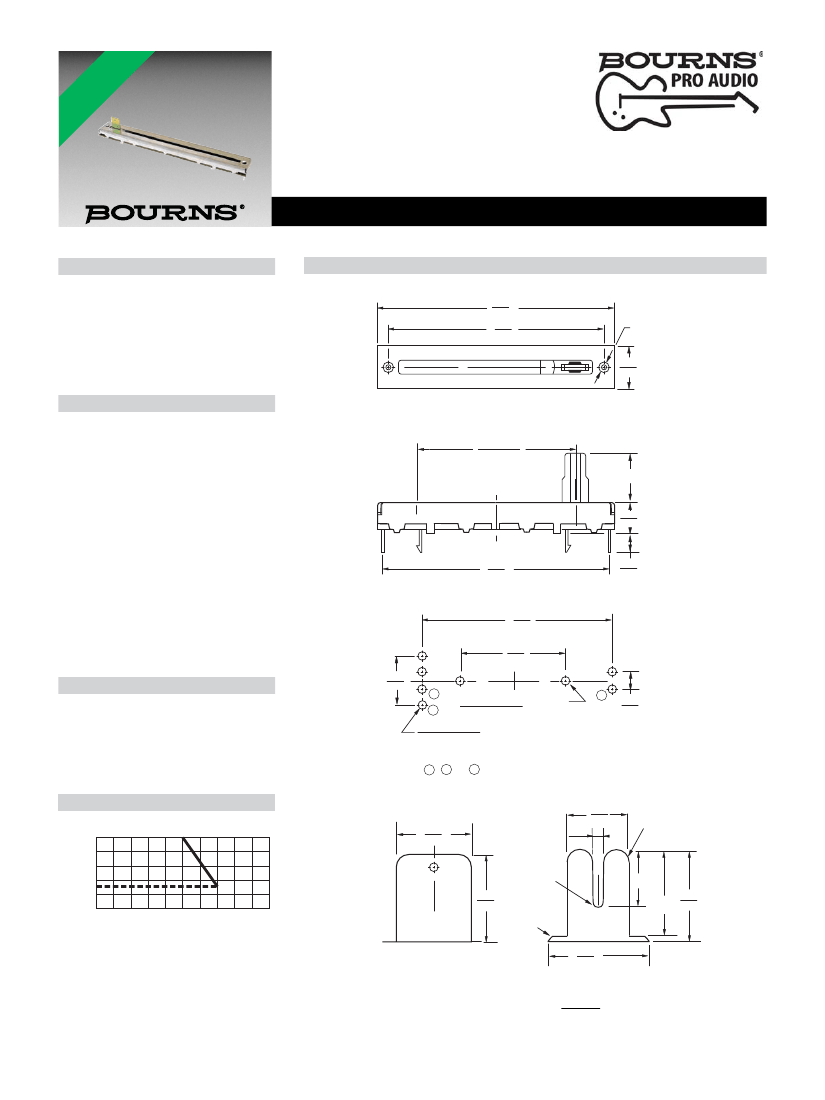

PTB Series - Low Profile Slide Potentiometer
Electrical Characteristics
Taper .................................... Linear, audio
Standard Resistance Range
......................5K ohms to 200K ohms
Standard Resistance Tolerance.....±20 %
Residual Resistance
....................... 500 ohms or 1 % max.
Insulation Resistance
........ Min. 100 megohms at 250 V DC
Environmental Characteristics
Operating Temperature
...................................-10 °C to +60 °C
Power Rating, Linear
45 mm ....0.125 W (0.06 W Dual Gang)
60 mm ...................... 0.25 W (0.125 W)
100 mm .......................... 0.5 W (0.5 W)
Power Rating, Audio
45 mm ..0.025 W (0.015 W Dual Gang)
60 mm ...................... 0.25 W (0.125 W)
100 mm ...................... 0.25 W (0.25 W)
Maximum Operating Voltage - Linear
45 mm ................................... 350 VDC
60-100 mm ............................ 500 VDC
Maximum Operating Voltage - Audio
45 mm ................................... 250 VDC
60-100 mm Travel ................. 350 VDC
Withstand Voltage, Audio
............................... 1 Min. at 500 V AC
Tracking Error ......... 3 dB at 50 % of travel
Mechanical Characteristics
Operating Force ............. 10 to 100 g-cm
Stop Strength ..................... 5 kg-cm min.
Sliding Life ......................... 15,000 cycles
Soldering Condition
............ 300°C max. within 3 seconds
Travel ............................... 45, 60, 100mm
Derating Curve
11.25
(.442)
Product Dimensions
PTB45 and PTB60
88.0
(3.46)
80.0
(3.14)
1
3
2 - M3 x 0.5
16.0
(.629)
45.0 or 60.0 TRAVEL
(1.77 or 2.36)
L
8.0
(.314)
87.5
(3.44)
4.0
(.157)
87.5
(3.44)
51.7
(2.03)
2
1
1
2
3
2.0 +0.2 / -0.0
DIA. HOLES
(.078 +0.007 / -0.0) 2 PLCS.
3
3.75
(.147)
3.1 +0.2 / -0.0 DIA. HOLES
(.122 +0.007 / -0.0) 6 PLCS.
Numbers 1 , 2 and 3 for Dual Gang Versions
Lever Style
BP Metal Lever
8.0
(.314)
AP Metal Lever
4.0
(.157)
1.0
(.039)
Rating Power Ratio (%)
2-(RO .75)
100
80
60
40
33
20
0
(RO .5)
10.0
(.393)
10.0
(.393)
2-CO .5
8.0
(.314)
Thickness = 1.2 mm
0
10 20 30 40 50 60 70 80 90 100
Ambient Temperature (°C)
Thickness = 1.2 mm
DIMENSIONS:
MM
(INCHES)
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
Applications
■
Audio/TV sets
■
Car radio
■
Amplifiers/mixers/drum machines/synthesizers
■
PCs/monitors
■
Appliances
PTB Series - Low Profile Slide Potentiometer
Product Dimensions
PTB01
128.0
(5.03)
120.0
(4.72)
1
3
How To Order
PTB 01 4 3 - 2 0 10 BP A 102
2 - M3 x 0.5
16.0
(.629)
100.0
TRAVEL
(3.93)
L
8.0
(.314)
127.5
(5.01)
4.0
(.157)
Model
Stroke Length
• 45 = 45 mm
• 60 = 60 mm
• 01 = 100 mm
Dust Cover Option
• 4 = No Dust Cover
• 5 = Rubber
Dust Cover
No. of Gangs
• 3 = Single Gang
• 4 = Dual Gang
Pin Style
• 2 = PC Pins Down Facing
No Detent
Standard Lever Length
• 10 = 10 mm
Lever Style
• BP = Metal Lever (Refer to Drawing)
• AP = Metal Lever (Refer to Drawing)
Resistance Taper
• A = Audio Taper
• B = Linear Taper
Resistance Code (See Table)
Other styles available.
127.5
(5.01)
82.5
(3.24)
Standard Resistance Table
Resistance
(Ohms)
5,000
10,000
20,000
50,000
100,000
200,000
Resistance
Code
502
103
203
503
104
204
2
11.25
(.442)
1
1
2
3
2.0
-0.0
DIA. HOLES
(.078
+0.007
) 2 PLCS.
-0.0
3.1
-0.0
DIA. HOLES
(.122
+0.007
) 6 PLCS.
-0.0
+0.2
+0.2
3
3.75
(.147)
Numbers 1 , 2 and 3 for Dual Gang Versions
DIMENSIONS:
MM
(INCHES)
REV. 01/14
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
