168104K63A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 168104K63A

168104K63A: DescriptionFilm Capacitors .1uF 63V 10%; CategoryPassive components; File Size119KB，5 Pages; ManufacturerCornell Dubilier

Download Datasheet Parametric Compare View All

168104K63A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	168104K63A	-	-	View	Buy Now

168104K63A Overview

Film Capacitors .1uF 63V 10%

168104K63A Parametric

Parameter Name	Attribute value
Product Category	Film Capacitors
Manufacturer	Cornell Dubilier
RoHS	Details
Termination Style	Radial
Product	General Film Capacitors
Dielectric	Polyester
Capacitance	0.1 uF
Voltage Rating DC	63 VDC
Tolerance	10 %
Lead Spacing	5 mm
Length	7.2 mm
Height	2.5 mm
Packaging	Bulk
Capacitance - nF	100 nF
Capacitance - pF	100000 pF
Life	1000 Hour
Factory Pack Quantity	500
Type	Metallized Polyester

Preview

Download Datasheet

View All

Type 168/185

Metallized Polyester Radial Lead Capacitors

Radial Box Metallized Polyester Capacitors for Automatic Insertion

The Type 168/185 series radial lead metallized polyes-

ter box capacitors are available in bulk (Type 168) or

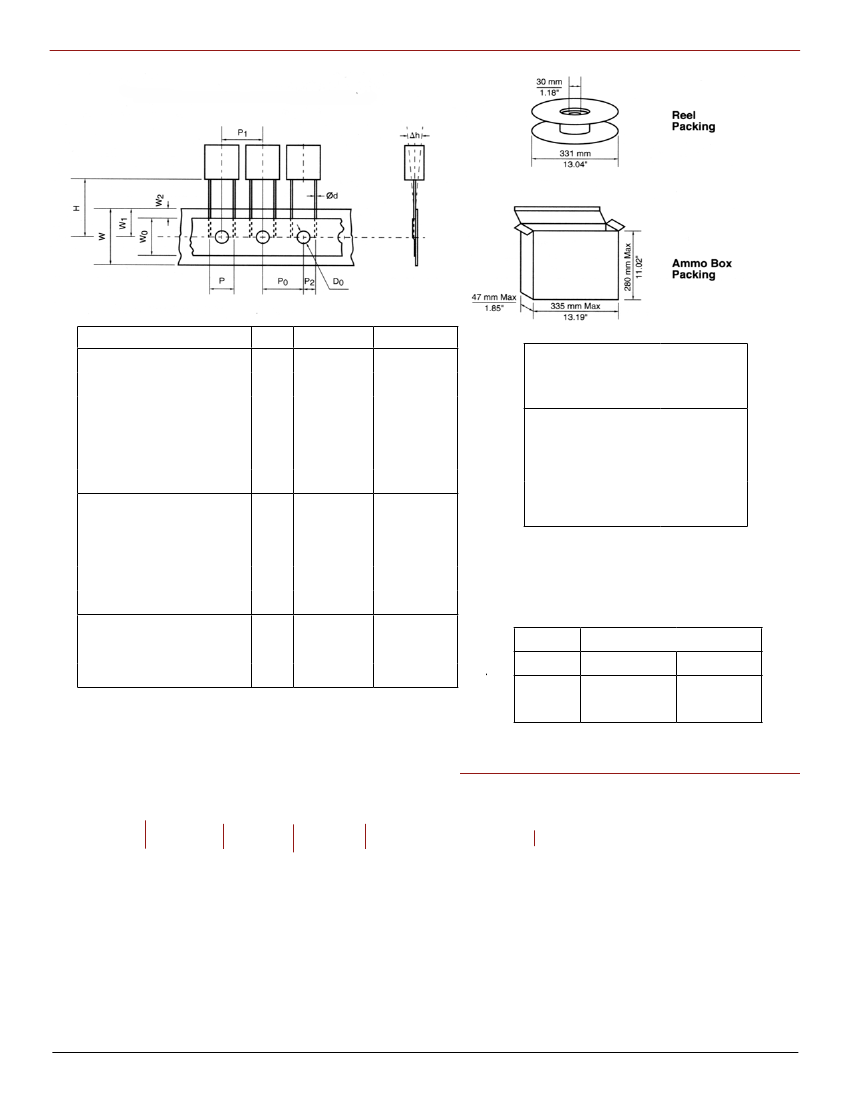

on ammo pack or tape and reel (Type 185). These ca-

pacitors are constructed in rugged rectangular plastic

cases and all come with 5.0 mm (0.197

“

) lead spacing.

They are good for general purpose applications such

as bypass, decoupling, energy storage/discharge and

arc suppression.

Highlights

•

Case and epoxy fill meets UL94V-0

5.0 mm (0.197

“

) lead spacing

Bulk, tape and reel or ammo pack

Non-inductively wound

Non-polar

Low leakage

Lead material: Tinned copper wire

Capacitance Range:

Voltage Range:

Capacitance Tolerance:

Operating Temperature Range:

Dielectric Withstand Voltage:

Dissipation Factor (DF):

0.001 µF to 1.0 µF

50 Vdc to 400 Vdc

±5%, ±10%, ±20%

–55 ºC to +125 ºC (with 50% Vdc derating >85 ºC)

1.6 x rated voltage for 2 sec @ +25 ºC ±5 ºC

tanδ x 10

–4

at 25 ºC ±5 ºC

kHz

100

≤0.1

µF

≤100

≤150

≤300

C > 0.1 µF

≤100

≤150

Specifications

RoHS Compliant

Total Self Inductance (L):

Approximately 7 nH

Long Term Stability (after two years):

Capacitance change ∆C/C ≤ ±3% under standard

environmental conditions

Maximum Pulse Rise Time (dv/dt):

Capacitance

V/µs

100

C > .0068 µF

.0033 µF < C < .0068 µF

C ≤ .0033 µF

250

400

100

If the working voltage (V) is less than the nominal voltage (Vn),

the capacitor can work at higher dv/dt. In this case, the maximum

value allowed is obtained by multiplying the above value with

the ratio Vn/V.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

Type 168/185

Metallized Polyester Radial Lead Capacitors

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
