311-1701-1M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> 311-1701-1M

Preview

311-1701-1M: DescriptionPotentiometers 16MM W/SW AUDIO 1M; CategoryPassive components; File Size126KB，1 Pages; ManufacturerXicon Passive Components; Websitehttp://www.xicor.com

Download Datasheet Parametric Compare View All

311-1701-1M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	311-1701-1M	-	-	View	Buy Now

311-1701-1M Overview

Potentiometers 16MM W/SW AUDIO 1M

311-1701-1M Parametric

Parameter Name	Attribute value
Product Category	Potentiometers
Manufacturer	Xicon Passive Components
RoHS	No
Termination Style	Through Hole
Product	Potentiometer
Number of Gangs	1 Gang
Resistance	1 MOhms
Taper	Audio
Mounting Style	Panel Mount
Power Rating	100 mW
Tolerance	20 %
Number of Turns	1 Turn
Shaft Type	No Shaft
Shaft Diameter	16 mm
Shaft Length	4.3 mm
Type	Rotary
Switch Type	Switch
Factory Pack Quantity	100

Preview

Download Datasheet

View All

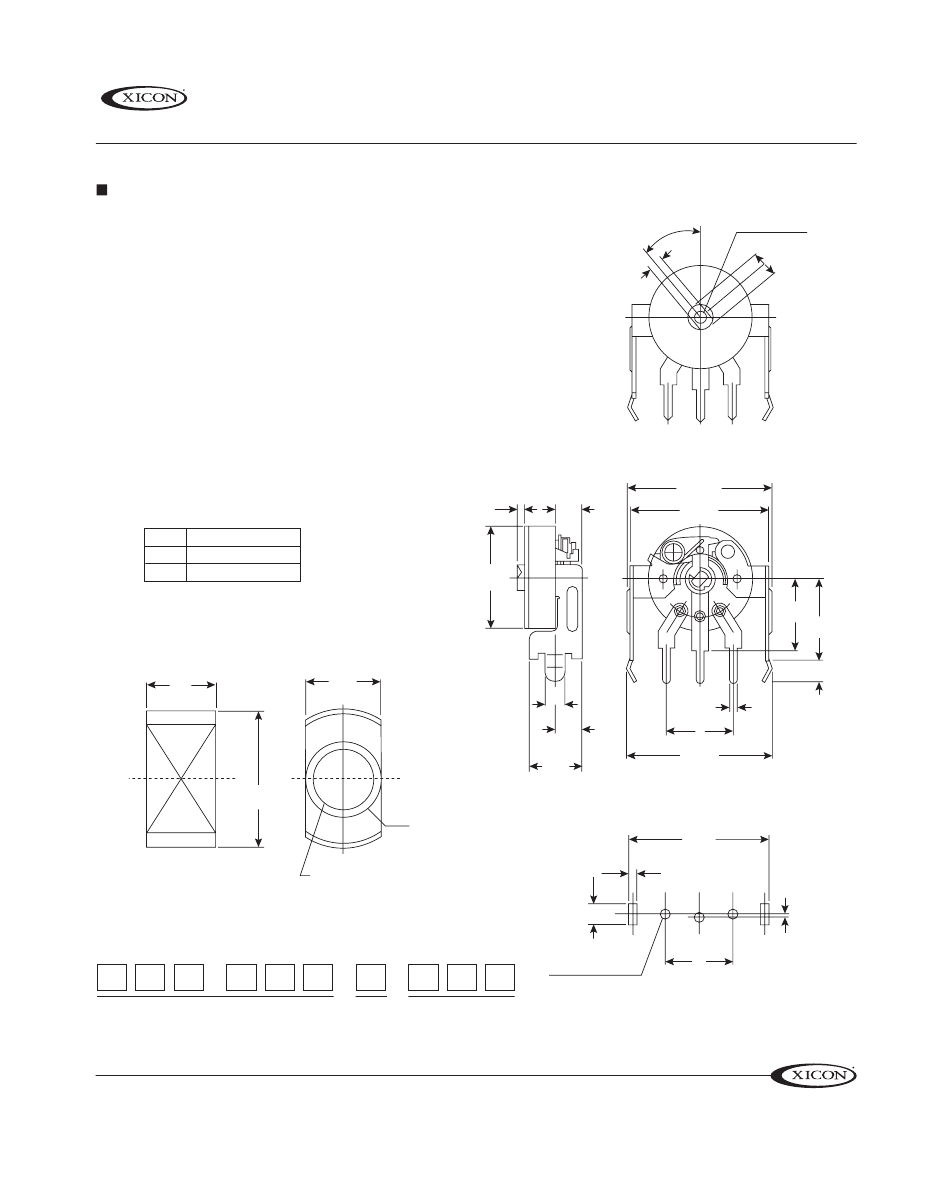

Molded Case Rotary Potentiometer with Switch

Specifications:

Electrical Characteristics:

• Total Resistance: 100Ω~ 1MΩ

• Total Resistance Tolerance: ±20%

• Max. Operation Voltage: Linear Taper B: AC 200V

• Rated Power: Linear Taper B: 0.1W

• Sliding Noise: Less than 100 mV

• Insulation Resistance: More than 50 MΩ at DC 500V

• Switch Circuit: S.P.S.T

• Switch Rated Power: 1.0 A at AC/DC 12V

Durability:

• Rotational Life: 10,000 Cycles

40°

VTW Series

M1.7XP 0.35

ø4.0

2.4

4.3

1.2 ± 0.1

4

21.8

21

L

A

O

1.0~5.0

2.2 ± 0/0.1

ø4.0

ø16

11.5

13

L 0.1

A

3

4.1

7.6

O

C.03

21

M1.7XP 0.36 Deep 3.5

+0.2

-0

3.5

1.2

10

22

2 - 1.2

+0.2

-0

2 - 3.1

0.5

Part Numbering System:

3

1

Series

1

-

1

7

0

Taper

-

1

0

Value

K

3 - ø1.4 - 0

+0.2

-0

Hole

10

Taper - 0

-1

Linear

Audio

XICON PASSIVE COMPONENTS • (800) 628-0544

XC-600009

Date Revised: 9/30/05

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

311-1701-1M Related Products

	311-1701-1M	311-1700-500K	311-1700-10K	311-1700-100K	311-1700-500	311-1701-500
Description	Potentiometers 16MM W/SW AUDIO 1M	Potentiometers 16MM W/SW LIN 500K	Potentiometers 16MM W/SW LIN 10K	Potentiometers 16MM W/SW LIN 100K	Potentiometers 16MM W/SW LIN 500	Potentiometers 16MM W/SW AUDIO 500
Product Category	Potentiometers	Potentiometers	Potentiometers	Potentiometers	Potentiometers	Potentiometers
Manufacturer	Xicon Passive Components	Xicon Passive Components	Xicon Passive Components	Xicon Passive Components	Xicon Passive Components	Xicon Passive Components
RoHS	No	No	No	No	No	No
Termination Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Product	Potentiometer	Potentiometer	Potentiometer	Potentiometer	Potentiometer	Potentiometer
Number of Gangs	1 Gang	1 Gang	1 Gang	1 Gang	1 Gang	1 Gang
Resistance	1 MOhms	500 kOhms	10 kOhms	100 kOhms	500 Ohms	500 Ohms
Taper	Audio	Linear	Linear	Linear	Linear	Audio
Mounting Style	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount
Power Rating	100 mW	100 mW	100 mW	100 mW	100 mW	100 mW
Tolerance	20 %	20 %	20 %	20 %	20 %	20 %
Number of Turns	1 Turn	1 Turn	1 Turn	1 Turn	1 Turn	1 Turn
Shaft Type	No Shaft	No Shaft	No Shaft	No Shaft	No Shaft	No Shaft
Shaft Diameter	16 mm	16 mm	16 mm	16 mm	16 mm	16 mm
Shaft Length	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm	4.3 mm
Type	Rotary	Rotary	Rotary	Rotary	Rotary	Rotary
Switch Type	Switch	Switch	Switch	Switch	Switch	Switch
Factory Pack Quantity	100	100	100	1	100	100
