32S151-S00L5

Description
RF Adapters - Between Series SMA Plug to BNC Plug Straight Adapter
CategoryThe connector    The connector
File Size354KB,2 Pages
ManufacturerRosenberger
Websitehttps://www.rosenberger.com/
Environmental Compliance
Download Datasheet Parametric View All

32S151-S00L5 Online Shopping

Suppliers Part Number Price MOQ In stock
32S151-S00L5 - - View Buy Now

32S151-S00L5 Overview

RF Adapters - Between Series SMA Plug to BNC Plug Straight Adapter

32S151-S00L5 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRosenberger
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Adapter typeSMA-BNC
Body/casing typePLUG-PLUG
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderMALE-MALE
Contact materialBRASS
Coupling typeBAYONET-THREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.12 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.08

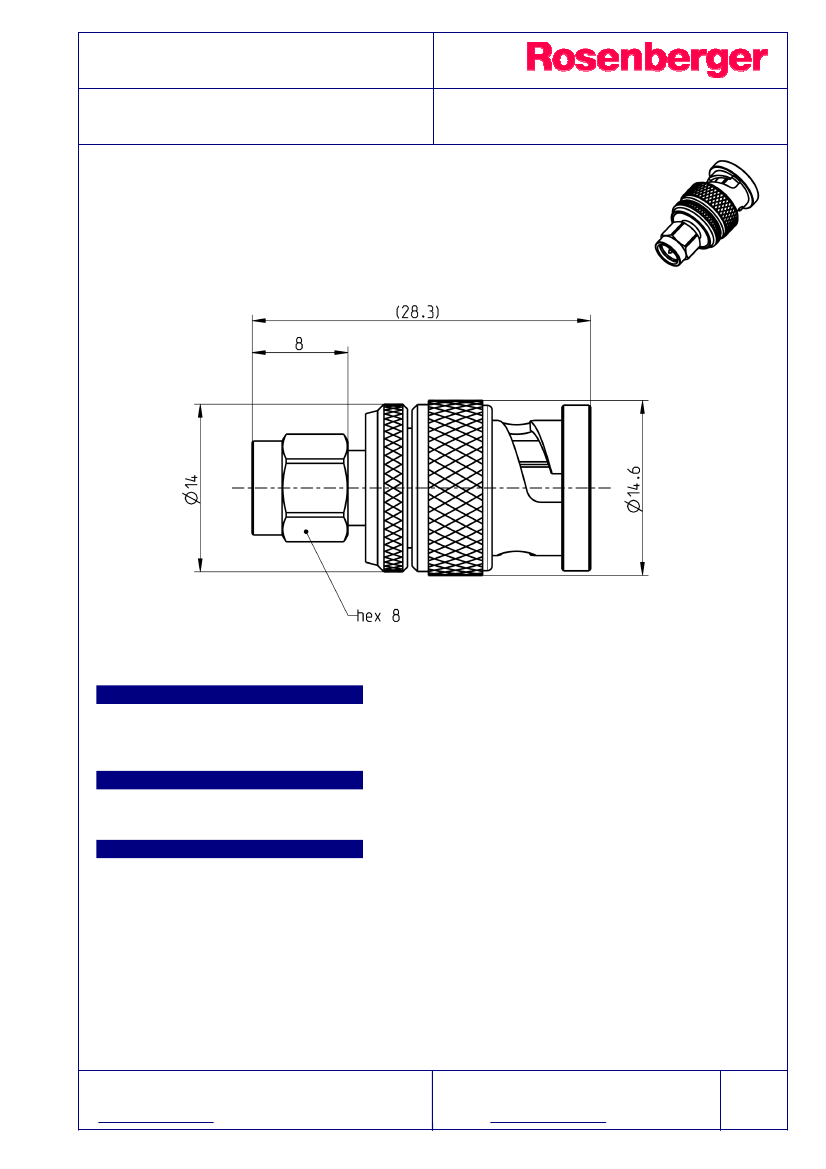

TECHNICAL DATA SHEET
ADAPTOR
SMA PLUG – BNC 50
PLUG
32S151-S00L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
SMA side:
BNC side:
IEC 60169-15; EN 122110; MIL-STD-348
IEC 60169-8, MIL-PRF-39012, CECC 22120
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact SMA side
Outer contact BNC side
Dielectric
Gasket
Coupling nut SMA side
Material
Brass
CuBe or equivalent
Brass
PTFE
Silicone
CuBe or equivalent
Plating
AuroDur®, gold plated
AuroDur®, gold plated
Nickel, 2.5-5 µm
Gold, 0.1 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
