180-071-NF42: DescriptionCircular MIL Spec Connector JAM NUT RCPT ASSMBLY CONN ENV RESISTANT; CategoryThe connector The connector; File Size325KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

180-071-NF42 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	180-071-NF42	-	-	View	Buy Now

180-071-NF42 Overview

Circular MIL Spec Connector JAM NUT RCPT ASSMBLY CONN ENV RESISTANT

180-071-NF42 Parametric

Parameter Name	Attribute value
Reach Compliance Code	not_compliant
Factory Lead Time	14 weeks
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	180-071
Installation type	PANEL
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

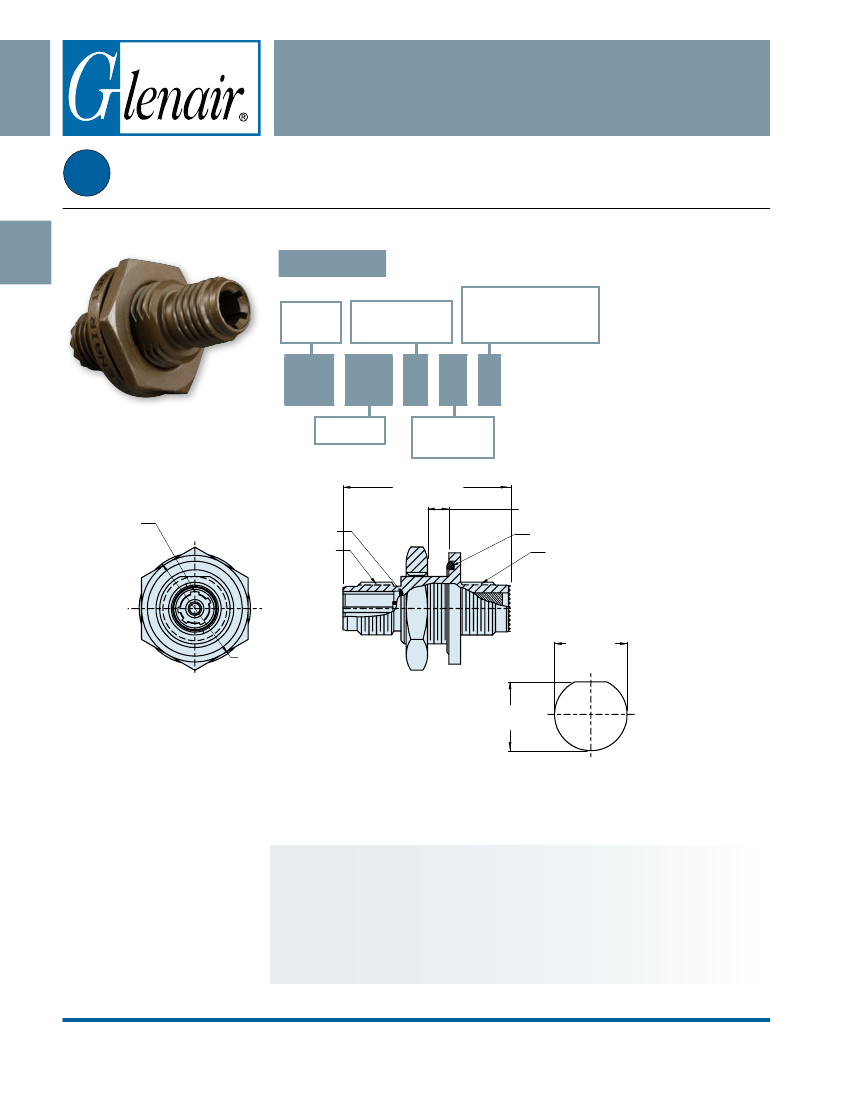

180-071 (-4) Jam Nut Mount Receptacle

Single Channel Fiber Optic Connector

Environment Resistant

for Glenair 181-002 Rear Release Pin Termini

MIL-DTL-38999

Series III Type

D38999

Series III

B

Single channel fiber optic jam nut mount receptacle connector

How To Order

Material/Finish

(Table II)

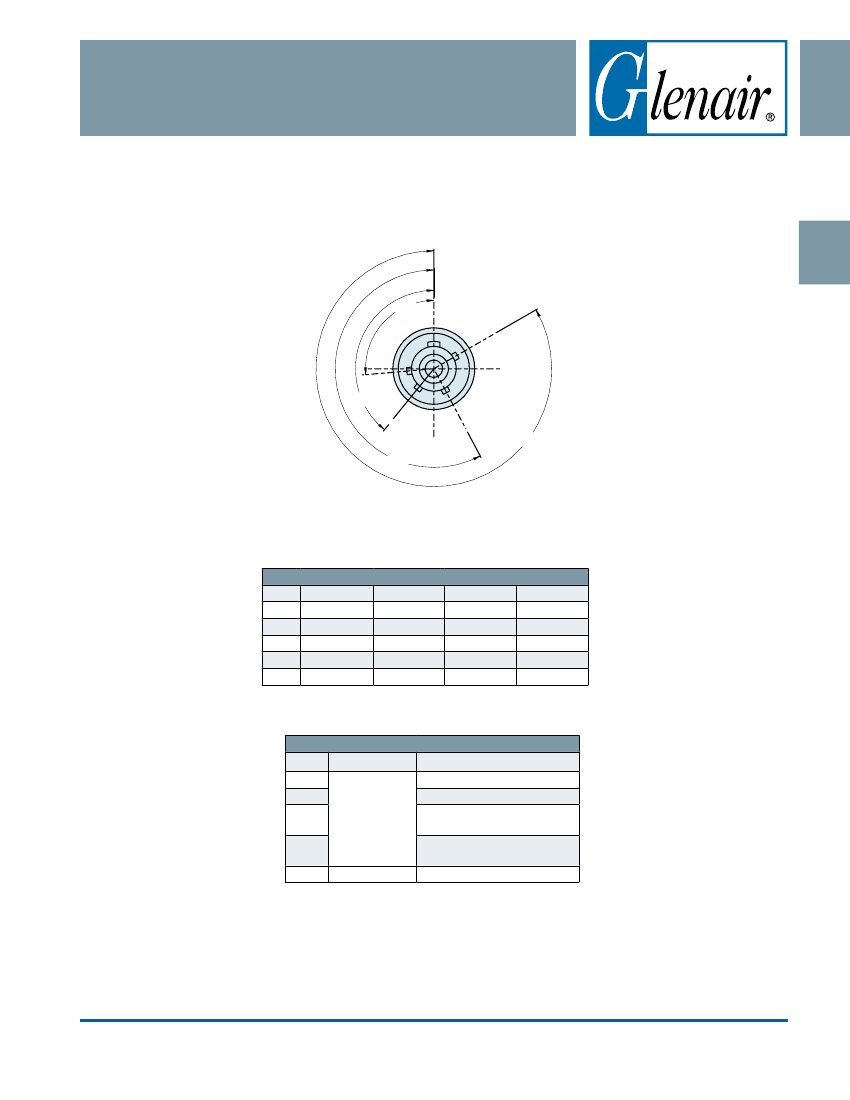

Alternate Key Position

1, 2, 3, 4,

&

5

(Table I)

Product

Series

180

-

071

-

C

Basic No.

4

1

4 = Jam Nut

Receptacle

1.125 (31.8)

Max

Master

Keyway

.125 (3.2) Max

Panel Thickness

Panel Seal

.375-24 UNF-2A

Interfacial Seal

.375-.05P-.1L DS-2A

Ø.783 (19.9)

Ø.510 (13.0)

.505 (12.8)

- 4

JAM NUT MOUNT

RECEPTACLE ASSEMBLY

.461 (11.7)

.457 (11.6)

RECOMMENDED

PANEL CUTOUT

JAM NUT MOUNT

RECEPTACLE

Material and Finish

Shell, Jam Nut: See Table II.

Panel Seal, Interfacial Seal: Fluorosilicone

Retention Clip: Copper Alloy

Notes

Operating Temperature Range: -55°C to +125°C

See Glenair drawing 181-002 for fiber optic pin terminus.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-60
