354179 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 354179

Preview

354179: DescriptionBoard to Board u0026 Mezzanine Connectors 50P 8MM SMT/THR VERT FEMALE B-B HS; CategoryThe connector The connector; File Size91KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

354179 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	354179	-	-	View	Buy Now

354179 Overview

Board to Board u0026 Mezzanine Connectors 50P 8MM SMT/THR VERT FEMALE B-B HS

354179 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	50

Preview

Download Datasheet

View All

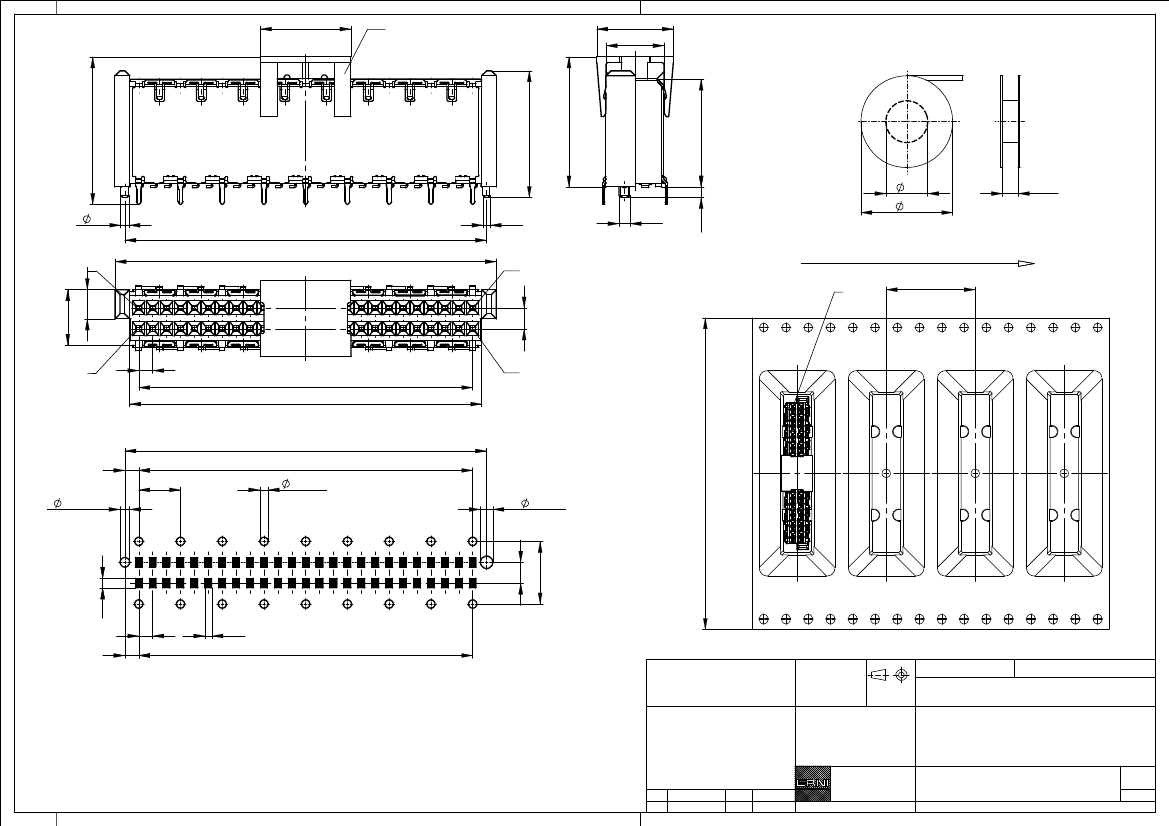

6,5

Ansaughaube

5,5

4,15

Verpackt in Gurtverpackung

-

Tape on Reel Packaging

Verpackungseinheit: 260 Stück -

Packaging unit: 260 pcs

hood

10,6

9,35

7,75

9,1

150

0,6

26

b1

27,4

b25

0,5

0,8

0,75

330

56,5

Abspulrichtung -

Reel off Direction

a1

16

2,1

a1

1

24 x 1 = 24

25,3

a25

Leiterplatten-Layout Vorschlag /

PCB-Layout Proposal

26

56

1.)

0,9

±0,03

Anforderungsstufe 1

4,5

1,5

0,7

1

0,5

24 x 1 = 24

1

1.)

3

0,7

±0,03

8 x 3 = 24

0,6

±0,05

1,5

4

Performance Level 1

Kontaktbereich vergoldet

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

5:1

Mating Area gold plating

1.) Durchmesser des Bohrers /

Drill tool

Anschlussbereich verzinnt 4-6µm

Terminal Area 4-6µm tin plating

Koplanarität der Anschlüsse

≤

0,1mm

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

a

Index

31.08.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

F08 MSpeed BlindMate 50 THR

Coplanarity Area of Termination

≤

0,1mm

www.ERNI.com

Class

354179

MSPEED

I

A3
